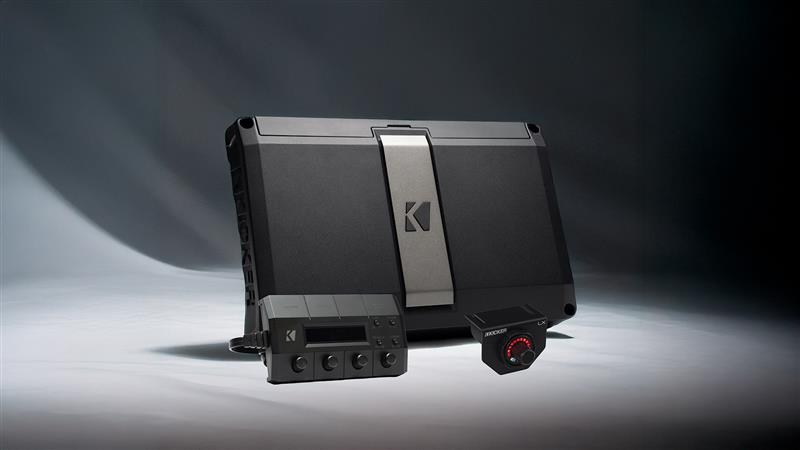

Kicker Plug & Play LX Amp Installation Guide '18- Current JL Wrangler/ '20-Current JT Gladiator
The following guide will walk you through the entire installation which includes a step by step catalog. Our installation video is in the works but this guide will get you over the finish line in the meantime.
If you have any questions, or need anything during the installation, we're only a phone call away. We're available Monday-Friday, 9am-5pm est. for any support needed, or you can shoot us an email at support@trailseven.com.
These installation notes are intended to be used in conjunction with the installation videos based on the your bundle.
Tech Tips
Tools You Will Need for Amplifier Install:
- Panel Removal Tool
- 7mm Socket
- 10mm Socket
- Zip Ties
- Allen Key Set
- Phillips Screwdriver
- Wire Snips
- Retractable Magnet Stick
- 18mm socket (for seat removal)
- Small Flathead Screwdriver
Section 1 - Amplifier Installation:
This guide will walk you through installing a dual amplifier setup in your Jeep Wrangler JL or Gladiator JT.
A detailed installation video is provided at the bottom of this guide to assist with the process. If you have any questions or need support during installation, we’re just a call away Monday–Friday, 9 AM–5 PM EST.
Before beginning, we suggest checking all parts and calling in or emailing if you are missing any parts for your system! We want to make sure you have everything to make the system work, below is a " What's In The Box" diagram pointing out all parts you will need for the install to work smoothly! "
Step 1: Remove Driver Seat
-
Use an 18mm socket to remove the four seat bolts.
-
Use a T45 Torx to remove the seatbelt bolt (if needed).
-
Tilt or fully remove the seat for better access to the amp location.
Step 2: Route Power and Ground Wires
-
Power Wire:
-
Route the 4-gauge power wire from the battery through the driver-side firewall (use the factory grommet or drill a small hole if necessary).
-
Run the power wire along the driver-side trim panels to the amplifier under the seat.
-
-
Ground Wire:
- The 5-Channel Amp Ground: Use the factory ground point under the driver seat (near the transmission tunnel).
-
Ensure a solid connection by removing any paint at the contact point.
-
Remote Turn-On Wire:
-
Route the blue remote wire from the PAC module (if using a factory radio) or from the remote wire of an aftermarket radio.
-
Step 3: Remove Radio & Access Signal Wiring
Factory Radio Installation (Using PAC Module)
If connecting to the factory radio, install the PAC AP4-CH41( or PAC AP4-CH42) module behind the glove box. Use the provided T-harness to connect the PAC module to the radio harness. If your Jeep isn’t factory amplified, make sure DIP switch #4 is DOWN (On Position) on the PAC module.
- Connecting the 9-wire harness:
- Connect the "bare-ends" or Ferrules to the Amp to the corresponding wires and channels
- Connect the PAC proprietary plug into the T harness of the PAC AP4-CH41 that located behind the head unit.
- Connecting the Bypass harness:
- Connect the "bare-ends" or Ferrules to the Amp to the corresponding wires and channels
- Unplug the harness plugs from your OEM amplifier, located behind the OBD2 port under the steering wheel, and connect the matching plugs from the Bypass harness to the plugs you removed from the Amplifier (there is one plug you will leave in the amplifier, due to canbus validation for the Jeep.
- Connect the blue remote turn-on wire from the PAC module to the blue amp remote wire (pre-terminated with a bullet connector).
-
Run RCA cables from the PAC module to both amplifiers:
-
RCA's from PAC → routed to the 5-channel amp under the driver seat.
-
Amplifier Speaker Wires:
-
Front speakers → Channels 1 & 2
-
Rear speakers → Channels 3 & 4
-
All speaker wires are pre-terminated ferrule connectors make wiring easy.
-
- RCA Connections:
-
Front & Rear RCA cables from PAC module or radio.
-
-
Step 4: Adjust Amplifier Settings
5-Channel Amp Settings:
- Gain: *NOTICE: Do not use the picture as reference for the gains!* The LX amplifier is specifically designed to set the gains specific to your vehicle. Every Jeep's gains are different. Please watch the LX set up video below to set the gains up to your vehicle.
- Fader: On or pushed in
- Sub Input: Sub or pushed in
- DC Offset: Off or pushed out
Accessory Settings:
-
Borromean rings ( Left most triple circle symbol): This is the LED color circulation button to cycle this different colors of both the amplifier and bass knob.
-
8 rayed circle ( Middle sun symbol): This is the LED color brightness button to cycle the brightness of the LED's of both the amplifier and bass knob.
-
Arrowed circle ( Right most refresh symbol): This refreshed and reboots the amplifier to go back to factory default settings. Please note this will delete all tuning previously made.
Installation and set up video
