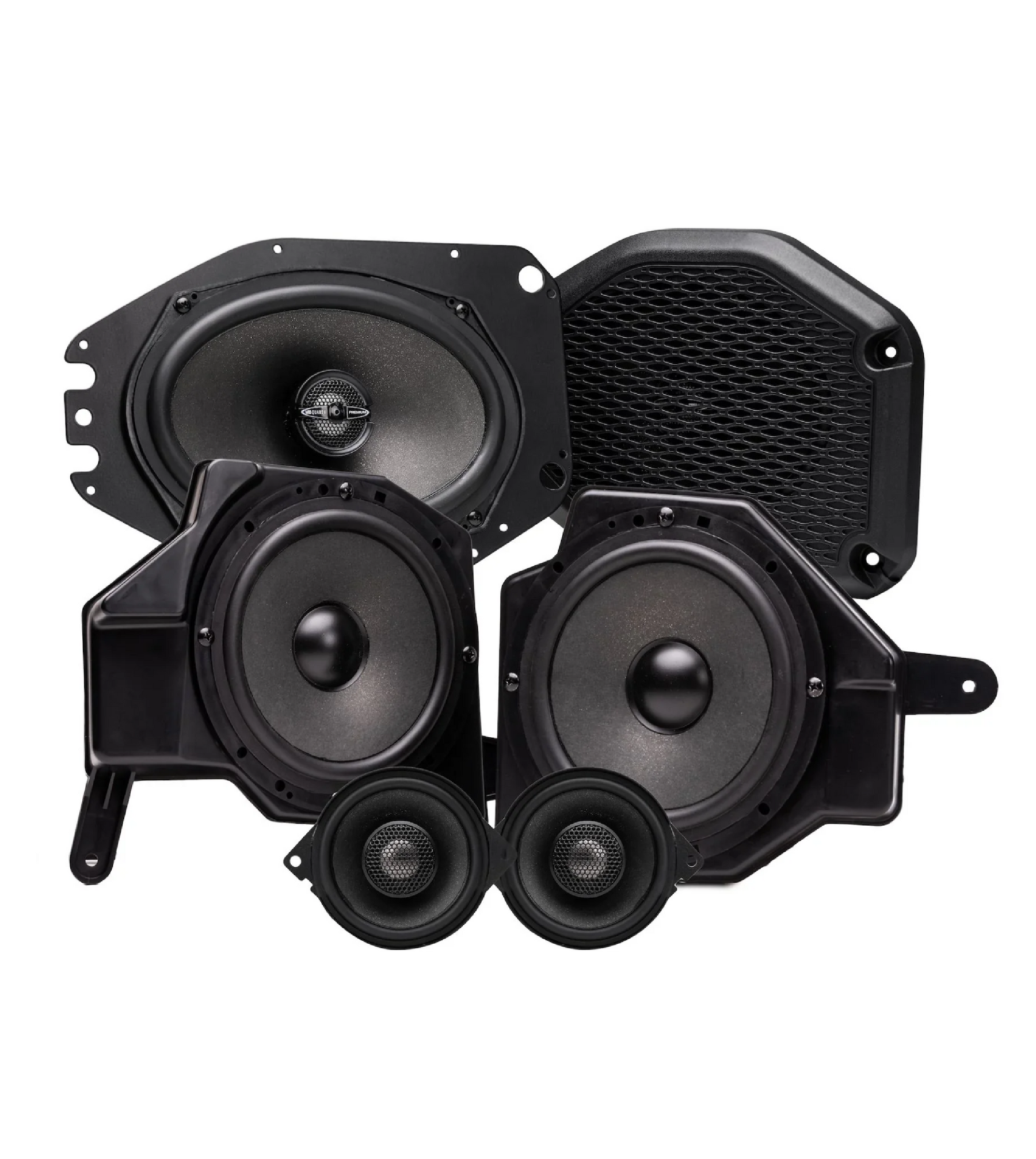

MB Quart MBQJ-STG6-1 Six Speaker Plug and Play Upgrade I '18-'23 JL Wrangler/ '20-'23 JT Gladiator
September 17, 2023
Mike Traxler
Please follow these installation tips when you're ready to install your new MB Quart Stage 6 upgrade into your '18- '23 JL Wrangler or your '20- '23 JT Gladiator.
These tips are intended to be used in conjunction with our full installation video below:
These tips are intended to be used in conjunction with our full installation video below- MB Quarts video for reference and guidance-
1. Dash Tweeters-
- Remove and install per the video.
- The 3.5" coax speaker will come with the connector in the box. You'll attach to the speaker and connect to the OEM connection on the upper dash.
2. Knee Panels-
- Remove and install per the video.
- Speaker will come installed in the box with the crossover mounted inside. Connect to the OEM speaker connector.
3. Soundbar-
- Remove and install per the video.
- If you are cutting your own sound bar, the template to use is the thin metal piece provided which is also the speaker mount. It is not necessary to make a perfect cut as the hole is covered by the metal sheet and by the speaker.
