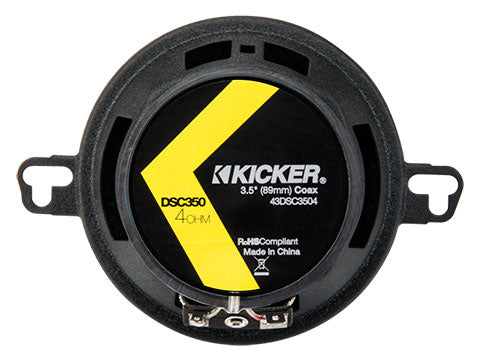

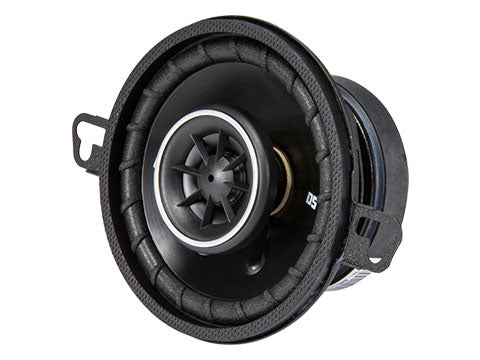

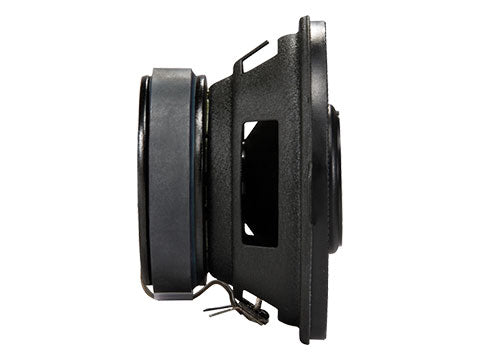

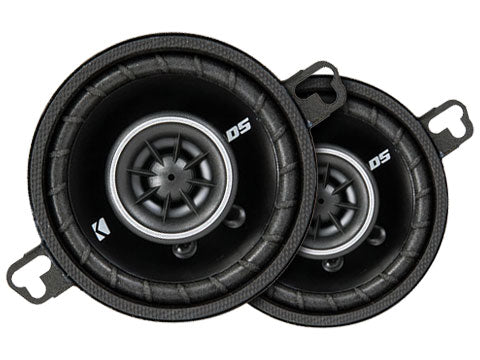

Kicker 43DSC3504 3.5" Coax Speaker

The KICKER® DS coaxial fits nearly any vehicle door for an enormous improvement over factory sound. With stiff polypropylene cones and ribbed, UV-treated foam surrounds these drivers give you the realism and power you’ve always wanted.

Magnets Matter:
The high-sensitivity DS motor is made to deliver increased volume, whether you use a factory head unit or high power KICKER DX Amplifier.

Awesome Sound:
The zero protrusion PEI dome tweeters play clean, crisp music without getting in the way of factory grilles and window motors.

DS Series 3.5" Coax:
The DS 3-1/2-Inch Coaxial Speakers are an excellent factory upgrade.

These coaxial speakers are a significant upgrade in your sound. A stamped steel framework supports a ribbed, UV-treated foam surround and rigid polypropylene cone with EVC™ (Extended Voice Coil) technology, for the best sonic quality. Using zero protrusion PEI tweeters ensures you get every bit of clarity you need, without interfering with factory grilles.

These DS speakers work best with 20 watts of recommended power.

Model: 43DSC3504 (DS-Series 3.5″ Coaxial)
Speaker Design: 2-Way coaxial
Woofer Size: 3.5″ (89 mm) polypropylene cone with ribbed polyester foam surround
Tweeter Size: ½″ (13 mm) PEI balanced-dome (zero-protrusion)
Impedance: 4 Ω
Recommended Amplifier Power (RMS per speaker): 20 W
Peak Power Handling (per speaker): 80 W (160 W per pair)
Sensitivity: 88 dB @ 1 W/1 m
Frequency Response: 80 Hz – 20 kHz
Mounting Hole Diameter: 3 in (76 mm)
Top Mount Depth: 1 5/8 in (41 mm)
Bottom Mount Depth: 1 7/8 in (47 mm)
Tweeter Protrusion: 1/8 in (3 mm)
Grilles Included: No
Tweeter Magnet Material: Neodymium
Tweeter Dome Material: PEI (polyetherimide)
Woofer Cone Material: Polypropylene
Surround Material: Polyester foam
Construction Features: EVC™ (Extended Voice Coil) tech, zero-protrusion tweeter, UV-treated surround
Warranty: 2 Years when purchased from an Authorized KICKER Dealer or kicker.com
