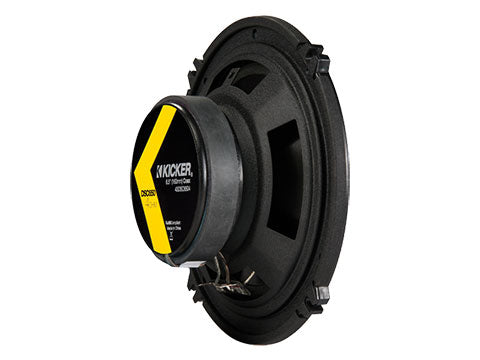

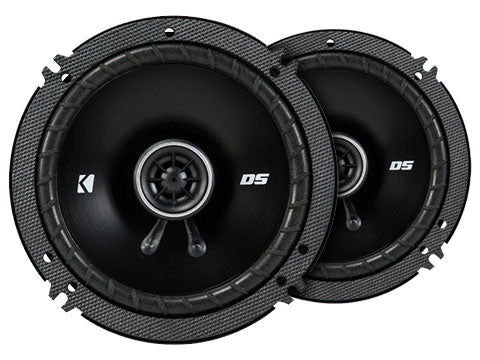

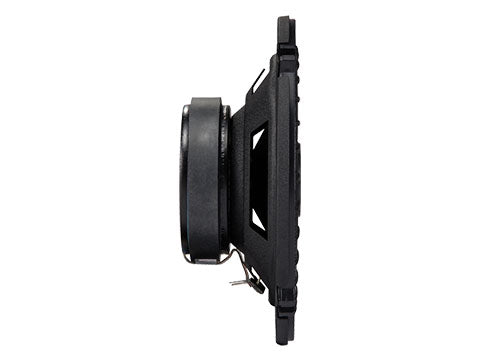

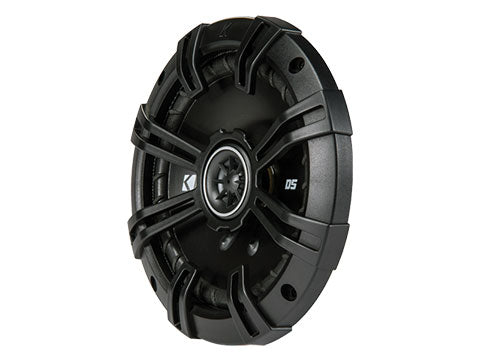

Kicker 43DSC6504 6.5" Coax Speaker

The KICKER® DS coaxial fits nearly any vehicle door for an enormous improvement over factory sound. With stiff polypropylene cones and ribbed, UV-treated foam surrounds these drivers give you the realism and power you’ve always wanted.

Magnets Matter:
The high-sensitivity DS motor is made to deliver increased volume, whether you use a factory head unit or high power KICKER DX Amplifier.

Awesome Sound:
The zero protrusion PEI dome tweeters play clean, crisp music without getting in the way of factory grilles and window motors.

DS Series 6.5" Coax:
The DS 6-1/2-Inch Coaxial Speakers are the ideal upgrade for your car doors.

Using zero protrusion PEI tweeters ensures you get every bit of clarity you need, without interfering with factory grilles. A stamped steel framework supports a ribbed, UV-treated foam surround and rigid polypropylene cone with EVC™ (Extended Voice Coil) technology, for the best sonic quality.

These DS speakers work best with 60 watts of recommended power

Model: 43DSC6504 (DS-Series 6.5″ Coaxial)
Speaker Design: 2-Way coaxial
Woofer Size: 6.5″ (160 mm) polypropylene cone with ribbed polyester foam surround
Tweeter Size: ½″ (13 mm) PEI balanced-dome (zero-protrusion)
Impedance: 4 Ω
Recommended Amplifier Power (RMS per speaker): 60 W
Peak Power Handling: 240 W
Sensitivity: 90 dB @ 1 W/1 m
Frequency Response: 40 Hz – 20 kHz
Mounting Hole Diameter: 4-13/16″ (123 mm)
Top Mount Depth: 1-11/16″ (43 mm)
Bottom Mount Depth: 2-1/16″ (52 mm)
Tweeter Protrusion: 0 mm (flush)
Grilles Included: Yes (steel mesh)
Tweeter Magnet Material: Neodymium
Tweeter Dome Material: PEI (polyetherimide)
Woofer Cone Material: Polypropylene
Woofer Surround Material: Polyester foam
Construction Features: EVC™ (Extended Voice Coil), zero-protrusion tweeter for seamless install, optimized for factory fitment
Warranty: 2 Years when purchased from an Authorized KICKER Dealer or kicker.com
