AUTO EQ:
Using KICKER’s supplied test tones (below), the KEY automatically analyzes the audio being fed into the amplifier. Once this signal has been analyzed, the amp will automatically fix peaks in the signal coming in and restore the low bass that is typically missing. In a matter of moments, you get a clean, even bass response from your amp!

Start with these FREE TEST TONES for easy setup!

ALL THE CONTROL:

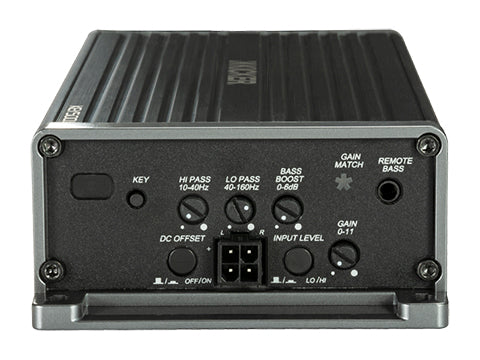

Craft your sound with ease! The KEY500.1 comes with 24dB sub-sonic and low-pass crossovers, bass boost and gain controls.

HIDDEN TREASURE:
Measuring about eight inches long and less than two inches high, the KEY500.1 fits nearly anywhere. Mount it behind your glove box, under the seat, or in your trunk with ease.

START. DON’T STOP:
The amplifier also features FIT+™ (Fail-safe Integration Technology PLUS) – which provides nearly universal compatibility with stock or aftermarket radios. Another industry first, the KEY500.1 is uniquely suited to accept factory input signals as high as 40 volts (400 watts). The KEY amplifier will work with almost every car on the road today, whether you have a factory or aftermarket audio system.

Remote Control:
Your KEY500.1 amplifier is compatible with the CXARC remote control. Use it to customize your bass on the fly with just a turn of a knob!

If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.

SUGGESTED ENCLOSURES:
While we suggest this list for the ultimate bass experience, KEY500.1 will actually work with all KICKER subwoofers up to 12 inches; see your sales associate for the ideal subwoofer in your particular system, because every system is unique.

4Ω = 150 Watts RMS
2Ω = 300 Watts RMS
1Ω = 500 Watts RMS

Model: KEY500.1
Power (Watts/Ch) 4 Ω Mono: 150 @ 14.4 V, ≤ 1 % THD+N
Power (Watts/Ch) 2 Ω Mono: 300 @ 14.4 V, ≤ 1 % THD+N
Power (Watts/Ch) 1 Ω Mono: 500 @ 14.4 V, ≤ 1 % THD+N :contentReference[oaicite:1]{index=1}
Frequency Response: 10–160 Hz :contentReference[oaicite:2]{index=2}
Signal-to-Noise Ratio: > 90 dB A-weighted (rated power) :contentReference[oaicite:3]{index=3}
Input Sensitivity (Low / High): 125 mV–5 V / 1 V–40 V :contentReference[oaicite:4]{index=4}
Electronic Crossover: Variable low-pass 40–160 Hz; variable high-pass 10–40 Hz :contentReference[oaicite:5]{index=5}
Bass Boost (KickEQ™): 0–6 dB @ 40 Hz :contentReference[oaicite:6]{index=6}
Compact Size: 1-11/16″ H × 4-1/8″ W × 8-1/8″ L (4.3 × 9.2 × 20.7 cm) :contentReference[oaicite:7]{index=7}
Features: AI-driven DSP (Auto-EQ), FIT+™ integration, CXARC remote compatible, compact form factor :contentReference[oaicite:8]{index=8}
Warranty: 2 Years when purchased from an Authorized KICKER Dealer or kicker.com :contentReference[oaicite:9]{index=9}
