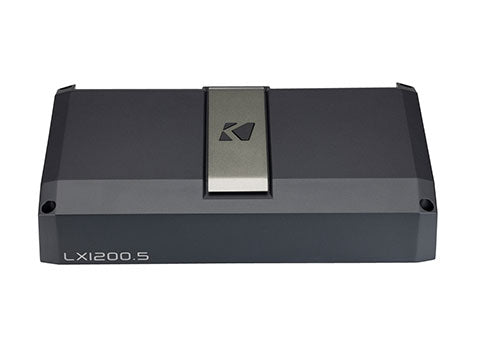

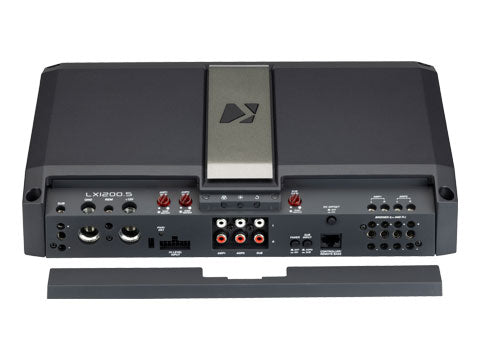

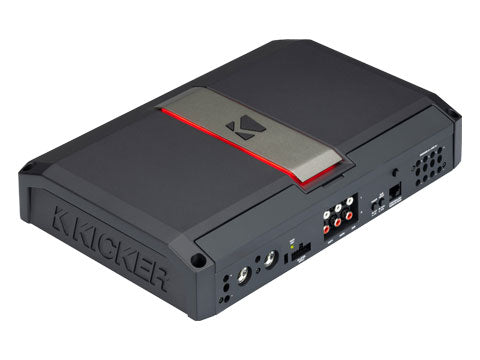

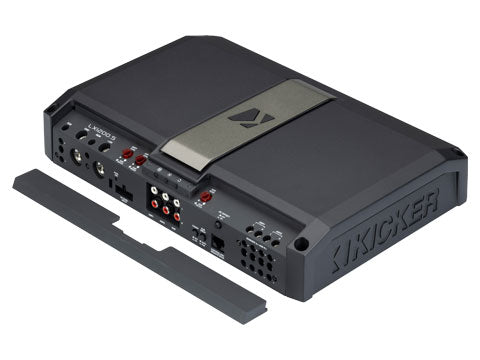

Kicker LX12005 5-Channel Amplifier

LX1200.5 5-Channel Amplifier:
The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All multi-channel amplifiers are bridgeable and come with a wired control center (LXCC). LX Amps with sub sections come with a robust remote level control (LXRC) featuringSHOCwave2.0™.

From the Ground Up:
The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.

• Incrementally dial in entire system with the included LX Control Center
• Monitor and adjust sub section with the included LXRC Dash Remote
• Class-D design for lower current draw, longer playing times, and lower operating temperatures
• Gain-match LEDs show you perfect gain setting
• Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
• Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
• LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance

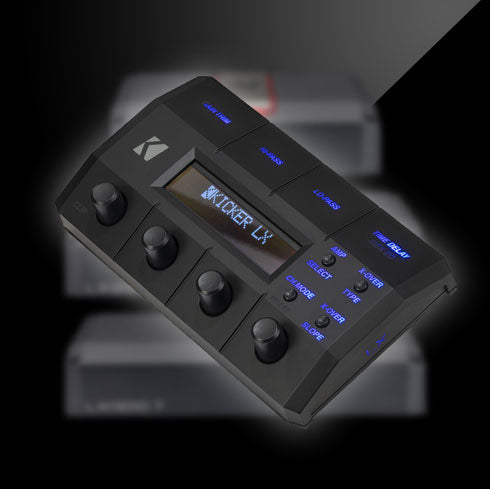

Comes with the LX CONTROL CENTER (LXCC)

• Diagnostic Readouts: Monitor battery voltage, LED output clip indication, amp temperature, and protection status in real time
• Precision Control: Adjust gain trim, left-channel time delay, and selectable crossover type, slope, and frequency. Allows for both HP, LP or BP crossovers for all full-range channels
• Parametric Bass Boost: 0-6dB with adjustable center frequency and Q for the sub channel
• Cable Length – integrated 3.28 feet (1m), directly into amp

-Learn More / LX Control Center PDF-

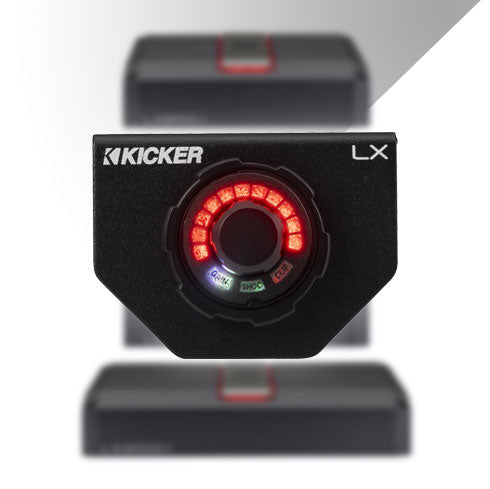

Comes with the LX REMOTE CONTROL (LXRC):

• Dynamic fingertip dash remote of bass level adjustment
• Features SHOCwave2.0™ (Sub-Harmonic Octave Creation), KICKER’s 2nd-gen digital bass restoration algorithm that recovers lost, low-bass frequencies vital to your music selections
• Displays battery voltage in fuel-gauge-style readout
• Control of its RGB LED brightness
• Output clipping indicator to prevent distortion and protect your system
• Cable Length – 19.75 feet (6m) RJ45 cable

Model: 51LX12005 (LX1200.5)
RMS Power – Stereo Channels 4 Ω: 125 × 4 W (@14.4 V, ≤1% THD+N)
RMS Power – Stereo Channels 2 Ω: 175 × 4 W
RMS Power – Bridged 4 Ω: 350 × 2 W
RMS Power – Subwoofer Channel: 700 W @ 1 Ω, 550 W @ 2 Ω, 300 W @ 4 Ω
Dynamic Power: 1500 W :contentReference[oaicite:1]{index=1}
Frequency Response: Stereo: 20 Hz–20 kHz; Sub: 10–160 Hz (+0/–1 dB) :contentReference[oaicite:2]{index=2}
Signal-to-Noise Ratio (rated power): > 95 dB A-weighted :contentReference[oaicite:3]{index=3}
Signal-to-Noise Ratio (1 W): > 75 dB :contentReference[oaicite:4]{index=4}
Input Sensitivity: Low-level: 125 mV–5 V; High-level: 1 V–40 V :contentReference[oaicite:5]{index=5}
Variable Electronic Crossover (Amp 1 & 2): Off/HP/LP/BP; HP: 20–5 kHz; LP: 40–5 kHz; select slope: 12/18/24 dB/oct, Butterworth or Linkwitz-Riley :contentReference[oaicite:6]{index=6}
Variable Sub Channel Crossover: LP 40–160 Hz, 24 dB/octave (Linkwitz-Riley) :contentReference[oaicite:7]{index=7}
Variable Subsonic Filter: 10–80 Hz, 24 dB/octave (Linkwitz-Riley) :contentReference[oaicite:8]{index=8}
KickEQ+™ Bass Boost (Sub): 0–6 dB, variable center 20–80 Hz, bandwidth 1–5 :contentReference[oaicite:9]{index=9}
Dimensions: Height 2-3/8″ (6 cm), Width 8-7/16″ (21.4 cm), Length 12-5/8″ (32 cm) :contentReference[oaicite:10]{index=10}
Warranty: 2 Years (Authorized Dealer) :contentReference[oaicite:11]{index=11}
