Kicker Plug & Play Dual LX Amp Kit Bundle Upgrade | '18- Current JL Wrangler/ '20- Current JT Gladiator

Kicker Plug & Play Dual LX Amp Kit Bundle Upgrade | '18- Current JL Wrangler/ '20- Current JT Gladiator

Kicker
Price:
$1,537.89
$2,196.98
$1,777.98 - $2,386.98
$2,196.98
$1,244.59 - $1,670.89
$1,537.89
Sale Sale

Frequently Bought Together:

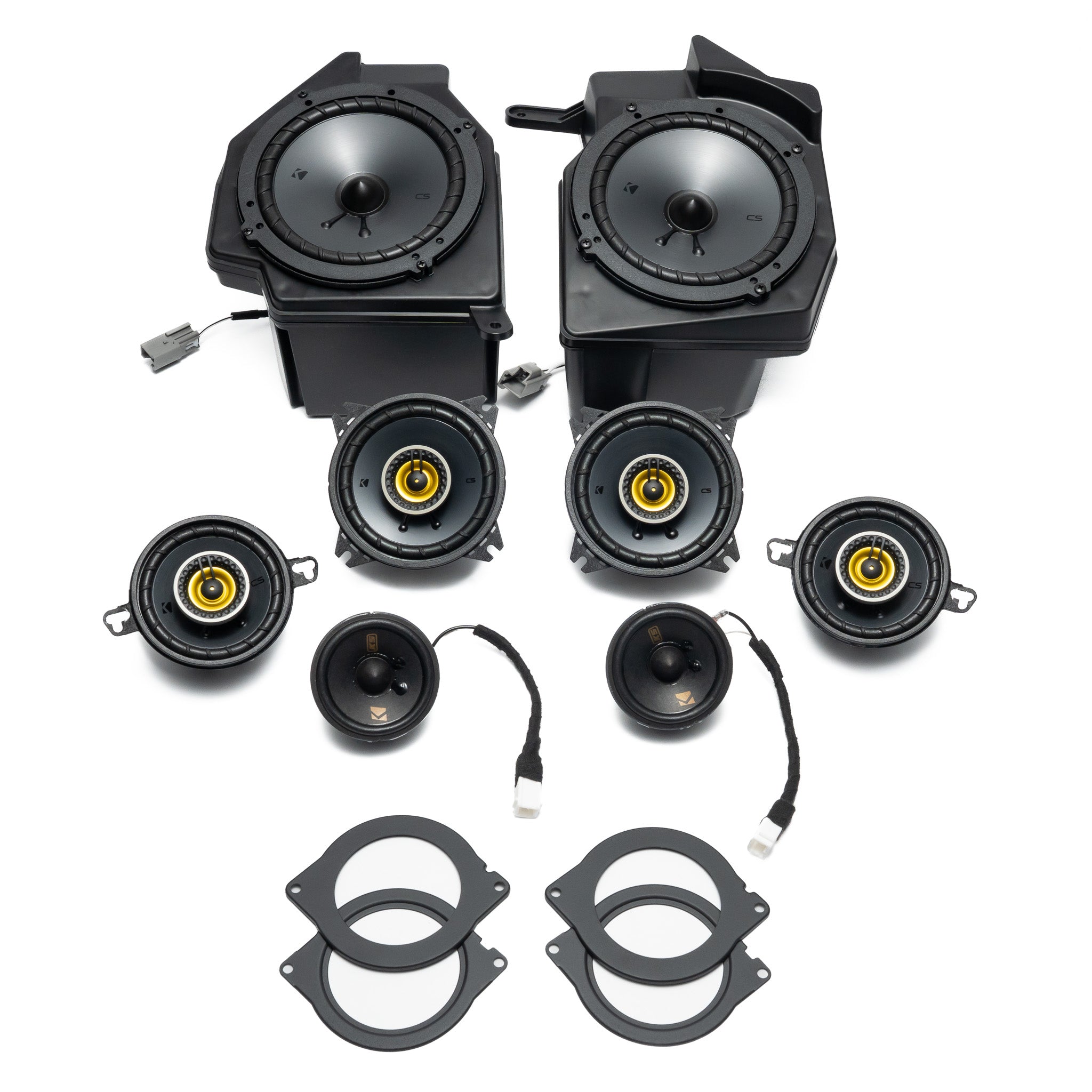

  • Kicker KS Plug & Play Speaker Bundle Upgrade (Factory Amplified) | '18-'23 JL/ '20-'23 JT

    $460.52 $541.79
    Add to cart

  • Kicker CS Plug & Play Speaker Bundle Upgrade | '24 - Current JL Wrangler/ '24 - Current JT Gladiator

    $358.58 $421.86
    Add to cart

  • Kicker Down-Firing 10" CompRT 2-Ohm Enclosure Upgrade

    $255.99 $319.99

  • Kicker Down-Firing 12" CompRT 2-Ohm Enclosure Upgrade

    $279.99 $349.99

Free US Standard Shipping with 30-Day Returns

The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible.

Complete plug and play option available!

If your Jeep is factory amplified, we have a plug and play solution to install a new amplifier, bypass the factory amplifier, and utilize the existing speaker wires out to each speaker. That's right, no need to run new wires from the amp, with our harness, simply route the provided Trail Seven Amp Harness from the amplifier to the factory amplifier location (under steering wheel) and connect our harness!

Kicker Tech Talk- Setting up your LX amplifier:

Product Information

Features, Description, Reviews, Q&A ,Specs & Installation

OVERVIEW

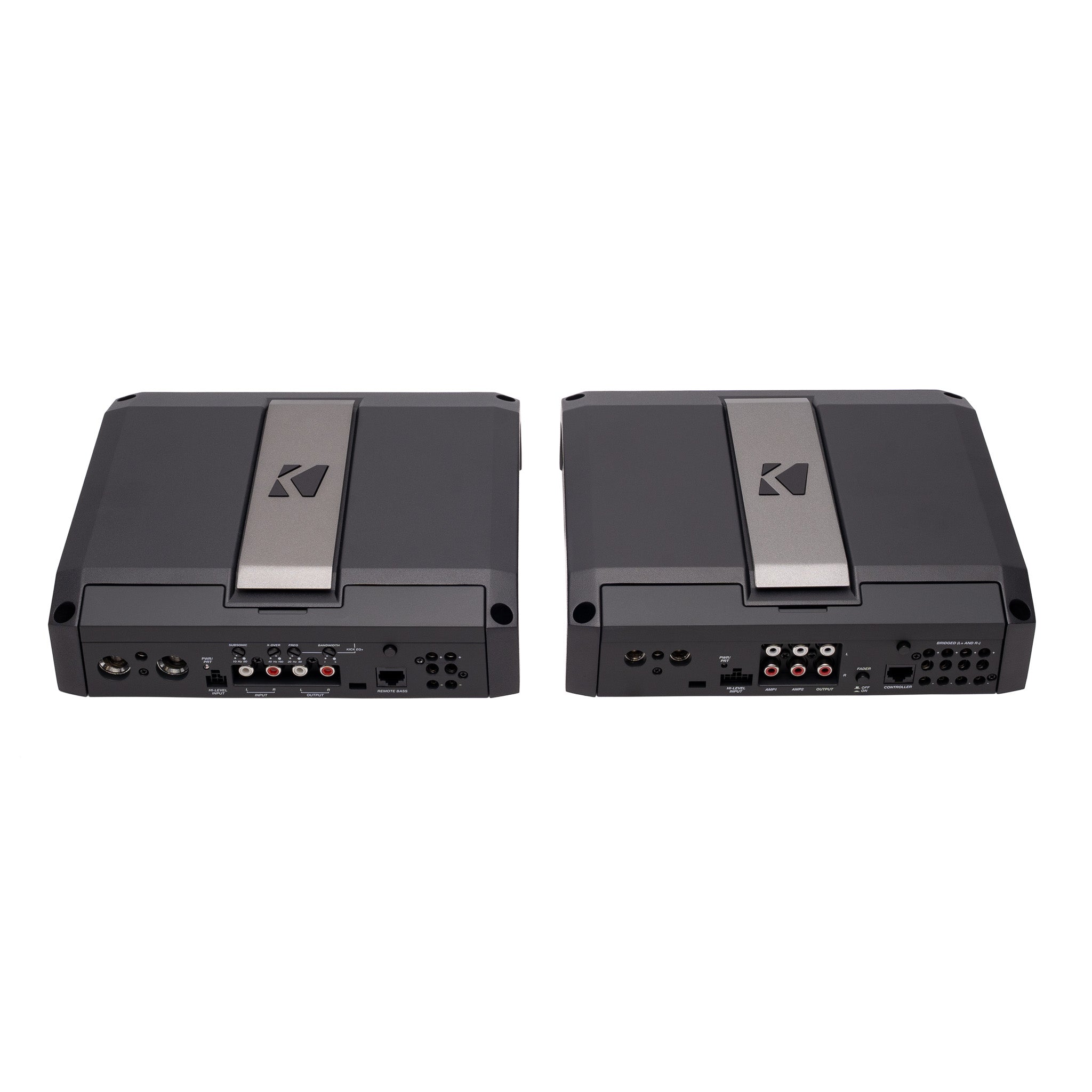

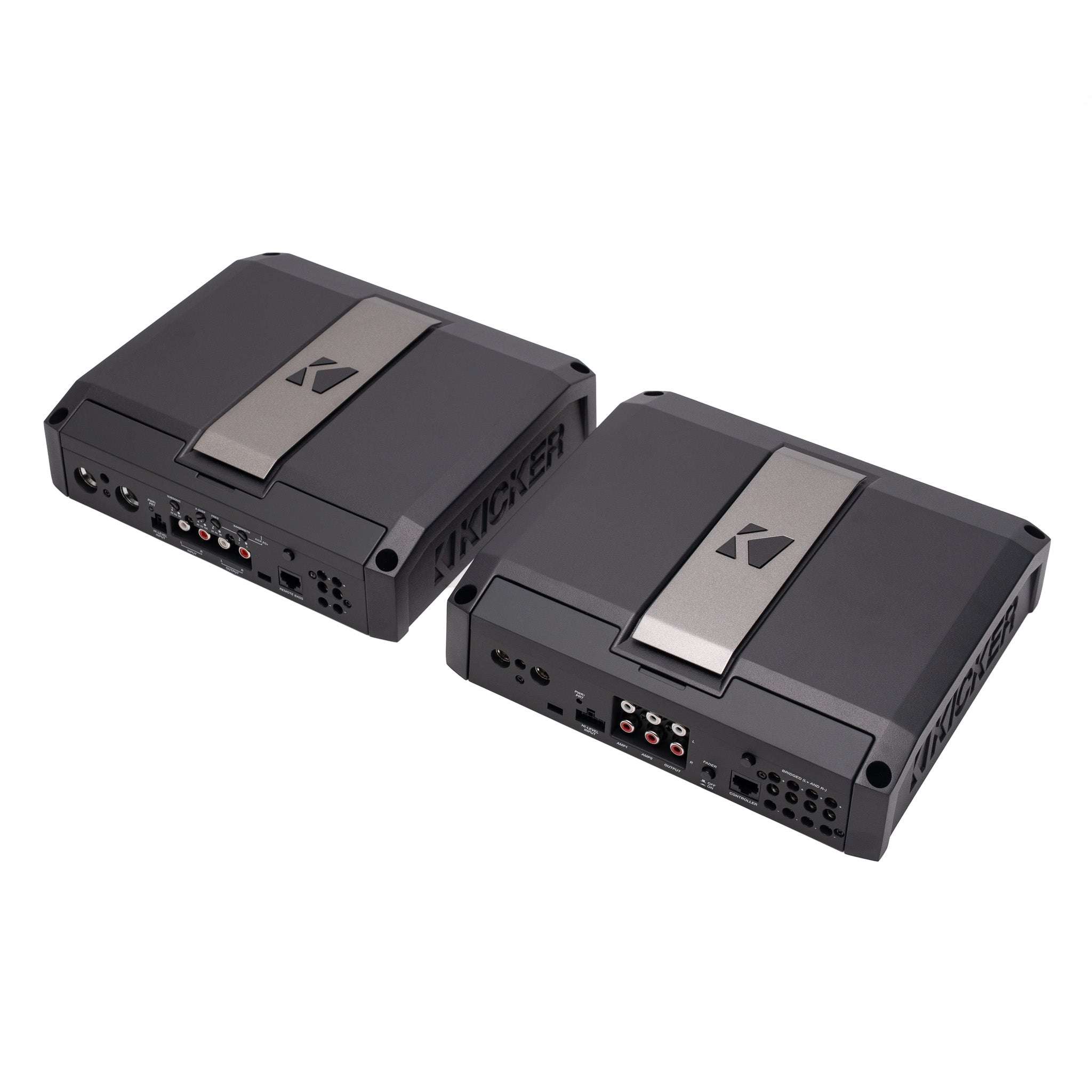

The Kicker LX dual amplifiers are built to handle the demands of modern car audio systems that call for premium amplification and serious power. With DSP-driven features and versatile system design options, it provides both flexibility and control. The amplifier’s ability to balance sound quality with high-output performance makes it an excellent choice for audio enthusiasts who want reliable power, precision, and an elevated listening experience.


We've eliminated the guesswork, making it easy to upgrade your Jeep's audio system. Our bundles are 100% plug-and-play, with all components pre-wired and terminated for a smooth, seamless installation. Enjoy premium sound quality without worrying about compatibility or figuring out what fits where. Just install and enjoy the tunes!


Plug & Play: Every bundle is pre-wired and fully assembled at our Frederick, Maryland shop before shipping. When your bundle arrives, it's ready to drop right into your vehicle. Just follow our step-by-step video and installation guides for an effortless plug-and-play installation.


Tested and Approved by Trail Seven:  We're proud to give this package our stamp of approval, ensuring it delivers the performance you expect!

PRODUCT HIGHLIGHTS

Tune and Go Ready: Designed for durability and packed with powerful sound-shaping features, the Kicker LX 500.4 multi-channel amplifier delivers customizable digital signal processing and impressive output power, ensuring top-notch audio every time you play your favorite tracks. Not only does it perform exceptionally, but it also looks great, with adjustable RGB accent lighting and a sleek reversible cover plate that proudly displays the Kicker logo.


Compatible with Factory Systems: The LX-Series amplifier is equipped with Kicker's FIT+™ technology, making it compatible with nearly any factory stereo. It also includes high-level speaker wire input adapters for a hassle-free installation. Additionally, the amp’s gain controls are designed with built-in clip lights to help ensure proper gain adjustment.


RMS Power Wattage: The LX500.4 features four powered output channels, delivering 125 watts to four full-range speakers and up to 1250 watts to a subwoofer from the mono amp.

FEATURES

  • Gain-match LEDs show you perfect gain setting
  • Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
  • Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
  • LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance
  • Class-D design for lower current draw, longer playing times, and lower operating temperatures

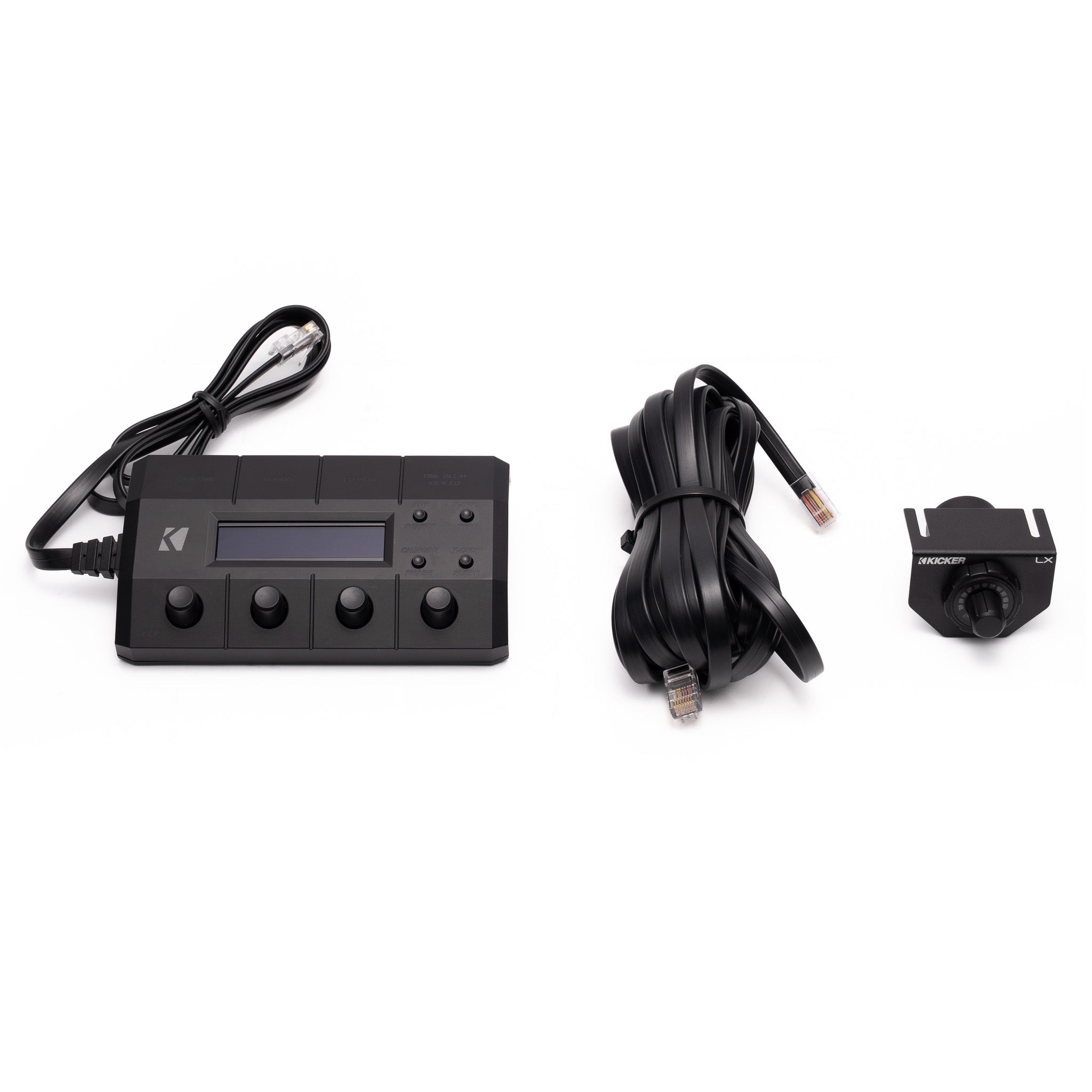

  • Monitor and adjust sub section with the included LXRC Dash Remote
  • Incrementally dial in entire system with the included LX Control Center
  • Plug and Play application from Trail Seven
  • All necessary wiring included

Warranty Information

When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase.

COMPATIBILITY

  • 2018+ JL Wranglers
  • 2018+ JT Gladiators
  • Works with non-factory amplified and amplified systems

PACKAGE OPTIONS

Factory or Aftermarket Radio w/ Factory or Non-Factory Amplified Explained

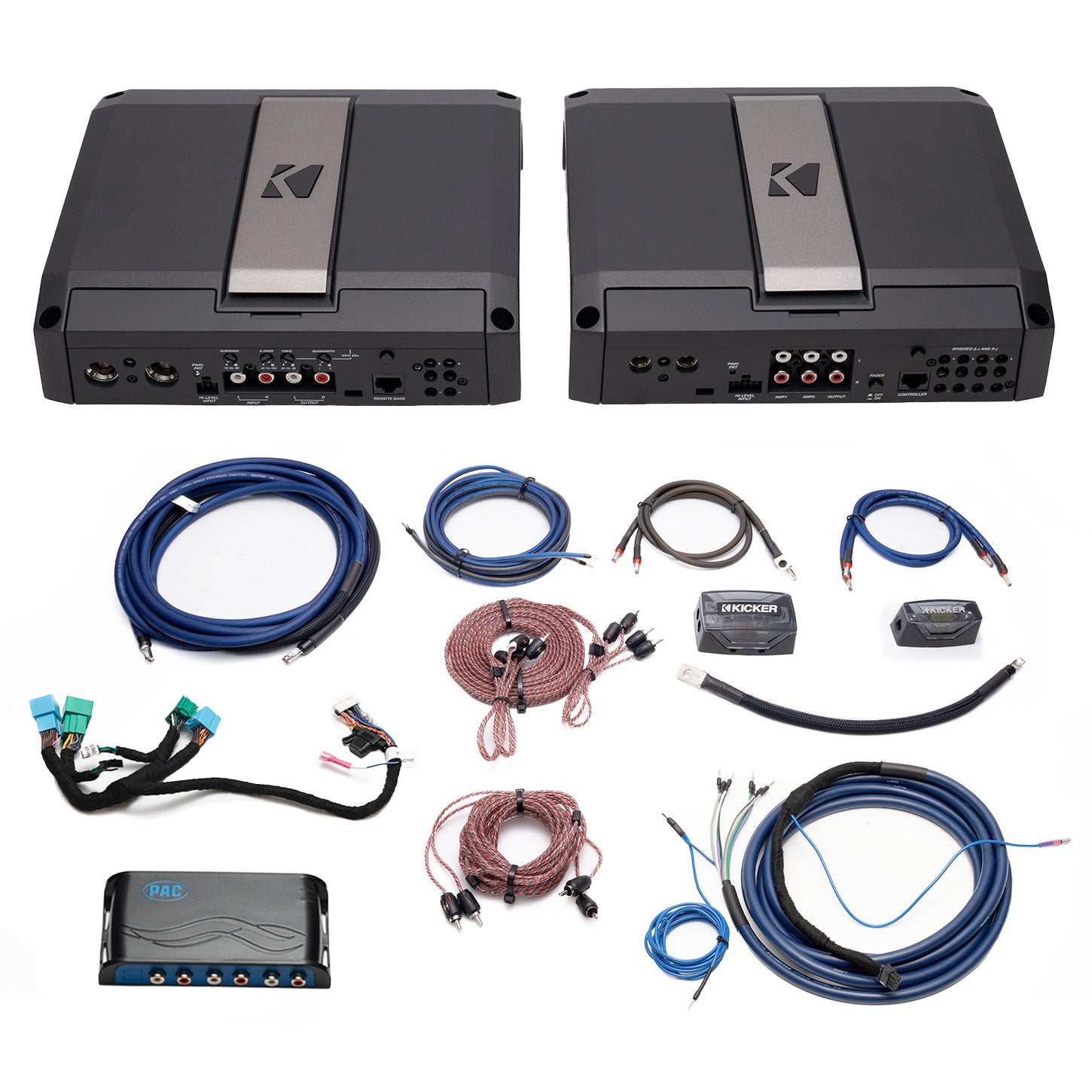

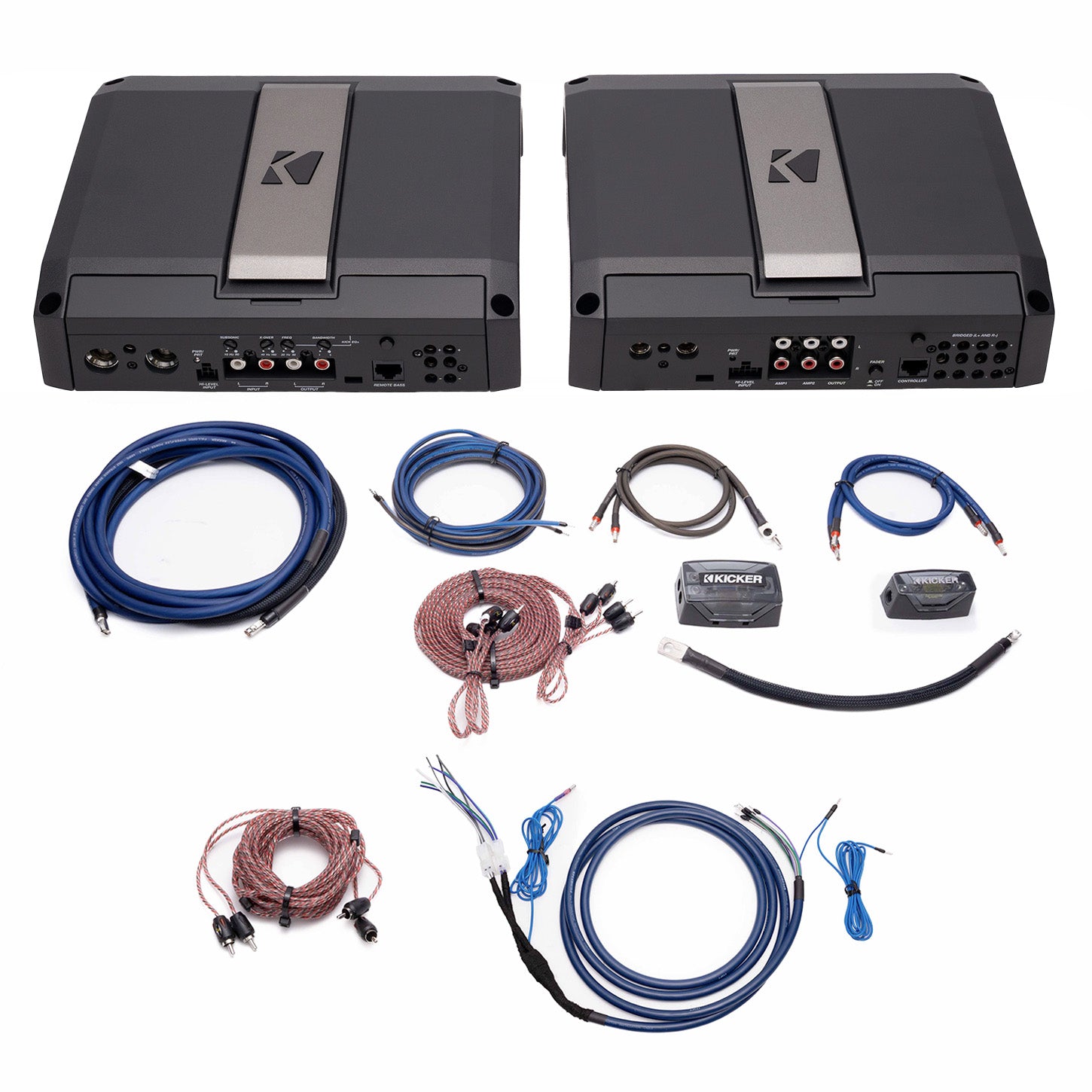

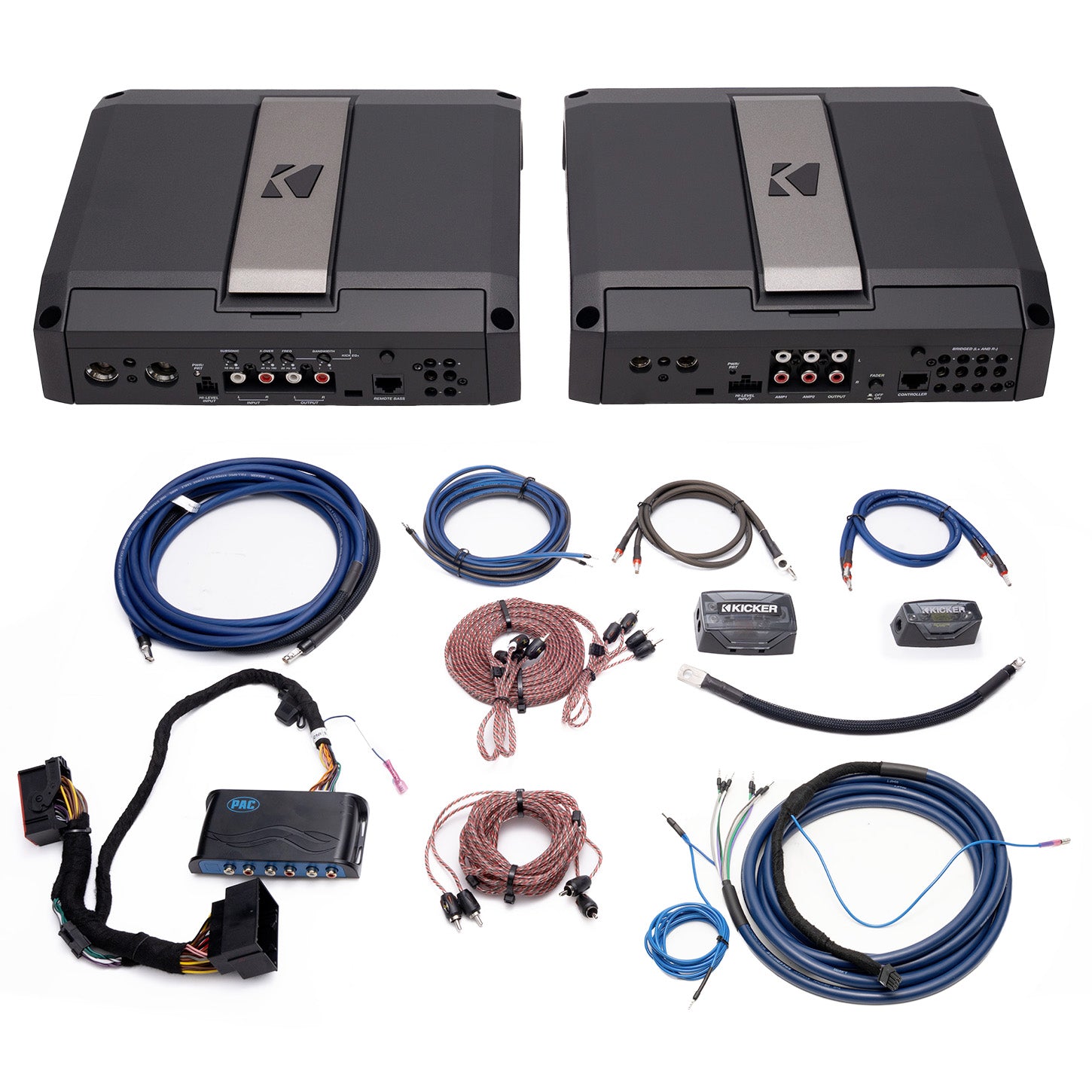

Option 1: Non-Factory Amplified (Standard): Non-factory Amplified=

  • If your Jeep does not have a factory subwoofer located in the rear, you will not have the Factory Amplified (Premium) system, however some base model systems do include the factory subwoofer, although not equipped with the Premium system.  If your Jeep is equipped with the factory sub, you will need to confirm that you do in fact have the factory amplifier which is located to the left of the steering wheel, right behind the OBD plug (see pics for reference).  If you have the factory sub, but you do not see the factory amplifier, then you will select Option 1 as you do not have the Premium system and will not require the factory amplifier bypass harness in your bundle.
  • Factory sub locations: JLU= cargo area above the right wheel well area, JL= rear floor of the cargo area, JT= behind the rear bench attached to the wall about mid way.

Our system will directly connect to your factory radio using the added PAC AamPRO module. You will not need to run a new speaker wire as our wiring harness will allow you to utilize the existing factory speaker wire from the radio to the speakers saving time and cost.

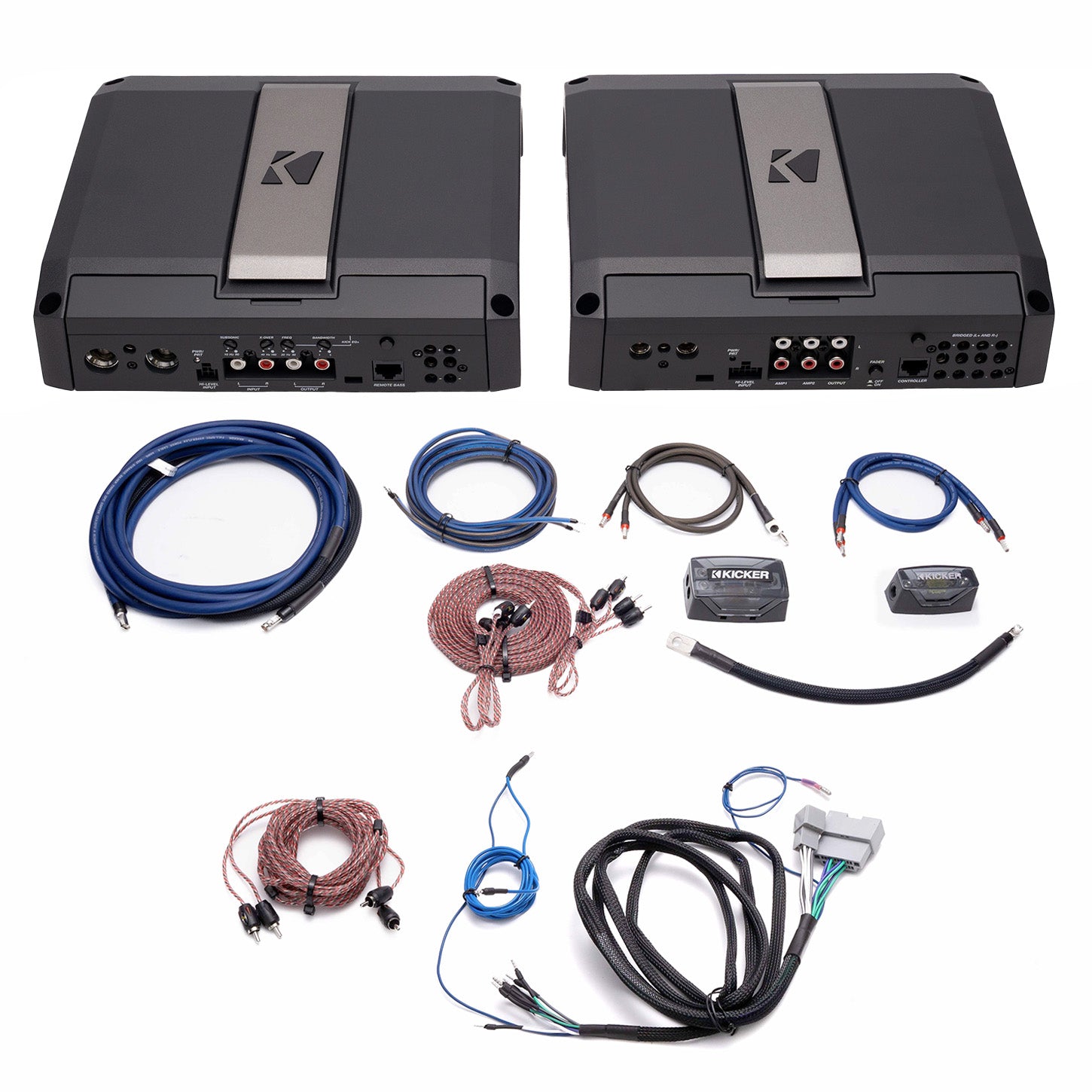

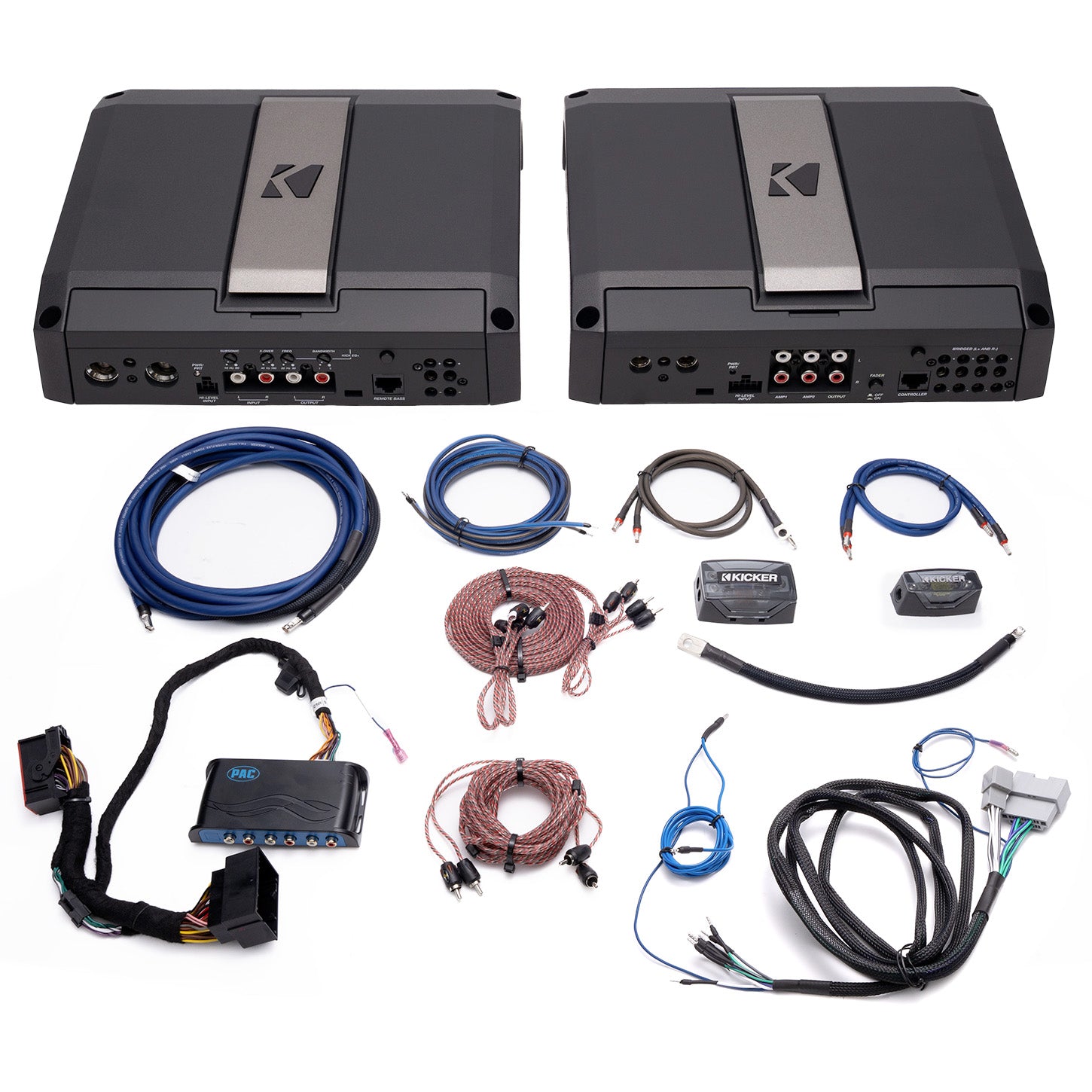

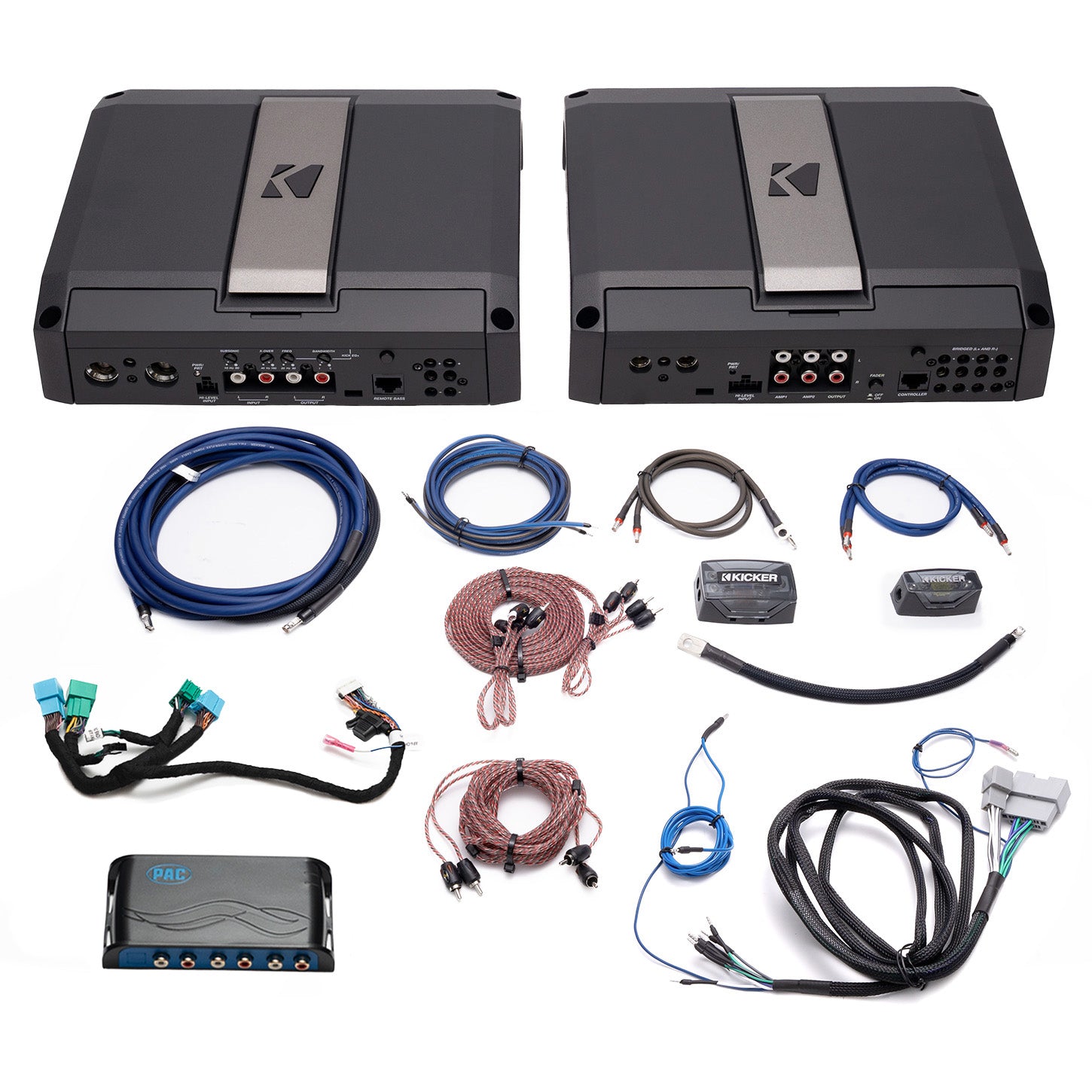

Option 2: Factory Amplified (Premium): Factory Amplified=

  • Your Jeep will have a factory subwoofer.
  • Factory sub locations: JLU= cargo area above the right wheel well area, JL= rear floor of the cargo area, JT= behind the rear bench attached to the wall about mid way.

Our system will be a direct connection to your factory radio with the use of the added PAC AamPRO module. You will not need to run a new speaker wire as our wiring harness will allow you to utilize the existing factory speaker wire from the factory amplifier to the speakers saving time and cost. We will include a harness connection which will bypass the factory amplifier and will utilize the factory speaker wire.

TECH SPEC

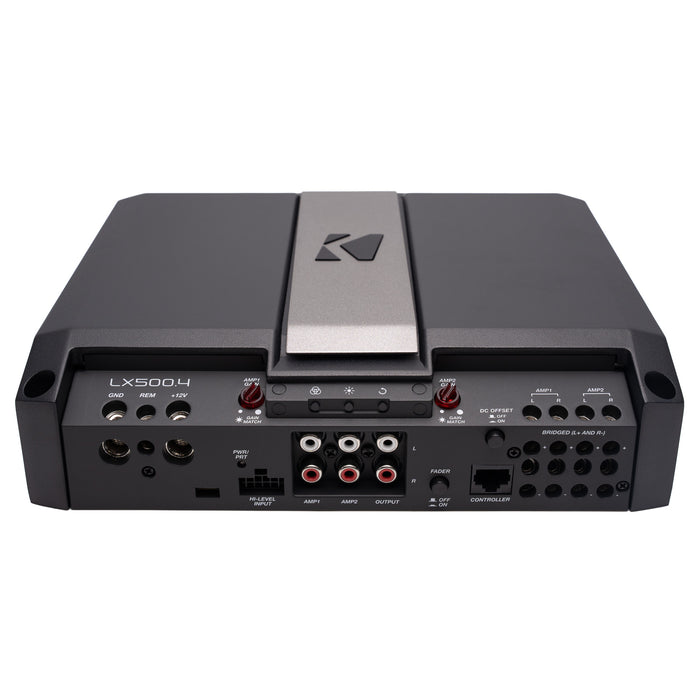

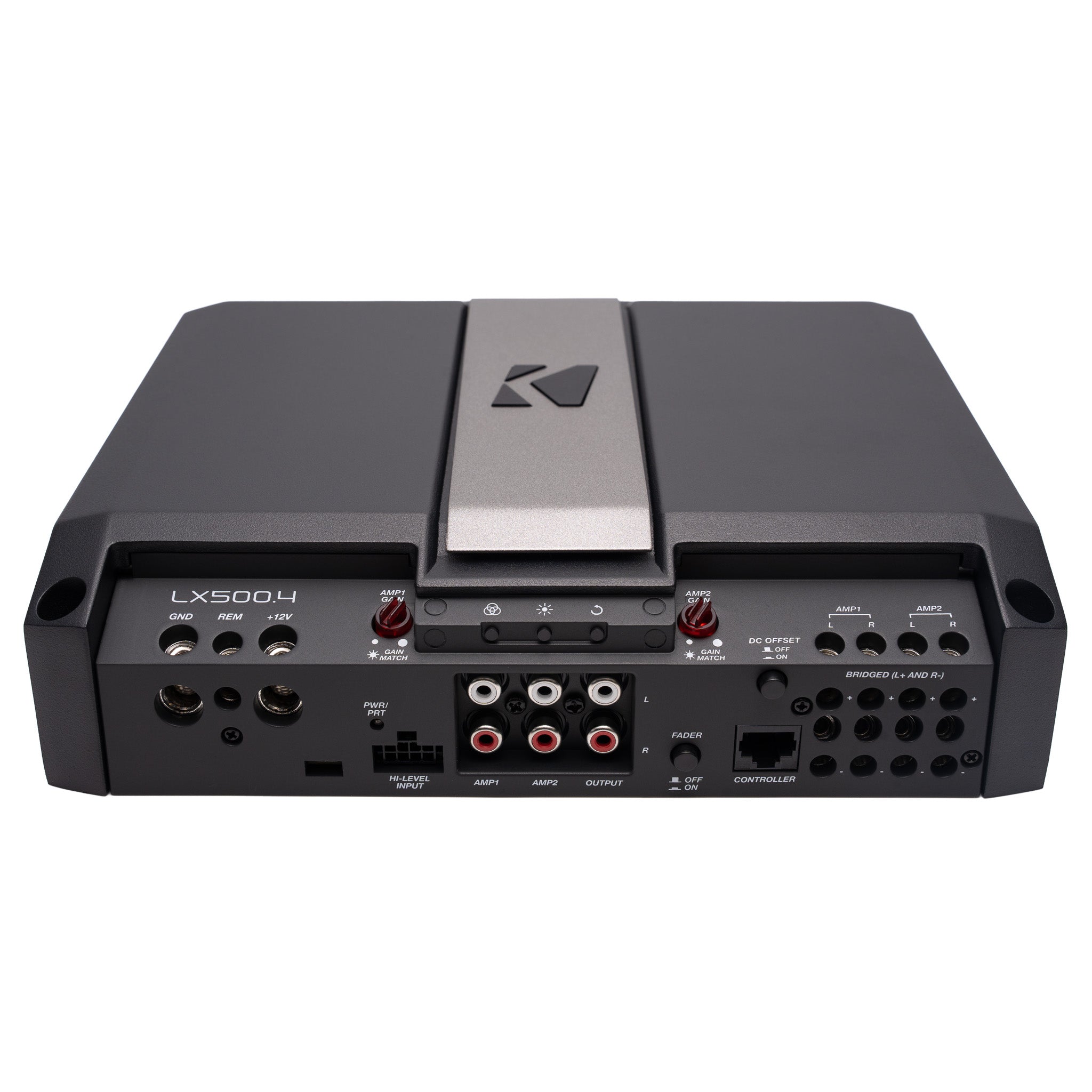

Kicker LX 500.4 4-Channel Amplifier:

  • Dynamic Power (Watts): 1100W
  • Signal to Noise Ratio: >95dB
  • Frequency Response: Stereo Channel 20-20k/ Sub Channel 10–160 (+0/-1dB)
  • RMS Power: 2Ω Stereo = 225 x 4/ 4Ω Stereo = 125 x4
  • Height: 2-3/8 (6 cm)
  • Width: 8-7/16 (21.4 cm)
  • Length: 9-7/16 (32 cm)

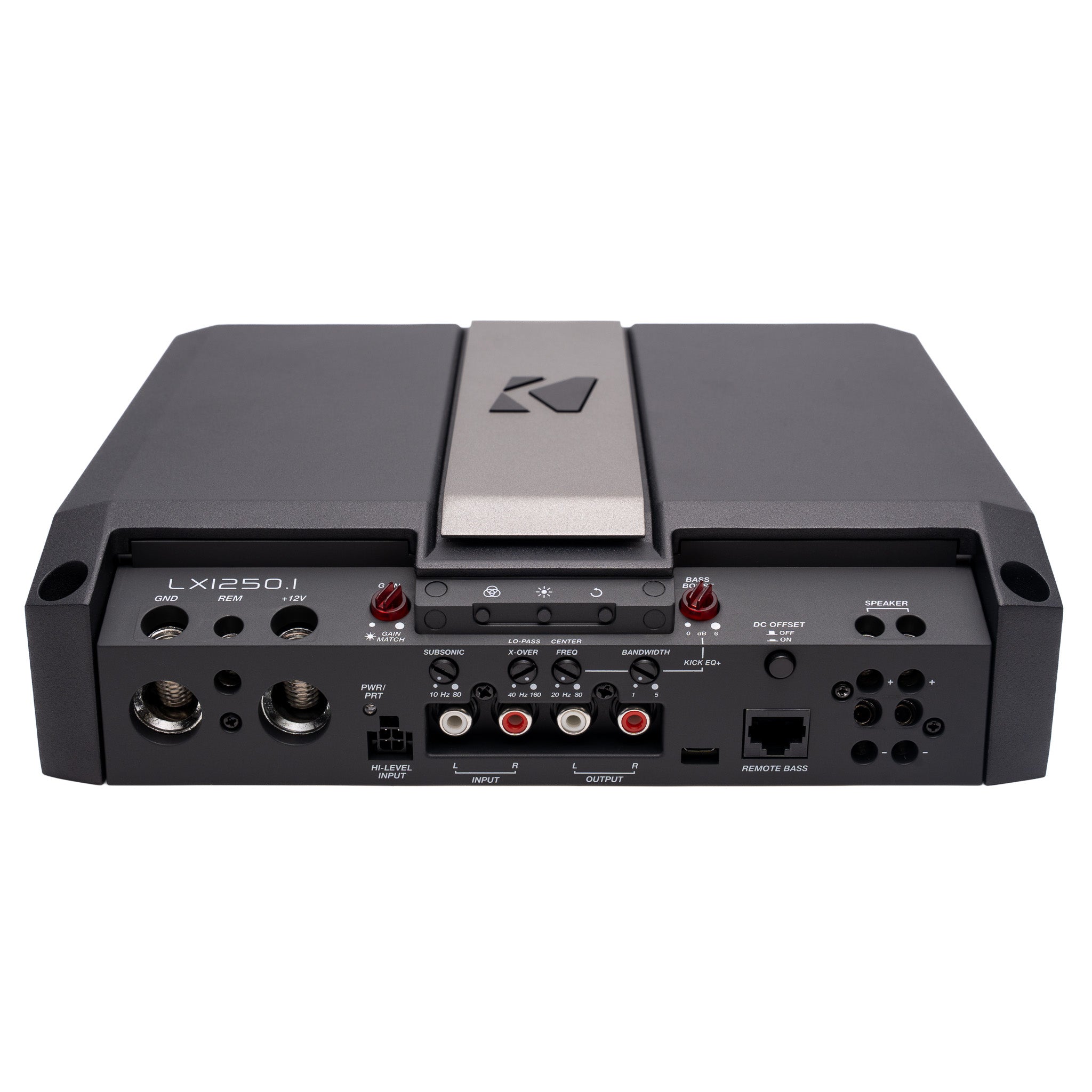

Kicker LX 1250.1 Mono Amplifier:

  • Dynamic Power (Watts): 1600W
  • Signal to Noise Ratio: >95dB
  • Frequency Response: Stereo Channel 20-20k/ Sub Channel 10–160 (+0/-1dB)
  • RMS Power: 2Ω Mono = 750W/ 1Ω Mono = 1250W
  • Height: 2-3/8 (6 cm)
  • Width: 8-7/16 (21.4 cm)
  • Length: 9-7/16 (32 cm)

Kicker LX 1650.1 Mono Amplifier:

  • Dynamic Power (Watts): 2200W
  • Signal to Noise Ratio: >95dB
  • Frequency Response: Stereo Channel 20-20k/ Sub Channel 10–160 (+0/-1dB)
  • RMS Power: 2Ω Mono = 1000W/ 1Ω Mono = 1650W
  • Height: 2-3/8 (6 cm)
  • Width: 8-7/16 (21.4 cm)
  • Length: 9-7/16 (32 cm)

1/0 Gauge Dual Amp Kit:

  • 16GA speaker wire (14 ft)
  • 2-channel, dual RCA's (16 ft)
  • Power cable (16.5 ft)
  • Mesh power cable (2.5 ft)
  • Ring terminal for black cable
  • Blue remote wire (19 ft)
  • Fuse holder (6/8GA)
  • Fuse (60A)

Stinger 6-Channel RCA:

  • 6-Channel directional RCA (12')

Speed Wire- 9 wire:

  • 9-strand 18GA wire (20 ft)- Terminated with ferrules on the amplifier side and Molex connectors on the radio side

Factory Amplifier Bypass Harness - (optional)

  • Factory amplifier bypass harness by Trail Seven to easily connect the new amplified into the Jeep's factory speaker wire

WHAT'S IN THE BOX

Amplifier:

  • Kicker LX 500.4 4-Channel
  • Kicker LX 1250.1 Mono (Optional)
  • Kicker LX 1650.1 Mono (Optional)

Power & Connections

  • Trail Seven 4AWG Amplifier Power Kit (power, ground, fuse block) fully prepped
  • 6-Channel RCA's
  • Factory Amplifier Bypass Harness or Plug and Play amp harness.
  • Subwoofer wire- 12' prepped sub wire

Interface Module:

  • PAC AP4-CH41 (Optional)
  • PAC AP4-CH42 (Optional)

Installation instructions

  • Installation Guide ('24 - Current): Use the guide below.  The installation for the 2024+ is identical with exception to the dash disassembly for the PAC CH42 module connection to the factory radio, seen here: LINK
  • Installation Guide- Dual Amp ('18 - '23): The power route will differ as the LX Amp bundle uses a 1/0 cable which routes under the Jeep from the under the passenger seat to the battery.  Use this guide for the amp installation portion.  Updated 1/0 power route diagram and routing to follow: LINK

VIDEO

Dual Amp Installation Video: '18 - '23 Jeep:  Use this video for a dual amplifier configuration.  The power size and routing will differ in the LX bundles as this bundle requires the use of a 1/0 power wire.  The path will route from under the passenger seat, under the Jeep and directly to the battery-  Routing diagram: Coming soon!

Kicker Amp Installation Video: '24 - Current Jeep:  Use this video for the PAC connection to the 2024+ Factory radio

Kicker LX Amp Tuning Video - All Years:
