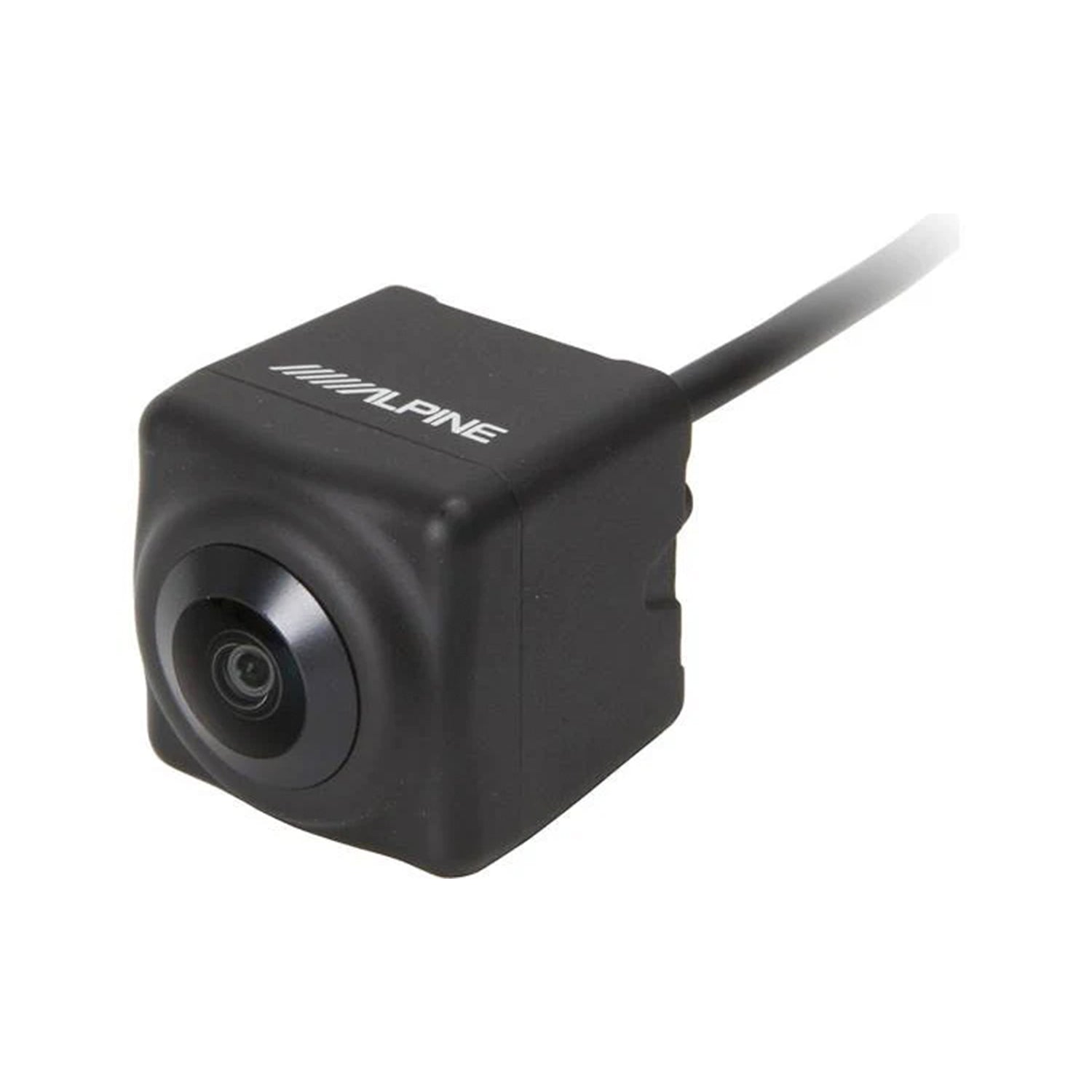

Alpine Multi-View High Dynamic Range (HDR) Front Camera HCE-C2600FD | '07-'18 JK Wranglers/ '18- '23 JL Wranglers/ '20- '23 JT Gladiators

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times from order to ship: 6-8 business days

OVERVIEW:

Made For Jeep: The HCE-C2600FD was designed to help with the unique challenges when offroading with your Jeep.

• Estimated Installation Time: 2 Hours

HDR Technology: The new High Dynamic Range (HDR) drive assist cameras have incredible image quality in varying levels of light. This new feature eliminates image wash-out common when going from areas of heavy shade into areas with bright sunlight.

Multiple View Options: The HCE-C2600FD has three viewing modes to show obstacles on the sides and in front of your vehicle from different angles: Panorama, Corner and Ground Views. The camera system includes automatic imaging functions such as metering and white balance adjustment for clearer viewing.

Pair It With An Alpine Receiver: The HCE-C2600FD is compatible solely with Alpine in-dash multimedia receivers.  The direct connection ensures the highest picture quality day or night.  If you're using the HCE-2600FC along with an Alpine rear-view camera system, you need to add the KCX-C250MC Multi-Camera Selector Interface (sold separately) to switch back and forth between the images from the various cameras (unless connecting to a Restyle i509 receiver).

FEATURES:

• HDR (High Dynamic Range) technology enhances detail in light and dark conditions
• Selectable 3 View Modes (Panorama/Corner/Ground) with select Alpine head units via Direct Connection and Multi-Camera Selector
• 180 degree horizontal, 125 degree vertical viewing angles
• Automatic exposure and white balance adjustment
• Universal Mounting Bracket and 10ft Waterproof Direct Extension Cable Included
• Compatible with Multi-Camera Selector (KCX-C250MC or KCX-C2600B sold separately)
• Compatible with License Plate Camera Mounting Kit (KTX-C10LP sold separately)

TECH SPECS:

• Wide Illumination Range (1.5 to 100,000 Lux)
• 1/4 inch CMOS Image Sensor (1280 x 960, 1.2M pixels)
• IP 68 Water and Dust-proof

WHAT'S IN THE BOX:

• Front-view camera (attached 39" harness terminated by 7-pin harness)
• 10' Power/Video harness (with female 7-pin connector on one end and a male 6-pin connector on other end)
• 2-Piece mounting bracket
• 4 Machine screws
• 4 Self-tapping screws
• 5 Wire-clips
• Owner's Manual (En/Fr/Sp)
