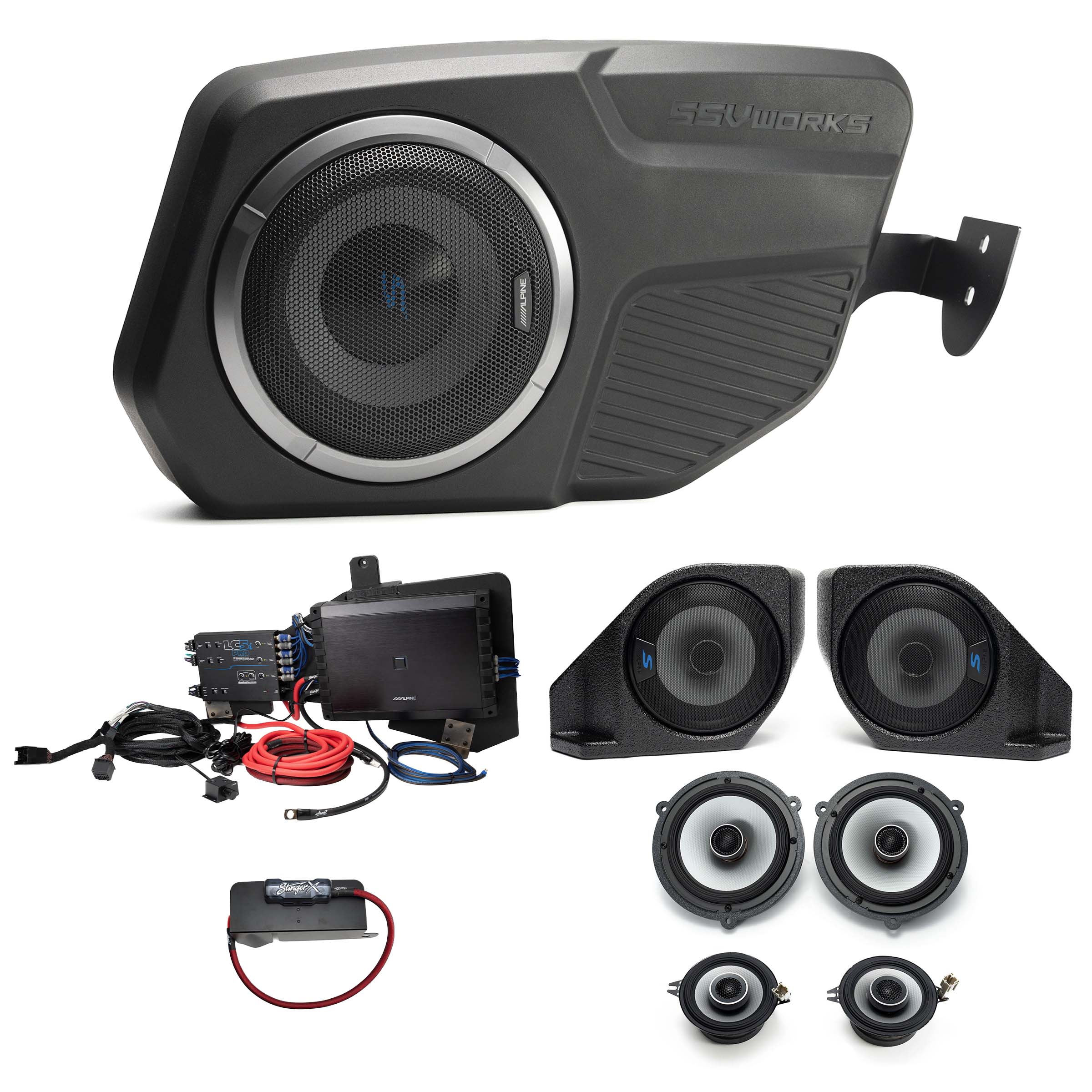

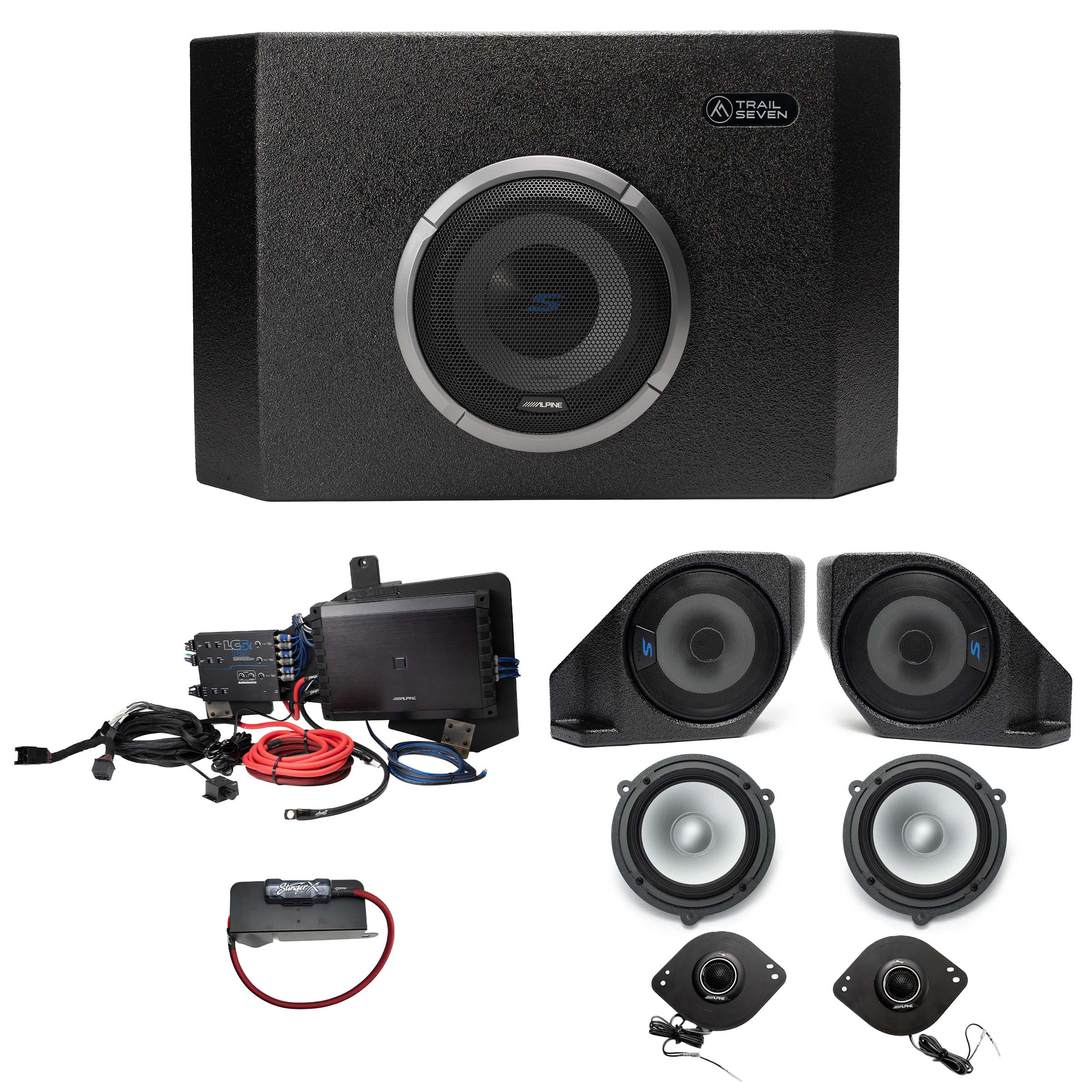

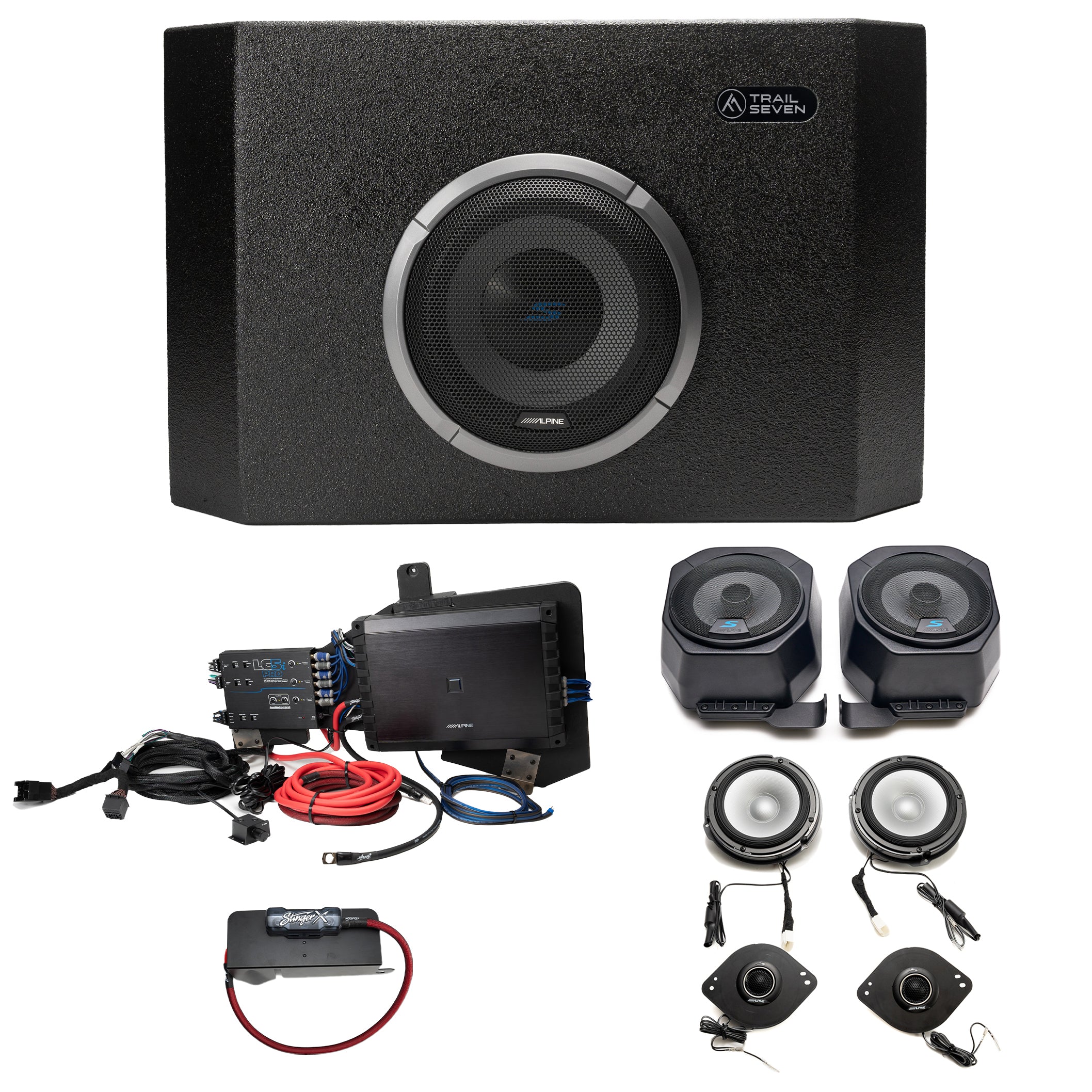

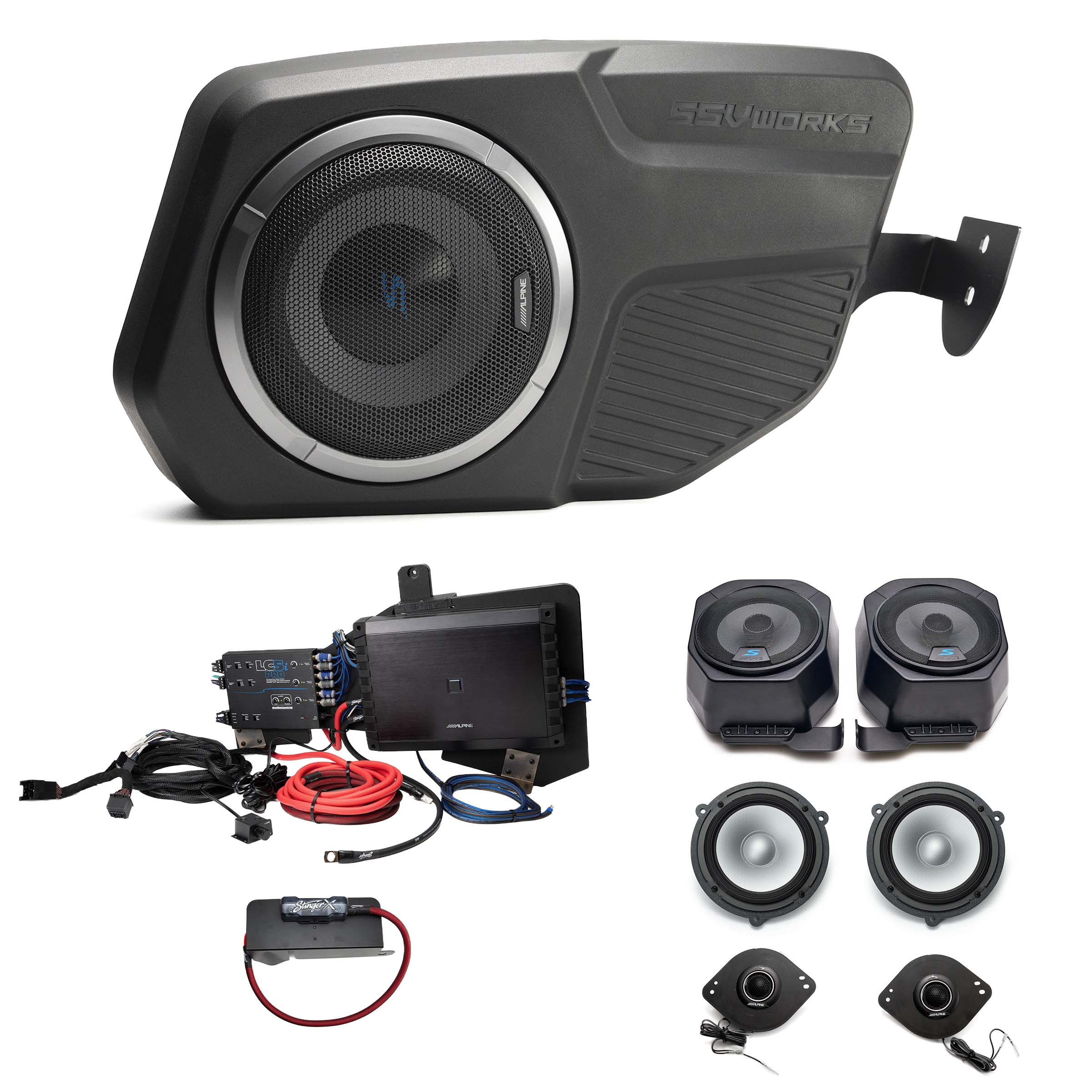

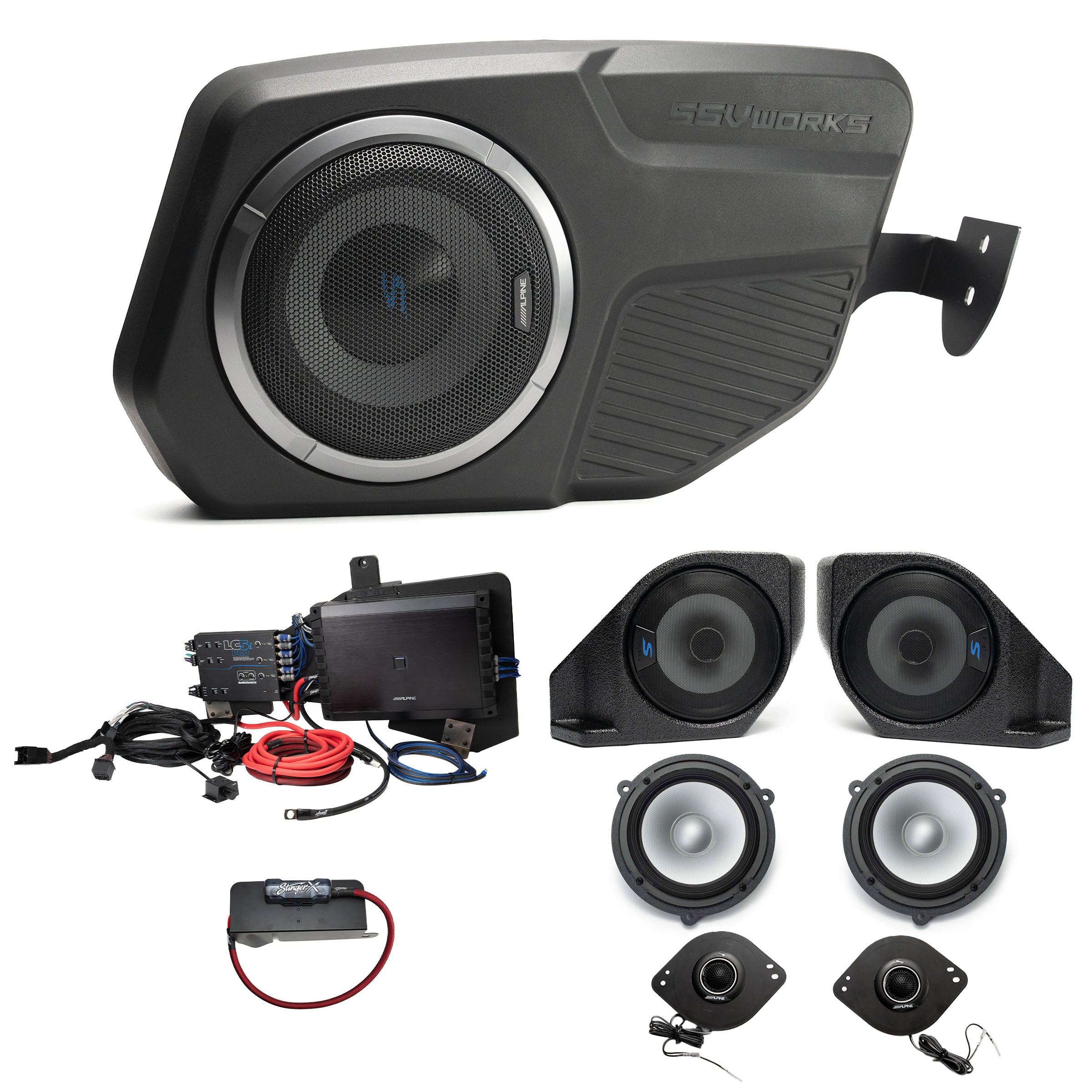

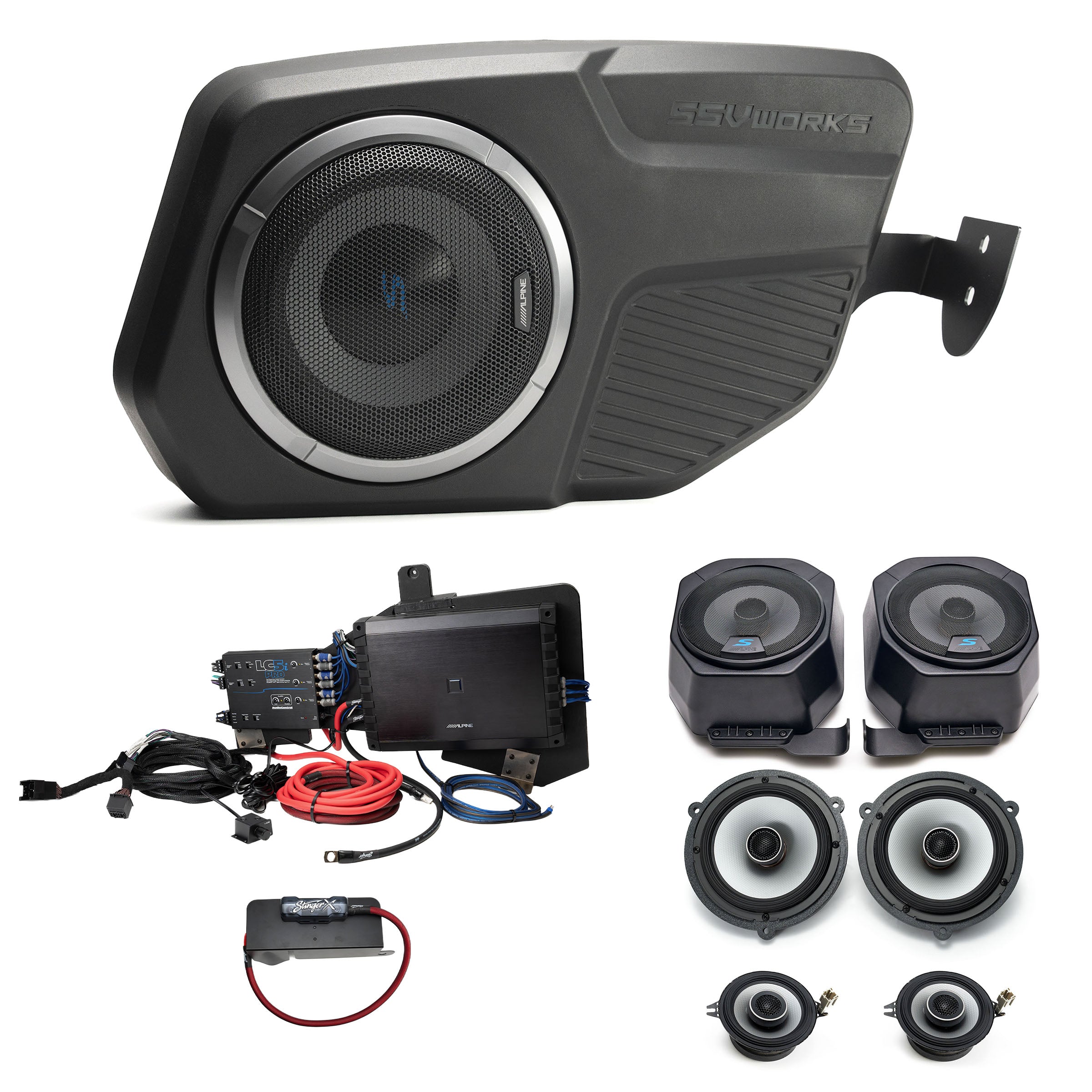

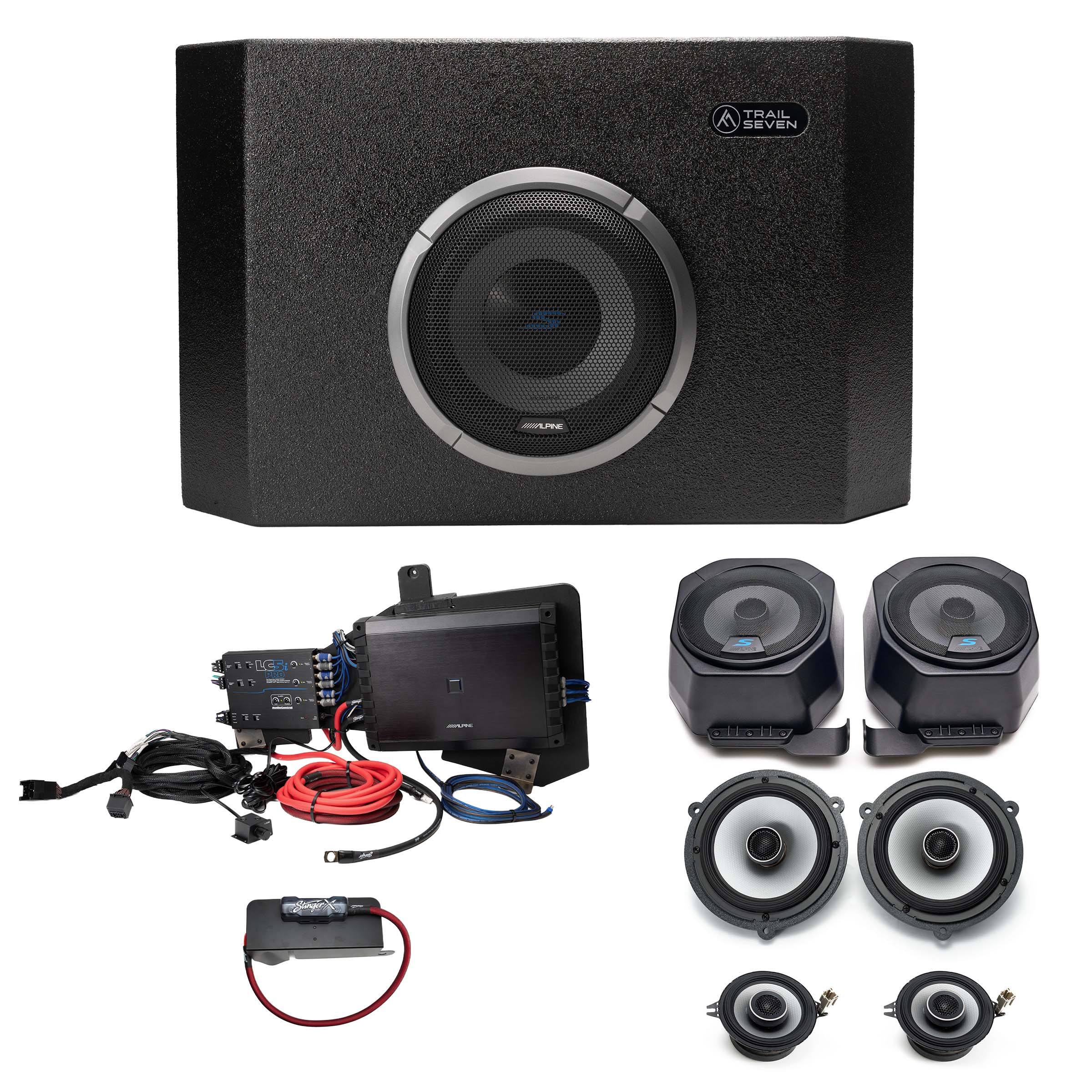

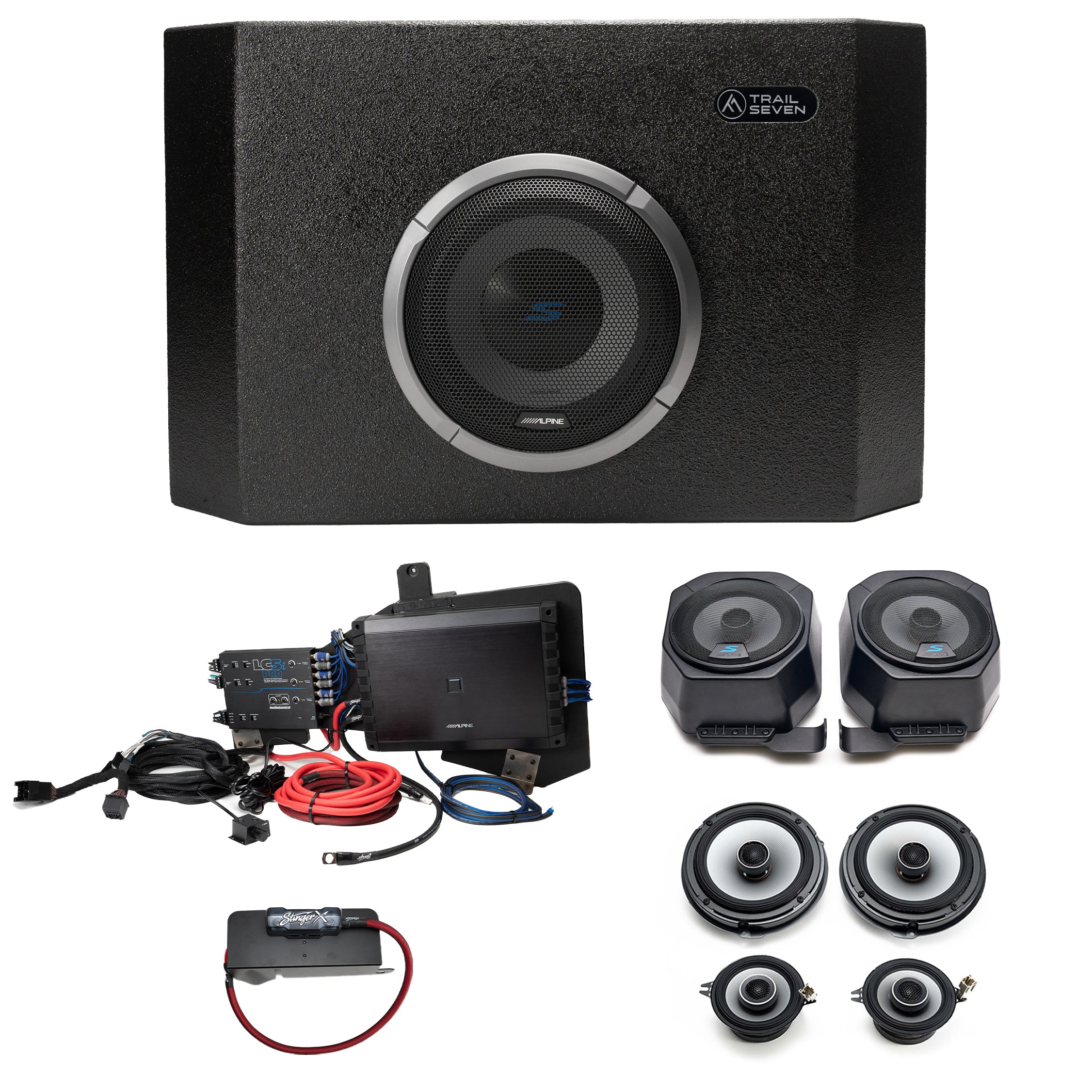

Alpine S- Series Plug & Play Full System Bundle 2 & 4-Door (NON-B&O System) | '21- Current Ford Bronco

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times from order to ship: 8-10 business days

Alpine 2S-65 Coaxial Speakers: Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience..

• Hi-Res Audio Certified (Up to 40kHz)
• Poly Propylene, Glass Fiber, and Mica Cone Material
• Lightweight Design with High Output and Low Distortion
• High-Amplitude Multi-Roll (H.A.M.R.) Surround 
• Integrated 1” Tweeters (Coaxial)

Alpine 2S-44 Coaxial Speakers: Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S40 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.

• Hi-Res Audio Certified (Up to 40kHz)
• Poly Propylene, Glass Fiber, and Mica Cone Material
• Lightweight Design with High Output and Low Distortion
• High-Amplitude Multi-Roll (H.A.M.R.) Surround 
• Integrated 3/4” Tweeters (Coaxial)

Alpine S2-S65C Component Speakers: Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65C 6.5” Component Speakers offer a new standard in entry-level sound performance.

• Hi-Res Audio Certified (Up to 40kHz)
• Poly Propylene, Glass Fiber, and Mica Cone Material
• Lightweight Design with High Output and Low Distortion
• High-Amplitude Multi-Roll (H.A.M.R.) Surround 
• Included 1” Adjustable Tweeters with Threaded Removable Housing (Component)
• OEM Fitment with In-Line Crossovers

Alpine S2-W10D4 Subwoofer: Add extra punch to your sound system with the S-Series S2-W10D4 10" Subwoofer; now redesigned for powerful and reliable bass performance at an approachable price point.

• Dual Voice Coil Subwoofers with Configuration Jumpers
• Carbon Fiber / Poly Propylene Cone
• Poly Propylene / Ceramic Dust Cap
• High-Grade Strontium Ferrite Magnets
• Twist-Lock Grille Mount System
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Push-Type Speaker Terminals (Up to 8AWG Wire Size)

Alpine S2-W12D4 Subwoofer: Add extra punch to your sound system with the S-Series S2-W12D4 12" Subwoofer; now redesigned for powerful and reliable bass performance at an approachable price point.

• Dual Voice Coil Subwoofers with Configuration Jumpers
• Carbon Fiber / Poly Propylene Cone
• Poly Propylene / Ceramic Dust Cap
• High-Grade Strontium Ferrite Magnets
• Twist-Lock Grille Mount System
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Push-Type Speaker Terminals (Up to 8AWG Wire Size)

Alpine S2-A55V 5-Channel Amplifier: Entry-level sound just got elevated with the S2-A55V 5-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio.

• Hi-Res Audio Certified (Up to 40kHz)
• 5-Channel Amplifier
• Alpine’s Class D Amplifier Circuit
• Two-sided terminal layout
• Built-in Selectable/ Adjustable Crossovers
• Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

PLUG AND PLAY: All of our bundles are pre-wired and completely assembled prior to shipping from our Frederick, Maryland shop. When you get your bundle, your full system is ready to drop into your Bronco! Simply follow the video which guides you through the plug and play install.

Plug-and-Play Installation: All components are 100% plug-and-play, ensuring a smooth and effortless setup without the need for professional assistance.

Pre-Wired and Terminated: Each component in the bundle is pre-wired and terminated, eliminating the hassle of figuring out what fits where.

Premium Sound Quality: Our chosen components are selected for their superior sound quality, delivering crystal clear audio and powerful bass.

Comprehensive System Upgrade: Includes everything you need for a full system upgrade, tailored specifically for the Bronco.

High-End Alpine Components: Features high-end Alpine R Series speakers, R Series subwoofers, and the powerful V90 Amplifier for an unparalleled audio experience.

NOTE: The rear MTI enclosures do require minor prep which is covered in the provided installation video.

TESTED AND APPROVED BY TRAIL SEVEN: Our Full System Bundle has been installed and tested and we're pleased to put our stamp of approval on this package!

• 2021 - Current Bronco: (NON- B&O) 2 & 4-Door
• 2022 - Current Bronco Raptor: (NON- B&O) 2 & 4-Door

SSV Side Enclosure is not compatible with 2- Door Broncos

Alpine S40 4" Coax Speakers:

• Woofer Size: 4”
• Tweeter Size: 3/4” (Coaxial)
• Power Handling: 45W RMS / 140W Peak
• Frequency Response: 97Hz - 40kHz (Hi-Res)
• Sensitivity: 86dB

Alpine S65 6.5" Coax Speakers:

• Woofer Size: 6.5”
• Tweeter Size: 1” (Coaxial)
• Power Handling: 80W RMS / 240W Peak
• Frequency Response: 70Hz - 40kHz (Hi-Res)
• Sensitivity: 88dB

Alpine 65C 6.5" Component Speakers:

• Woofer Size: 6.5”
• Tweeter Size: 1” (Component)
• Power Handling: 80W RMS / 240W Peak
• Frequency Response: 70Hz - 40kHz (Hi-Res)
• Sensitivity: 88dB

Alpine S2-W10D4 Subwoofer:

• Power Handling:600W RMS / 1800W Pea
• Nominal Impedance:4Ω
• Frequency Response:25Hz - 215Hz
• Sensitivity (1W/1M):84.9dB
• Voice Coil:2.6"
• X-Max (1-Way):15mm
• Magnet Weight:64oz

Alpine S2-W12D4 Subwoofer:

• Power Handling:600W RMS / 1800W Peak
• Nominal Impedance:4Ω
• Frequency Response:23Hz - 215Hz
• Sensitivity (1W/1M):86.2dB
• Voice Coil:2.6"
• X-Max (1-Way):15mm
• Magnet Weight:64oz

Alpine A55:

• Dimensions: 11.9” W x 2.25” H x 8.25” D
• Weight: 7 lbs
• Power Rating: 14.4V, < 0.1% THD +N
• Power Output: 40W x 4 + 200W x 1 @ 4Ω, 60W x 4 + 300W x 1 @ 2Ω
• Bridged Power: 120W RMS x 2 @ 4Ω
• S/N Ratio: >83dB
• Frequency Response: 20Hz – 40kHz
• Damping Factor: >100CTA-2006-D Certification

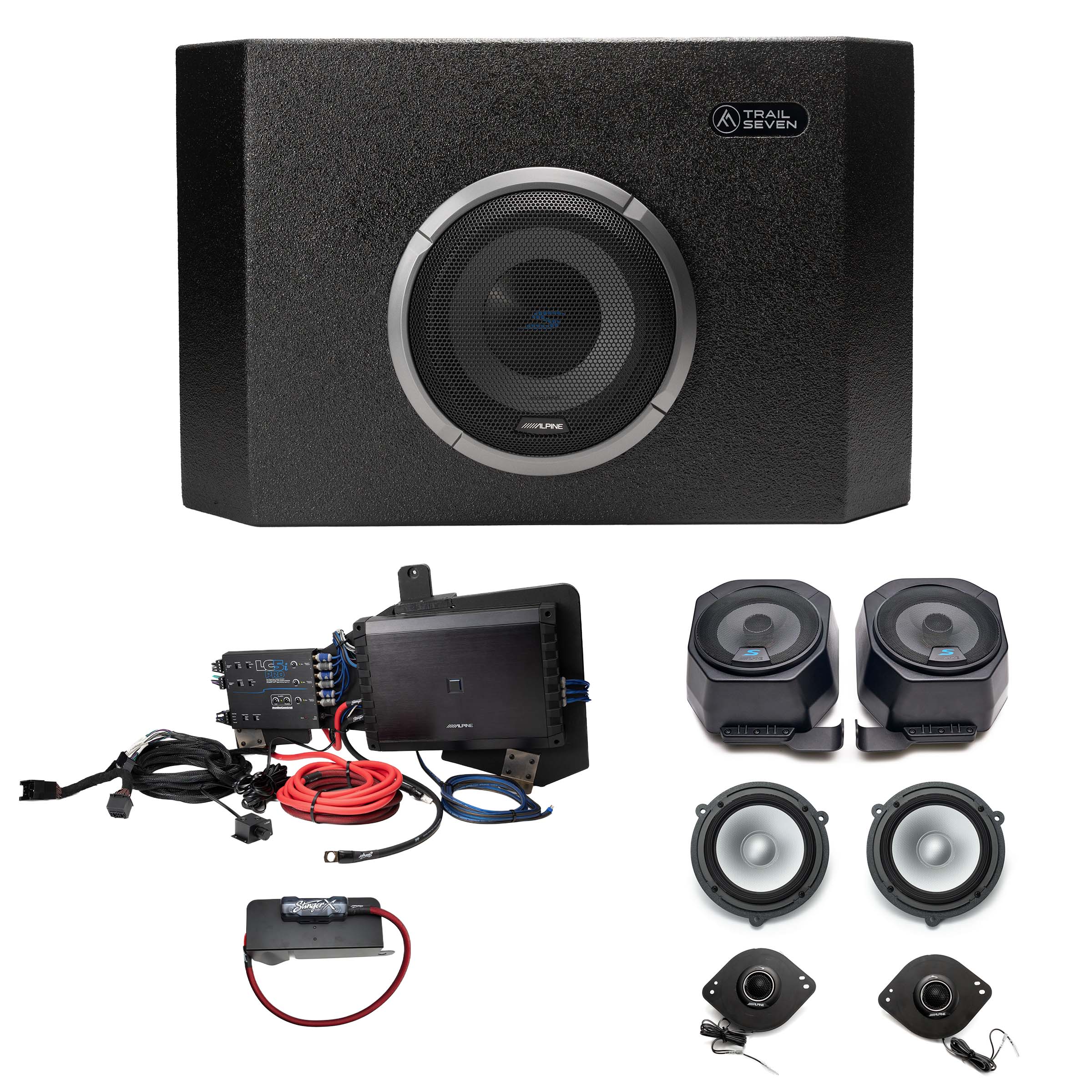

• Amplifier: Alpine A55
• Front Speakers: Alpine S65 coax w/ S40 coax dash speakers or Alpine S65C components
• Rear Speakers: MTI pods with 6.5" Alpine S65 coax or SSV pods with 6.5" Alpine S65 coax
• Side Enclosure: Alpine 10" S2-W10D4
• OR
• Tailgate Sub: Alpine 10"/ 12", S2-W10D4/ S2-W10D4
• Amplifier Bracket: Amp will be mounted
• Audio Control LC5i-Pro: fully prepped, mounted, and adjusted
• 6CH RCA's: Routed from PAC to amp
• Sub Wire: Fully prepped to amp with subwoofer connection
• Amp Harness: Harness full prepped, mounted to the amp bracket and ready for installation
• Radio T-Harness: Fully prepped and ready for installation
• 4AWG Power Kit: 17' 4awg wire, ground lead
• Fuse and Fuse Bracket: mounted to fuse bracket, fully prepped
