Alpine Status Series Plug & Play Full System Bundle Upgrade (Non-B&O System) | '21- Current Ford Bronco

Price:
$3,412.36
Original price $3,412.36 - Original price $5,379.71
Original price
$3,412.36 - $5,379.71
Current price $3,412.36

Frequently Bought Together:

  • Alpine RUX-KNOB.2 Remote Bass Knob

    $29.95
  • SoundSkins Sound Deadening Kit (2-Door) | '21- Current Ford Bronco

    $495.00
  • SoundSkins Sound Deadening Kit | '21- Current Ford Bronco

    $495.00

Free US Standard Shipping with 30-Day Returns

We are excited to introduce our Plug-and-Play Alpine Status Series Full-System Audio Bundle designed specifically for your Ford Bronco! This bundle is exclusively compatible for the Non-B&O Bronco's.

**2-Door Broncos: Please review the "Vehicle Fitment Guide" section below.

For Broncos with the factory B&O system, please check out our B&O Bundle here: B&O BUNDLE LINK

Upgrade your Bronco’s audio experience with ease and precision!

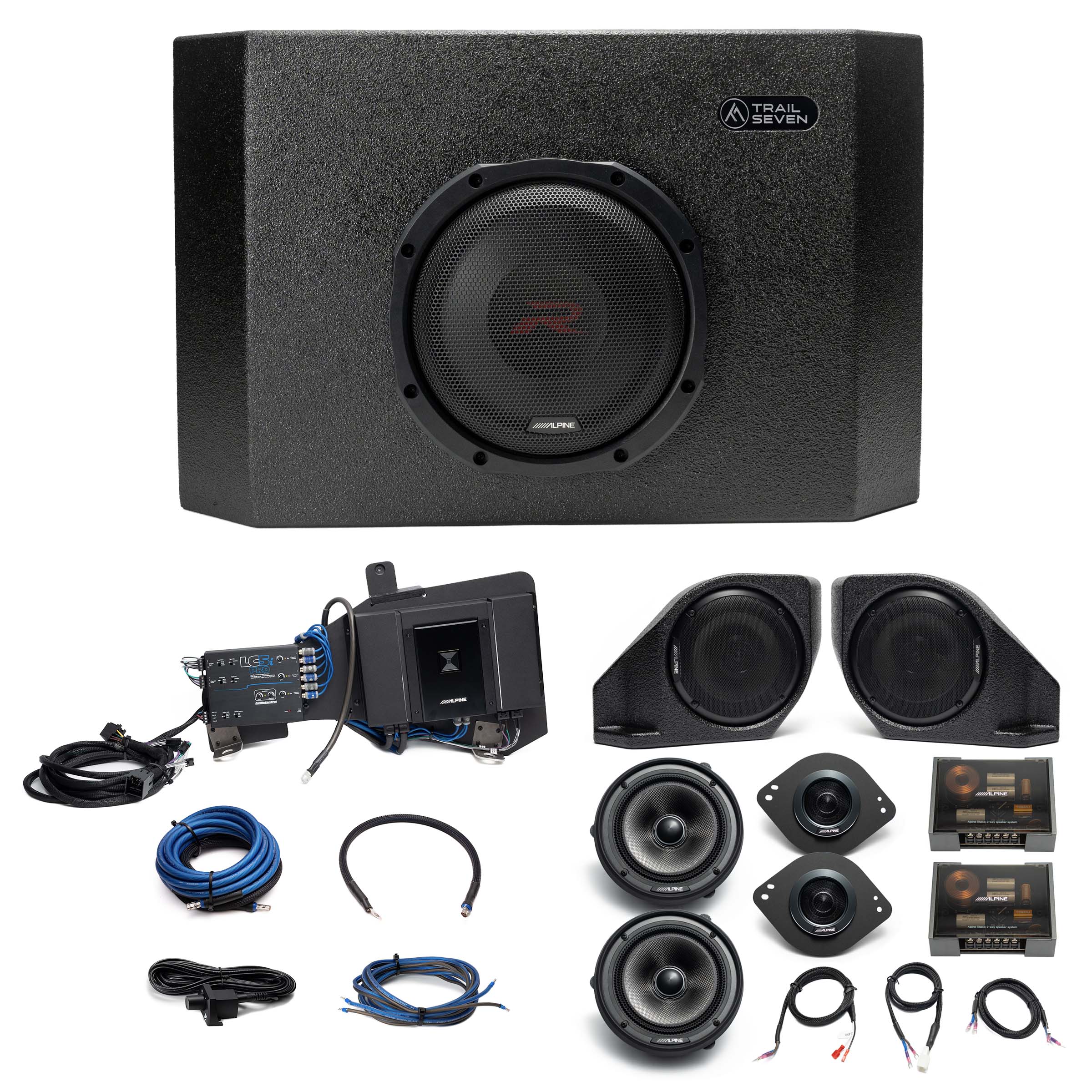

Our Complete Alpine Status Bundle includes everything you need for a full system upgrade:

  • Alpine Status Series Front and Rear Speakers:
    • Fully prepped with harness, connectors, baffles, and mounting brackets.
  • Alpine Status Series Amplifier Options:
    • Choose between a single 5-channel amplifier or a dual configuration with a 4-channel amplifier plus a mono amp for your subwoofer.
  • System Integration Interface:
    • LC5i pro with plug and play amp harness
  • Alpine R Series Subwoofer Options
  • Comprehensive Installation Components:
    • Includes all mounting hardware, power and grounding cables, wiring, sound deadening materials, speaker baffles, rear speaker pods, connectors, and wiring harnesses.

This all-in-one solution ensures a seamless installation and exceptional audio performance!

See Video and Installation tabs below for installation videos and guides.

Bundle Overview:

Product Information

Features, Description, Reviews, Q&A ,Specs & Installation

LEAD TIMES

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times from order to ship: 8-10 business days

OVERVIEW

We've eliminated the guesswork, making it easy to upgrade your Bronco's audio system. Our bundles are 100% plug-and-play, with all components pre-wired and terminated for a smooth, seamless installation. Enjoy premium sound quality without worrying about compatibility or figuring out what fits where. Just install and enjoy the tunes!

Plug & Play: Every bundle is pre-wired and fully assembled at our Frederick, Maryland shop before shipping. When your bundle arrives, it's ready to drop right into your Bronco. Just follow our step-by-step video and installation guides for an effortless plug-and-play installation.

NOTE: The rear MTI enclosures do require minor prep which is covered in the provided installation video.

Tested and Approved by Trail Seven: Our Full System Bundle has been thoroughly installed and tested on our Trail Seven Bronco. We're proud to give this package our stamp of approval, ensuring it delivers the performance you expect!

PRODUCT HIGHLIGHTS

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

Superior Sound: Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.

Impressive Output: Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-V90, HDA-M80, and the HDA-F60 wer intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

Extreme Output: Don’t let the size fool you – the R-Series Shallow Subwoofers feature the same cone movement (20MM of excursion) as the full-size R2-Series Subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series Shallow Subwoofers is an oversized 4-inch voice coil that is controlled by a powerful neodymium magnet for 600W RMS of power handling.

Tone Matching Of The Speaker With Carbon Fiber Materials, For Best Sound Reproduction: Traditionally, speaker units have been made from suitable materials and structures for each frequency band. However, this approach has led to minor differences in tone quality because of the different characteristics of each unit. With Alpine Status, therefore, we unified the carbon fiber materials and construction so that the sound of each unit is beautifully consistent.

Custom Tweeter: The Custom Tweeter, which uses a powerful magnet and a large diaphragm to prioritize sound quality.

FEATURES

Alpine HDA-V90 5-Channel Amplifier: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

  • Hi-Res Audio Playback (192kHz/24Bit)
  • 5-Channel Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper-plated chassis
  • Black circuit board
  • One-sided terminal layout
  • Top panel sound controls
  • Quick connect power and speaker terminals
  • Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

Alpine HDA-F60 4-Channel Amplifier: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

  • Hi-Res Audio Playback (192kHz/24Bit)
  • 4-Channel Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper-plated chassis
  • Black circuit board
  • One-sided terminal layout
  • Top panel sound controls
  • Quick connect power and speaker terminals
  • Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

Alpine HDA-M80 Mono Amplifier: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

  • 800W Mono Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper-plated chassis
  • Black circuit board
  • One-sided terminal layout
  • Top panel sound controls
  • Quick connect power and speaker terminals
  • Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

Alpine HDZ-65C Component Speakers: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

  • Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
  • Carbon Composite Diaphragm Material
  • Alpine Proprietary Double Gathered Edge Surround
  • 6.5” Mid-Bass Driver (16.5cm)
  • 1.25” High Range Driver (3.2cm)

Alpine HDZ-65 Coaxial Speakers: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

  • Hi-Res Audio Playback (192kHz/24Bit) w/full Alpine Status system
  • Carbon Composite Diaphragm Material
  • Alpine Proprietary Double Gathered Edge Surround
  • 6.5” Mid-Bass Driver (16.5cm)
  • 1” Coaxial Tweeter (2.5cm)

Alpine RS-W12D4 Subwoofer: With an ultra-shallow subwoofer design and powerful sound output, the R-Series Shallow Subwoofers give you the best of both worlds in size and sound.

  • 12” High-Performance Shallow Bass Driver
  • Alpine Gen2 DD Linear Magnetic Circuit
  • Cast Aluminum Frame
  • Aluminum Dust Cap
  • Neodymium Magnet

Alpine RS-SB R Series Shallow Preloaded Subwoofer Enclosure: With an ultra-shallow enclosure design and powerful sound output, the R-Series Shallow Preloaded Subwoofer Enclosures give you the best of both worlds in size and sound.

  • Optimal sealed cabinet quality
  • Aluminum Dust Cap
  • Neodymium Magnet
  • Alpine Gen2 DD Linear Magnetic Circuit
  • CARB compliant ¾” MDF construction
  • Premium Alpine embroidered black carpet
  • Alpine-branded terminal cup
  • Pre-installed steel mesh grille
  • Includes a 12” R-Shallow Subwoofer (RS-W12D4)
  • Rubber, modular stackable foot design

Alpine R2-DB8V-TRK Dual 8" Halo R-Series Preloaded Truck Enclosure: Now you can add deep, accurate bass in your rig without compromising valuable cabin space.

  • Groundbreaking Alpine Halo Design
  • ProLink™ Ported Enclosure
  • Expandable Width from 40" to 51"
  • Compact, Under-the-Seat Installation in Most Full-Size Trucks
  • Integrated Amplifier Tray (not applicable with all vehicles)
  • Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
  • Ported Enclosures with Next-Gen R-Series Subwoofers
  • Front Link Alpine Branded Bracket
  • Side-Firing Cabin Loading Ports
  • Premium Alpine Wire Terminals
  • Twist-Lock Grille Mount System
  • CARB Compliant 5/8" MDF Construction
  • Premium Black Carpet

Warranty Information

This Alpine bundle includes a 1-Year Warranty. This warranty does not cover modifications, alterations, or misuse.



COMPATIBILITY

  • 2021 - Current Bronco: (Factory NON-B&O) 2 & 4-Door

Vehicle Fitment Guide



2-Door Bronco V90 Amplifier Fitment:

  • The seat belt retraction module will need to be removed.  To do so, simple unbolt the single bolt underneath the harness module using a T50 torx bit.  Once the amplifier bracket has been installed, the seat belt harness can be reinstalled.
  • Note: The Alpine V90 is the largest amp in size that is offered in our bundles which is a very tight fit, especially into the 2-door Bronco.  We align the amp as best we can to avoid compressing the power and ground wires too much, however you may find it necessary to make minor adjustments to the amplifier or the metal L brackets to accommodate for the size.

TECH SPEC

Alpine Status HDZ-65C Component Speakers:

  • Woofer Size: 6.5”
  • Tweeter Size: 1.25”
  • Power Handling: 100W RMS / 300W Peak
  • Frequency Response: 55Hz – 40kHz (Hi-Res)
  • Sensitivity: 88dB

Alpine Status HDZ-65 6.5" Coax Speakers:

  • Woofer Size: 6.5”
  • Tweeter Size: 1” (Coaxial)
  • Power Handling: 100W RMS / 300W Peak
  • Frequency Response: 55Hz – 40kHz (Hi-Res)
  • Sensitivity: 88dB

Alpine S2-W10D4 Subwoofer (SSV Side Mount Enclosure):

  • Power Handling: 600W RMS / 1800W Peak
  • Nominal Impedance:
  • Frequency Response: 25Hz - 215Hz
  • Sensitivity (1W/1M): 84.9dB
  • Voice Coil: 2.6"
  • X-Max (1-Way): 15mm

Alpine RS-W12D4 Subwoofer (Tailgate Enclosure)

  • Power Handling:600W RMS / 1800W Peak
  • Nominal Impedance:
  • Frequency Response:26Hz - 200Hz
  • Sensitivity (1W/1M): 81bB
  • Voice Coil: 4"
  • X-Max (1-Way): 20mm

Alpine R2-DB8V-TRK (Dual 8" Enclosure):

  • Dimensions: 40"-51" (Adjustable Width) x 8-3/4” (H) x 13-3/4” (D)
  • Power Handling: 750W RMS
  • Frequency Response: 32Hz-200Hz
  • Sensitivity: 84dB
  • Dual voice coils: Wired in parallel for a 2Ω load (Two 4Ω enclosures)
  • Vented Enclosure Tuning Frequency: 36Hz

Alpine RS-SB12 (Shallow Mount Enclosure):

  • Dimensions:26.5” W x 5.25” H x 17” D
  • Power Handling: 600W RMS
  • Frequency response: 26Hz – 200Hz
  • Voice Coils: Dual 4Ω voice coils wired in parallel for a 2Ω load
  • Nominal Impedance: 2Ω
  • Voice Coil: 4”(101.6mm)

Alpine V90 5-Channel Amplifier:

  • Dimensions: 11.4375” x 7.5” x 2.125”
  • Power Rating: 14.4V, < 0.1% THD +N
  • Power Output: 75W x 4 + 300W x 1 @ 4Ω, 100W x 4 + 500W x 1 @ 2Ω
  • Bridged Power: 200W RMS x 2 @ 4Ω
  • S/N Ratio: 87dB
  • Frequency Response: 8-60kHz (-3dB)
  • Damping Factor: 500 (ch1/2/3/4), 1000 (subwoofer)

Alpine HDA-F60 4-Channel Amplifier:

  • Dimensions: 11.4375” x 7.5” x 2.125”
  • Power Rating: (14.4V, ≤1.0% THD+N)
  • Power Output: 100W x 4 @ 4Ω, 150W x 4 @ 2Ω
  • Bridged: 300W x 2 @ 4Ω
  • THD+N: 0.02% (10W into 4ohm)
  • S/N Ratio: 87dB (1W into 4ohm)
  • Frequency response: 10-60kHz (-3dB)
  • Damping factor: 500

Alpine HDA-M80 Mono Amplifier:

  • Dimensions: 11.4375” x 7.5” x 2.125”
  • Power Rating: (14.4V, ≤1.0% THD+N)
  • Power Output: 800W x 1 @ 2Ω, 500W x 1 @ 4Ω
  • THD+N: 0.02% (10W into 4ohm)
  • S/N Ratio: 83dB (1W into 4ohm)
  • Frequency response: 8-400Hz (-3dB)
  • Damping factor: 1500

WHAT'S IN THE BOX

Single Amp Bundle:

  • Amplifier: Alpine Status V90
  • Power Kit: 4 AWG single fuse power kit w/ ground and power wire terminated to the amplifier
  • Amplifier Bracket: Amp will be mounted
  • LC5i PRO Module: Fully prepped and mounted
  • 6CH RCA's: Routed from LC5i Pro to amp
  • Amp By Pass: Harness full prepped, mounted to the amp bracket and ready for installation per the video
  • Radio T-Harness: Fully prepped and ready for installation
  • Fuse Holder: 100 amp fuse
  • Sub Wire: Fully prepped to amp with subwoofer connection

Dual Amp Bundle:

  • Amplifier 1: Alpine Status F60 4-Channel
  • Amplifier 2: Alpine Status M80 Mono Amp
  • Power Kit: 1/0 dual fuse power kit w/ ground and power wire terminated to the amplifier via ground and power distribution block mounted to the amp bracket
  • Amplifier Bracket: Amps will be mounted, double sided
  • LC5i Pro Module: Fully prepped and mounted
  • 6CH RCA's: Routed from LC5i Pro to amps
  • Amp By Pass: Harness full prepped, mounted to the amp bracket and ready for installation per the video
  • Radio T-Harness: Fully prepped and ready for installation
  • Fuse Holder: 200 amp fuse (battery location mounted)
  • Fuse Holder: (2) 100 amp fuses (mounted on the amp bracket)
  • Ground Distro Block: Mounted on amp bracket
  • Sub Wire: Fully prepped to amp with subwoofer connection

Speakers:

  • Front Speakers: Alpine Status HDZ-65C Components, with speaker baffles for 6.5" kick speakers and bracket for 1.25" dash tweeter.
  • Rear Speakers: Rear 6.5" speaker pods with Alpine Status HDZ-65 6.5" coax speakers, with sound deadening, and poly fill.
  • Crossover Module: Wired with plug and play harness

Subwoofer:

  • Tailgate Sub: Alpine 12", RS-W12D4
  • or
  • Side Enclosure: Alpine 10" S2-W10D4
  • or
  • Truck Box: Alpine R2-DB8V (dual 8" ported box)
  • or
  • Shallow Enclosure: Alpine RS-SB12 (12" R Subwoofer)

Installation instructions

VIDEO

The following videos are intended to support and guide you through your full system installation.  Below you'll find the following:

  • Our amplifier bundle installation video.  Both B&O and Non-B&O Videos are present to demonstrate the different connections and wiring harnesses.
  • Our full speaker installation video.  You will follow the installation guide found under the "Installation" tab of the product page for the front speaker component installation.
  • Our rear speaker pod installation video.  As seen in the video, we're unable to send the speakers mounted as they do require installation of the provided hardware prior to mounting the speaker.  In addition, you will apply the provided sound deadening to the interior of the pods, as well as fill the pod with the provided poly fill.

Trail Seven Full System Installation Video (B&O Version):

Trail Seven Full System Installation Video (Non-B&O Version):

Trail Seven Full Speaker Installation Video:

Trail Seven Rear Pod Installation Video:
