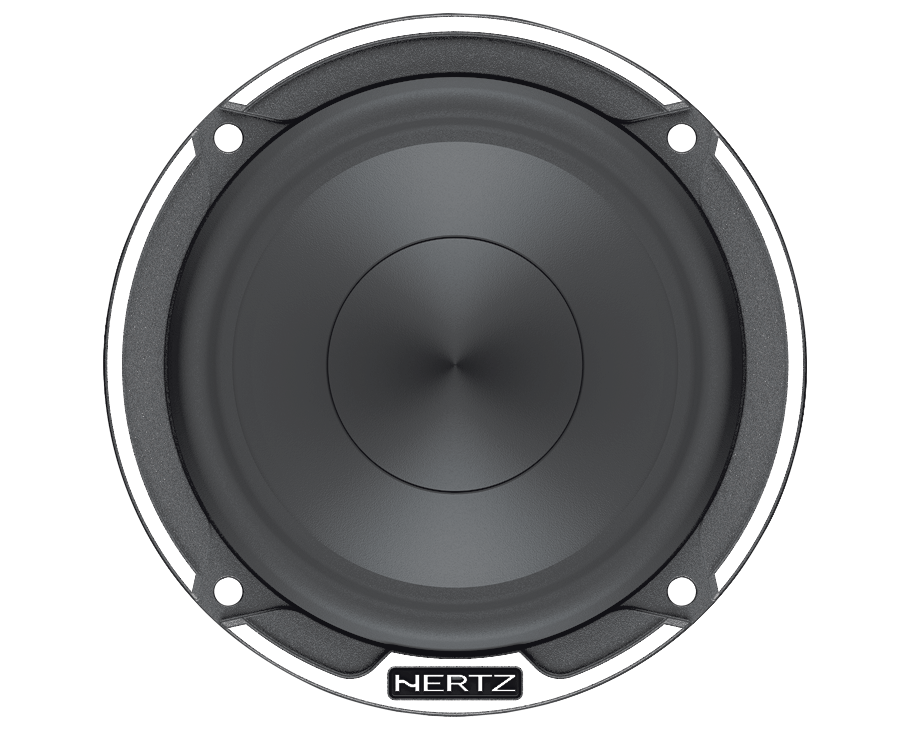

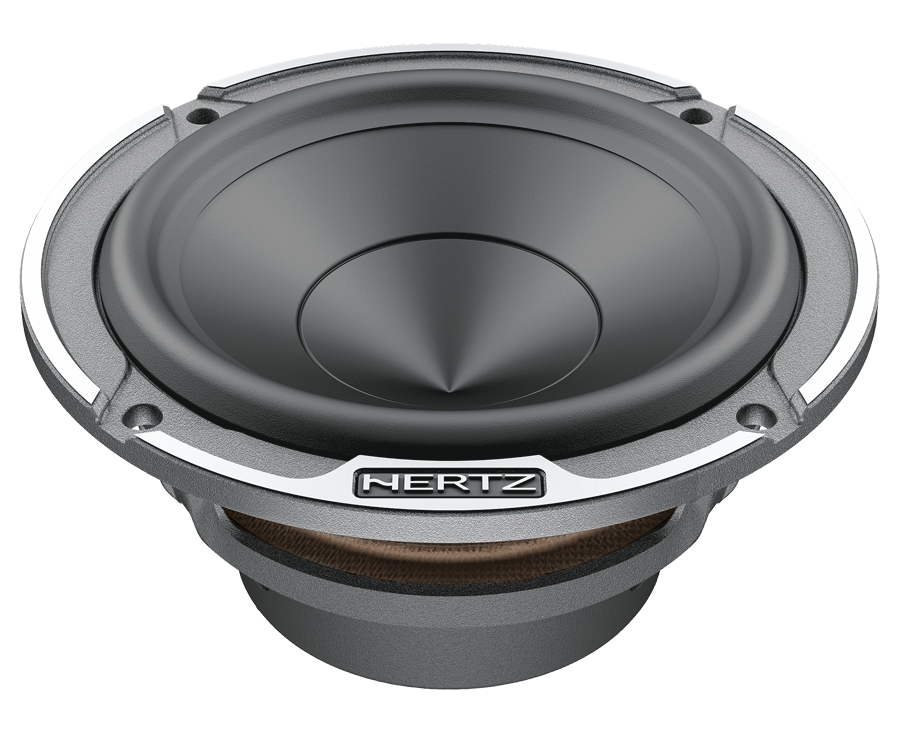

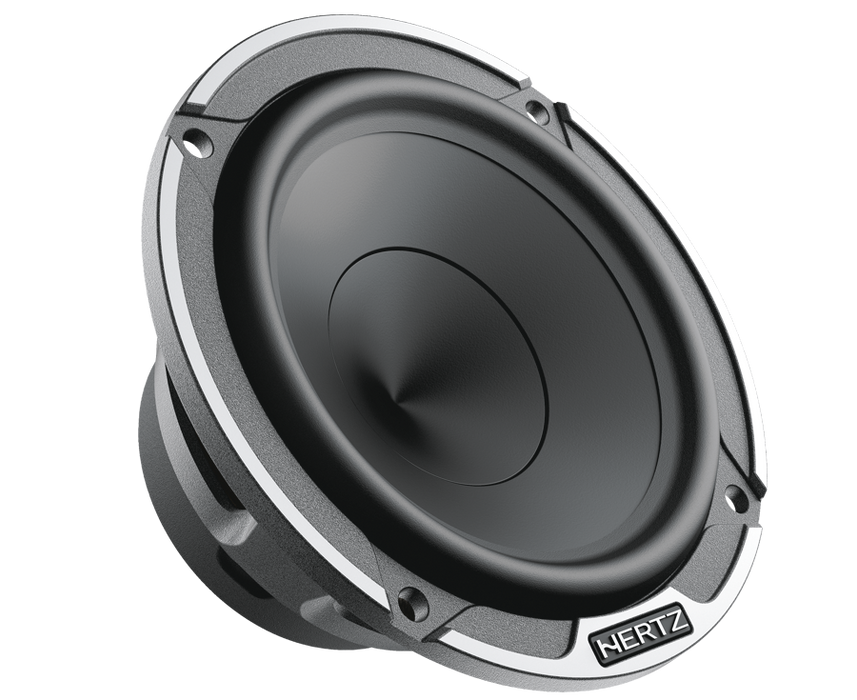

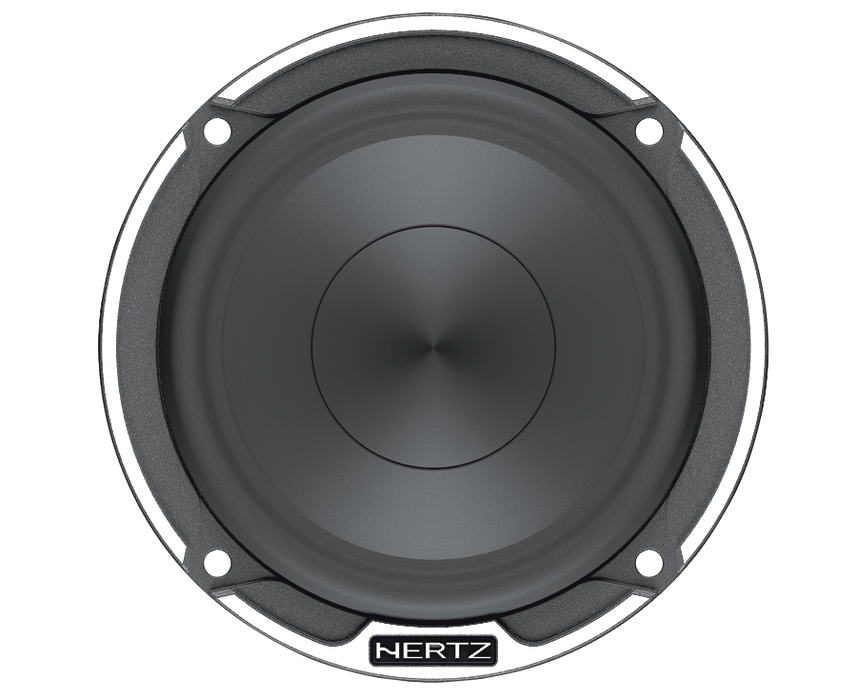

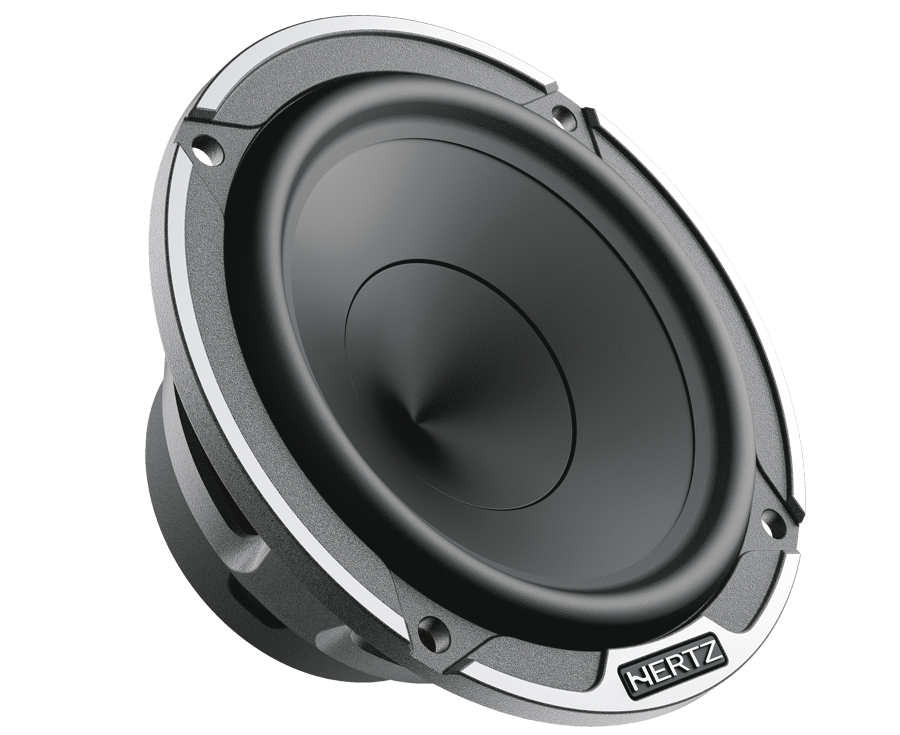

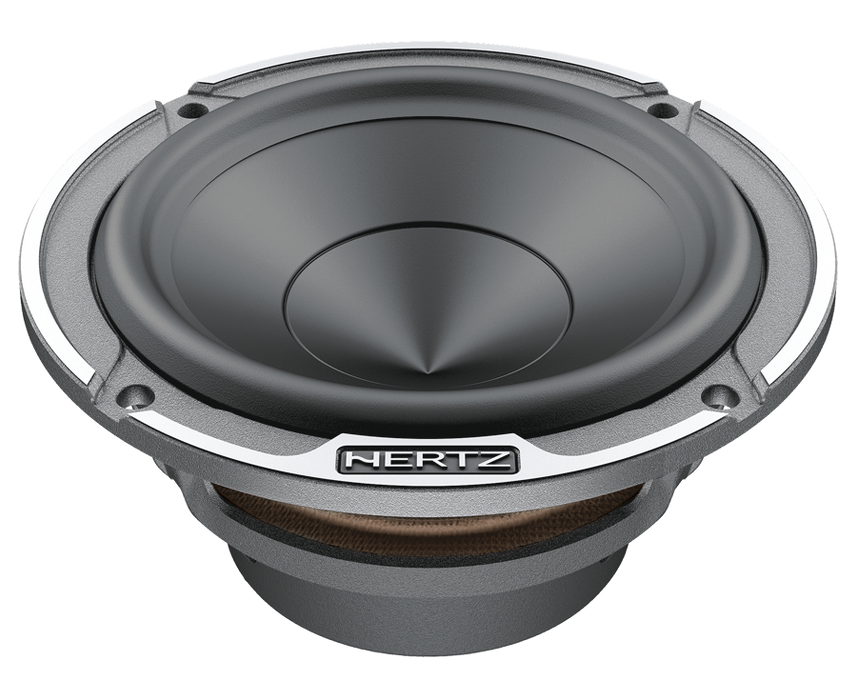

Hertz Mille Pro MP 70.3 3" Midrange Speaker

The 20 mm coil of the MP 70.3 maximizes the dynamics; the V-cone® profile enhances off-axis dispersion and the Boundary Free Surround allows for a wider extension towards the low frequency range.

• V-CONE®: The exponential profile gets very close to the perfect one, providing exceptional dispersion.
• Boundary Free Surround: This technology provides the ability to achieve wider emission surface of the cone compared to speakers with same diameter; that way, the cone manages to move a bigger mass of air, so it produces more acoustic pressure.
  This special surround is built from highly pure IIR butyl rubber, ensuring extraordinary thermal and mechanical linearity.

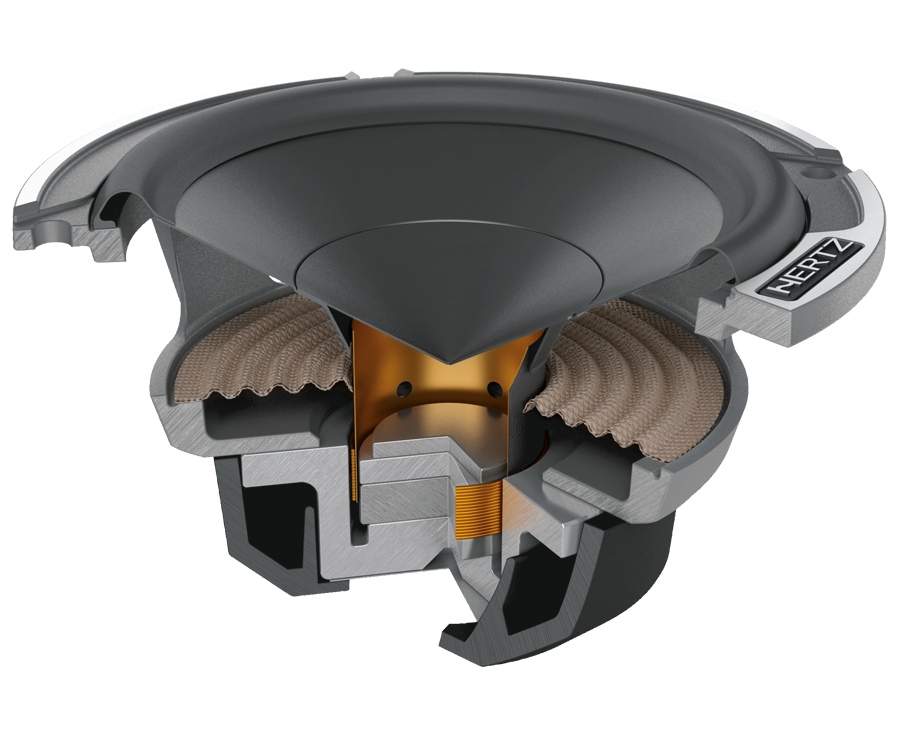

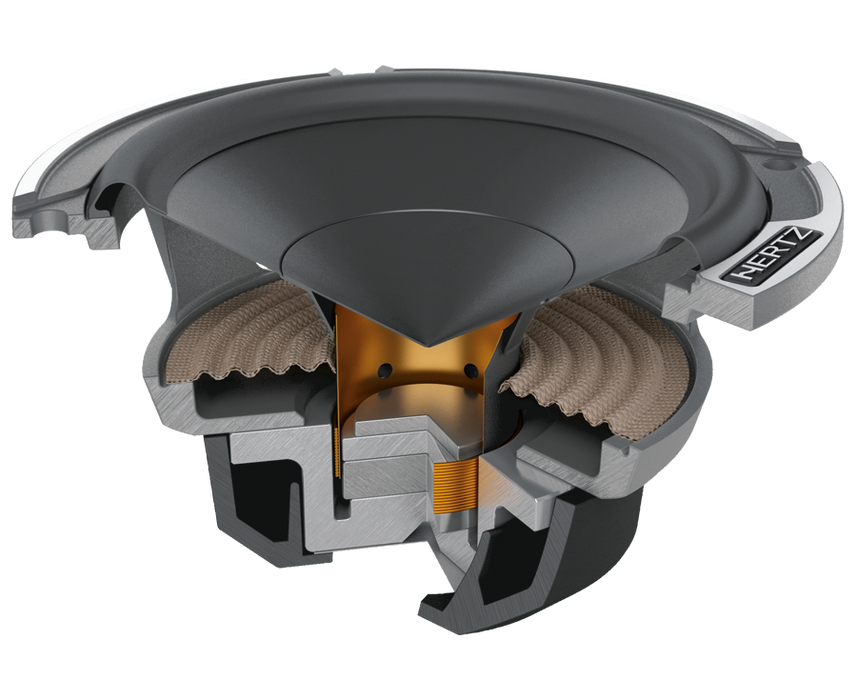

• SYMMETRICAL DUAL NEODYMIUM MAGNET: structure specifically developed with FEM (Finite Element Modeling) simulations, for superior dynamics and control.
• 20 MM CCAW DOUBLE LAYER VOICE COIL: wound on a Polyamide former with 8 decompression holes, for exceptional power handling and compression-free reproduction.
• EXPONENTIAL V-CONE® PRESSED-PULP CONE WITH COTTON FIBERS: combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid-high frequency range.
• “BOUNDARY FREE” RUBBER SURROUND: for better efficiency and wider mid-bass frequency.
• ANTI-VIBRATION RUBBER MAGNET COVER: to damp spurious vibrations, removable to fit limited mounting depth installations.
• BASKET: acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.

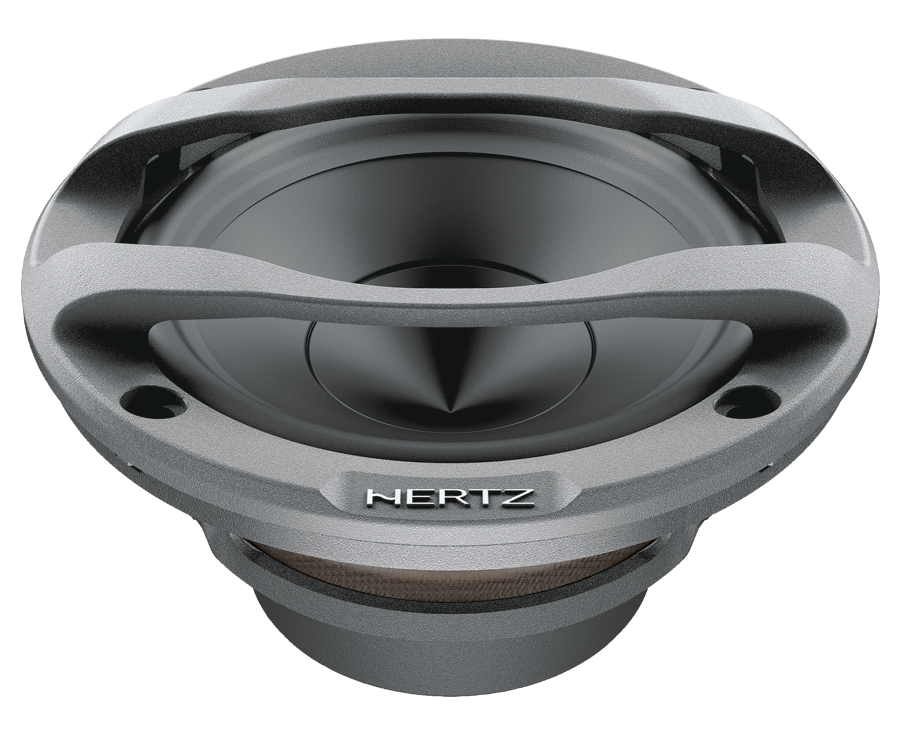

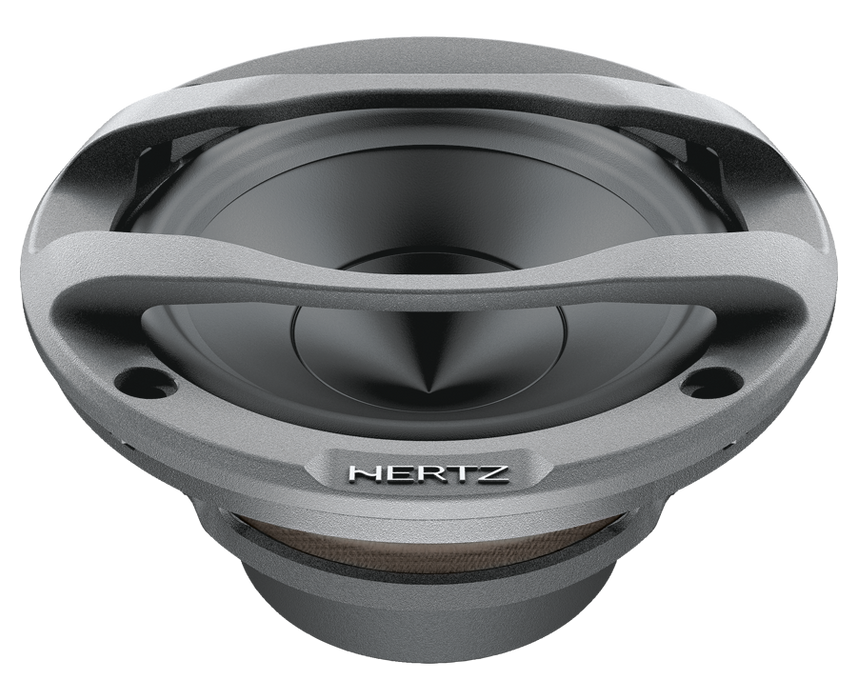

• GRILLES INCLUDED: full protection metal mesh grill featuring the aluminium Hertz logo and an attractive mineral powder coated inner grill are included for several install combinations.

• Nominal Diameter: 70 mm (3 in)
• Impedance: 2 Ohm
• Power Handling - Peak: 100 W
• Sensitivity: 88 dB
• Frequency Response: 180 ÷ 18k Hz
• Voice Coil Ø: 20 mm (0.75 in)
• Voice Coil Material: CCAW
• Magnet Material: Neodymium
• Magnet Size D x d x h: 19.7 x 0 x 2 mm (0.78 x 0 x 0.08 in)
• Cone Material: Pressed-pulp cone with cotton fibers
• Xmax: 1.5 mm (0.06 in)
• Electro-acoustic Specs D: 65 mm (2.56 in)
• Re: 3.7 Ohm
• Fs: 110 Hz
• Le: 0.12 mH
• Vas: 1 l (0.035 ft³)
• Mms: 2.9 g (0.102 oz)
• Cms: 0.7 mm/N
• BL: 2.8 T•m
• Qts: 0.82
• Qes: 1
• Qms: 4.6
• SPL: 88 dB
• Grilles Included: Yes
• Weight of one speaker: 0.17 kg (0.375 lb)
• Dimension A: 87.8 mm (3.46 in)
• Dimension B: 73 mm (2.87 in)
• Dimension C: 50 mm (1.97 in)
• Dimension D: 44 mm (1.73 in)
• Dimension E: 93 mm (3.66 in)
• Dimension F: 17 mm (0.67 in)

• Speakers: (2) Hertz MP 70.3 3" (70mm) midrange speakers, sold as a pair
• Grilles: full protection metal mesh grilles featuring the aluminium Hertz logo, plus mineral powder coated inner grilles, for several install combinations
• Magnet Covers: anti-vibration rubber magnet covers (removable for shallow mounting depths)
