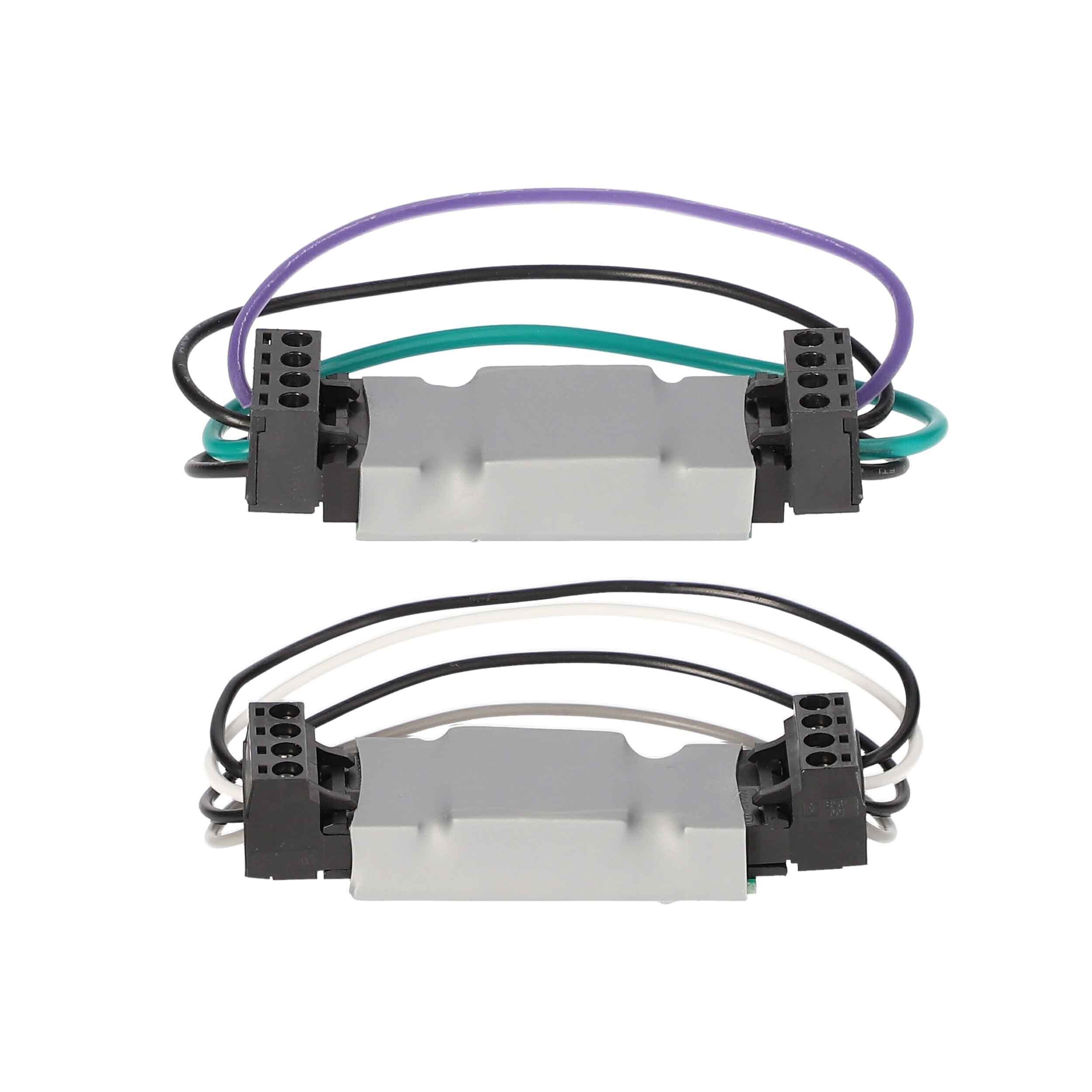

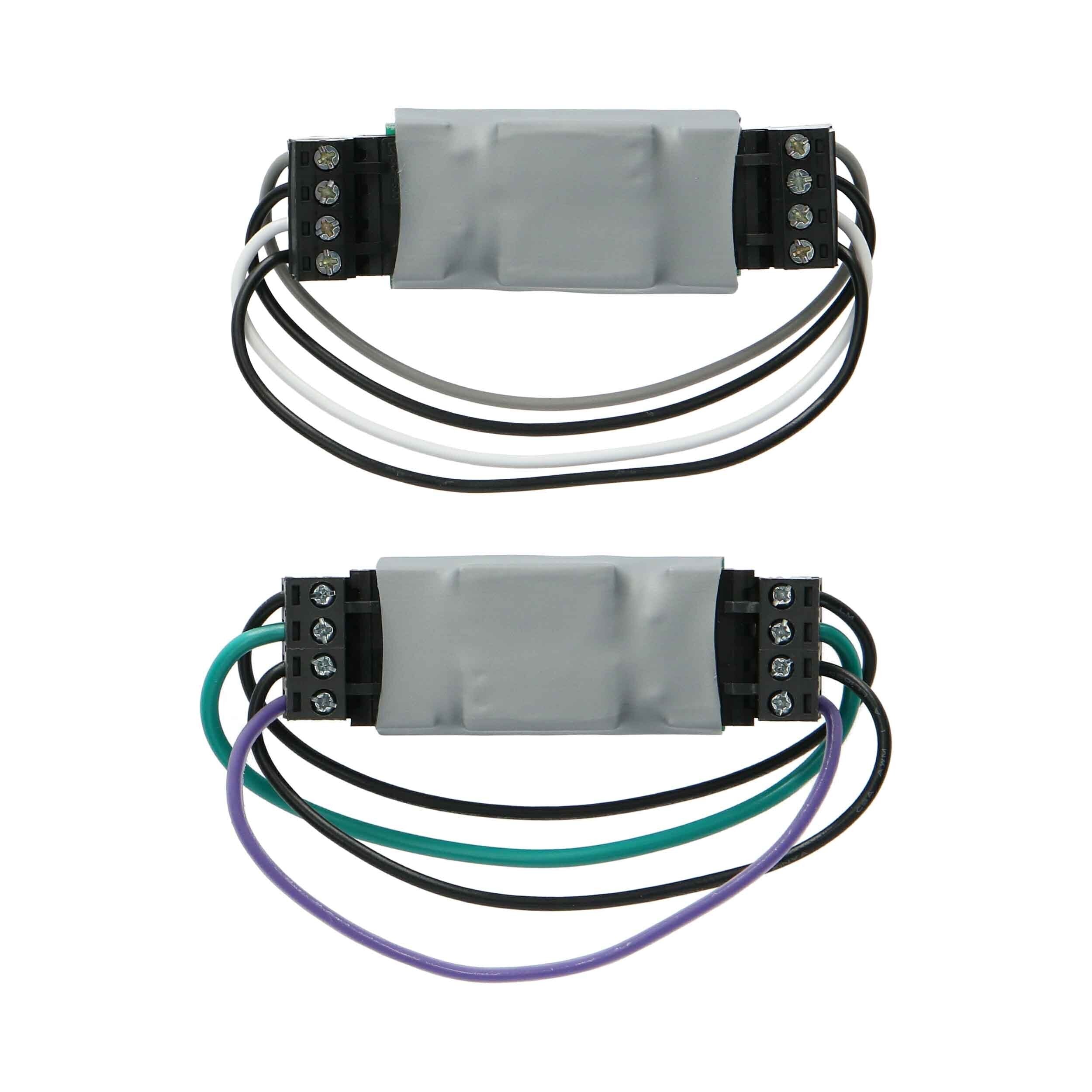

Install Bay Load Resistors IBLR2-20

The IBLR2-20 comes with a typical tolerance rating (often ±5% or better), ensuring a reliable and consistent resistance value for precise testing and measurement. Available in axial or radial form, the resistor can be integrated into a wide range of circuit designs and testing apparatuses. It is easy to mount on circuit boards or connect to test equipment.

Designed to dissipate heat effectively, the IBLR2-20 ensures reliable operation even in high-power environments. Suitable for a wide range of applications in electronics, electrical engineering, and research testing.

TESTED AND APPROVED BY TRAIL SEVEN: Metra's Install Bay load resistors have been installed and tested in our Trail Seven Jeep and Bronco. We're pleased to put our stamp of approval on this system!

• Resistance Value: The IBLR2-20 has a fixed resistance of 20 ohms, making it ideal for applications that require this specific resistance for accurate testing and operation.
• Power Rating: The resistor is designed to handle power dissipation efficiently, typically rated for 2 watts or higher, depending on the specific product model. This enables it to manage substantial heat generation without failure, ensuring reliable performance under load conditions.
• Construction: The IBLR2-20 is made from high-quality materials such as ceramic or wire-wound elements. Its construction is robust enough to withstand regular use in power systems and test equipment.
• Temperature Stability: With a low temperature coefficient, the resistor maintains its resistance value even under varying temperature conditions, providing stable performance in both high and low temperature environments.
• Applications: This load resistor is commonly used in various testing environments such as power supplies, amplifiers, and electronic circuits, where a specific resistance is required to simulate operational conditions.

• Designed to generate a load on factory wiring when removing OEM speakers
• Stabilizing signal from the OEM system
• Used in factory systems that mute or cause distortion when replacing OEM speakers
• Ideal for late model Dodge/Chrysler/Jeep/RAM/Fiat vehicles equipped with OEM base sound systems (no separate amplifier)
• Sold as a pair

• Universal fitment for all vehicles

• Resistance Value: 20 ohms
• Power Rating: 2 Watts
• Tolerance: ±5%
• Maximum Working Voltage: 250V
• Operating Temperature Range: -55°C to +150°C
• Resistance: >100 MΩ at 500V DC
• Mounting Type: Axial or Radial
• Material: Ceramic Core
• Universal fitment
• Sold as pair

• IBLR2-20 20 Ohm load resistor
• Product Datasheet
