Kicker CXA8001T Mono Amplifier

CX800.1 Mono Amplifier:
The CXA800.1 Mono Amplifier is built for affordable power and performance, thanks to optimized circuit layout and high-grade internal components.

About That Power:

This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! This Class-D CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

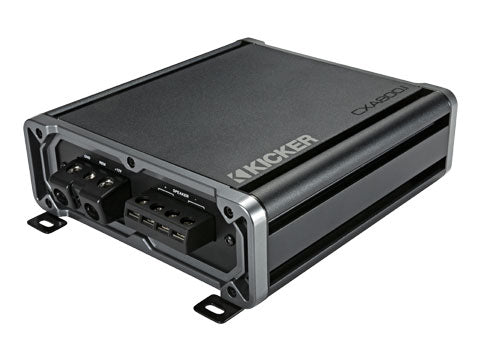

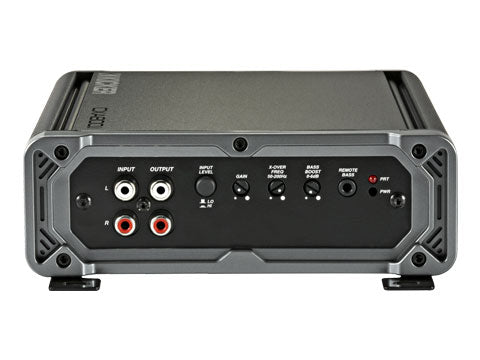

Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware.

This CX.1 amplifier delivers as much as 800 watts into one bass channel. See below for more details.

• Efficient Class-D amplifier
• Three-second turn-on/off delay to eliminate unwanted interference
• Variable 12dB crossovers provides control to dial in perfect sound
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• 24dB subsonic filter for protection from potentially damaging frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
• Accepts up to 40-volt input signal
• Small footprint for easier installation
• Compatible with CXARC Remote Bass Control
• Vertical mounting hardware included for another unique look

If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.

Model: CXA800.1
Power (watts/ch) 4 Ohm: 300×1
Power (watts/ch) 2 Ohm: 600×1
Power (watts/ch) 1 Ohm: 800×1
Class: D (1 ohm stable)
Bass Boost: Variable 0–6 dB @ 40 Hz (KickEQ™)
Low-pass crossover: Variable 50–200 Hz, 12 dB/octave
Subsonic filter: 25 Hz, 24 dB/octave
Input Sensitivity (Low-level): 250 mV–10 V
Input Sensitivity (High-level): 1 V–40 V
Frequency Response: 25–200 Hz (+0/–1 dB)
Signal-to-Noise Ratio: > 95 dB A-weighted (rated power)
Total Harmonic Distortion (THD): 1 %
Dimensions (L × W × H): 8-1/8″ × 6-11/16″ × 2-3/8″ (20.6 × 17 × 5.9 cm)
Remote Bass Control: CXARC-compatible (sold separately)
Warranty: 2 Year Manufacturer's Warranty
