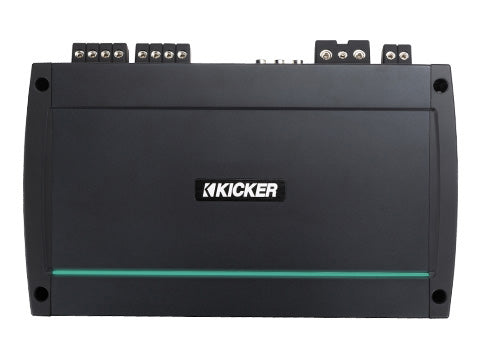

Kicker KXMA9005 4-Channel Marine Amplifier

KXMA900.5:
The KICKER® KXMA five-channel marine amp delivers power and performance with a full-system solution in a single, powerful amplifier.

REAL MARINE™:
The KICKER REAL MARINE™ standard means your amplifier is purpose-built for your boat. Every KXMA (and KMA)-Series amp comes complete with anti-corrosive speaker, power and RCA terminals, stainless-steel screws, conformal-coated circuit boards and ABYC/NMMA-compliant power connections. KICKER products also undergo rigorous testing to ensure they meet or exceed marine industry standards for UV, humidity and saltwater exposure. This unparalleled commitment to engineering quality and maritime safety is why our products truly are "REAL MARINE™."

KXMA900.5 Marine Amplifier:

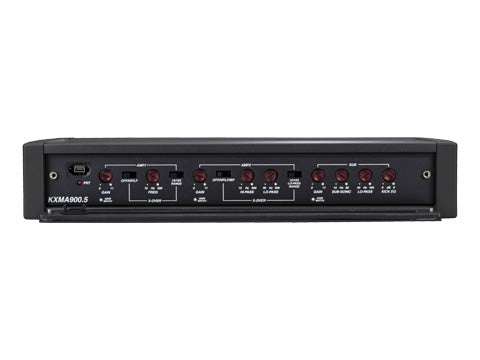

Gain, crossover and bass-boost controls are protected behind a gasket-sealed panel, as is the control cover hiding the settings, creating a water-resistant barrier to key controls. KickEQ™ delivers as much as an 6dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection.

A wired bass controller is also included for perfecting your sound on the fly. Easily adjust the levels of your subwoofer channel without leaving your seat!

• Class D Amplifier
• Gain Control With "Gain Match" LED Indicator
• FIT2™ (Fail-safe Integration Technology) Circuitry
• Variable 24dB Crossover
• DSP-Controlled Preamp
• KickEQ™ 6dB Variable Bass Boost
• ABYC/NMMA-Compliant Power Terminals
• Conformal-Coated Circuit Boards
• Easy Access to Settings behind Gasket-Sealed Cover Panel
• Black Anodized Aluminum Chassis
• Top-Mounted, Teal LED Light Pipe
• Stainless-Steel Mounting Hardware Included

Want setup help? Go to KICKER U for a free woofer-and-amp configuration app!

This KXMA amplifier delivers as much as 125 watts into four full-range channels, or 250 watts into 4-Ohm bridged channels. A separate subwoofer channel delivers as much as 400 watts. See below for more details.

Model: KXMA900.5
Channels: 5 (4 full-range + 1 subwoofer)
Power (Watts/Ch) 2 Ohm Stereo: 125×4
Power (Watts/Ch) 4 Ohm Stereo: 75×4
Power (Watts/Ch) 4 Ohm Bridged Mono: 250×2
Sub Channel Power 4 Ohm: 200×1 @ 1% THD+N
Sub Channel Power 2 Ohm: 400×1 @ 1% THD+N
Sub Channel Power 1 Ohm: 400×1 @ 1% THD+N
Dynamic Power: 1300 W
Frequency Response: Full range channels 10–20,000 Hz (+0/–1 dB); Subwoofer 10–160 Hz
Input Sensitivity (Low/High): 125 mV–5 V / 250 mV–10 V
Signal-to-Noise Ratio: ≥ 95 dB A-weighted
Class: D
Crossover (Amp 1): OFF/HP/LP, 24 dB/oct, variable 10–5,000 Hz w/ 10× switch
Crossover (Amp 2): OFF/HP/LP/BP, HP variable 10–500 Hz, LP 40–5,000 Hz w/ 10× switch
Sub Section Crossover: LP only, variable 40–160 Hz; Subsonic 10–80 Hz, 24 dB/oct
Bass Boost (KickEQ™+): 0–6 dB @ 40 Hz
Remote Bass Control: Yes (wired)
Signal Indicator: "Gain Match" LED on gain knobs
Protection & Build: ABYC/NMMA-compliant terminals, conformal-coated PCBs, gasket-sealed panel, UV-treated aluminum chassis, stainless steel mounting hardware
Total Harmonic Distortion (THD): ≤ 1%
Dimensions (W × D × H): 8-5/16″ × 12-¾″ × 2-1/8″ (21 cm × 32.4 cm × 5.4 cm)
