Alpine PSS-22WRA Direct Fit Weather Resistant Sound System | '11-'18 JK Wrangler Unlimited

Factory Amplifier Bypass Needed? Simply put, if you have a factory installed amplifier which is the Jeeps with the factory installed subwoofer in the rear of the Jeep, you will need the factory amplifier bypass harness. We will pre-wire the harness so everything will remain plug and play for you!

All-Weather Durability: Don't worry about being caught in inclement weather with the top off, as the PSS-22WRA is IP55 rated to withstand rain, wind, and dust. The subwoofer uses rust-resistant hardware and can handle water from off-roading adventures or a quick rinse down.

Incredible Sound Quality: Alpine’s exclusive Dynamic Peak Power (DPP) amplifier technology and 10-inch under-seat subwoofer enclosure deliver excellent sound performance that will turn heads. The PSS-22WRA loads and disperses lower frequency sound from the passenger’s foot well area, maximizing bass extension throughout the Jeep for an exceptional audio experience.

Easy Bolt-in Installation: Alpine's PSS-22WRA sound system features a subwoofer that bolts under the passenger seat, plug-and-play speakers and tweeters, easy mount-in amplifiers, and Jeep harnesses for a hassle-free, plug-and-play installation.

Compatibility with Various Radios: The included T-harness allows for easy audio signal connections from behind the Wrangler’s radio, making installation even simpler. The PSS-22WRA is compatible with any Alpine Restyle Jeep Wrangler dash system, the Jeep factory radio, or other aftermarket radio.

Compatible With Factory Amplified Jeeps: We introduce the now compatible with the factory premium amplified systems, our amp bypass harness option. Regardless if you have the factory amplified system or not, our bundle is compatible with your Jeep. If you have the factory amplified system (subwoofer in the rear of the Jeep) simply select the amplifier bypass harness in the checkout and we'll include the Plug and Play harness to bypass your factory amplifier AND utilize the factory speaker wires.

If connecting to a factory radio with the amp by pass harness, you will also need the PAC CH21 module.  Aftermarket head units will not require the PAC CH21 module.

Premium Sound Upgrade: Looking for a premium sound system for your Jeep Wrangler JK? Look no further than the Alpine PSS-22WRA. Specifically designed for '11-'18 Jeep Wrangler JK Unlimited models, this 1200-watt, 9-speaker sound system delivers outstanding sound performance both with the top on or off.

• Installation Note: The Alpine 10" Water Resistant Subwoofer is designed for use with factory carpet. If your Jeep does not have carpets, additional padding may be required.
• Designed for use on Jeeps with Automatic Transmission
• Not Compatible with 2-Door Wranglers
• Estimated Installation Time: 4 Hours

• Fits Jeep Wrangler JK Unlimited models '11-'18
• Weather resistant sound system

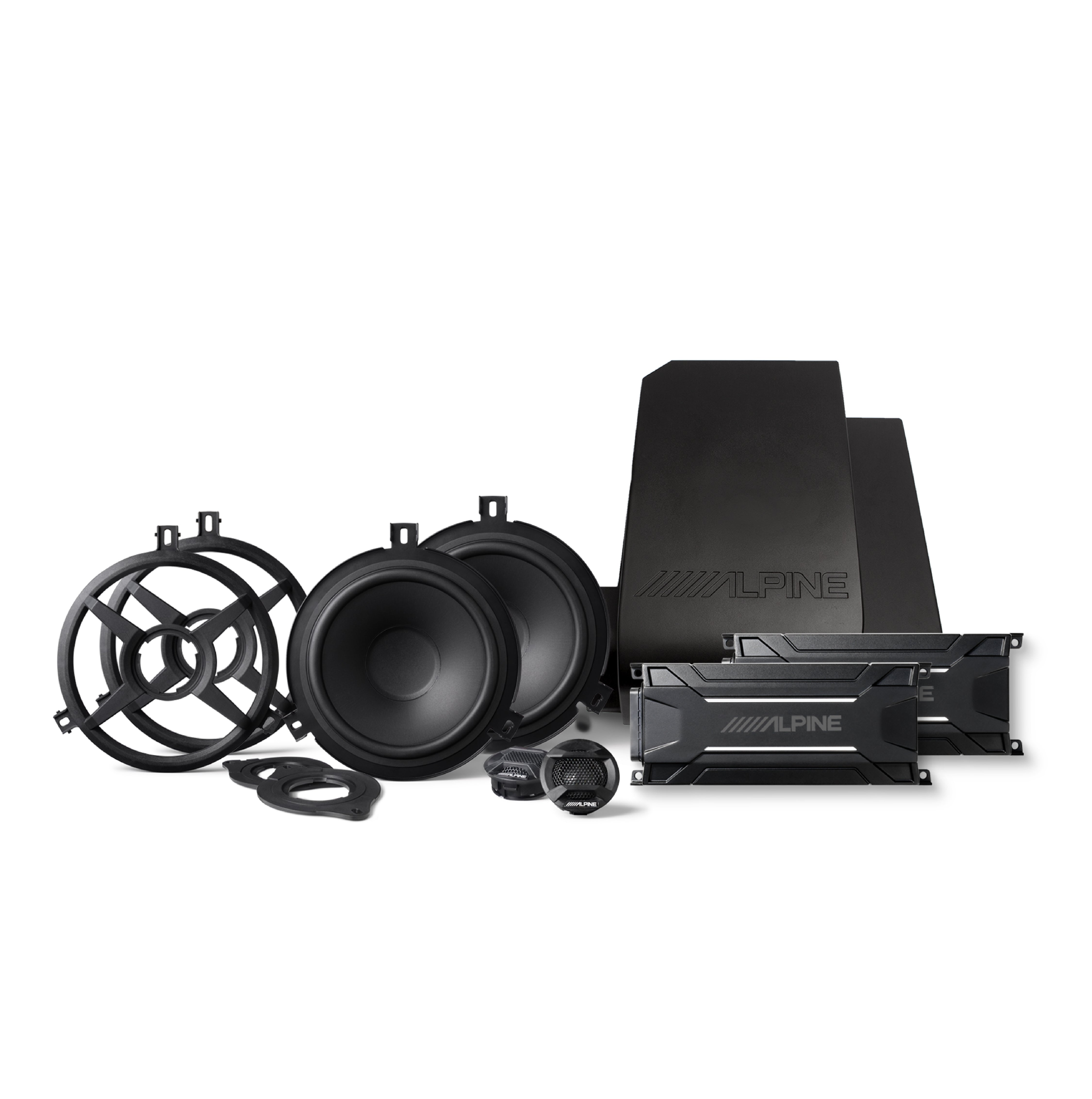

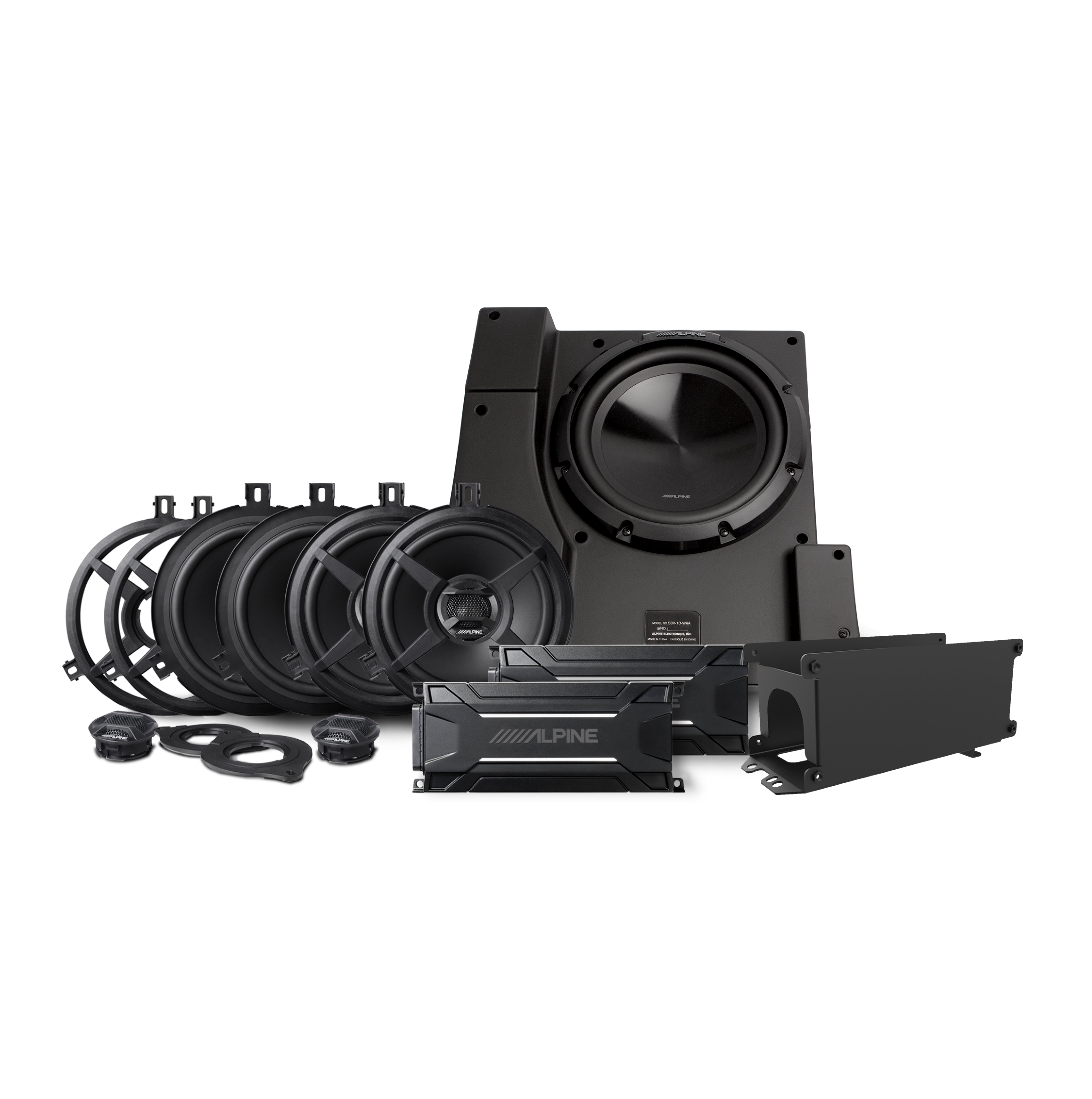

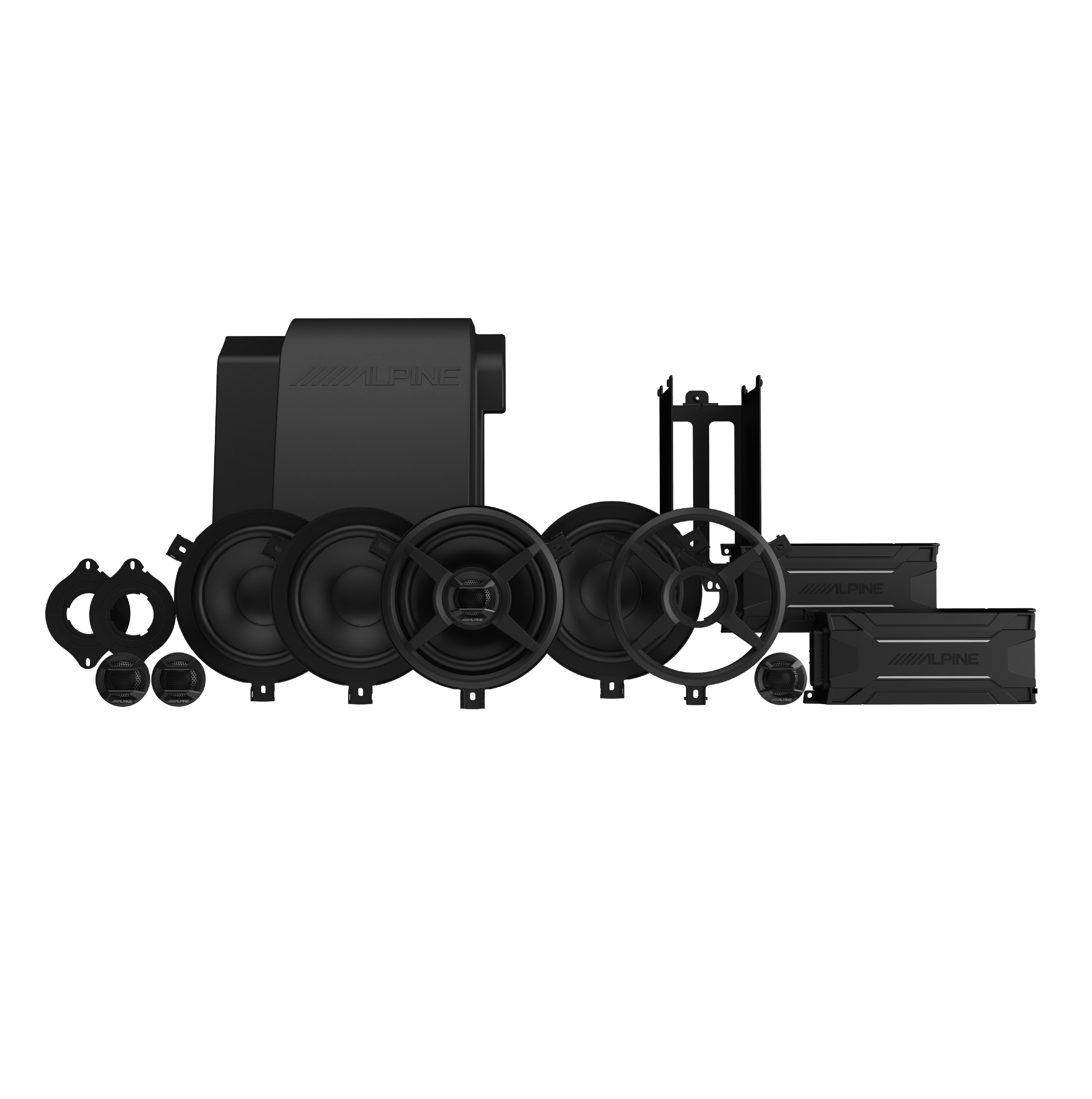

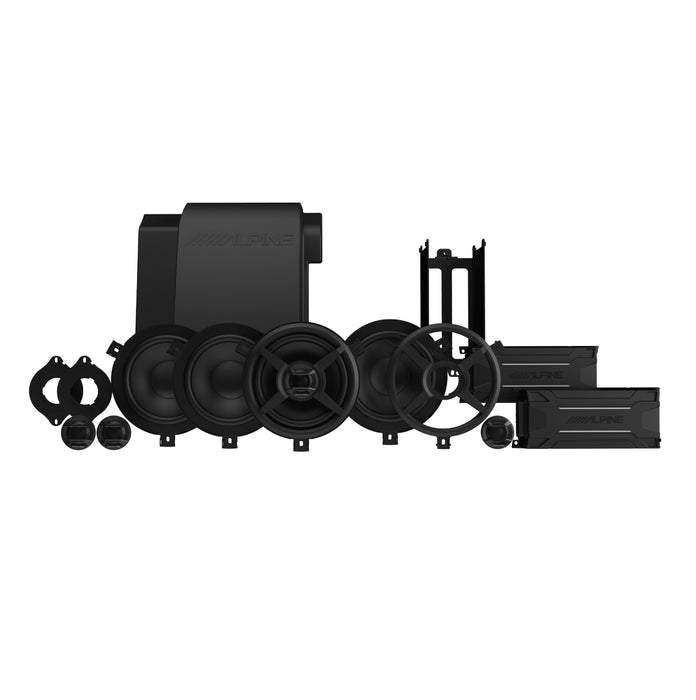

• Includes an under-seat 10-inch enclosed subwoofer, two 6.5-inch 2-way convertible component/coaxial speaker sets, a 4-channel compact amplifier, a mono compact amplifier and a remote bass knob, plus vehicle-specific harnesses and mounting brackets
• Delivers impactful sound, even when the Wrangler’s top is off
• Compatible with any Alpine Restyle Jeep Wrangler dash system, the Jeep factory radio, or other aftermarket radio
• Compatible with the factory amplified jeeps with our plug and play amp by-pass harness option!

• Fits: 2011 - 2018 Jeep JK Wrangler Unlimited
• Note: Not compatible with 2-Door Wranglers.
• Note: Designed for use on Jeeps with Automatic Transmission.
• Installation Note: The Alpine 10" Water Resistant Subwoofer is designed for use with factory carpet. If your Jeep does not have carpets, additional padding may be required.

• 75w x 4 + 300w x 1 RMS
• 150w x 4 + 600w x 1 DPP
• 1200w total DPP

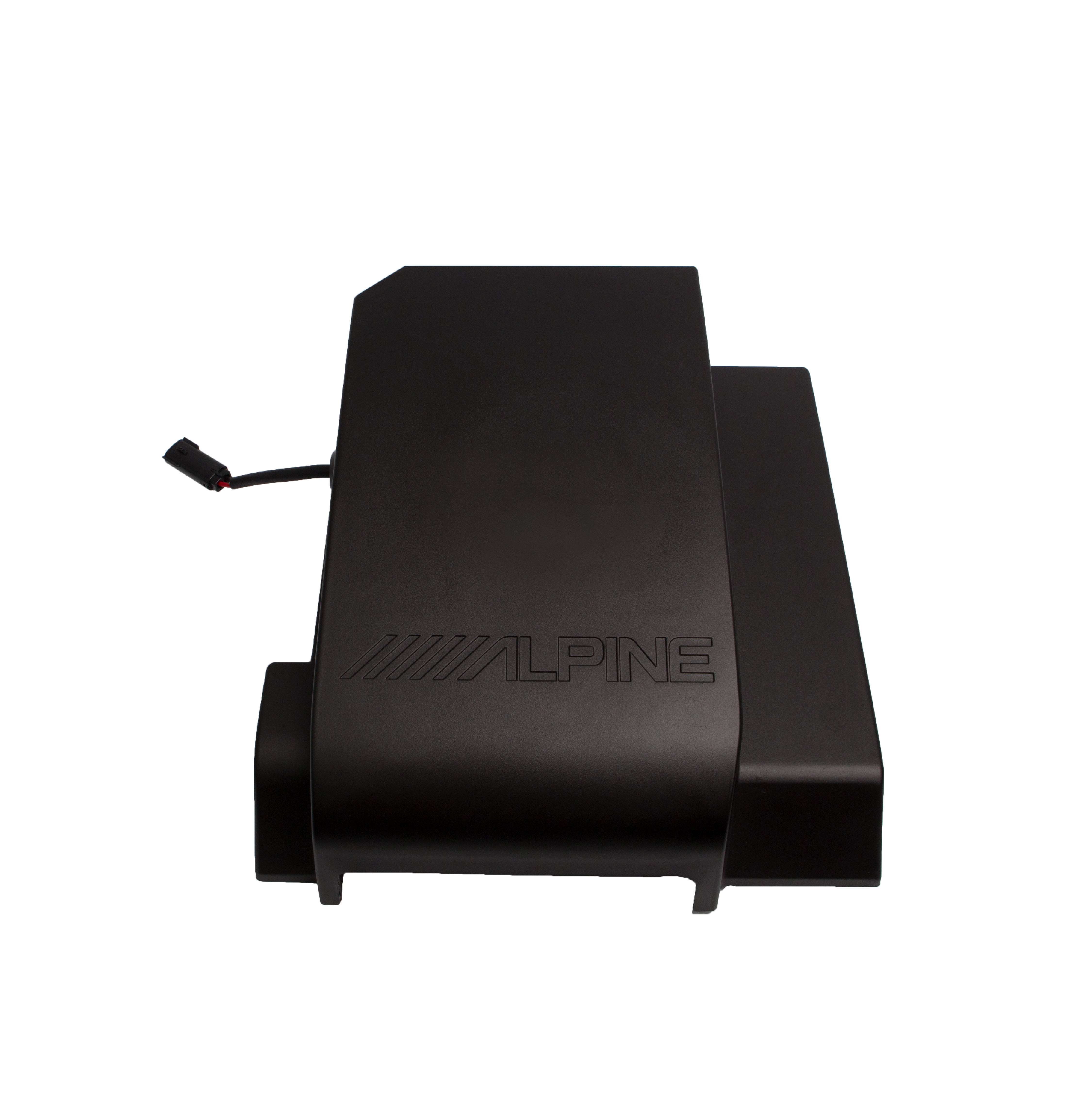

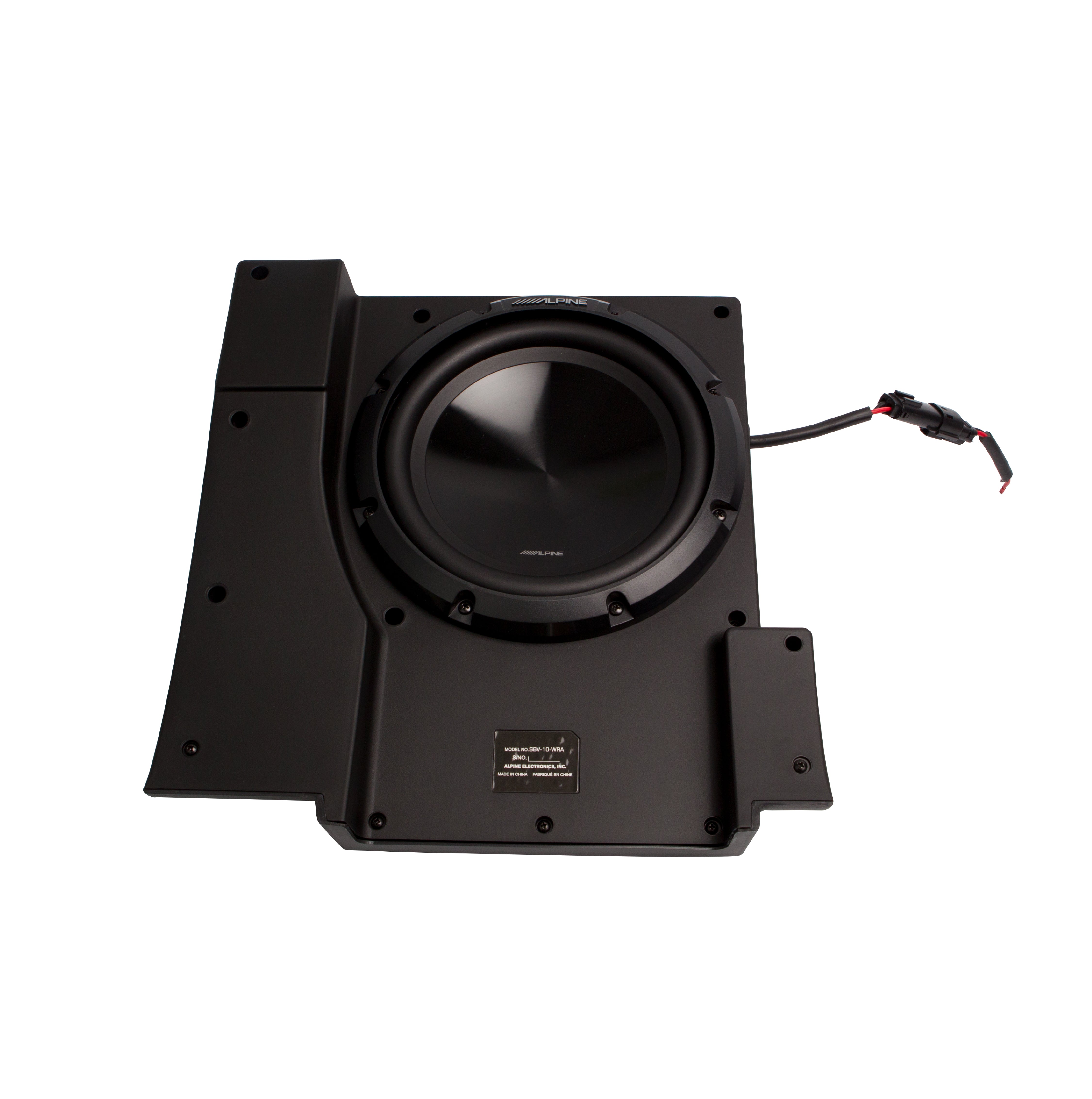

• SBV-10-WRA Powered subwoofer
• 103" Main harness
• (x1) 8' Power cable (inline 60A Maxi-fuse)
• (x1) 8" T-harness
• (x3) 10" speakers to RCA adapters
• (x3) 3/4" bolts
• Installation manual
• Warranty information

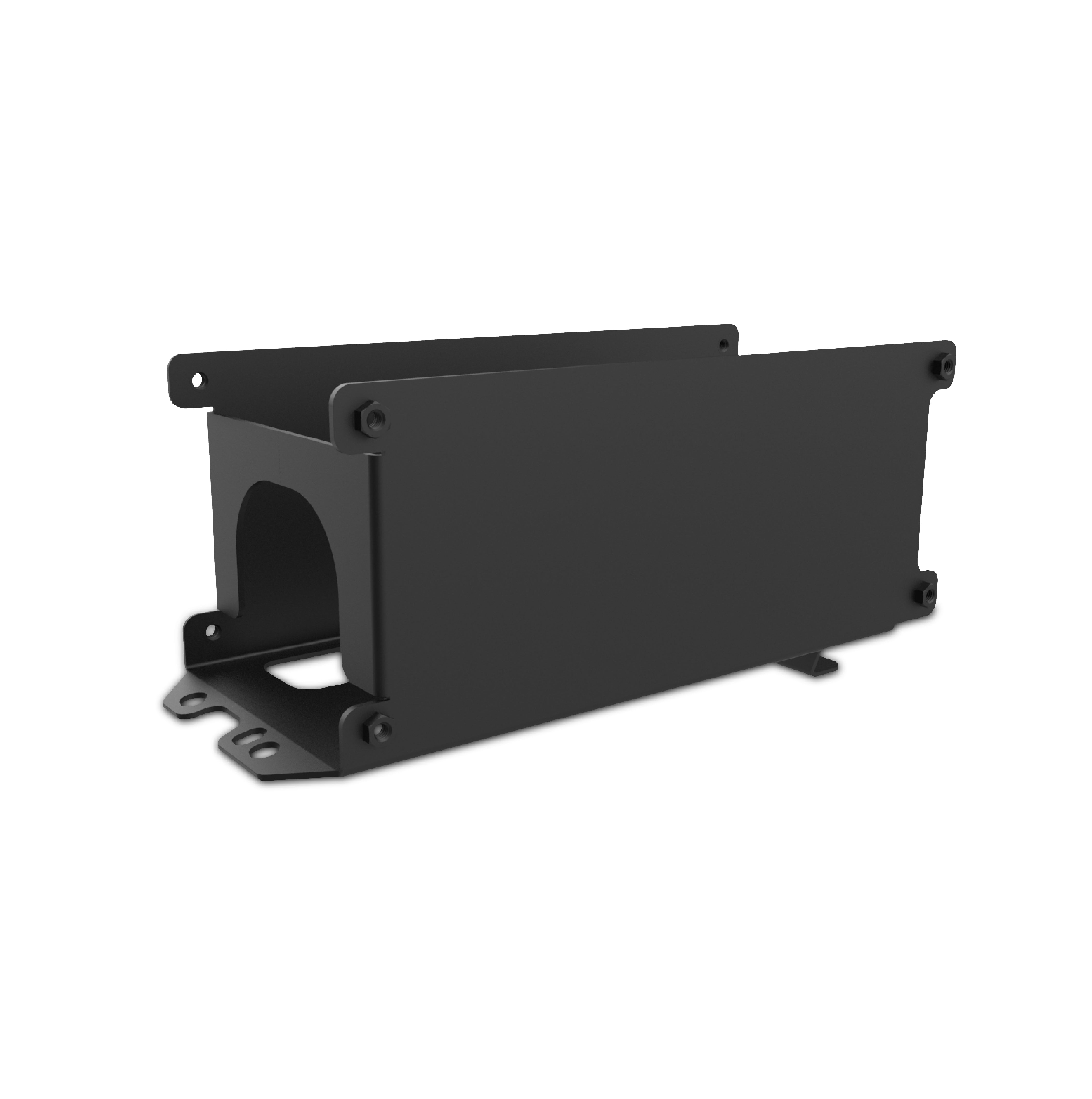

• Amplifier Box: KTA-30F-WRA and KTA-30M-WRA amplifiers pre-attached to the mounting bracket

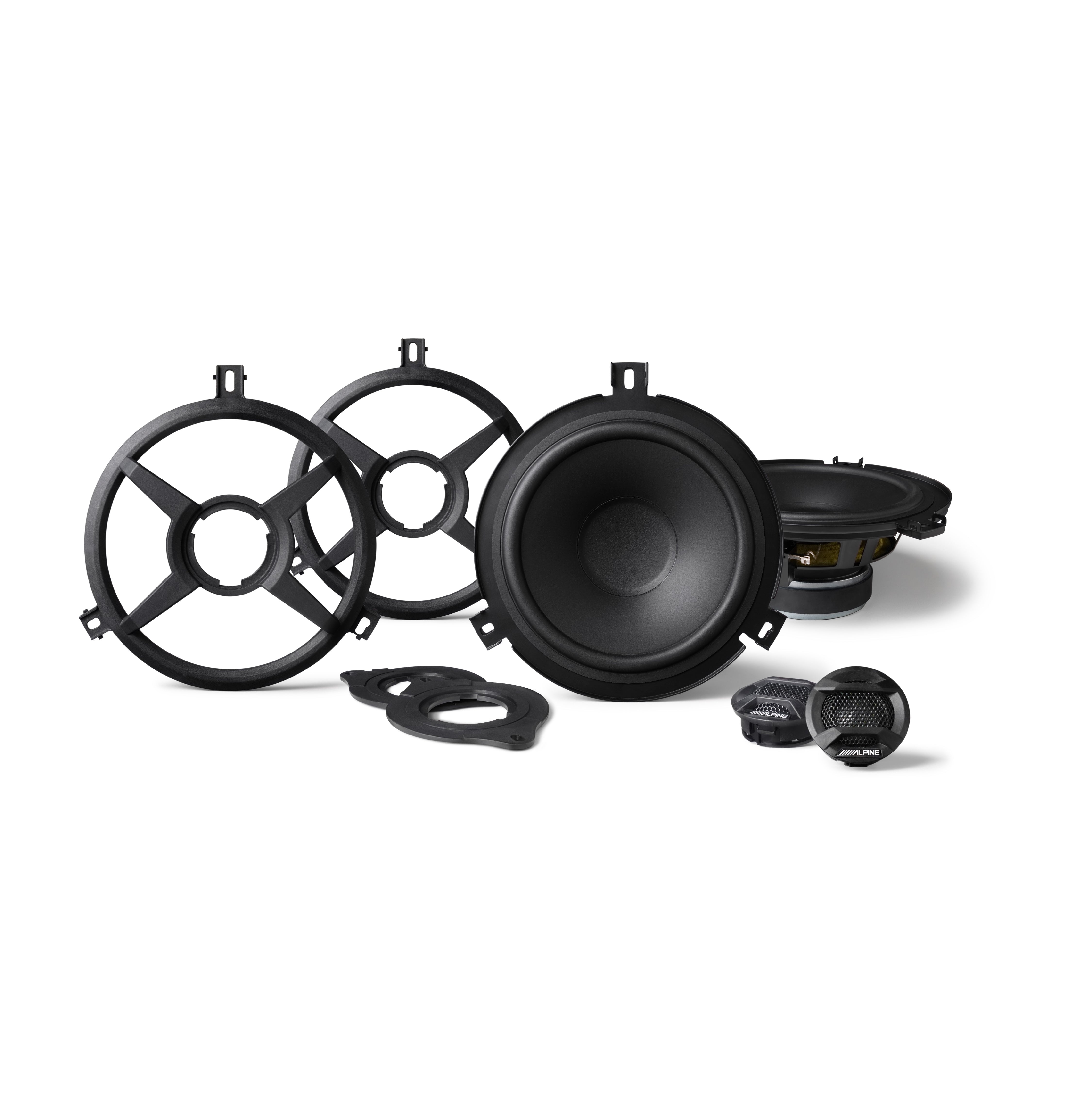

(2) SPV-65X-WRA Component speaker sets each containing

• (x2) 6-1/2" Woofers (attached 6" speaker wire)
• (x2) Tweeters (attached 6" speaker wire)
• (x2) Crossovers
• (x2) Woofer grilles
• (x2) Tweeter mounting plates
• (x2) 12" Sheets of polyfill
• (x2) Alpine logos with adhesive backing
• (x2) 1/2" adhesive foam pads
• Instruction manual
• Warranty information
• Factory amplifier bypass harness (if opted for)
