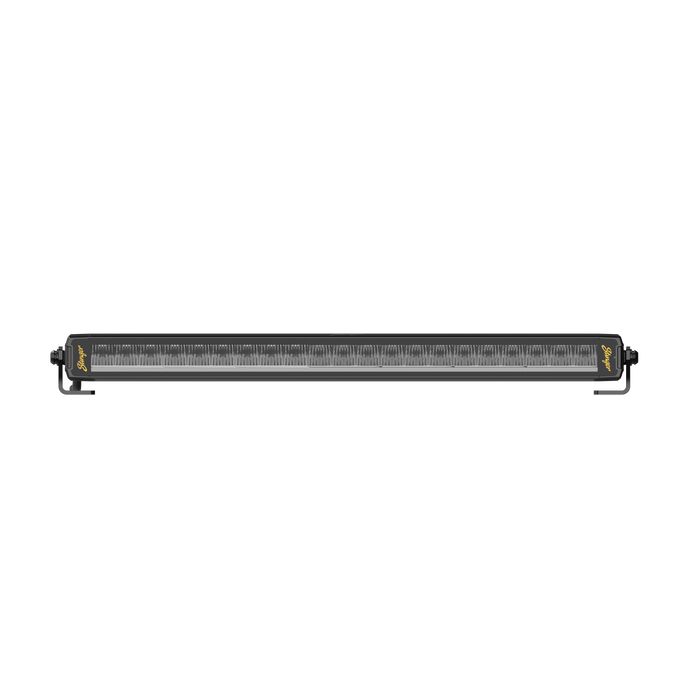

Stinger HEXCORE 20" Straight LED Light Bar - 2007-2018 Jeep Wrangler JK/ JKU

Stinger HEXCORE 20" Straight LED Light Bar for Hood | '07-'18 Jeep Wrangler JK

Stinger
Price:
$539.00
$539.00 - $539.00
$539.00 - $539.00
$539.00

Free US Standard Shipping, 30-Day Returns, 2-Year Warranty (3 Years with HEXCORE Registration)
Fits: 2007-2018 Jeep Wrangler JK/ JKU

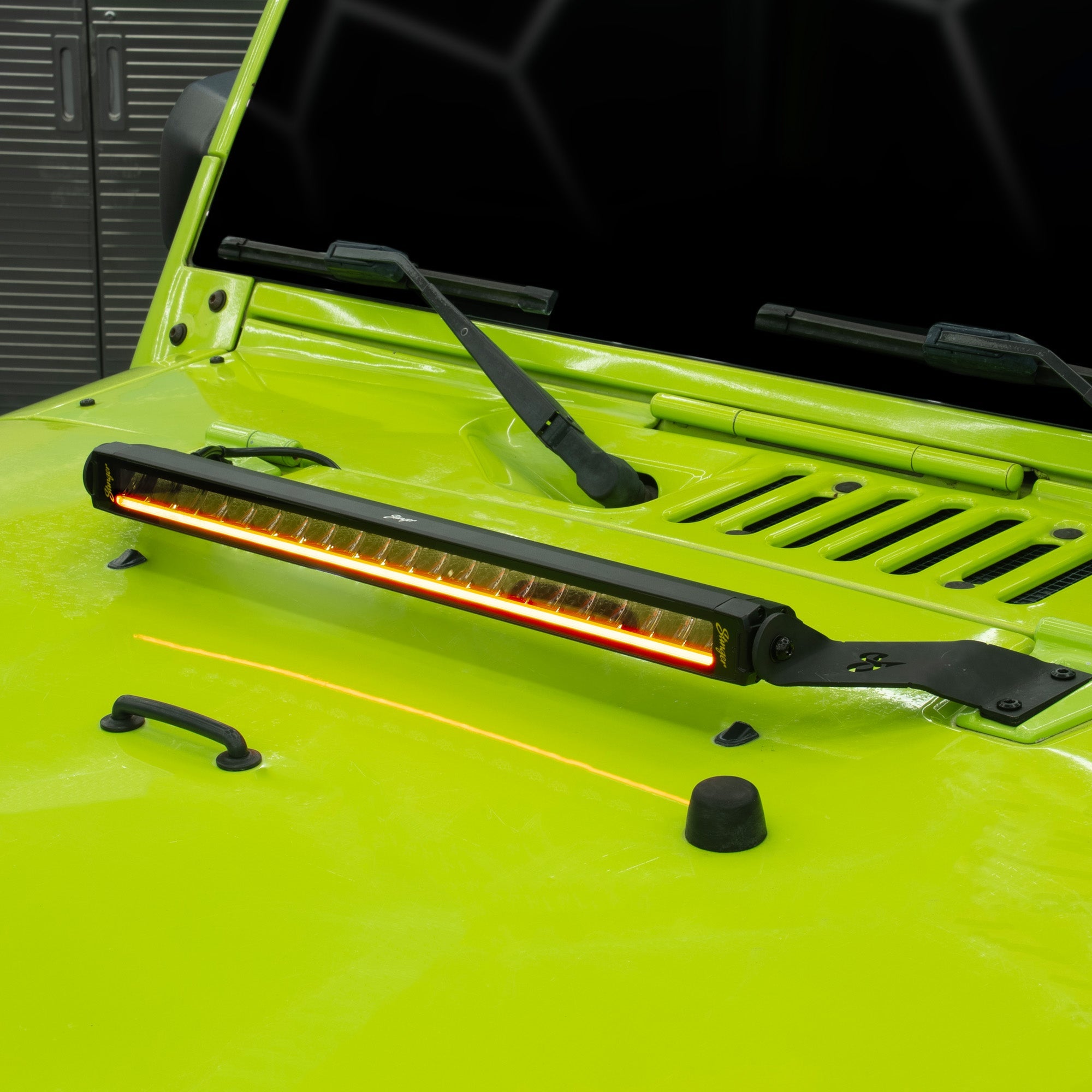

Stinger's HEXCORE 20" straight LED light bar mounts on the hood of your Jeep Wrangler JK with vehicle-specific brackets and harness, so there's no drilling or modification.

A precision-tuned flood and spot combo beam lights up the trail ahead, while the integrated amber and white position light adds a factory-finished accent.

Rugged black aluminum housing, IP67 weatherproofing, high-boost reflector optics, NTC thermal protection and solid-state relay switching are built in.

  • Installation: Bolt-on with vehicle-specific brackets and plug-in harness. No drilling or cutting.
  • Mount Location: Hood

Product Information

Features, Description, Reviews, Q&A ,Specs & Installation

OVERVIEW

Stinger's HEXCORE 20" straight LED light bar mounts on the hood of your Jeep Wrangler JK with vehicle-specific brackets and harness, so there's no drilling or modification.

A precision-tuned flood and spot combo beam lights up the trail ahead, while the integrated amber and white position light adds a factory-finished accent.

Rugged black aluminum housing, IP67 weatherproofing, high-boost reflector optics, NTC thermal protection and solid-state relay switching are built in.

FEATURES

  • Direct-Fit: Vehicle-specific brackets and plug-in harness. No drilling or modification needed.
  • Selectable Modes: High beam, low beam, white halo and integrated amber.
  • Precision-Tuned Optics: High-boost reflector optics with spot, flood and combo beam patterns.

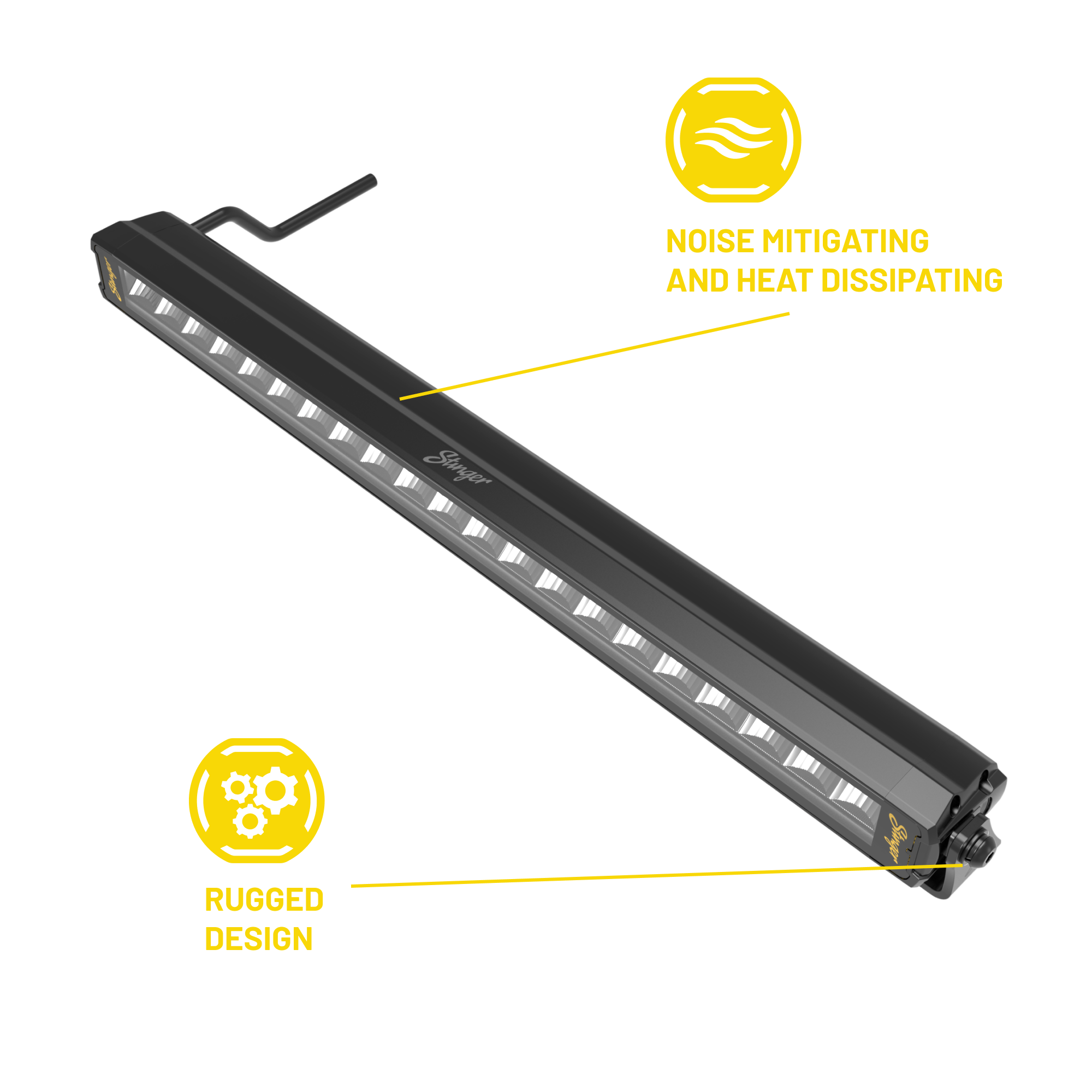

  • Built Tough: Rugged aluminum housings with IP67-rated weatherproofing.
  • Smart Protection: NTC thermal protection regulates output to prevent overheating.
  • Solid-State Relay Switching: Relay hub included for clean, reliable switching.
  • Factory-Finished Look: Slim, aerodynamic design that looks like it came from the factory.

Warranty Information

HEXCORE lighting is covered by Stinger's 2-Year limited warranty, extended to 3 Years when you register your product with Stinger after purchase (HEXCORE Registration). Stinger will, at its discretion, replace products that exhibit defects in materials and/or workmanship during the warranty period.

We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs.

Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note: Products purchased from unauthorized dealers are not covered under warranty.

Warranty Limitations
Units found to have physical or liquid damage caused by abuse or improper installation may be void of warranty.

COMPATIBILITY

  • 2007-2018 Jeep Wrangler JK/ JKU

TECH SPEC

  • Model: WJKHK20
  • Lumens: 5915
  • Power (W): 105
  • LED Count: 21
  • Beam Pattern: Combo beam + Position
  • Max Range: 590m @ 1 lux / 1935ft @ 1 lux
  • Color Temperature: 5700K~6500K
  • Lens: Clear
  • Housing: Black Aluminum
  • Weather Rating: IP67
  • Rated Life: 50,000 hours
  • Mount Location: Hood

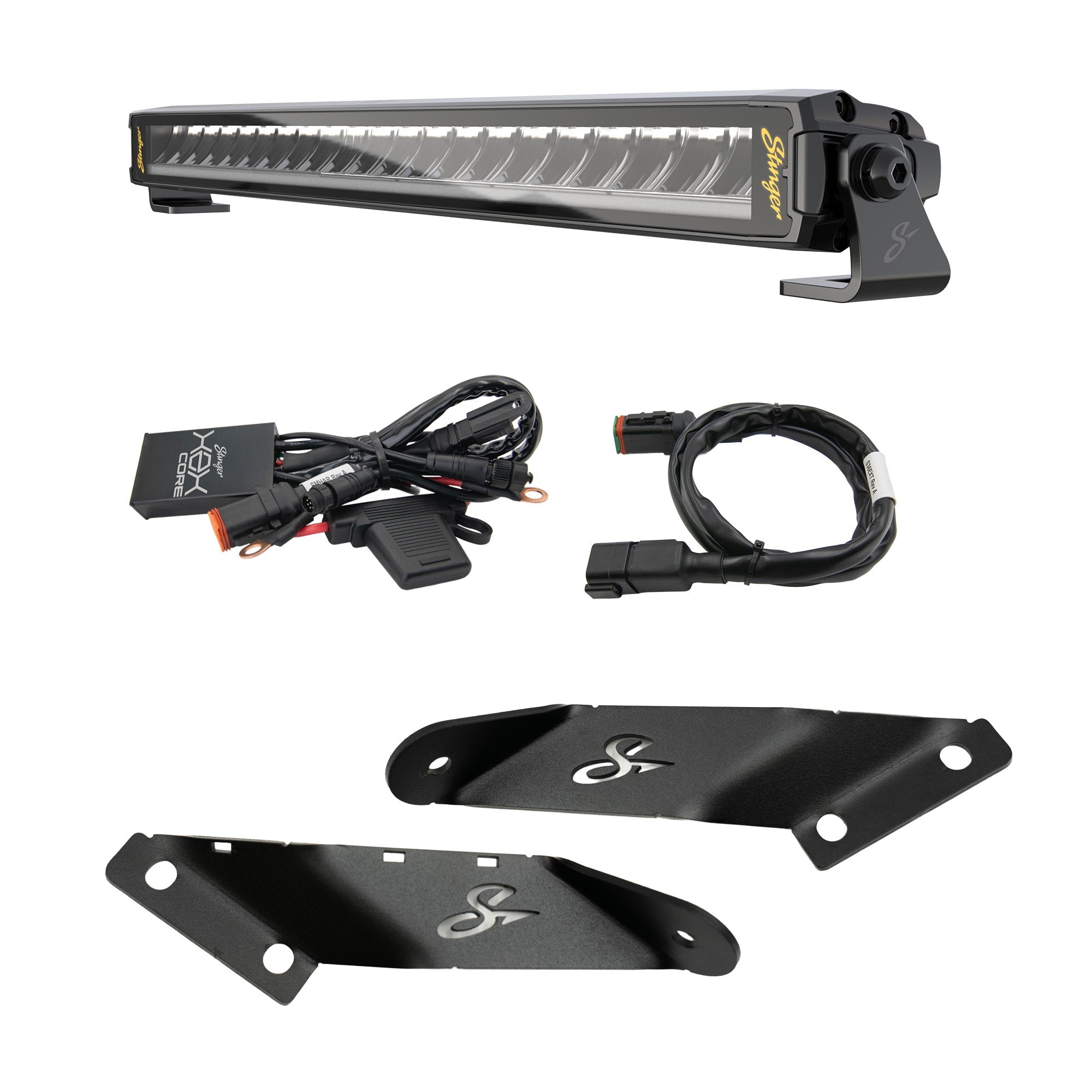

WHAT'S IN THE BOX

  • Straight LED Light Bar
  • Harness with Deutsch Connectors
  • Light Bar Mounting Brackets
  • Mounting Hardware

Installation instructions

Stinger HEXCORE 20" Straight LED Light Bar User Guide

Stinger HEXCORE 20" Straight Light Bar Jeep JK Installation Guide
