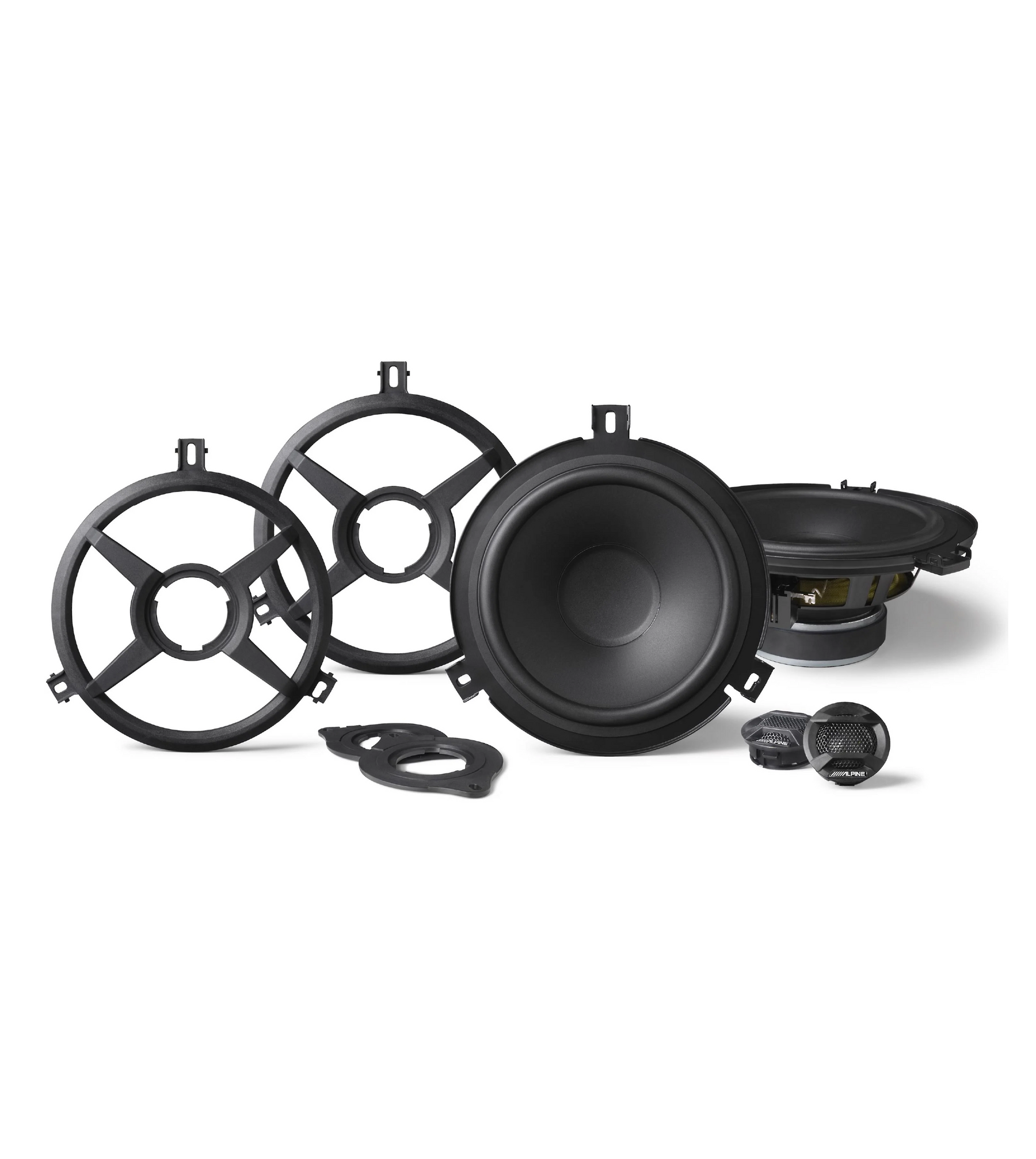

Alpine SPV-65X-WRA Full Speaker Bundle Installation Guide '07 - '18 JK Wrangler

Alpine SPV-65X-WRA Full Speaker Bundle Installation Guide '07 - '18 JK Wrangler

Please follow these installation tips when you're ready to install your new Alpine Bundle into your 2007-2018 Jeep JK.

These tips are intended to be used in conjunction with our full installation video below:

 2007- 2014 Jeep JK Bundle

1. Dash Tweeters-

  • Remove and install per the video.
  • You will not use the flat bracket as the speakers will fit directly into the tombstone housings on the dash.
  • Choose the connector that is labeled 07-14 to connect to your Jeep.
  • Choose either the 0db or the +3db depending on your listening choice.

      2. Knee Panels-

      • Remove and install per the video.
        • TIP- Cover speaker cone and edge with your hand/ fingers to not puncture should the drill bit slip off from the screw head while tightening screws.
      • Speakers will fit directly into the pods and will use the factory screws.

      3. Soundbar-

      • It is not necessary to remove the Soundbar-
      • Remove and install per the video.
        • TIP- Cover speaker cone and edge with your hand/ fingers to not puncture should the drill bit slip off from the screw head while tightening screws.
      • Prep 6.5" speaker for the 07-14 mounting as mentioned and demonstrated in the install video.
      • The tweeter will mount to the bracket that attaches to the speaker.
      • Use the connections as shown in the demonstration video.



       2015- 2018 Jeep JK Bundle

      1. Dash Tweeters-

      • Remove and install per the video.
      • Use the flat bracket to mount the tweeter inside of, then screw into the dash using the factory hardware.
      • Choose the connector that is labeled 07-17 (however this is for the 07-18 JK) to connect to your Jeep.
      • Choose either the 0db or the +3db depending on your listening choice.

      2. Knee Panels-

      • Remove and install per the video.
        • TIP- Cover speaker cone and edge with your hand/ fingers to not puncture should the drill bit slip off from the screw head while tightening screws.
      • Speakers will fit directly into the pods and will use the factory screws.

      3. Soundbar-

      • It is not necessary to remove the Soundbar-
      • Remove and install per the video.
        • TIP- Cover speaker cone and edge with your hand/ fingers to not puncture should the drill bit slip off from the screw head while tightening screws.
          Congratulations, you’re ready to enjoy your new Alpine tunes!
