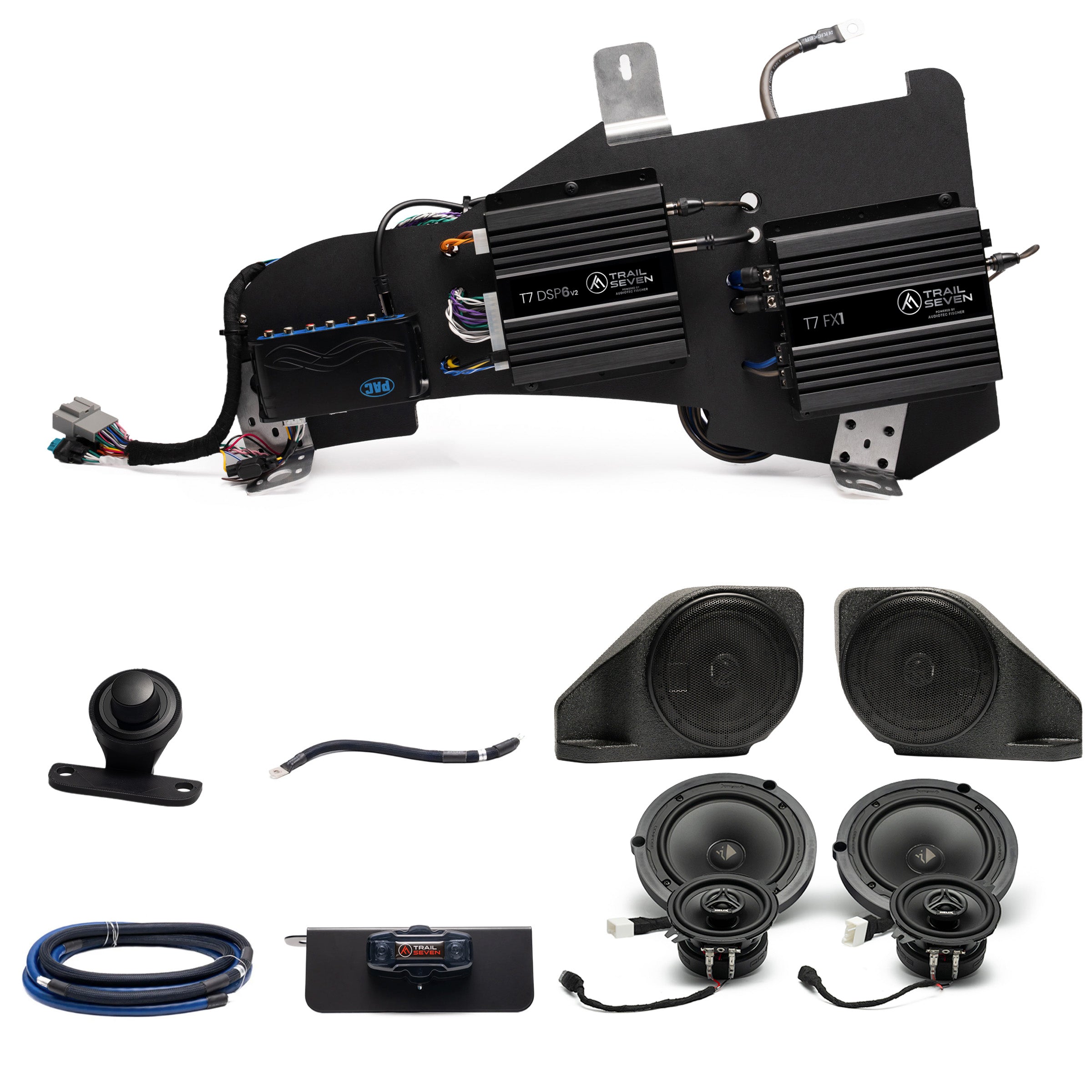

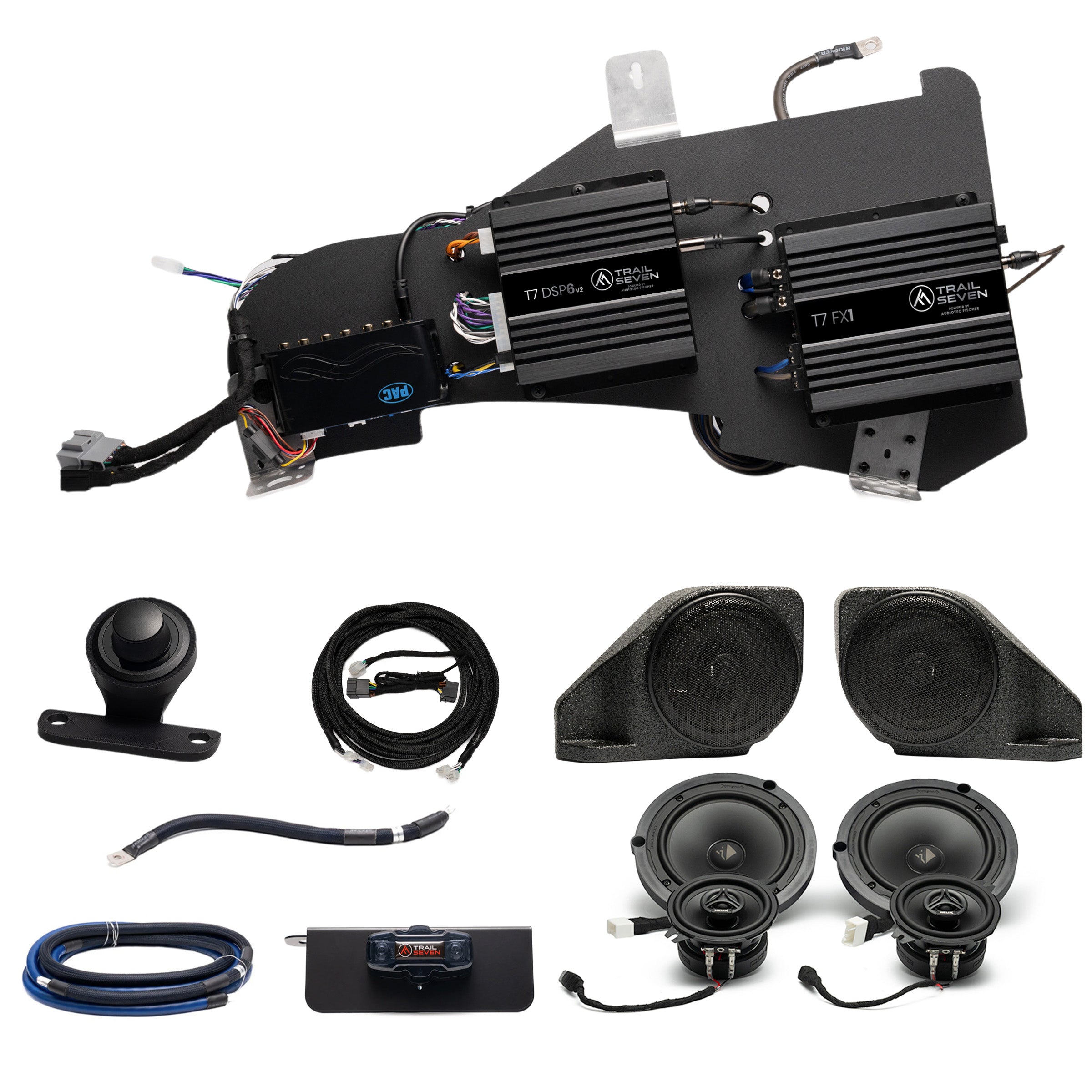

Trail Seven Plug and Play Full System Series 2 (6-Ch (DSP)/ Mono) Bundle (B&O System) | '21- Current Ford Bronco

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times for plug and play bundles from order to ship: 5-7 business days

Experience high performance German engineering in our Exclusive Plug and Play Audio Bundle Powered by Audiotec Fischer! Our plug and play bundle includes a fully active speaker bundle, driven by a 7 channel DSP with 6 channels of amplification, plus the powerful 1FX mono amplifier to deliver massive power of up to 1000 watts!

This system is driving the Trail Seven speaker line:

• (2) 4" Coax - Top Dash - T7-2C100.2-3
• (2) 6.5" Midbass - Kick Panels - T7-2W165-3
• (2) 6.5" Coax - Rear Pods - T7-2C165.2-3

Delivering dynamic power from Trail Seven DSP amplifiers:

• T7-DSP6-V2
• T7-FX1

Topped off with your choice of subwoofer options:

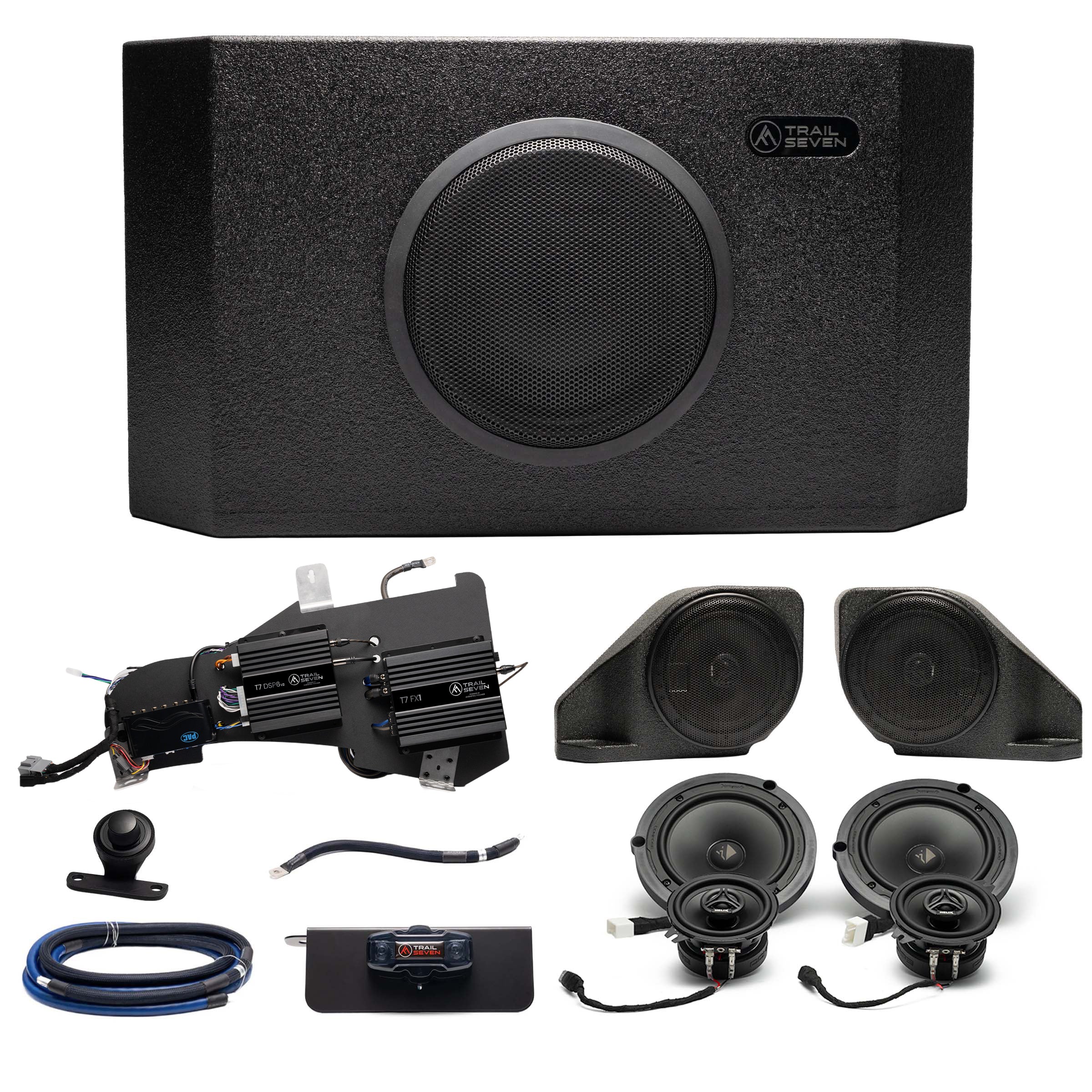

• Tailgate - 10" Trail Seven enclosure (compatible with Bronco's slide out cargo shelf), loaded with the Trail Seven T7-IKW10S-2 subwoofer

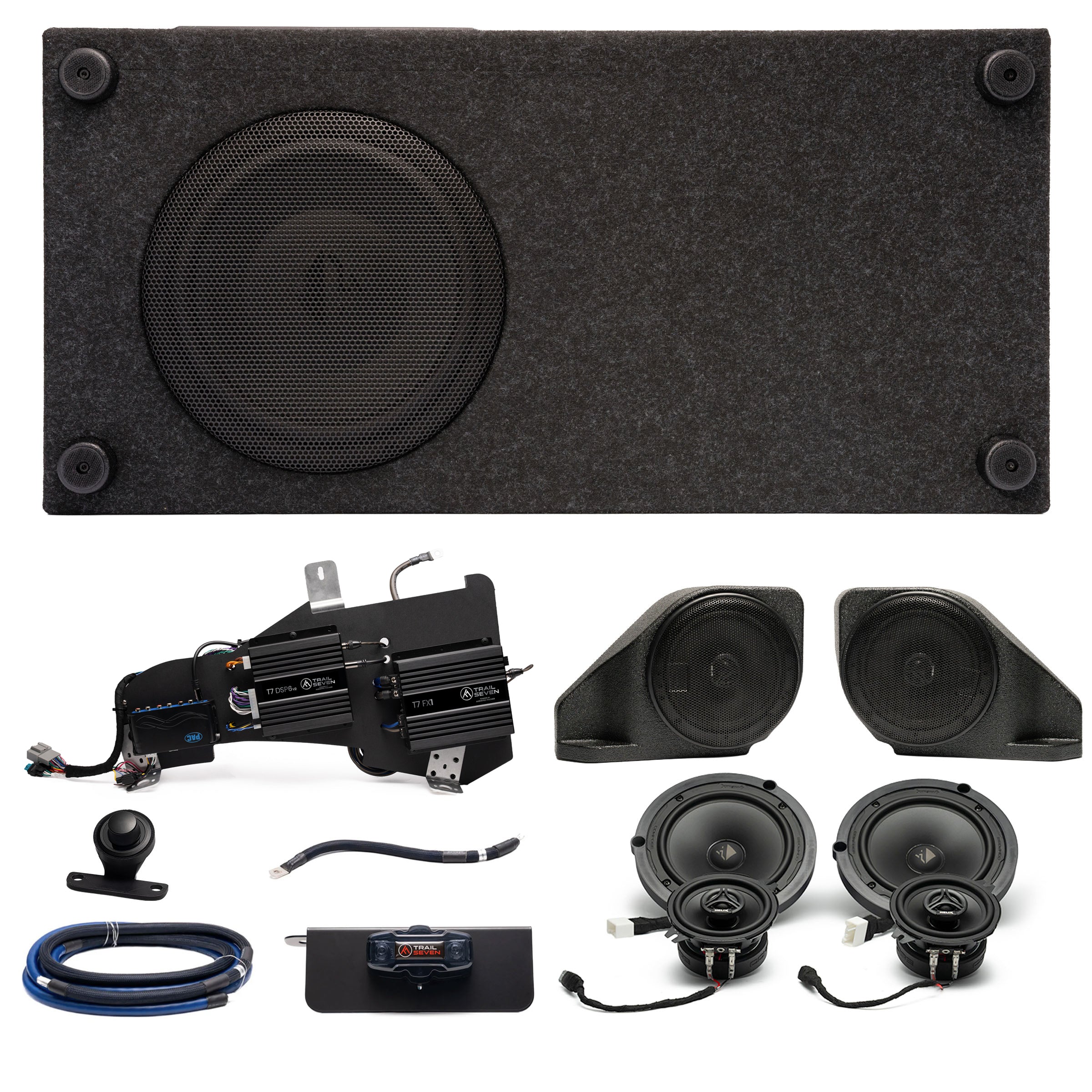

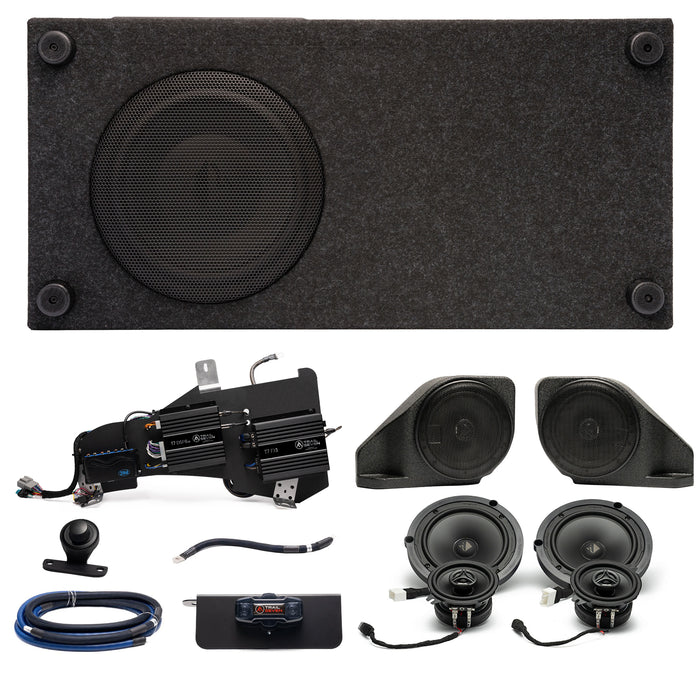

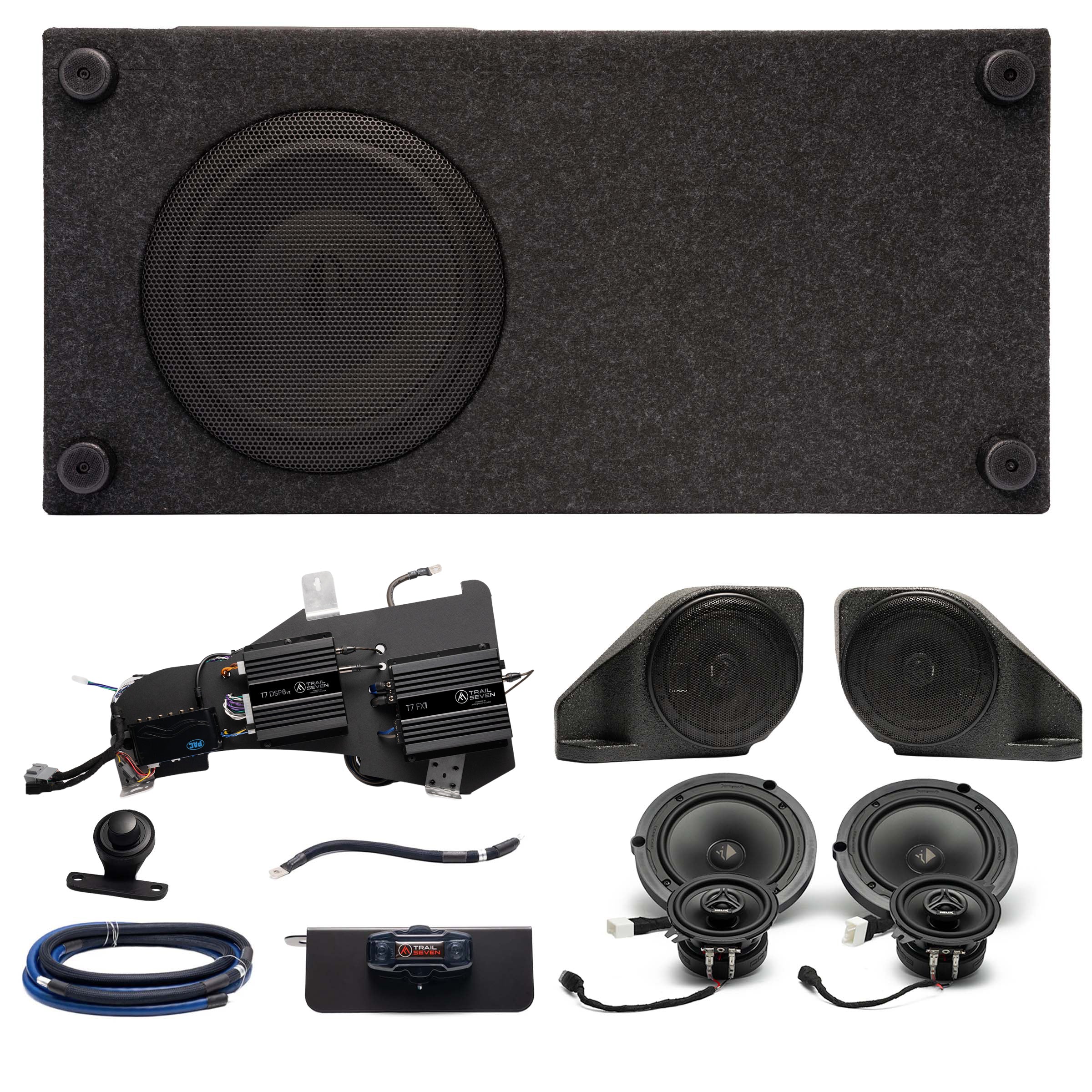

• Down-Firing 10" - Helix IK ES10.1-DVC2 Enclosure

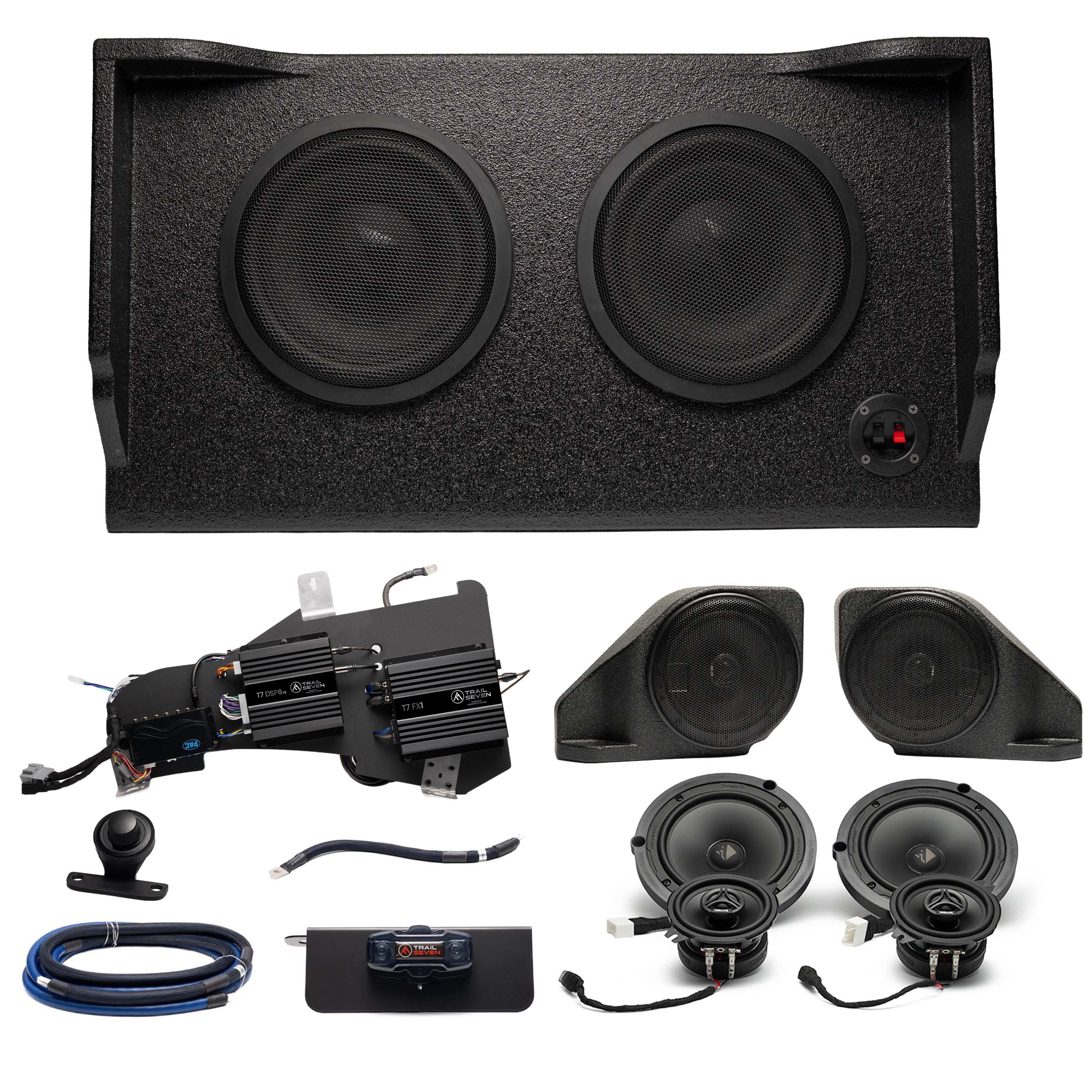

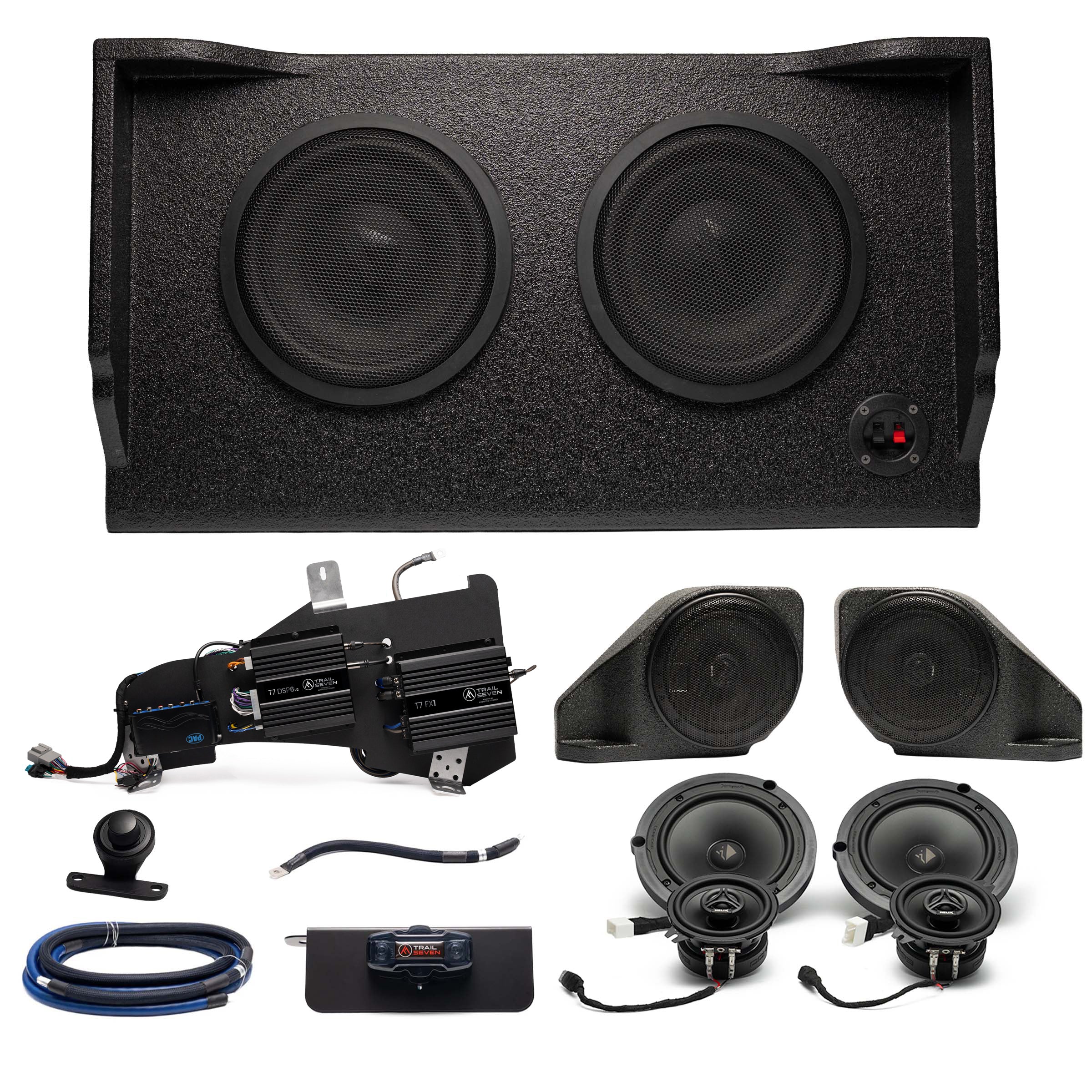

• Down-Firing Dual 10" - Trail Seven enclosure loaded with (2) T7-IKW10S-2 subwoofers

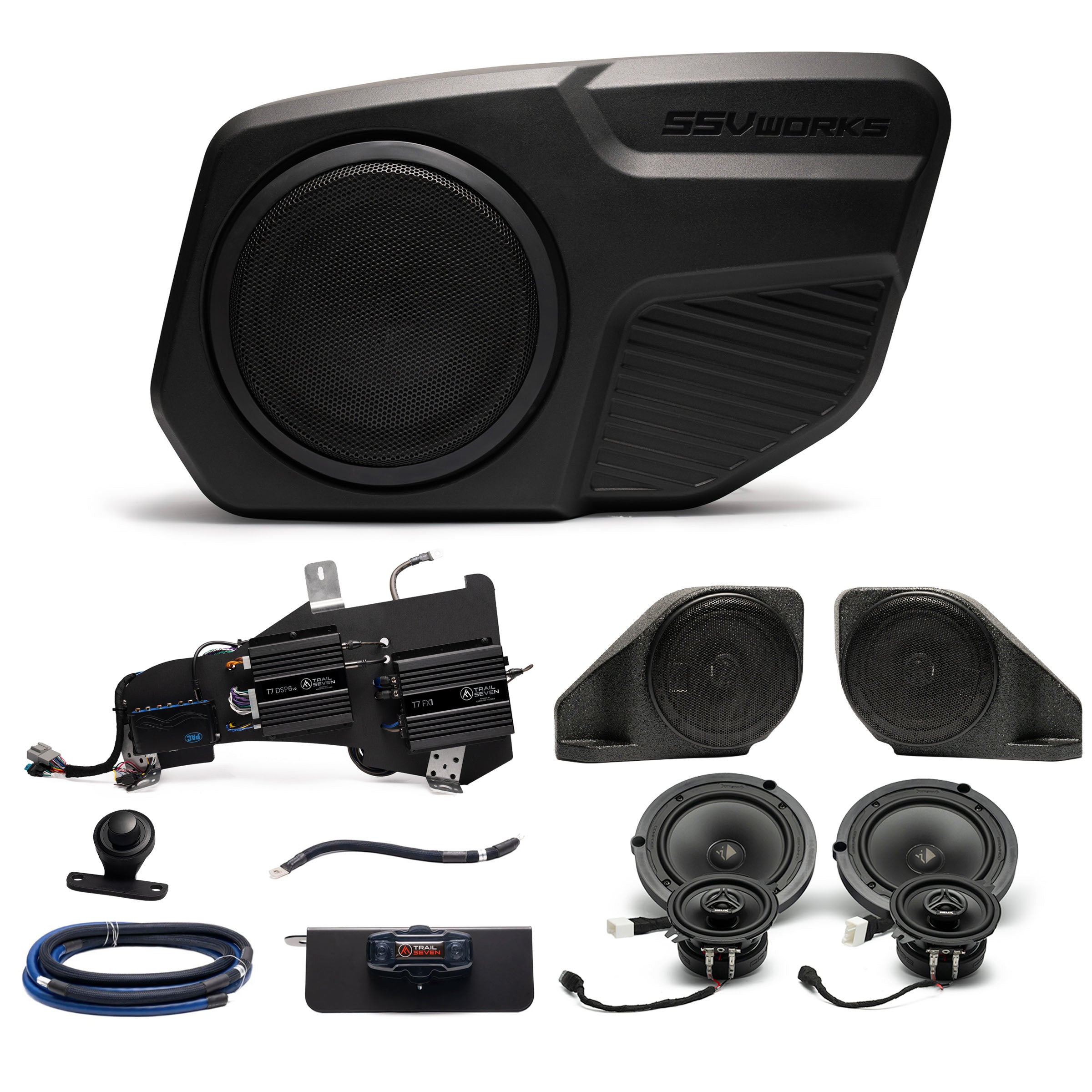

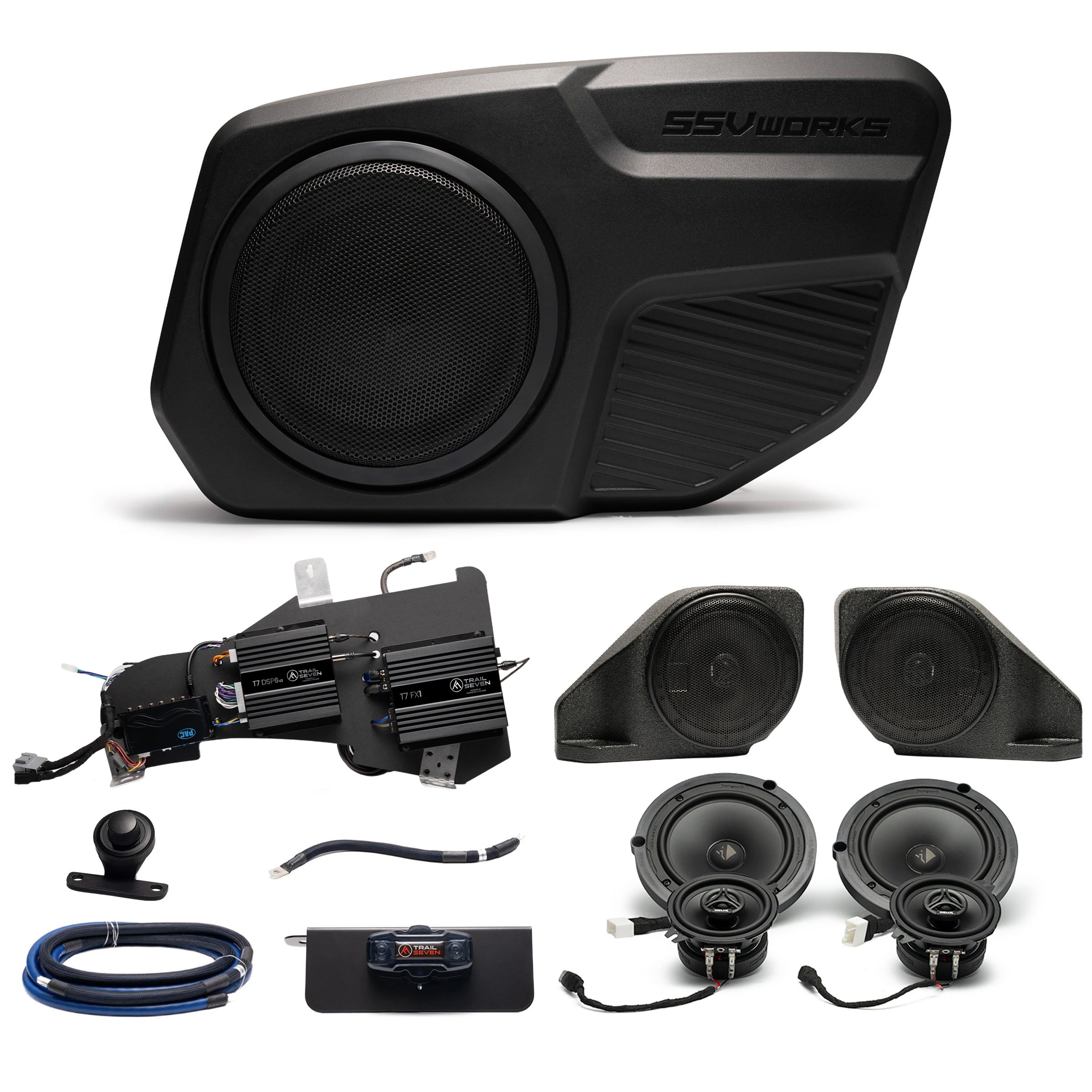

• Side-Mounted 10" - SSV Works enclosure loaded with the Trail Seven T7-IKW10S-2 subwoofer

Plug & Play: Every bundle is pre-wired and fully assembled at our Frederick, Maryland shop before shipping. When your bundle arrives, it's ready to drop right into your Bronco. Just follow our step-by-step video and installation guides for an effortless plug-and-play installation.

Tested and Approved by Trail Seven: Our Full System Bundle has been thoroughly installed and tested on our Trail Seven Bronco. We're proud to give this package our stamp of approval, ensuring it delivers the performance you expect!

Elevate your Ford Bronco's audio system with a complete Trail Seven plug-and-play bundle — curated, built, wired, assembled, and professionally tuned by Trail Seven, and Powered by Audiotec Fischer's world-class, German-engineered amplification, DSP, and speakers. Designed for those who demand exceptional sound quality, powerful amplification, and unmatched tuning precision, this system delivers an immersive listening experience with remarkable clarity, dynamics, and realism—bringing your music to life like never before.

THE SPEAKERS — POWERED BY AUDIOTEC FISCHER:
German-engineered by Audiotec Fischer and finished under the Trail Seven label, these speakers deliver exceptional clarity, detail, and musical accuracy. Featuring lightweight polypropylene cone technology and vehicle-specific integration, they create a natural, dynamic listening experience with impressive output and tonal balance.

THE AMPLIFICATION — POWERED BY AUDIOTEC FISCHER:
At the heart of the system is Audiotec Fischer's industry-leading DSP amplification. The Trail Seven T7-DSP6-V2 and T7-FX1 combine powerful amplification with advanced digital signal processing for precise tuning control, exceptional efficiency, and a level of soundstage, imaging, and detail that transforms your Bronco's factory audio system.

THE SUBWOOFER — POWERED BY AUDIOTEC FISCHER:
German-engineered and built by Audiotec Fischer and finished under the Trail Seven label, the shallow-mount subwoofer delivers deep, accurate bass in space-constrained applications without sacrificing valuable cargo space. Its rigid construction and optimized motor design produce tight, impactful bass that perfectly complements the rest of the system.

COMPLETE TRAIL SEVEN PERFORMANCE:

Built around Audiotec Fischer's renowned German-engineered audio technology, this Trail Seven Bronco bundle delivers exceptional clarity, dynamic range, and musical accuracy. Trail Seven curates the DSP amplification, speakers, and subwoofer into a single plug-and-play system, so every component works together to create an immersive listening experience that far exceeds factory audio.

DESIGNED FOR THE ULTIMATE BRONCO LISTENING EXPERIENCE:

Built specifically for the Ford Bronco, this fully integrated system provides seamless OEM-style installation without compromising performance. Whether you're cruising the highway or exploring off-road trails, you'll enjoy precise imaging, impressive output, and balanced sound throughout the cabin.

TRAIL SEVEN SPEAKERS:

The Trail Seven speaker system — German-engineered by Audiotec Fischer — delivers natural, detailed sound with outstanding efficiency and tonal accuracy. Featuring premium materials and vehicle-specific integration, the speakers produce exceptional vocal clarity, accurate midrange reproduction, and a wide, immersive soundstage.

TRAIL SEVEN DSP AMPLIFICATION:

At the heart of the system, Audiotec Fischer's DSP amplification — the Trail Seven T7-DSP6-V2 paired with the T7-FX1 extension amplifier — combines powerful amplification with industry-leading digital signal processing. This allows every speaker to be individually optimized for maximum performance, delivering remarkable detail, imaging, and control throughout the entire frequency range.

TRAIL SEVEN SUBWOOFER — POWERED BY AUDIOTEC FISCHER:

German-engineered and built by Audiotec Fischer, the shallow-mount subwoofer delivers deep, impactful bass while fitting into space-conscious vehicle applications. Its advanced motor design and rigid cone construction produce tight, accurate low-frequency response that adds authority and realism to every genre of music.

Trail Seven 4" Coax Dash Speaker T7-2C100.2-3:

• 2-way coaxial speaker system, 100 mm (4"), 3 Ohm, combining clear sound quality with versatile installation options
• Power handling 60 / 90 Watts (RMS / Max.)
• Tweeter
• 20 mm (0.75") silk dome tweeter with neodymium magnet for smooth, detailed treble
• Midrange
• 100 mm (4") injected polypropylene cone for natural, accurate midrange reproduction
• Crossover
• Integrated 6 dB highpass crossover for seamless driver integration

Trail Seven 6.5" Midbass Kick Panel Speaker T7-2W165-3:

• 6.5" / 165 mm midbass driver, 3 Ohm, for strong, articulate low-midrange output
• Power handling 80 / 120 Watts (RMS / Max.)
• Lightweight, stiff injected polypropylene cone for precise impulse response
• Rubber surround for high linear cone excursion
• 25 mm (1") voice coil for high power handling and thermal stability
• Powerful magnet system for high efficiency and optimum impulse response

Trail Seven 6.5" Coax Rear Pod Speaker T7-2C165.2-3:

• 2-way coaxial speaker system, 165 mm (6.5"), 3 Ohm, for full-range rear-fill performance
• Power handling 80 / 120 Watts (RMS / Max.)
• Tweeter
• 20 mm (0.75") silk dome tweeter with neodymium magnet
• Midbass
• 165 mm (6.5") injected polypropylene cone for detailed, natural sound
• Crossover
• Integrated 6 dB highpass crossover

Trail Seven 6-Channel DSP Amplifier T7-DSP6-V2:

• 6-channel amplifier with ultra efficient Class GD concept, which combines outstanding sound quality with maximum efficiency
• 7 DSP channels for maximum flexibility when upgrading multi-channel factory sound systems
• Optional cable harnesses for easy integration into existing factory sound systems
• EV-Ready – extended input voltage range up to 18 V for stable operation even in electric vehicles with increased on-board voltages
• Smart 6-channel highlevel input with ADEP.3 circuit for seamless OEM integration
• Extremely powerful “fixed point” Audio DSP with 64 Bit resolution
• VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems
• Cross-channel group equalizers that affect several output channels simultaneously
• Multi-way speaker configuration of DSP sound effects (SFX)
• Additional features such as Rear Attenuation
• 1:1 IOR (Input-to-Output Routing) in combination with the optional ANALOG IN Extension Card 2.0 for direct input-to-output routing
• ACO – Advanced 32 Bit CoProcessor platform for advanced system and DSP functionality
• AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
• DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
• Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
• SFX Sound Effects including Augmented Bass Processing, RealCenter and more
• Stabilized Output Power technology (SOP Max) for consistently stable output power regardless of input voltage
• Extension Card 2.0 slot for Bluetooth® HD audio streaming, additional analog inputs and future signal sources
• Optical input in SPDIF format with sampling rates between 12 and 96 kHz
• Mono RCA output for connecting external amplifiers such as subwoofer amplifiers
• Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
• Intelligent power management ensures perfect voltage stability across all modern vehicle platforms
• Start-Stop capable power supply down to 6 Volts supply voltage
• Auto Remote switch for amplifier activation without the need for an external remote signal
• Compact design with low heat dissipation thanks to extraordinary efficiency
• Maximum control with DSP PC-Tool 6 software for precise amplifier configuration and accurate sound tuning

Trail Seven Monoblock DSP Amplifier T7-FX1:

• High-fidelity amplifier with exceptional sound quality and massive output power of up to 1000 Watts
• Advanced Class D concept for excellent power-to-size ratio
• Ideal for upgrading factory subwoofer amplifiers thanks to integrated, active crossover and high power stereo highlevel input with signal summing, up to 32 V RMS input sensitivity and ADEP.3 circuit
• Start-Stop capable power supply with extended input voltage range up to 18 V – ideal for modern EV vehicles
• DirectDSP function – input signal bypasses the integrated, active crossover and is routed unfiltered to the output stage of the amplifier
• Clipping LED for easy and fast gain adjustment
• Compact design for space-saving installation
• Remote control for volume control of the subwoofer optionally available
• The perfect companion for TRAIL SEVEN UPGRADE amplifiers thanks to mono RCA input

Trail Seven T7-IKW10S-2 10" Subwoofer:

• 1 x 2 Ohms single voice coil
• Extremely stiff, hand-scooped paper cone for outstanding impulse response
• Double ventilated voice coil for minimum compression effects and high power handling
• Long-excursion rubber surround for highest mechanical rating
• Solid push terminals
• Powerful magnet system for compact enclosures
• Rugged magnet cover with TRAIL SEVEN lettering for perfect magnet protection
• Grille and gasket included in delivery

(Options):

• Trail Seven Single 10" Tailgate Enclosure - compatible with Fords cargo slide out shelf
• Trail Seven Dual 10" Down- Firing Sealed Enclosure -
• SSV Works Driver Side Mounted Enclosure (not for 2-dr)

Helix IK ES10.1-DVC2:

• Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
• Extremely shallow ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
• Equipped with one powerful 250 mm / 10“ subwoofer with sandwich paper cone for rich, deep bass
• Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
• Active subwoofer option – can be converted into an active subwoofer by replacing the terminal with an IMPACT Subwoofer Module (ISM)
• Connection terminal with pluggable screw and additional Molex connector for use with conventional speaker cables or custom wiring harnesses – allows quick and secure installation and removal
• Magnet system screwed to back panel of the enclosure as additional stiffening for stabilization and reduction of enclosure vibrations
• Feet with Velcro tape for a secure stand in the vehicle
• Sturdy carpet surface with embroidered HELIX logo

• 2021 - Current Bronco: (Factory B&O) 2 & 4-Door
• 2022 - Current Bronco Raptor: (Factory B&O) 4-Door

Trail Seven 4" Coax Dash Speaker T7-2C100.2-3:

• Power Handling (RMS / Max.): 60 / 90 Watts
• Frequency Response: 100 Hz - 22,000 Hz
• Impedance: 3 Ω
• Sensitivity: 86 dB @ 2.83V / 1m; 82 dB @ 1W / 1m
• Outer Diameter: 99.2 mm / 3.91"
• Installation Diameter: 89.5 mm / 3.52"
• Installation Depth: 48.9 mm / 1.93"
• Voice Coil Diameter (Midrange): 25 mm
• Voice Coil Winding Height: 8.9 mm
• Max. Linear Excursion: ±2.5 mm
• Cone Material: Injected polypropylene cone
• Tweeter: Silk dome and neodymium magnet (20 mm voice coil)
• Crossover: Integrated, 6 dB highpass

Trail Seven 6.5" Midbass Kick Panel Speaker T7-2W165-3:

• Power Handling (RMS / Max.): 80 / 120 Watts
• Impedance: 3 Ω
• DC Resistance (Re): 3.0 Ω
• Frequency Response: 60 Hz - 3,500 Hz
• Resonance Frequency (Fs): 62 Hz
• Sensitivity: 92 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
• Equivalent Air Volume (Vas): 14.5 L
• Outer Diameter: 166 mm / 6.54"
• Installation Diameter: 143 mm / 5.63"
• Installation Depth: 61.4 mm / 2.42"
• Voice Coil Diameter: 25 mm
• Voice Coil Winding Height: 8.9 mm
• Max. Linear Excursion: ±2.5 mm
• Cone Material: Injected polypropylene cone

Trail Seven 6.5" Coax Rear Pod Speaker T7-2C165.2-3:

• Power Handling (RMS / Max.): 80 / 120 Watts
• Frequency Response: 60 Hz - 22,000 Hz
• Impedance: 3 Ω
• Sensitivity: 92 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
• Outer Diameter: 166.0 mm / 6.54"
• Installation Diameter: 143.0 mm / 5.63"
• Installation Depth: 61.4 mm / 2.42"
• Voice Coil Diameter (Midrange): 25 mm
• Voice Coil Winding Height: 8.9 mm
• Max. Linear Excursion: ±2.5 mm
• Cone Material: Injected polypropylene cone
• Tweeter: Silk dome and neodymium magnet (20 mm voice coil)
• Crossover: Integrated, 6 dB highpass

Trail Seven 6-Channel DSP Amplifier T7-DSP6-V2:

• Power RMS @ 4 Ohms: Channels A - D: 4 x 65 Watts (min. 3 Ohms); Channels E - F: 2 x 90 Watts
• Power RMS @ 2 Ohms: Channels E - F: 2 x 160 Watts
• Amplifier Technology: Class GD
• Amplifier Channels: 6
• DSP Channels: 7
• Inputs: 6 x Highlevel speaker input; 1 x Optical SPDIF (12 - 96 kHz); 1 x MEC; 1 x Remote In
• Outputs: 6 x Speaker output; 1 x RCA / Cinch; 1 x Remote Out
• Frequency Response: 10 Hz - 22,000 Hz
• DSP Resolution: 64 Bit
• DSP Power: 295 MHz (1.2 billion MAC operations/second)
• Sampling Rate: 48 kHz
• Signal-to-Noise Ratio Digital Input: 106 dB (A-weighted)
• Signal-to-Noise Ratio Analog Input: 104 dB (A-weighted)
• Distortion (THD): < 0.03 %
• Operating Voltage: 10.5 - 18 Volts
• Fuse: 1 x 30 A LP-Mini-fuse (APS)
• Dimensions (H x W x D): 46 x 130 x 130 mm / 1.81 x 5.12 x 5.12"
• Additional Features: Class GD technology with dynamically controlled power supply, ADEP.3 circuit, Start-Stop capability, Smart Control Port, MEC slot

Trail Seven Monoblock DSP Amplifier T7-FX1:

• Power RMS @ 4 Ohms: 1 x 350 Watts
• Power RMS @ 2 Ohms: 1 x 600 Watts
• Power RMS @ 1 Ohm: 1 x 900 Watts*
• Max. Output Power: Up to 1000 Watts RMS @ 1 Ohm
• Amplifier Technology: Class D
• Frequency Response: 10 Hz - 25,000 Hz
• Lowpass: 50 Hz - 250 Hz adjustable (can be turned off)
• Subsonic: 15 Hz (can be turned off)
• Signal-to-Noise Ratio Analog Input: 108 dB (A-weighted)
• Operating Voltage: 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
• Fuse: 2 x 30 A LP-Mini-fuse (APS)
• Dimensions (H x W x D): 46 x 130 x 153 mm / 1.81 x 5.12 x 6.02"

Trail Seven T7-IKW10S-2 10" Subwoofer:

• Power Handling (RMS / Max.): 300 / 600 Watts
• Impedance: 1 x 2 Ω
• Resonance Frequency (Fs): 32 Hz
• Sensitivity: 93.0 dB @ 2.83V / 1m; 87.0 dB @ 1W / 1m
• Cone Material: Hand-scooped paper cone
• Voice Coil Diameter: 50.8 mm
• Max. Linear Excursion (Xmax): ±8.0 mm
• Outer Diameter: 262 mm / 10.31"
• Installation Depth: 126 mm / 4.96"

Enclosure Options:

• Trail Seven Single 10" Tailgate Enclosure: 6.25"(D) x 27"(W) x 15"(H) - compatible with Fords cargo slide out shelf
• Trail Seven Dual 10" Down-Firing Sealed Enclosure: 17"(D) x 31"(W) x 9.25"(H)
• SSV Works Driver Side Mounted Enclosure (not for 2-dr):

Helix IK ES10.1-DVC2 MK2:

• Power Handling (RMS): 300 Watts
• Recommended Amplifier Power (RMS): 150 - 300 Watts
• Impedance: 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
• Port Tuning Frequency (Fb): 37 Hz
• Sensitivity: 91 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
• Dimensions (H x W x D): 135 x 725 x 350 mm / 5.3 x 28.5 x 13.8"
• Integrated Subwoofer Chassis: HELIX IK S10-DVC2

Speakers:

• Trail Seven 4" Coax Dash Speaker T7-2C100.2-3: 2x fully prepped mounted into dash bracket with connectors attached
• Trail Seven 6.5" Midbass Kick Panel Speaker T7-2W165-3: 2x fully prepped mounted into kick panel bracket with connectors attached
• Trail Seven 6.5" Coax Rear Pod Speaker T7-2C165.2-3: fully prepped, mounted in Trail Seven 6.5" pods (fits 2-dr, 4-dr, and Raptors)

Amplifiers/ DSP:

• Trail Seven 6-Channel DSP Amplifier T7-DSP6-V2: Trail Seven DSP (6 channels of amplified power, 7 channels of DSP)
• Trail Seven Monoblock DSP Amplifier T7-FX1: Trail Seven Mono
• Trail Seven Amplifier Bracket: Amps will be mounted, double sided prior to shipping
• Helix Conductor Pro: Programmable control dial (bass knob) with Smart Control Port for on-the-fly level and tuning adjustment

Power Distribution:

• Power Line: 1/0 AWG 17ft Wire
• Ground Line: 1/0 AWG 18 In Wire
• In-Line Fuse: 200 amp fuse (battery location mounted)
• Trail Seven Bronco Fuse Bracket: Built for easy installation of the pre-mounted fuse for power routing.

Installation Accessories:

• PAC Module: AP4-FD31 ('21-'24)/FD32 ('25+) fully prepped, wired, and mounted
• Fiber Jumper: Toslink Optical Signal Cable for lossless audio signal.
• Radio T-Harness: Fully prepped and ready for installation (only needed for '21-'24)
• Trail Seven Bronco Amp Harness: Fully prepped, mounted to the amp bracket and ready for installation per video.
• Trail Seven Rear Pods: Fully sound treated, prepped, and equipped for the easiest installation of rear pods for all Broncos and built for optimal performance of the speaker within the Bronco.

Subwoofer Options (will include one of the following):

• Trail Seven Single 10" Tailgate Enclosure: Compatible with Fords cargo slide out shelf, includes single Trail Seven T7-IKW10S-2 10" Subwoofer
• Trail Seven Dual 10" Down-Firing Sealed Enclosure: Includes 2x mounted Trail Seven T7-IKW10S-2 10" Subwoofer
• SSV Works Driver Side Mounted Enclosure (not for 2-dr): Includes single mounted Trail Seven T7-IKW10S-2 10" Subwoofer
• Helix IK ES10.1-DVC2: Down-firing ported slim enclosure
