Audison Voce II AVK 6 P II 6.5" Component Speaker

Kit | 300 W Peak Power | 165 mm (6.5 in.) | 4 ohm: The Audison VOCE II AVK 6 P II system is meticulously engineered to deliver dynamic and powerful audio performance. Integrating the AV 1.1 II Hi-Res Tweeter and the robust AV 6.5 P II Mid-Bass Component, this setup offers exceptional power handling up to 150W RMS, thanks to the 40 mm CCAW voice coil. The included AVCX 2P TW passive crossover is crafted from high-quality components, providing extensive tone controls and bi-amplification support for precise sound customization. Installation is facilitated by OEM-style and Faston connectors, making it adaptable to any vehicle setup.

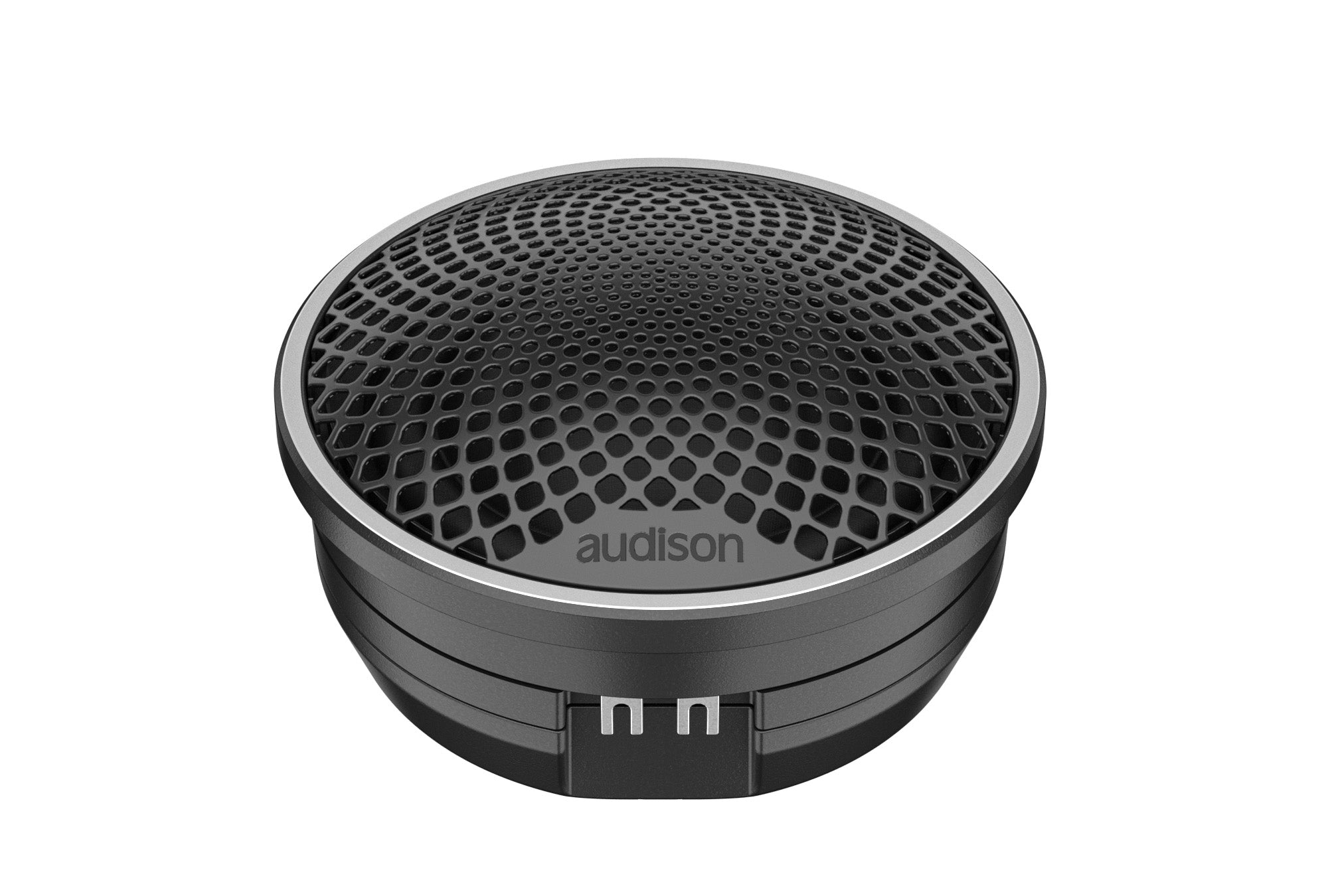

AV 1.1 II

• Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
• Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
• 1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
• Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
• OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, with no additional adapters needed.
• AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• FEM-Optimized Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.
• Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance.
• eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.

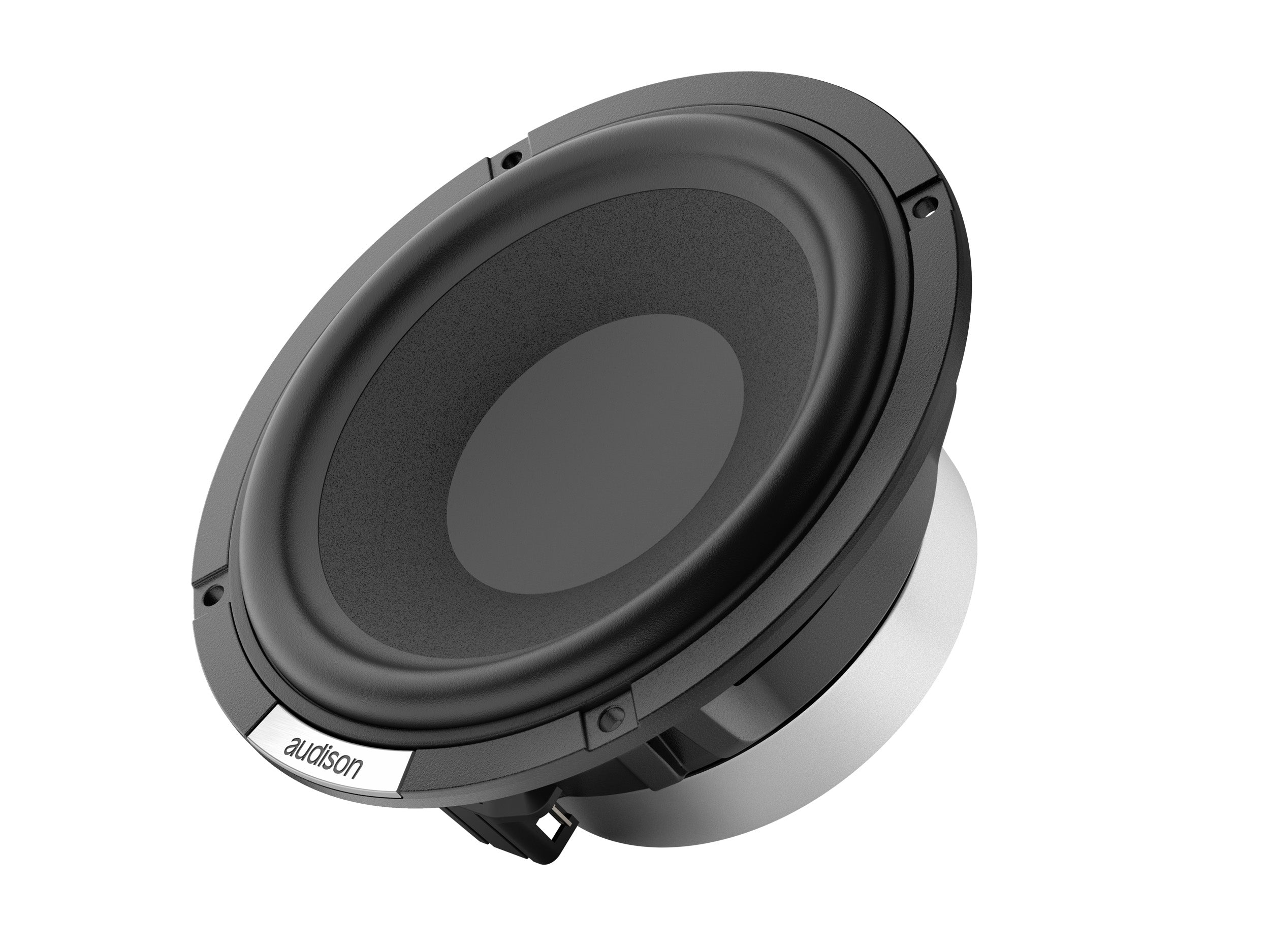

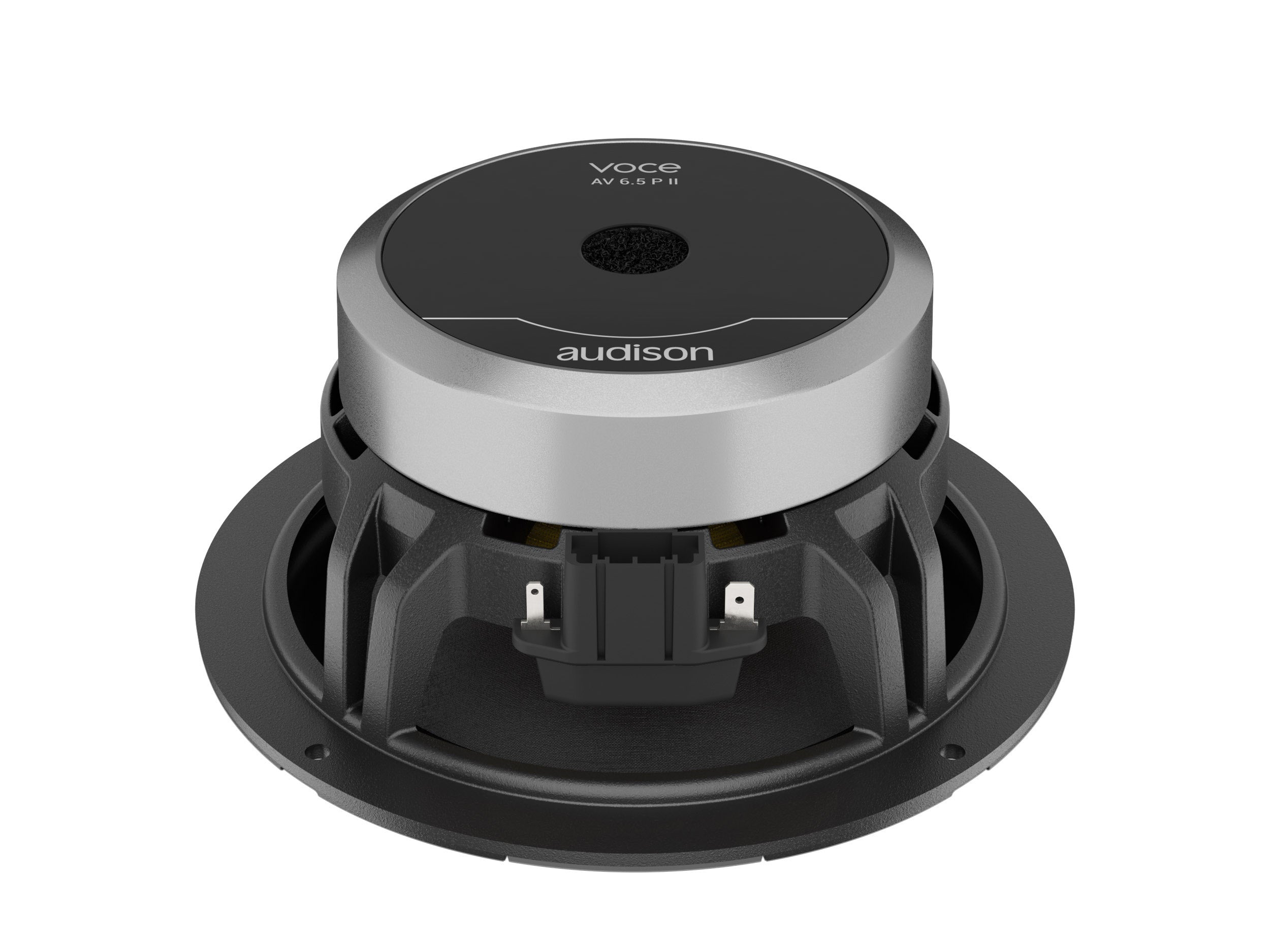

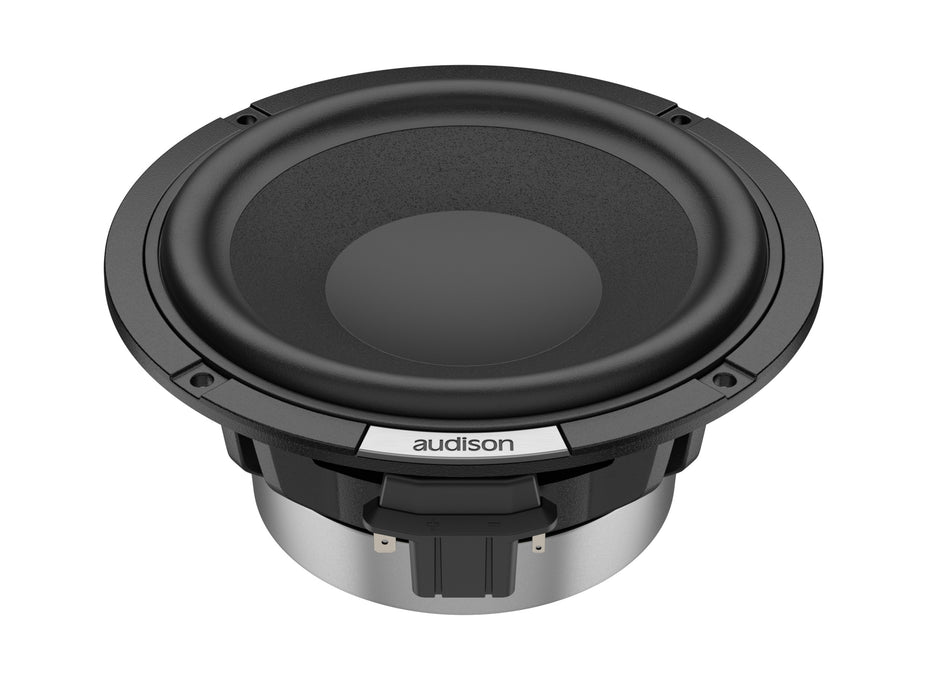

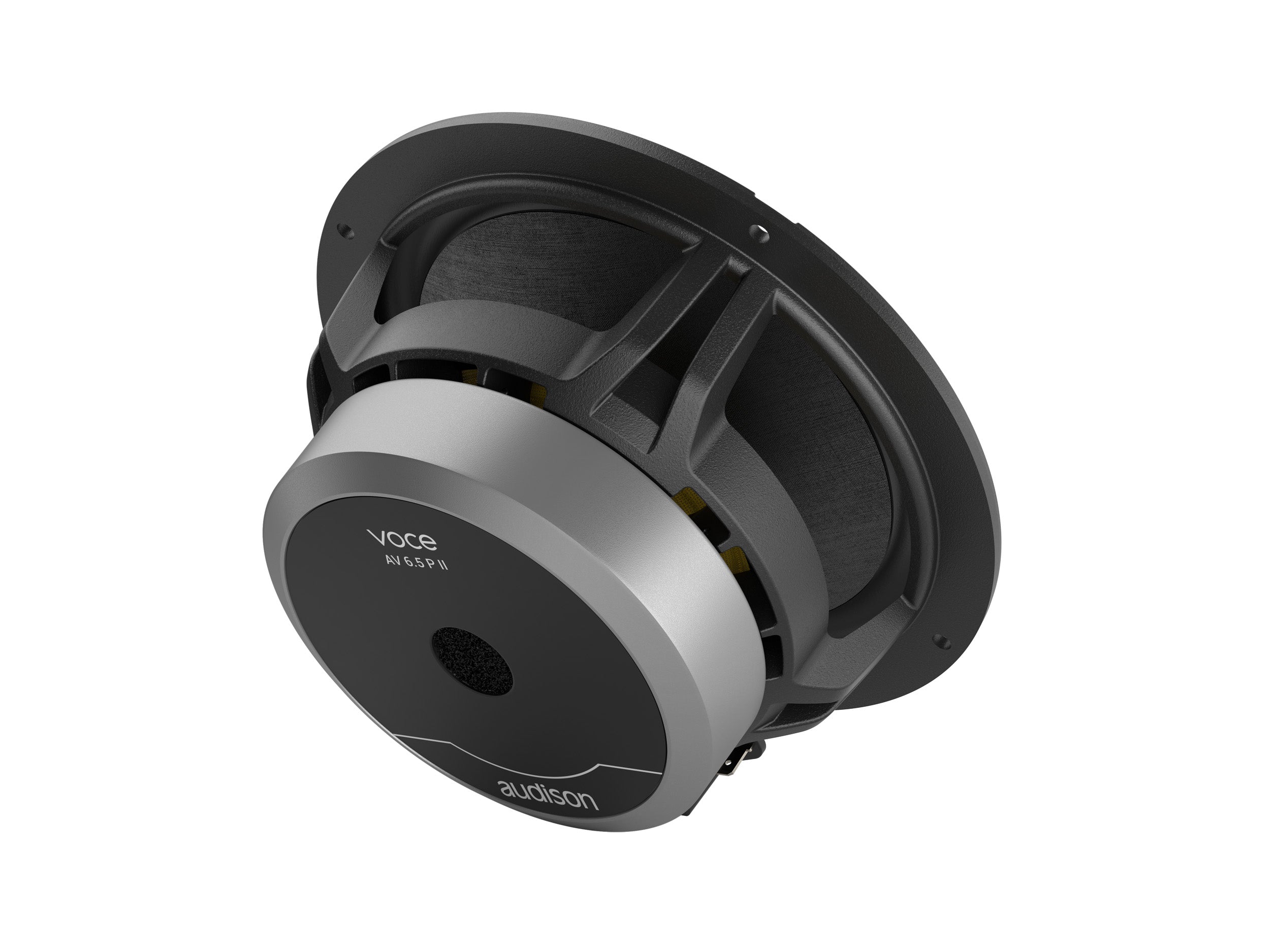

AV 6.5 P II

• (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM-optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
• Die-Cast Aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two adhesive Audison logo badges, which are provided, allowing for personalized placement to enhance branding and aesthetics.
• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

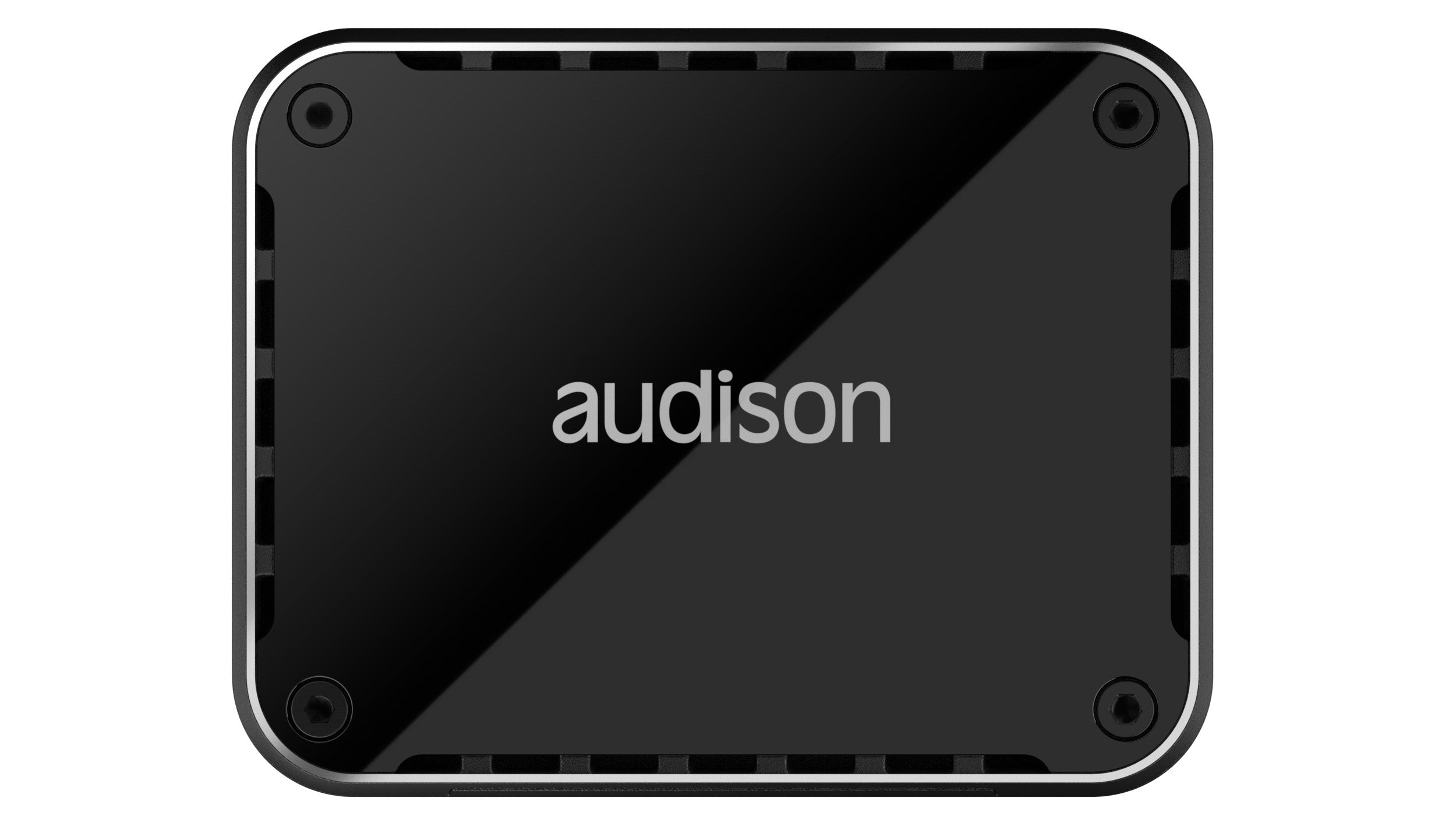

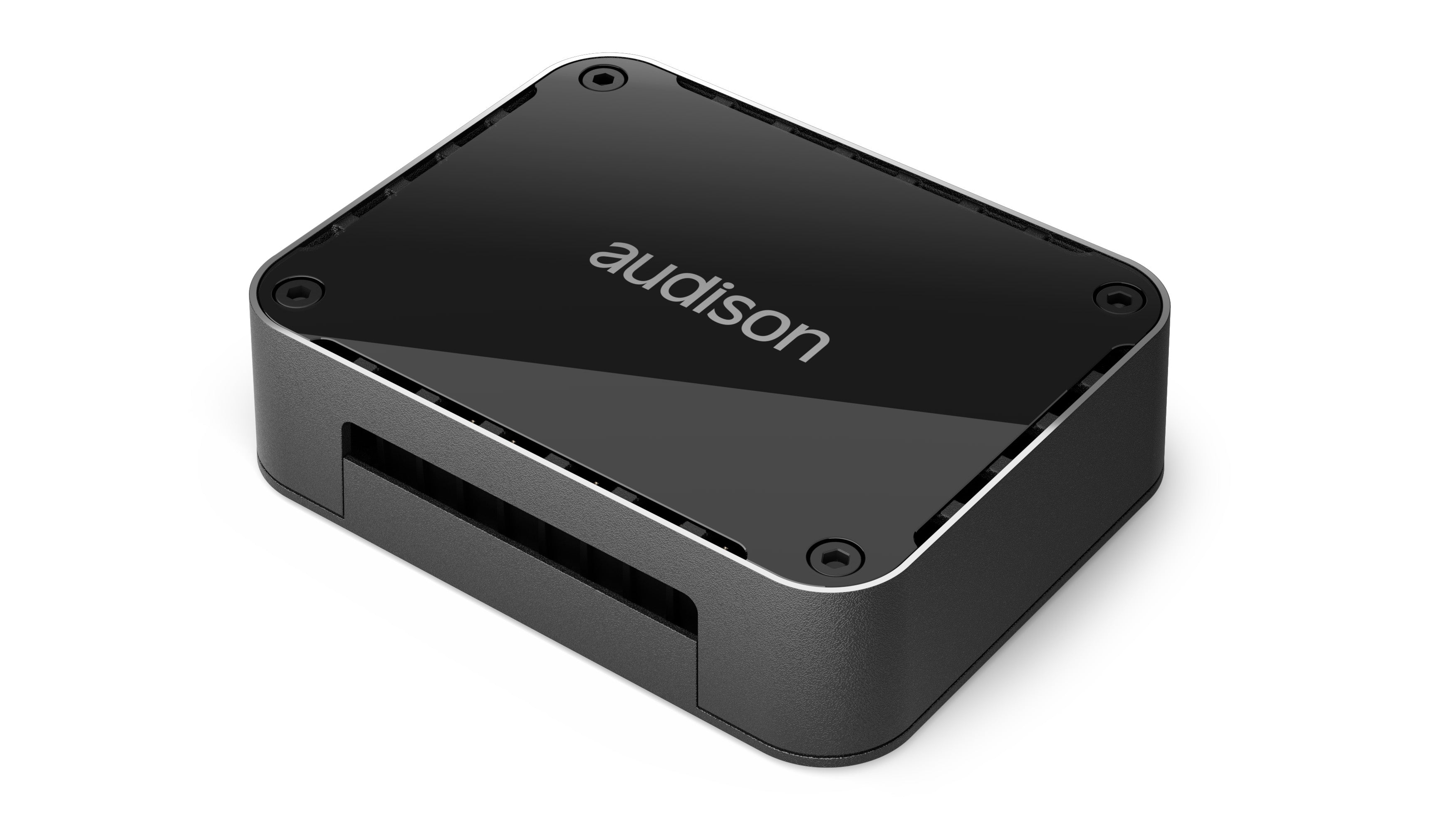

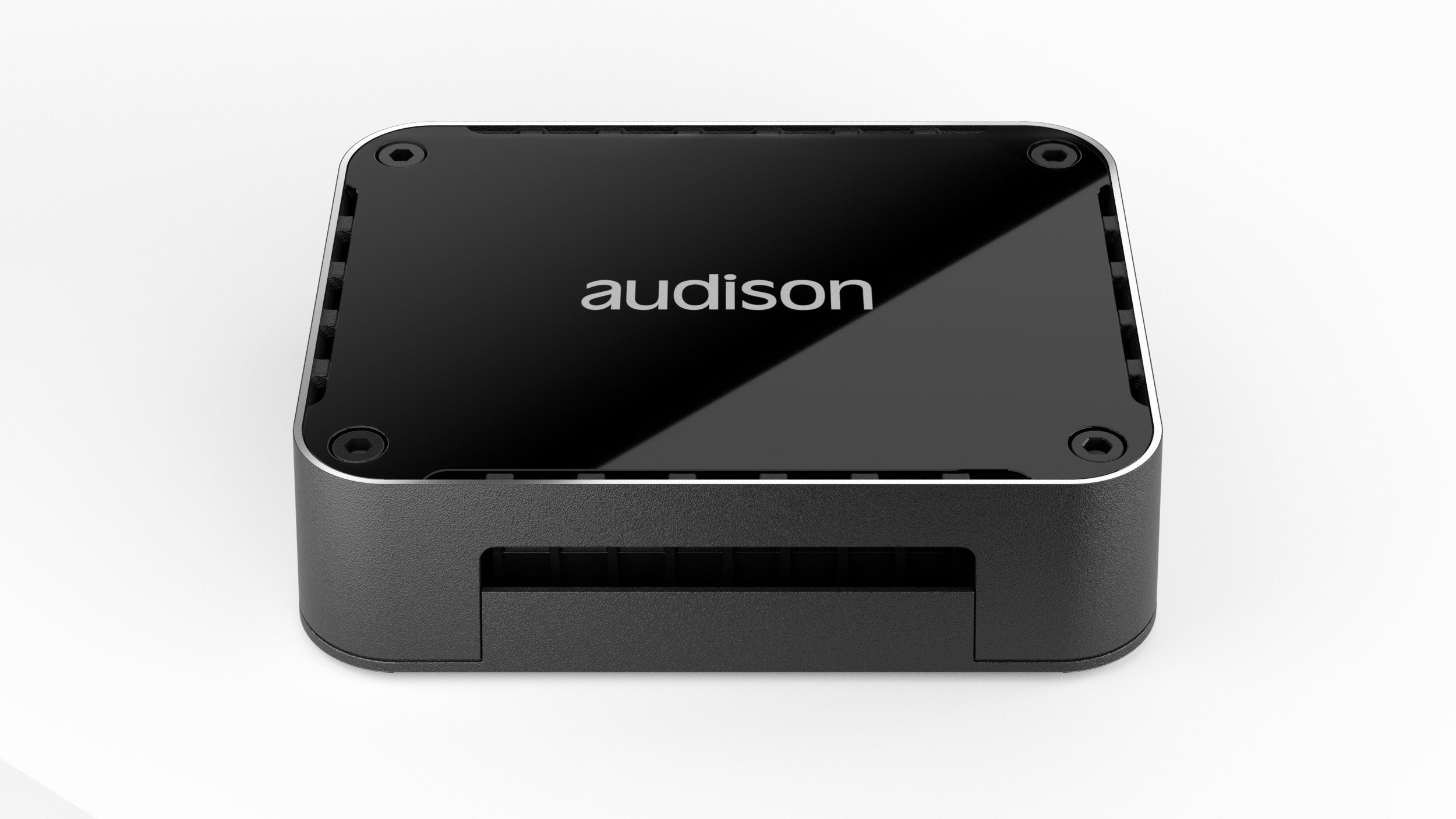

AVCX 2P TW

• Bi-Amplification Support: The ability to connect separate amplifiers or channels for the woofer and tweeter, selectable via a high-current switch designed to handle substantial power loads, ensuring optimal performance and flexibility.
• Mid-Contour Two-Position Control: Provides fine adjustment of the mid-bass frequency response, allowing users to optimize sound output based on the woofer’s placement within the vehicle and individual listening preferences.
• Hi-Contour Two-Position Control: Enables precise selection of the tweeter’s high-pass crossover point, tailored to its position and angle relative to the listener, ensuring seamless integration and enhanced high-frequency performance.
• Customizable System Configuration: The combination of Mid-Contour and Hi-Contour controls creates a bespoke two-way system, perfectly balancing the woofer and tweeter, such as pairing the AV 6.5 P II with the AV 1.1 II.
• Three-Position Tweeter Level Switch: Adjusts the tweeter’s output in 2 dB increments, allowing users to fine-tune sound balance and achieve the desired tonal precision for their listening environment.
• Hi-Boost Control: Selectable via a dedicated switch, this feature enhances high-frequency linearity above 10kHz, compensating for off-axis tweeter positioning and maintaining a smooth and natural soundstage.
• High-Quality Capacitors: Equipped with bi-metalized 160V polyester film capacitors featuring ultra-low Dissipation Factor (DF), ensuring exceptional sound transparency and pristine mid/high-frequency reproduction.
• Air-Wound Inductors: Constructed with pure copper wire up to 1mm ( 0.04 in) in diameter, these inductors provide a high saturation threshold and minimize energy loss, delivering consistent performance in the woofer section during dynamic and high-current demands.
• Aluminum-housed Resistors: Designed for exceptional thermal stability and acoustic performance, these resistors minimize parasitic inductance, reducing high-frequency losses and ensuring reliable operation even under demanding conditions.

TechnicalSpecsLF

• WooferSize: 165mm (6.5in)
• Impedance: 4Ohm
• PowerHandling-Peak: 300W
• PowerHandling-Continuous: 150W
• FrequencyResponse: 45–7500Hz
• VoiceCoilDiameter: 40mm (1.57in)
• MagnetMaterial: HighDensityFluxFerrite
• MagnetSize: 100×45×18
• ConeMaterial: Semi-PressedPaper
• CrossoverType: TwoWayPassiveCrossover (Woofer Full/6dB Oct., Tweeter - 12dB/Oct.)
• CrossoverLevelAdjustment: HighFrequencyContour, MidFrequencyContour, Bi-Amping, HiBoost, TweeterLevel


TechnicalSpecsHF

• TweeterSize: 28mm (1.1in)
• FrequencyResponse: 1000–40000Hz
• PowerHandling-Peak: 180W
• VoiceCoilDiameter: 28mm (1.57in)
• DomeMaterial: TetolonFiber


Electric-AcousticSpecsLF

• Re: 2.9Ohm
• Fs: 66Hz
• Mms: 15.3g
• Cms: 0.28
• BL: 5.5
• Qms: 9
• Qes: 0.61
• Qts: 0.57
• Vas: 9.09L
• Le: 0.3mH
• Spl: 91dB
• Xmax: 4.95mm (0.19in)


KitTechData

• CrossoverLow-Pass: AVCX2P TW: Woofer, Full/6dB Oct.
• CrossoverHi-Pass: AVCX2P TW: Tweeter, 12dB/Oct.
• CrossoverCutOff: 3kHz (HFC:ON2, MFC:ON, HiBoost:OFF, TW:0dB)
• ConeDiameter: 128.3mm


General

• WeightWoofer: 1.6kg
• WeightTweeter: 0.1kg
• WeightCrossover: 0.42kg

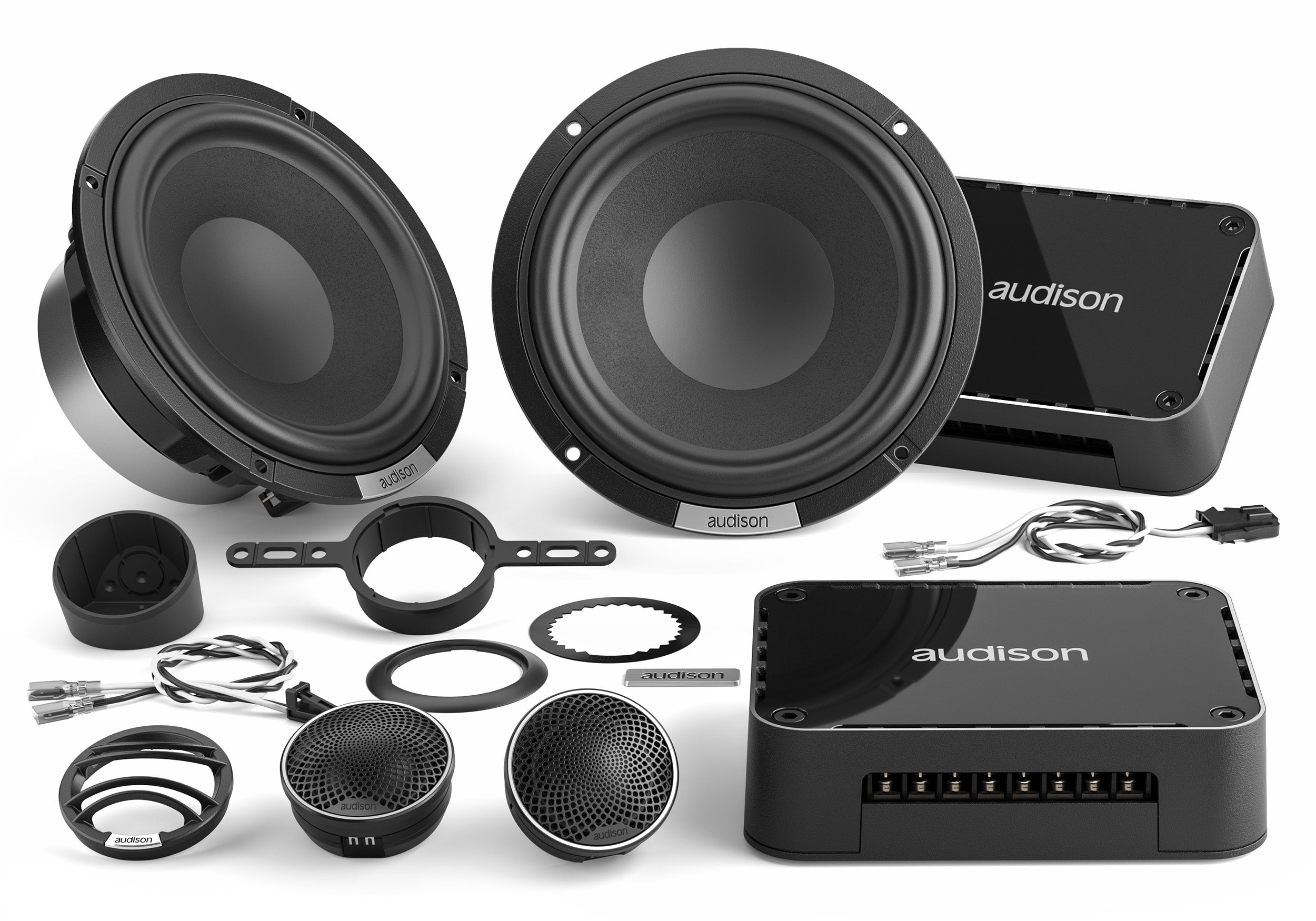

• 2x AV 1.1 II tweeter with FP 1, FP 2, faceplates
• 4x tweeter mounting accessories – Watch band, Double-angle cup, Flush mounting ring, Metal mounting spring
• 2x AV 6.5 P II mid-bass
• 2x AVCX 2P TW 2-way crossover
• P&P cable
• Audison logo badges
