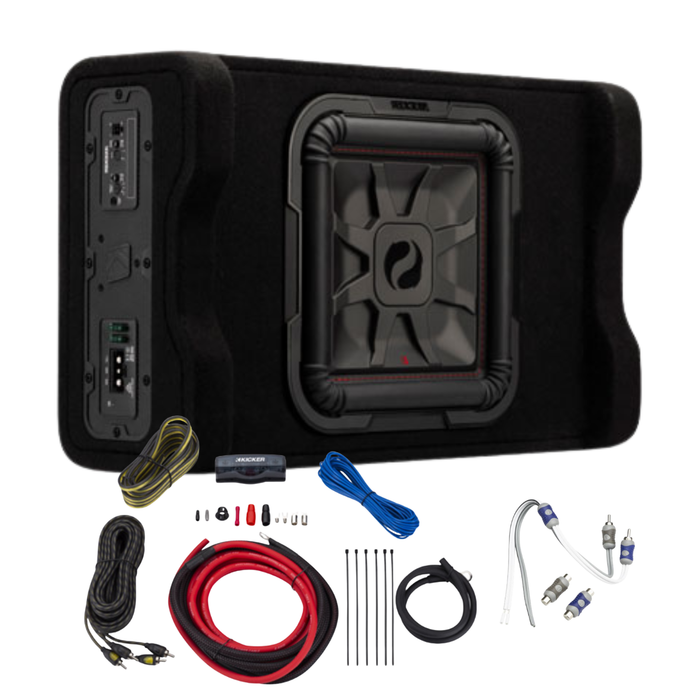

Kicker Plug and Play 53PL7TDF12 Powered Down-Firing 12" Enclosure | '07-'18 JK Wrangler/ '18-'26 JL Wrangler

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times for plug and play bundles from order to ship: 3-5 business days

Ready for your Jeep Wrangler:
Kicker has come through for us in the Jeep world again! Can't fit a Hideaway sub under your passenger seat?  Well Kicker has the solution here with their new release!  Kickers Powered Down-Firing Enclosure will sit easily in the rear bed of your Jeep Wrangler.

What is the Down-Firing Enclosure?
The PTRTP builds on the overwhelming success of our down-firing, thin-profile subwoofer enclosure by adding a signature KICKER amplifier to power it. Sporting a passive radiator and KICKER amplification, this box has been perfectly tuned and engineered from all angles, acoustic and electric, to be the absolute best-sounding, most-efficient, and loudest enclosure possible.

Space-Saving
Place them under a truck seat, in the cargo area of your SUV, or in your trunk – perfect for many trucks or SUVs.

Amp-Matched Impact
It includes a built-in, power-matched amp that integrates with most factory systems for hard-hitting bass.

Rugged Enclosure Strength
The tough, down-firing enclosure resists stacking weight and provides ultimate subwoofer protection.

Square Woofer for More Bass
You get even more bass with the L7T's square cone and beefy motor system. Solo-Baric technology pushes more air and makes more bass!

Everything you need in one package, and then some! Award-winning Solo-Baric L7 Subwoofers in a tough but convenient, down-firing enclosure, and big power from an internal amplifier providing big bass to your vehicle. Outstanding!

Powerful and Down-Firing - It Means Business!

• Compact, factory-tuned enclosure for tight locations to fit many trucks and SUVs
• Two models available – 12-inch sub with 600-watt amp, or a 10-inch sub with 500-watt amp
• Amp is built-in and power-matched for the hardest-hitting bass
• Easily integrates with factory system
• Down-firing for ultimate subwoofer protection
• Thick, tough internal bracing to resist stacking weight
• Solo-Baric L7 square technology for moving more air and creating more bass
• Start/Stop-System Compatible
• Remote bass control included

If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.

• 2007 - 2018 Jeep JK Wrangler: 2 & 4-Door
• 2018 - Current Jeep JL Wrangler: 2 & 4-Door

Can fit into Jeep Gladiator with removal of the rear underseat storage tray.

• RMS power (watts) = 600
• Crossover = active 24dB/octave, variable 50-120Hz low pass; 24dB/octave, high pass at 25Hz
• Input sensitivity = Low Level – 125mV-5V; High Level – 1V-40V
• Size = 15"(D) x 7-7/8"(H) x 23-7/8"(W)

Amp Kit 47VK6 (needed for all installations):

• 16GA yellow/gray speaker wire (14 ft.)
• 2-channel, dual-injection interconnects (16 ft.)
• Matte red power cable (16.5 ft.)
• Ring terminal for red cable
• Nylon mesh loom on red cable (6 ft.)
• Matte black power cable (2.5 ft.)
• Ring terminal for black cable
• Blue remote wire (19 ft.)
• MANL fuse holder (6/8GA)
• Nickel-plated MANL fuse (60A)
• 2-seamed crimp spade terminals (red/blk)
• 18-22GA red vinyl butt connector
• 2 18-22GA spade connectors (gray/blk)
• 6 black cable ties (4 inch)
• Snap bushing grommet

KISL harness (needed only for stock head unit application):

Don’t have an aftermarket radio? KICKER amplifiers accept a wide range of factory speaker signal. Use the KISL to easily connect factory speaker wires right to your amplifier. No line out converter needed

KISL features 16ga speaker wire-to-RCAs and includes Female to Female adapters.

Connecting to a stock radio/ head unit:

• Kicker Powered Down-Firing 10" Enclosure
• Remote bass level control
• 47VK6 Kit- power, ground, fuse, RCA kit for amp/ sub
• Kicker KISL RCA converter

Connecting to an aftermarket radio/ head unit:

• Kicker Down-firing sub
• Remote bass level control
• Kicker RCA splitter for single or double RCA out head units
• Kicker 5M RCA extension
• Pre-terminated in-line fuse holder for easy battery connection
• Pre-terminated ground wire lead
• Remote bass control with mounting hardware
