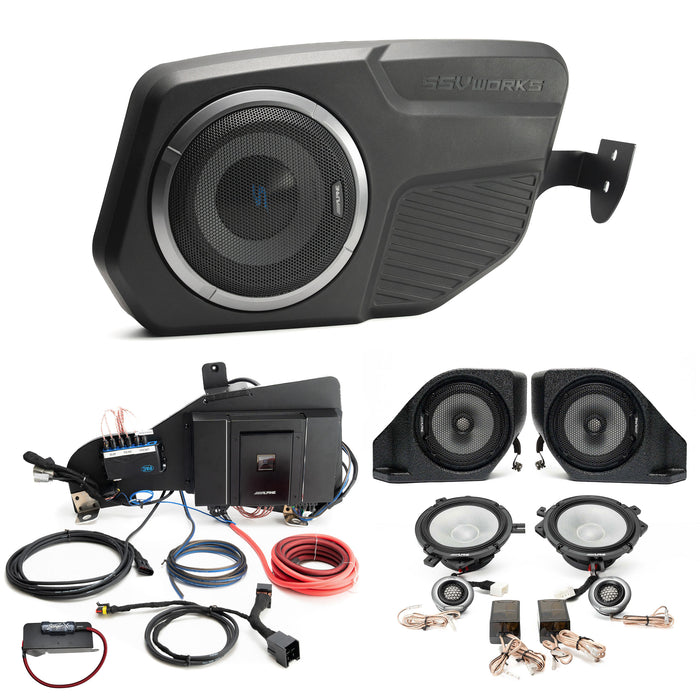

Alpine R-Series Plug & Play Full System Bundle Upgrade 2 & 4-Door (B&O System) | '21- Current Ford Bronco

Alpine R-Series Plug & Play Full System Bundle Upgrade 2 & 4-Door (B&O System) | '21- Current Ford Bronco

Alpine
Price:
$3,698.17
$3,892.81
$3,815.80 - $4,476.71
$3,892.81
$3,625.01 - $4,252.87
$3,698.17
Sale Sale

Frequently Bought Together:

  • Alpine RUX-KNOB.2 Remote Bass Knob

    $49.95

  • SoundSkins Sound Deadening Kit (SSK-BRONCO 4-Door) | '21- Current Ford Bronco

    $495.00

  • SoundSkins Sound Deadening Kit (SSK-BRONCO2DR 2-Door) | '21- Current Ford Bronco

    $495.00

Free US Standard Shipping with 30-Day Returns, 1-Year Warranty
Fits: 2021-Current Ford Bronco (2 & 4-Door)
*** See The New Trail Seven Pods Available ***

Ford Bronco B&O audio amp wiring differs by model year: Pre-2025 requires our T-harness connected at the factory radio for front-to-back speaker wiring; 2025+ uses integrated rear OEM harness only.

  • Older models (pre-2025): The B&O amplifier requires running a new speaker wire T-harness from the amp (rear) to the head unit (front), connected at the factory radio, bypassing the OEM setup.
  • 2025 and newer models: The updated B&O OEM amplifier integrates fully with the existing rear wiring harness—no need to run new wires to the head unit. The original harness is retained entirely in the rear.

We are pleased to announce our complete Play and Play Alpine R-Series full-system audio bundle for your Ford Bronco! This system is only applicable to the Bronco B&O systems.

**2-Door Broncos: Please review the "Vehicle Fitment Guide" section below if selecting the V90 amplifier.
** All Broncos: The Alpine V90 amp is the largest amp that we use in our Bronco bundles. In some instances, adjustments to your amp on the bracket may be required due to the power and ground wires location.

We've taken the guesswork out of it for you so you can easily install a full system upgrade into your Bronco and enjoy the tunes rather than deal with trying to figure out what fits where and what is needed. Our bundles are 100" plug and play with all of the chosen components wired and terminated for smooth and seamless installation.

Note: The integrated PAC module diverts the chime and alert signal from the dash center speaker to the driver side speakers. With this, the center channel speaker is abandoned, hence why the bundle does not include a dash center speaker replacement.

Check out the Bronco Audio page to view other options.

Trail Seven Installation Video:

Product Information

Features, Description, Reviews, Q&A ,Specs & Installation

LEAD TIMES

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times from order to ship: 5-7 business days

OVERVIEW

TESTED AND APPROVED BY TRAIL SEVEN: Our Full System Bundle has been installed and tested, and we're pleased to put our stamp of approval on this package!

PRODUCT HIGHLIGHTS

Alpine HDA-V90 5-Channel Amplifier: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

  • Hi-Res Audio Playback (192kHz/24Bit)
  • 5-Channel Amplifier
  • High-Efficiency Digital Circuit Design
  • Alpine’s Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Alpine’s Premium Class D Circuit Design
  • Copper-plated chassis
  • Black circuit board
  • One-sided terminal layout
  • Top panel sound controls
  • Quick connect power and speaker terminals
  • Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

Alpine R2-S65C Component Speakers: Engineered to deliver crisp highs, rich mids, and deep lows, the Next-Gen R-Series R2-S65C Speakers will elevate your music for a truly loud and fun sound experience.

  • Hi-Res Audio Certified
  • Glass Fiber Reinforced Cone
  • Ferrite Magnet Structure
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround
  • 2 Premium-Grade In-Line Crossover Networks
  • Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing

Alpine R2-S65: Engineered to deliver crisp highs, rich mids, and deep lows, the Next-Gen R-Series R2-S65 Speakers will elevate your music for a truly loud and fun sound experience.

  • Hi-Res Audio Certified
  • Glass Fiber Reinforced Cone
  • Ferrite Magnet Structure
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround
  • 2 Premium-Grade Crossover Networks
  • Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing

Alpine RS-W10D4 Subwoofer: With an ultra-shallow subwoofer design and powerful sound output, the R-Series Shallow Subwoofers give you the best of both worlds in size and sound.

  • 10” High-Performance Shallow Bass Driver
  • Alpine Gen2 DD Linear Magnetic Circuit
  • Cast Aluminum Frame
  • Aluminum Dust Cap
  • Neodymium Magnet

Alpine RS-W12D4 Subwoofer: With an ultra-shallow subwoofer design and powerful sound output, the R-Series Shallow Subwoofers give you the best of both worlds in size and sound.

  • 12” High-Performance Shallow Bass Driver
  • Alpine Gen2 DD Linear Magnetic Circuit
  • Cast Aluminum Frame
  • Aluminum Dust Cap
  • Neodymium Magnet

FEATURES

Plug n Play: All of our bundles are pre-wired and completely assembled prior to shipping from our Frederick, Maryland shop. When you get your bundle, your full system is ready to drop into your Bronco! Simply follow the video which guides you through the plug and play install.

NOTE: The new Trail Seven Rear Pods are fully equipped and sound treated for easiest install and best performance from the speaker!

Warranty Information

This Alpine bundle includes a 1-Year Warranty. This warranty does not cover modifications, alterations, or misuse.



COMPATIBILITY

  • 2021 - Current Bronco: (Factory B&O) 2 & 4-Door
  • 2022 - Current Bronco Raptor: (Factory B&O) 4-Door

Vehicle Fitment Guide

Ford Bronco B&O audio amp wiring differs by model year: Pre-2025 requires our T-harness connected at the factory radio for front-to-back speaker wiring; 2025+ uses integrated rear OEM harness only.

  • Older models (pre-2025): The B&O amplifier requires running a new speaker wire T-harness from the amp (rear) to the head unit (front), connected at the factory radio, bypassing the OEM setup.
  • 2025 and newer models: The updated B&O OEM amplifier integrates fully with the existing rear wiring harness—no need to run new wires to the head unit. The original harness is retained entirely in the rear.



2-Door Bronco V90 Amplifier Fitment:

  • The seat belt retraction module will need to be removed.  To do so, simple unbolt the single bolt underneath the harness module using a T50 torx bit.  Once the amplifier bracket has been installed, the seat belt harness can be reinstalled.
  • Note: The Alpine V90 is the largest amp in size that is offered in our bundles which is a very tight fit, especially into the 2-door Bronco.  We align the amp as best we can to avoid compressing the power and ground wires too much, however you may find it necessary to make minor adjustments to the amplifier or the metal L brackets to accommodate for the size.

TECH SPEC

Alpine R2-S65C Component Speakers:

  • Woofer Size: 6.5”
  • Tweeter Size: 1” (Coaxial)
  • Power Handling: 100W RMS / 300W Peak
  • Frequency Response: 65Hz - 40kHz (Hi-Res)

Alpine R2-S65 6.5" Coax Speakers:

  • Woofer Size: 6.5”
  • Tweeter Size: 1” (Coaxial)
  • Power Handling: 100W RMS / 300W Peak
  • Frequency Response: 65Hz - 40kHz (Hi-Res)

Alpine RS-W10D4 Subwoofer:

  • Power Handling: 600W RMS / 1800W Peak
  • Nominal Impedance: 4Ω
  • Frequency Response: 29Hz - 200Hz
  • Sensitivity (1W/1M): 83dB
  • Voice Coil: 4"
  • X-Max (1-Way): 20mm

Alpine RS-W12D4 Subwoofer:

  • Power Handling:600W RMS / 1800W Peak
  • Nominal Impedance:4Ω
  • Frequency Response:26Hz - 200Hz
  • Sensitivity (1W/1M): 81bB
  • Voice Coil: 4"
  • X-Max (1-Way): 20mm

Alpine V90:

  • Dimensions: 11.4375” x 7.5” x 2.125”
  • Power Rating: 14.4V, < 0.1% THD +N
  • Power Output: 75W x 4 + 300W x 1 @ 4Ω, 100W x 4 + 500W x 1 @ 2Ω
  • Bridged Power: 200W RMS x 2 @ 4Ω
  • S/N Ratio: 87dB
  • Frequency Response: 8-60kHz (-3dB)
  • Damping Factor: 500 (ch1/2/3/4), 1000 (subwoofer)

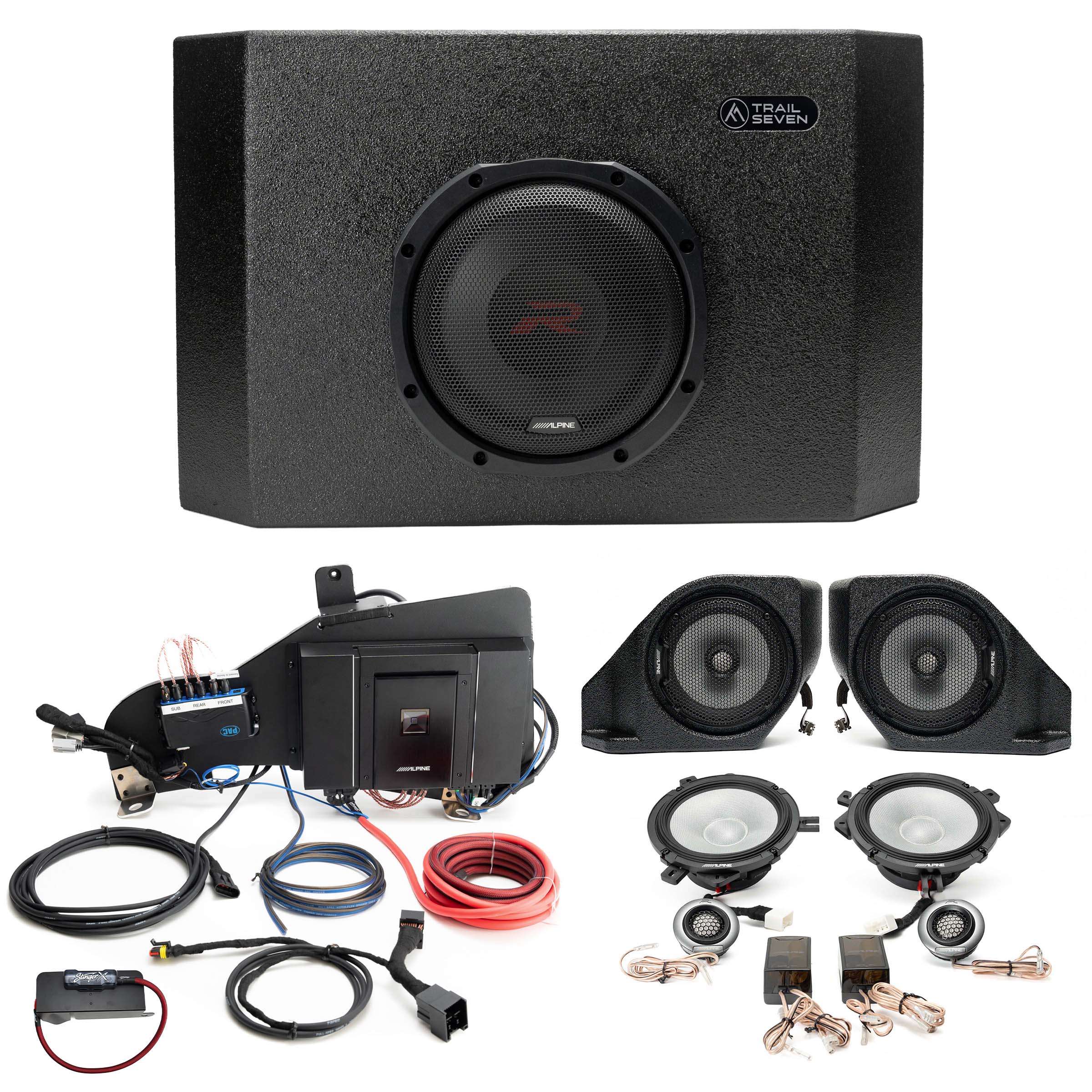

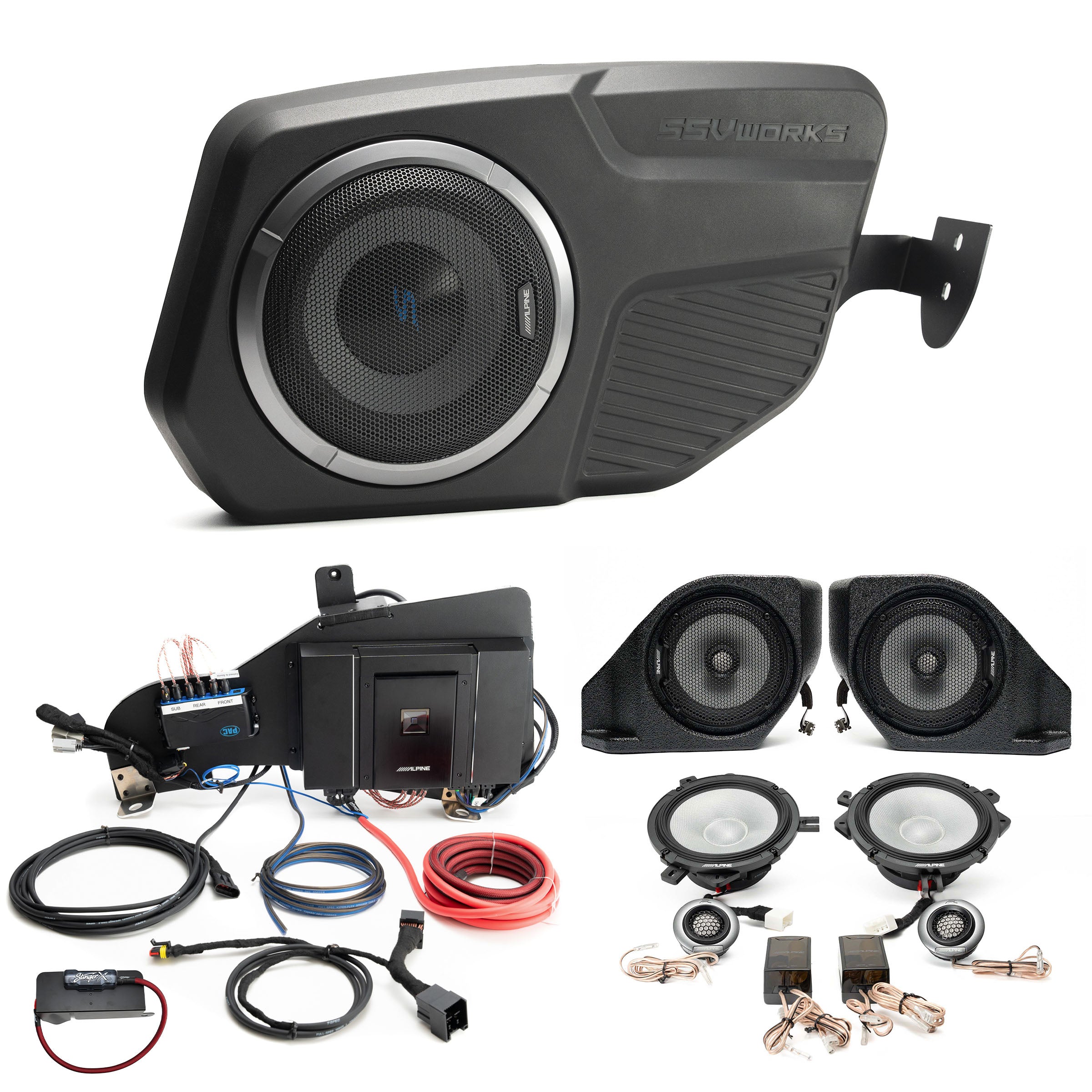

WHAT'S IN THE BOX

  • Amplifier: Alpine V90
  • Front Speakers: Alpine R2-S65C components
  • Rear Speakers: Trail Seven Pods fully equipped and sound treated with 6.5" Alpine R2-S65 coax or SSV pods with 6.5" Alpine R2-S65 coax
  • Side Enclosure: Alpine 10" S2-W10D4
  • OR
  • Tailgate Sub: Alpine 10"/ 12", RS-W10D4/ RS-W10D4
  • Amplifier Bracket: Amp will be mounted
  • PAC Module: FD31 fully prepped and mounted
  • 6CH RCA's: Routed from PAC to amp
  • Sub Wire: Fully prepped to amp with subwoofer connection
  • Amp By Pass: Harness full prepped, mounted to the amp bracket and ready for installation
  • Radio T-Harness: Fully prepped and ready for installation
  • 4AWG Power Kit: 17' 4awg wire, ground lead
  • Fuse and Fuse Bracket: mounted to fuse bracket, fully prepped

Installation instructions

VIDEO

Trail Seven Full System Installation Video:

Trail Seven Full Speaker Installation Video:

Trail Seven Rear Pod Installation Video:
