Alpine S-Series Plug & Play Full System Bundle Upgrade 2 & 4-Door (B&O System) | '21- Current Ford Bronco

Price:
$2,524.95
Original price $2,420.45 - Original price $2,613.31
Original price
$2,420.45 - $2,613.31
Current price $2,524.95

Frequently Bought Together:

  • KCHilites 30" FLEX ERA® LED Light Bar Kit I '21- Current Ford Bronco

    $1,469.98
  • Baja Designs XL Linkable Roof Mount Light Kit I '21- Current Ford Bronco

    $2,109.95
  • Morimoto XRGB LED Headlights I '21- Current Ford Bronco

    $1,250.00

Free US Standard Shipping with 30-Day Returns

We are pleased to announce our complete Play and Play full-system Alpine S-Series audio bundle for your Ford Bronco! This system is only applicable to the Bronco B&O systems.

We've taken the guesswork out of it for you so you can easily install a full system upgrade into your Bronco and enjoy the tunes rather than deal with trying to figure out what fits where and what is needed. Our bundles are 100" plug and play with all of the chosen components wired and terminated for smooth and seamless installation.

Note: The integrated PAC module diverts the chime and alert signal from the dash center speaker to the driver side speakers. With this, the center channel speaker is abandoned, hence why the bundle does not include a dash center speaker replacement.

Check out the Bronco Audio page to view other options.

Trail Seven Installation Video:

Product Information

Features, Description, Reviews, Q&A ,Specs & Installation

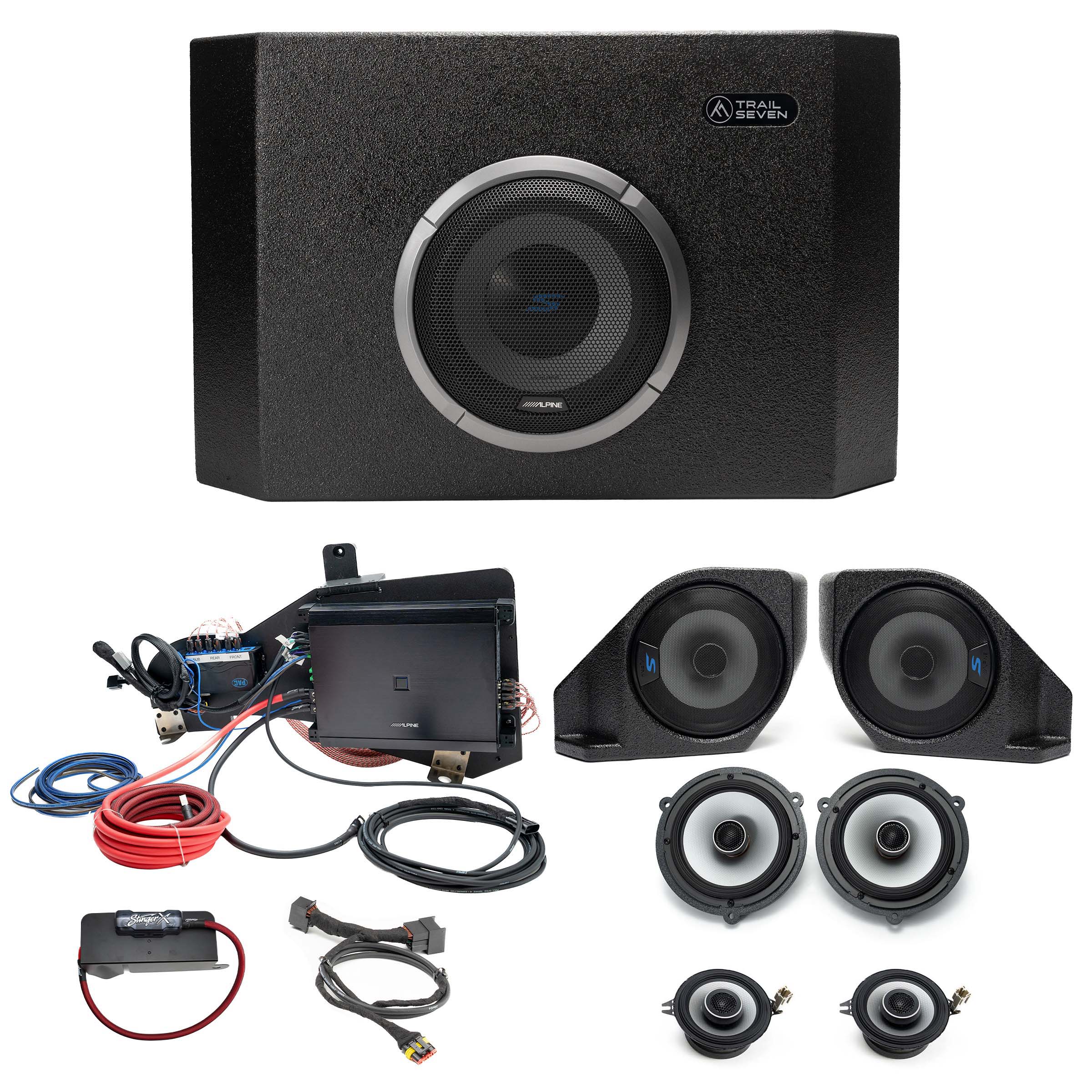

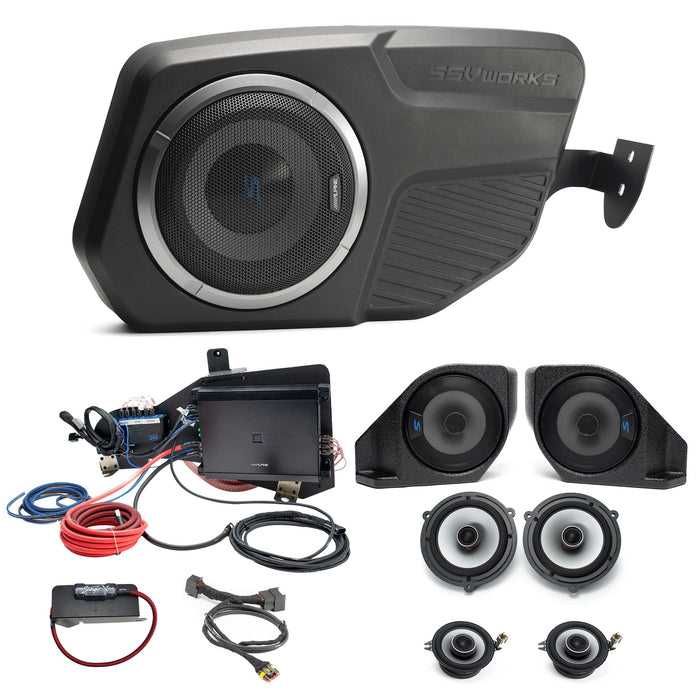

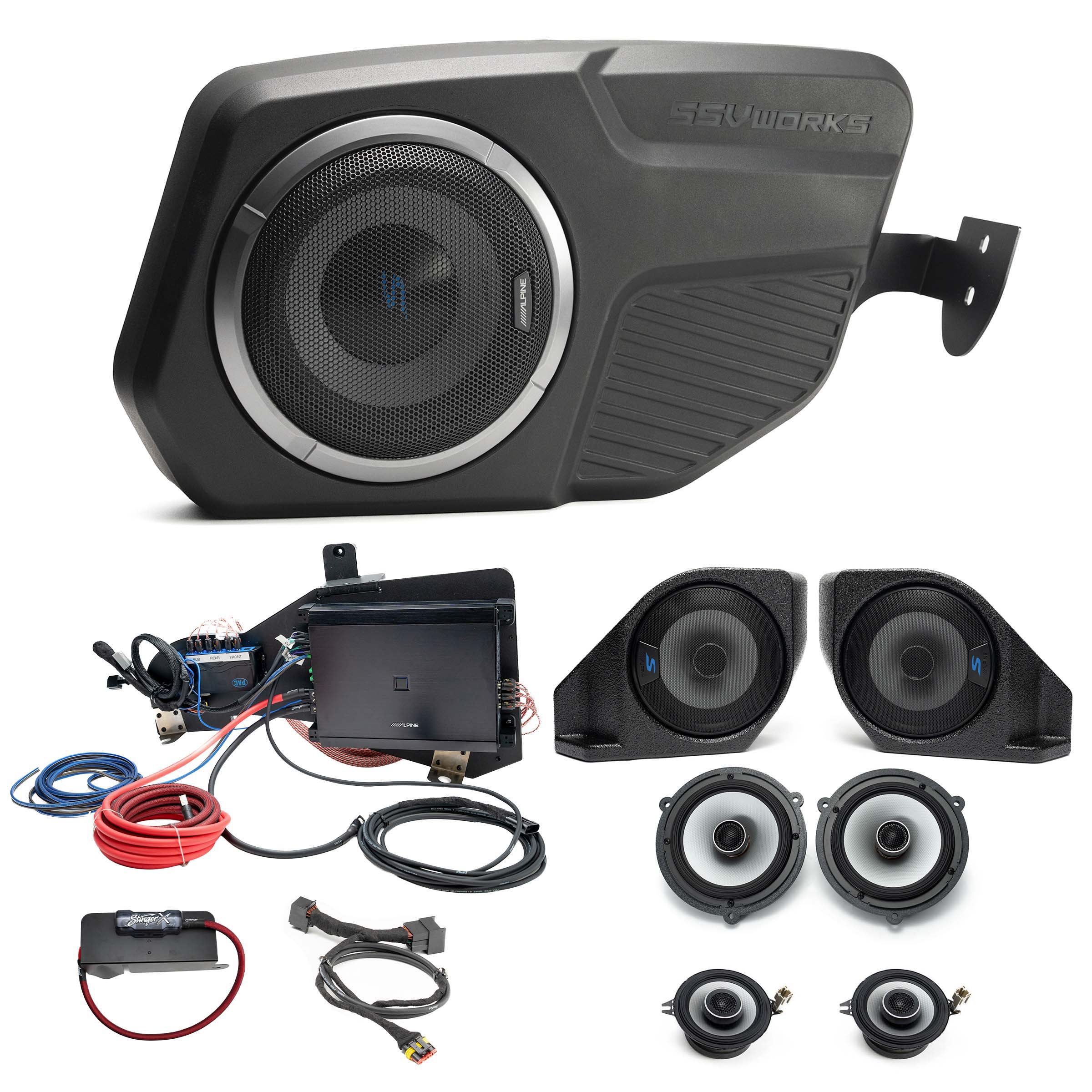

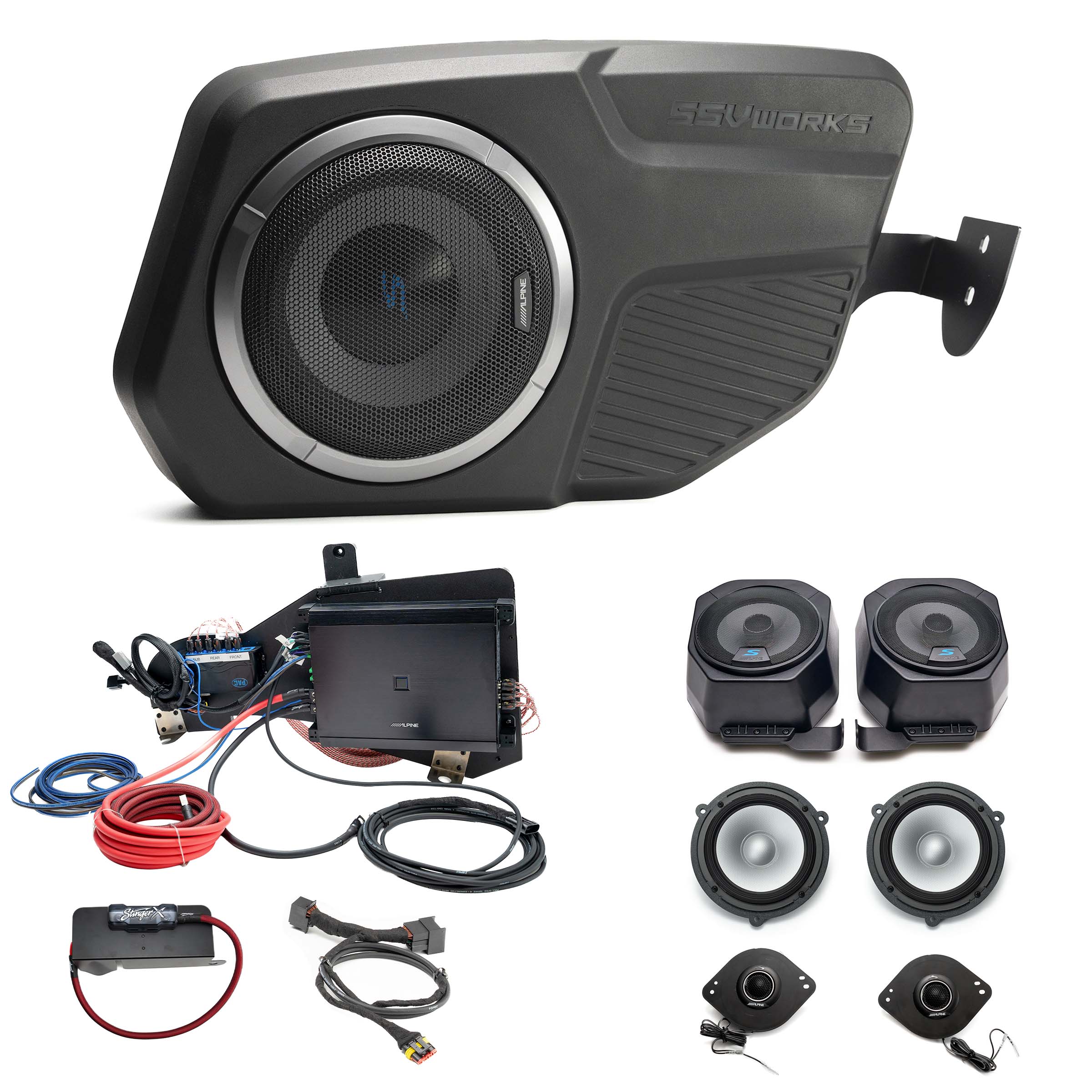

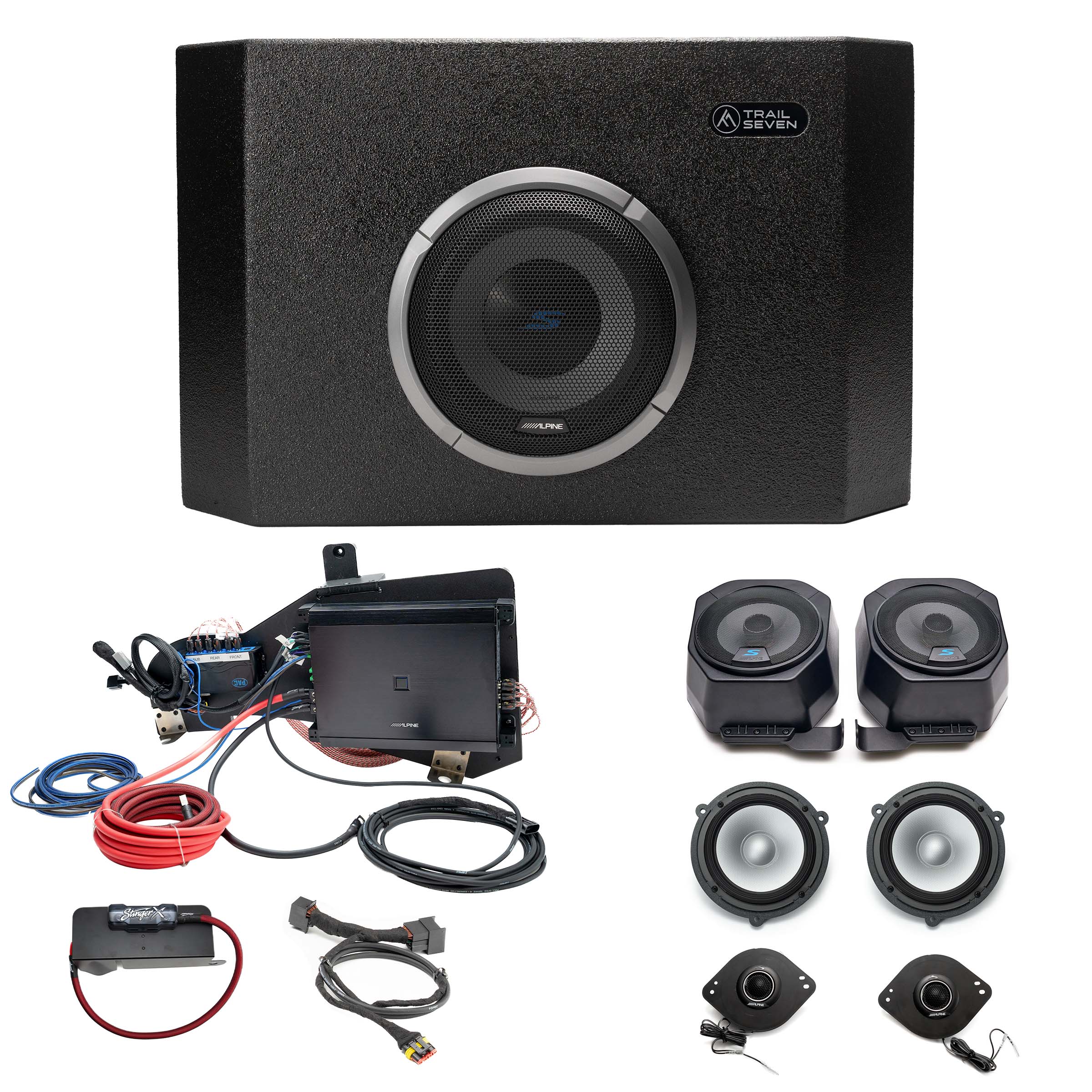

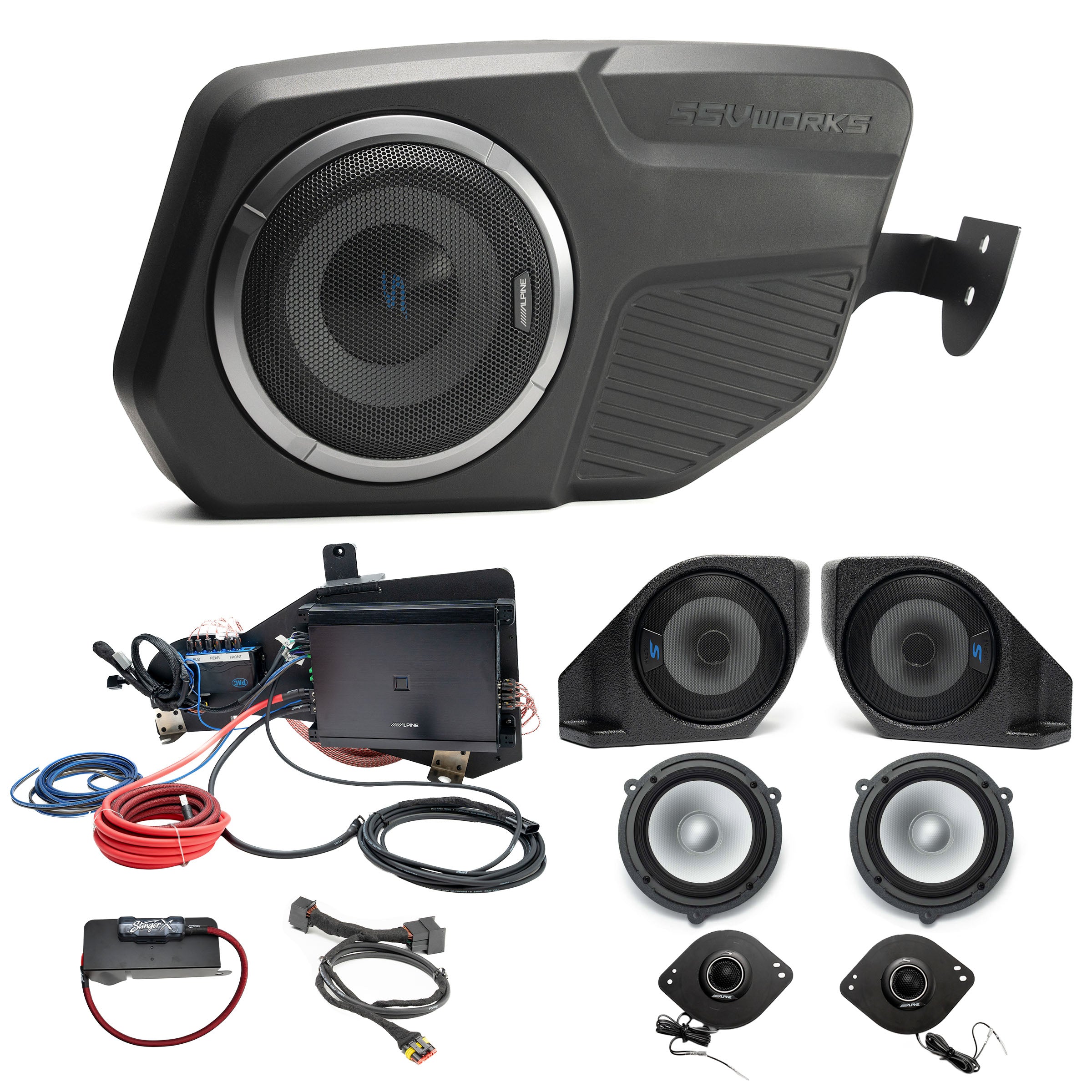

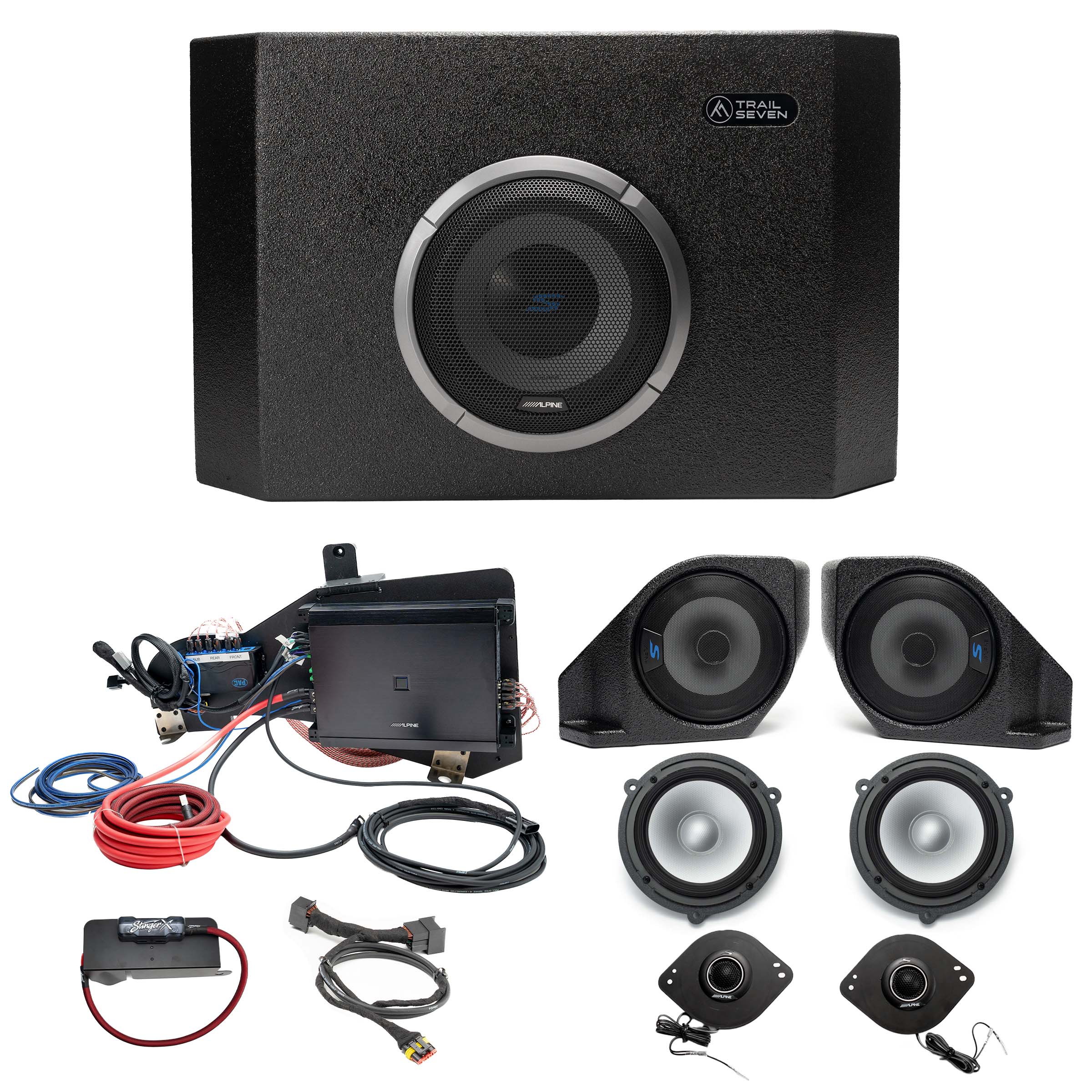

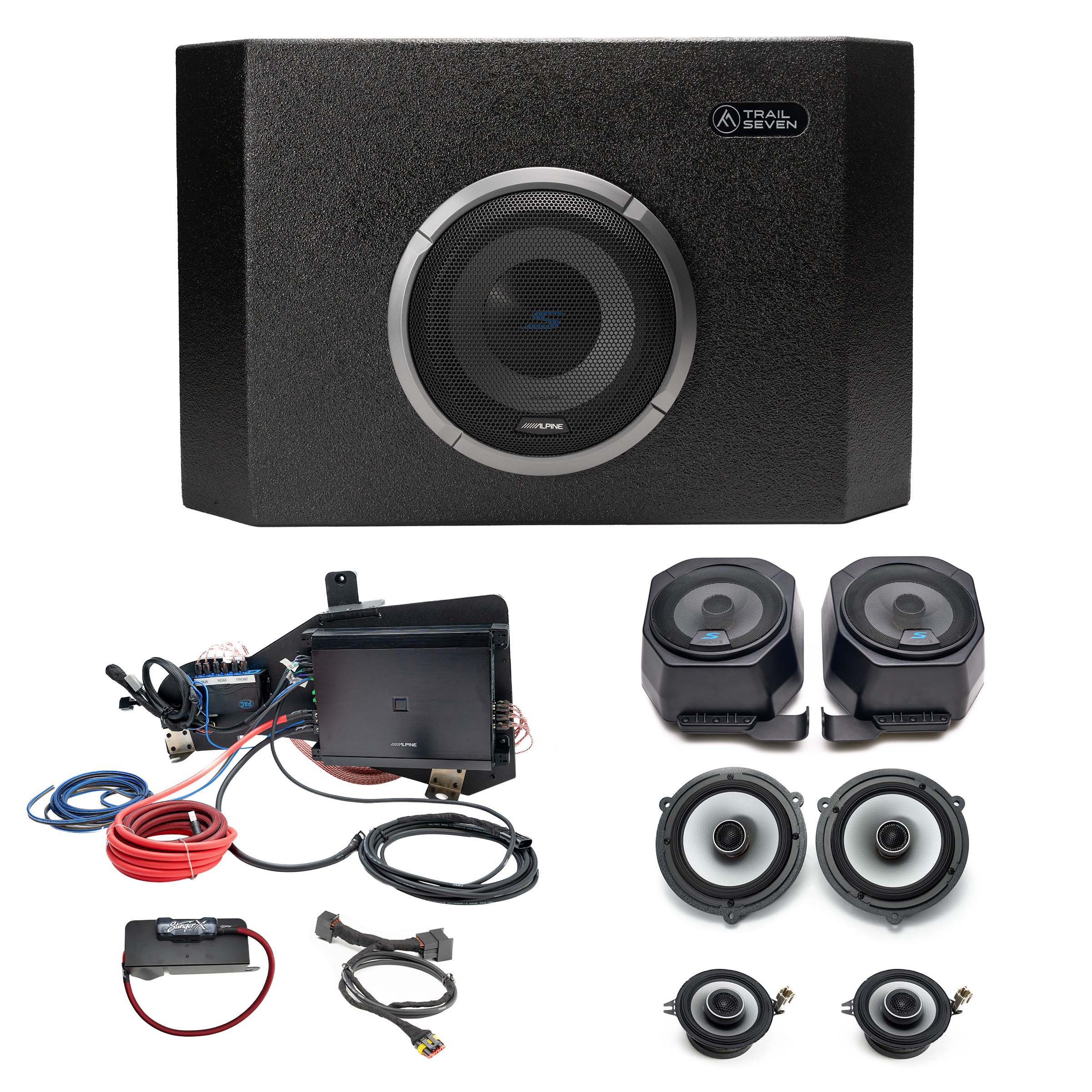

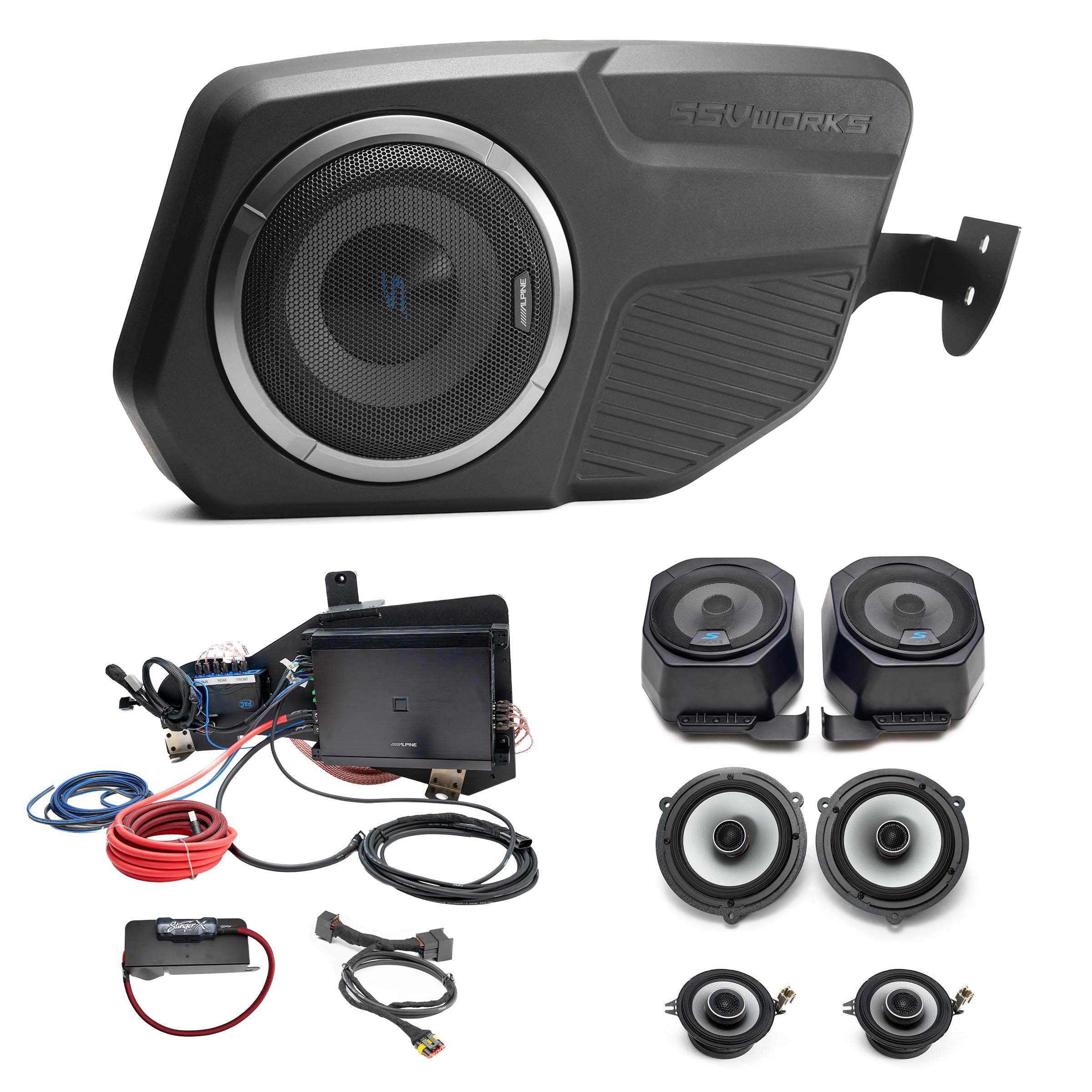

WHAT'S IN THE BOX

WHAT'S IN THE BOX:

  • Amplifier: Alpine A55
  • Front Speakers: Alpine S65 coax w/ S40 coax dash speakers or Alpine S65C components
  • Rear Speakers: MTI pods with 6.5" Alpine S65 coax or SSV pods with 6.5" Alpine S65 coax
  • Sub Enclosures: SSV Side Enclosure Alpine 10" S2-W10D4, Tail Gate Alpine 10" S2-W10D4, Tail Gate Alpine 12" S2-W12D4.

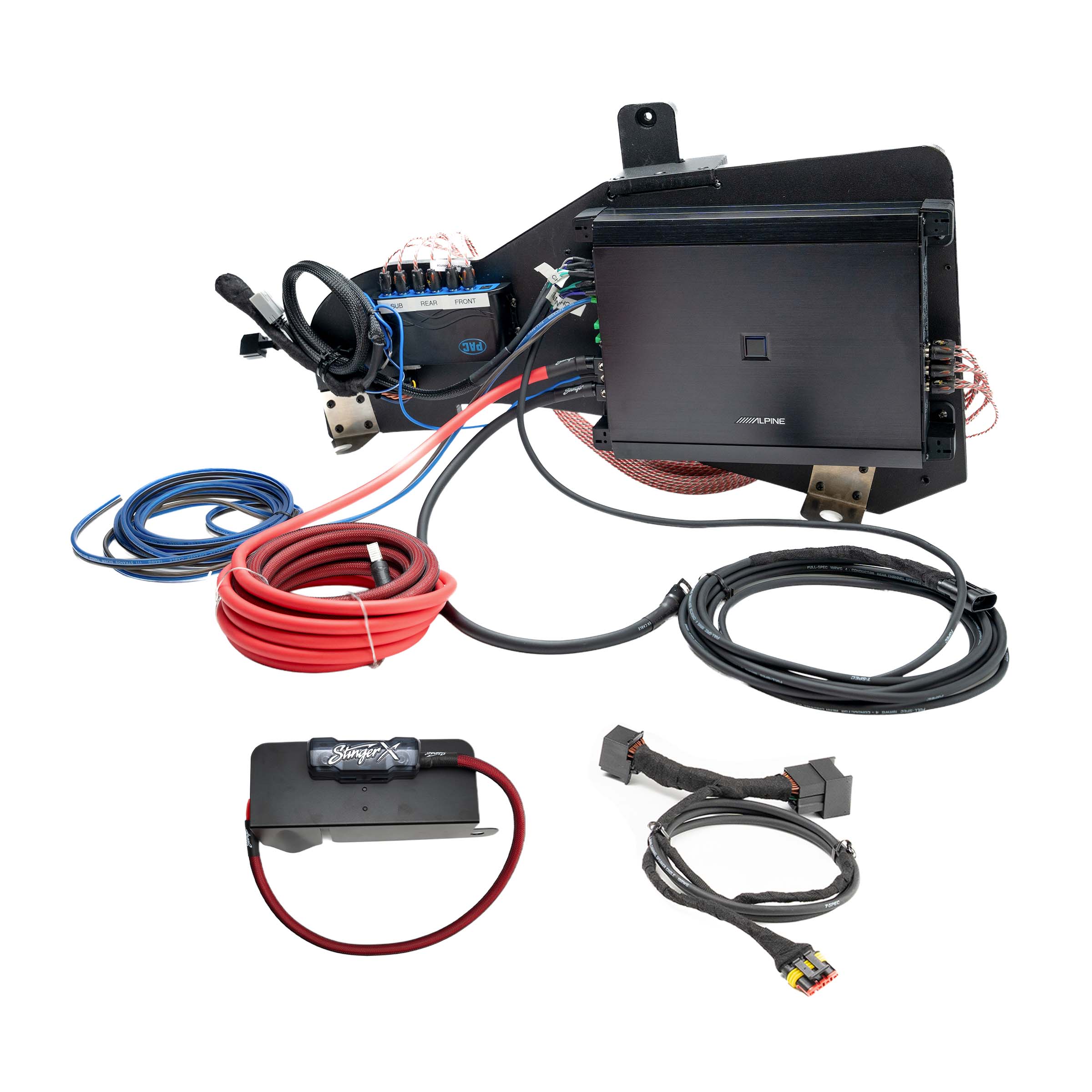

  • Amplifier Bracket: Amp will be mounted
  • PAC Module: FD31 fully prepped and mounted
  • 6CH RCA's: Routed from PAC to amp
  • Sub Wire: Fully prepped to amp with subwoofer connection
  • Amp By Pass: Harness full prepped, mounted to the amp bracket and ready for installation
  • Radio T-Harness: Fully prepped and ready for installation
  • 4AWG Power Kit: 17' 4awg wire, ground lead
  • Fuse and Fuse Bracket: mounted to fuse bracket, fully prepped

VIDEO

VIDEOS:

Trail Seven Full System Installation Video:

Trail Seven Full Speaker Installation Video:

Trail Seven Rear Pod Installation Video:



OVERVIEW

OVERVIEW:

Alpine 2S-65 Coaxial Speakers: Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S65 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience..

  • Hi-Res Audio Certified (Up to 40kHz)
  • Poly Propylene, Glass Fiber, and Mica Cone Material
  • Lightweight Design with High Output and Low Distortion
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround 
  • Integrated 1” Tweeters (Coaxial)

Alpine 2S-44 Coaxial Speakers: Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, the S2-S40 is designed for lightweight construction, high output, and low distortion, giving you a clean and accurate audio experience.

  • Hi-Res Audio Certified (Up to 40kHz)
  • Poly Propylene, Glass Fiber, and Mica Cone Material
  • Lightweight Design with High Output and Low Distortion
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround 
  • Integrated 3/4” Tweeters (Coaxial)

Alpine S2-S65C Component Speakers: Newly redesigned and Hi-Res Audio Certified, the Next-Generation S-Series S2-S65C 6.5” Component Speakers offer a new standard in entry-level sound performance.

  • Hi-Res Audio Certified (Up to 40kHz)
  • Poly Propylene, Glass Fiber, and Mica Cone Material
  • Lightweight Design with High Output and Low Distortion
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround 
  • Included 1” Adjustable Tweeters with Threaded Removable Housing (Component)
  • OEM Fitment with In-Line Crossovers

Alpine S2-W10D4 Subwoofer: Add extra punch to your sound system with the S-Series S2-W10D4 10" Subwoofer; now redesigned for powerful and reliable bass performance at an approachable price point.

  • Dual Voice Coil Subwoofers with Configuration Jumpers
  • Carbon Fiber / Poly Propylene Cone
  • Poly Propylene / Ceramic Dust Cap
  • High-Grade Strontium Ferrite Magnets
  • Twist-Lock Grille Mount System
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround
  • Push-Type Speaker Terminals (Up to 8AWG Wire Size)

Alpine S2-W12D4 Subwoofer: Add extra punch to your sound system with the S-Series S2-W12D4 12" Subwoofer; now redesigned for powerful and reliable bass performance at an approachable price point.

  • Dual Voice Coil Subwoofers with Configuration Jumpers
  • Carbon Fiber / Poly Propylene Cone
  • Poly Propylene / Ceramic Dust Cap
  • High-Grade Strontium Ferrite Magnets
  • Twist-Lock Grille Mount System
  • High-Amplitude Multi-Roll (H.A.M.R.) Surround
  • Push-Type Speaker Terminals (Up to 8AWG Wire Size)

Alpine S2-A55V 5-Channel Amplifier: Entry-level sound just got elevated with the S2-A55V 5-Channel Amplifier. Its sleek redesign houses an Alpine Class D Amplifier Circuit and is now certified for Hi-Res Audio.

  • Hi-Res Audio Certified (Up to 40kHz)
  • 5-Channel Amplifier
  • Alpine’s Class D Amplifier Circuit
  • Two-sided terminal layout
  • Built-in Selectable/ Adjustable Crossovers
  • Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

COMPATIBILITY

COMPATIBILITY:

  • 2021 - Current Bronco: (Factory B&O) 2 & 4-Door
  • 2022 - Current Bronco Raptor: (Factory B&O) 4-Door

Installation instructions

INSTALLATION GUIDE:

Warranty Information

WARRANTY INFORMATION:

This Alpine bundle includes a 1-Year Warranty. This warranty does not cover modifications, alterations, or misuse.



FEATURES

FEATURES:

Plug n Play: All of our bundles are pre-wired and completely assembled prior to shipping from our Frederick, Maryland shop. When you get your bundle, your full system is ready to drop into your Bronco! Simply follow the video which guides you through the plug and play install.

NOTE: The rear MTI enclosures do require minor prep which is covered in the provided installation video.

TESTED AND APPROVED BY TRAIL SEVEN: Our Full System Bundle has been installed and tested on our Trail Seven Bronco and we're pleased to put our stamp of approval on this package!

TECH SPEC

TECH SPECS:

Alpine S40 4" Coax Speakers:

  • Woofer Size: 4”
  • Tweeter Size: 3/4” (Coaxial)
  • Power Handling: 45W RMS / 140W Peak
  • Frequency Response: 97Hz - 40kHz (Hi-Res)
  • Sensitivity: 86dB

Alpine S65 6.5" Coax Speakers:

  • Woofer Size: 6.5”
  • Tweeter Size: 1” (Coaxial)
  • Power Handling: 80W RMS / 240W Peak
  • Frequency Response: 70Hz - 40kHz (Hi-Res)
  • Sensitivity: 88dB

Alpine 65C 6.5" Component Speakers:

  • Woofer Size: 6.5”
  • Tweeter Size: 1” (Component)
  • Power Handling: 80W RMS / 240W Peak
  • Frequency Response: 70Hz - 40kHz (Hi-Res)
  • Sensitivity: 88dB

Alpine S2-W10D4 Subwoofer:

  • Power Handling:600W RMS / 1800W Pea
  • Nominal Impedance:
  • Frequency Response:25Hz - 215Hz
  • Sensitivity (1W/1M):84.9dB
  • Voice Coil:2.6"
  • X-Max (1-Way):15mm
  • Magnet Weight:64oz

Alpine S2-W12D4 Subwoofer:

  • Power Handling:600W RMS / 1800W Peak
  • Nominal Impedance:
  • Frequency Response:23Hz - 215Hz
  • Sensitivity (1W/1M):86.2dB
  • Voice Coil:2.6"
  • X-Max (1-Way):15mm
  • Magnet Weight:64oz

Alpine A55:

  • Dimensions: 11.9” W x 2.25” H x 8.25” D
  • Weight: 7 lbs
  • Power Rating: 14.4V, < 0.1% THD +N
  • Power Output: 40W x 4 + 200W x 1 @ 4Ω, 60W x 4 + 300W x 1 @ 2Ω
  • Bridged Power: 120W RMS x 2 @ 4Ω
  • S/N Ratio: >83dB
  • Frequency Response: 20Hz – 40kHz
  • Damping Factor: >100CTA-2006-D Certification
