Alpine Status Series Plug & Play Dual Amplifier Bundle (B&O System) | '21- Current Ford Bronco

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times from order to ship: 6-8 business days

We've eliminated the guesswork, making it easy to upgrade your Bronco's audio system. Our bundles are 100% plug-and-play, with all components pre-wired and terminated for a smooth, seamless installation. Enjoy premium sound quality without worrying about compatibility or figuring out what fits where. Just install and enjoy the tunes!

Plug & Play: Every bundle is pre-wired and fully assembled at our Frederick, Maryland shop before shipping. When your bundle arrives, it's ready to drop right into your Bronco. Just follow our step-by-step video and installation guides for an effortless plug-and-play installation.

Tested and Approved by Trail Seven: Our Full System Bundle has been thoroughly installed and tested on our Trail Seven Bronco. We're proud to give this package our stamp of approval, ensuring it delivers the performance you expect!

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

Superior Sound: Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status System features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24Bit playback.

Impressive Output: Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-M80, and the HDA-F60 were intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

Alpine HDA-F60 4-Channel Amplifier: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

• Hi-Res Audio Playback (192kHz/24Bit)
• 4-Channel Amplifier
• High-Efficiency Digital Circuit Design
• Alpine’s Dual Negative Feedback Control Circuit
• High Bandwidth Amplifier
• Alpine’s Premium Class D Circuit Design
• Copper-plated chassis
• Black circuit board
• One-sided terminal layout
• Top panel sound controls
• Quick connect power and speaker terminals
• Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

Alpine HDA-M80 Mono Amplifier: With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

• 800W Mono Amplifier
• High-Efficiency Digital Circuit Design
• Alpine’s Dual Negative Feedback Control Circuit
• High Bandwidth Amplifier
• Alpine’s Premium Class D Circuit Design
• Copper-plated chassis
• Black circuit board
• One-sided terminal layout
• Top panel sound controls
• Quick connect power and speaker terminals
• Optional Remote bass knob compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

• 2021 - Current Bronco: (Factory B&O) 2 & 4-Door
• 2022 - Current Bronco Raptor: (Factory B&O) 4-Door

Alpine HDA-F60 4-Channel Amplifier:

• Dimensions: 11.4375” x 7.5” x 2.125”
• Power Rating: (14.4V, ≤1.0% THD+N)
• Power Output: 100W x 4 @ 4Ω, 150W x 4 @ 2Ω
• Bridged: 300W x 2 @ 4Ω
• THD+N: 0.02% (10W into 4ohm)
• S/N Ratio: 87dB (1W into 4ohm)
• Frequency response: 10-60kHz (-3dB)
• Damping factor: 500

Alpine HDA-M80 Mono Amplifier:

• Dimensions: 11.4375” x 7.5” x 2.125”
• Power Rating: (14.4V, ≤1.0% THD+N)
• Power Output: 800W x 1 @ 2Ω, 500W x 1 @ 4Ω
• THD+N: 0.02% (10W into 4ohm)
• S/N Ratio: 83dB (1W into 4ohm)
• Frequency response: 8-400Hz (-3dB)
• Damping factor: 1500

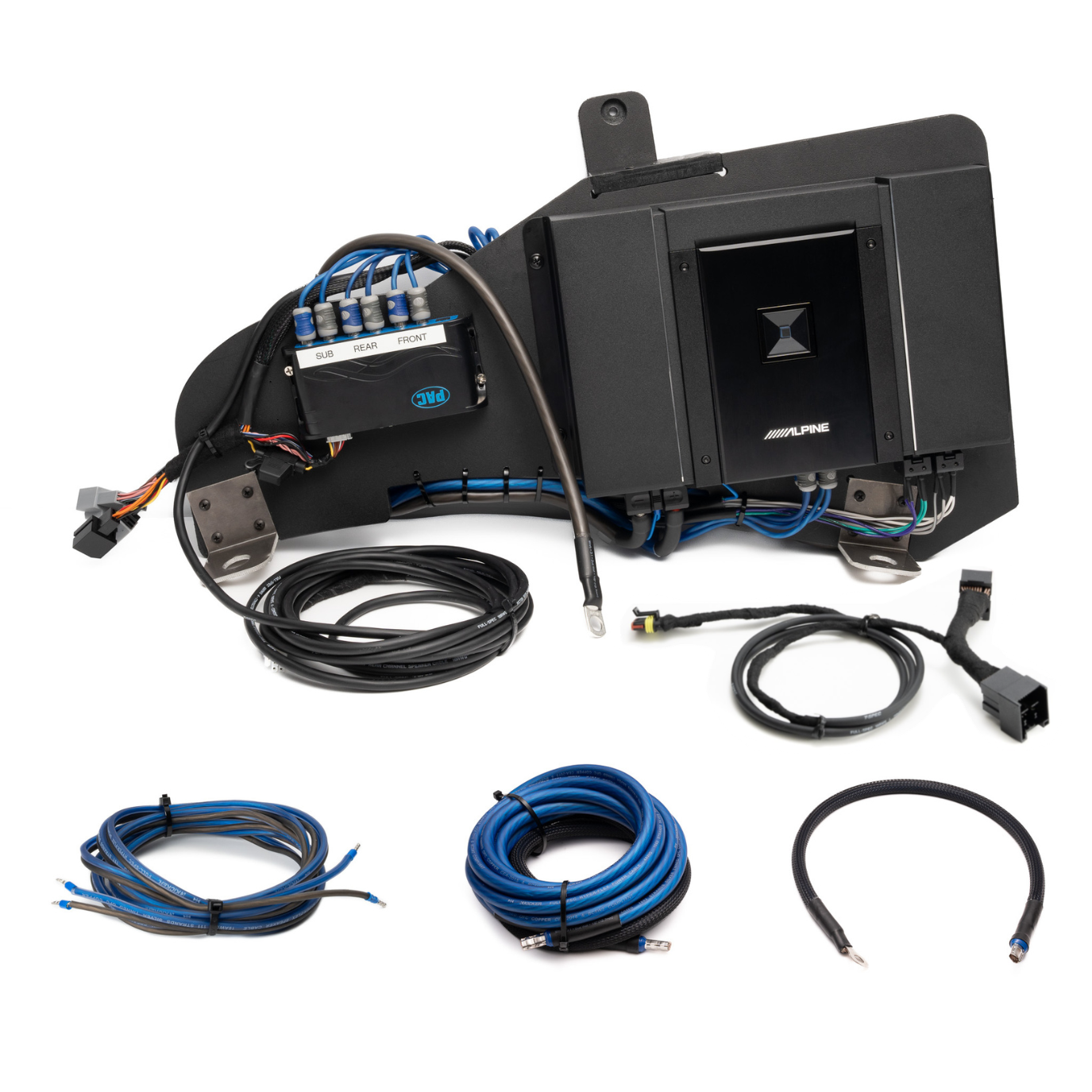

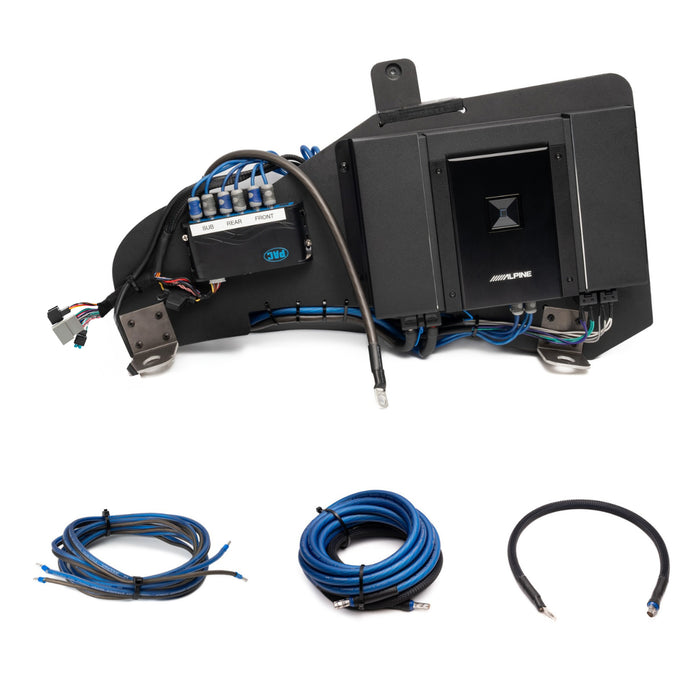

Dual Amp Bundle:

• Amplifier 1: Alpine Status F60 4-Channel
• Amplifier 2: Alpine Status M80 Mono Amp
• Power Kit: 1/0 dual fuse power kit w/ ground and power wire terminated to the amplifier via ground and power distribution block mounted to the amp bracket

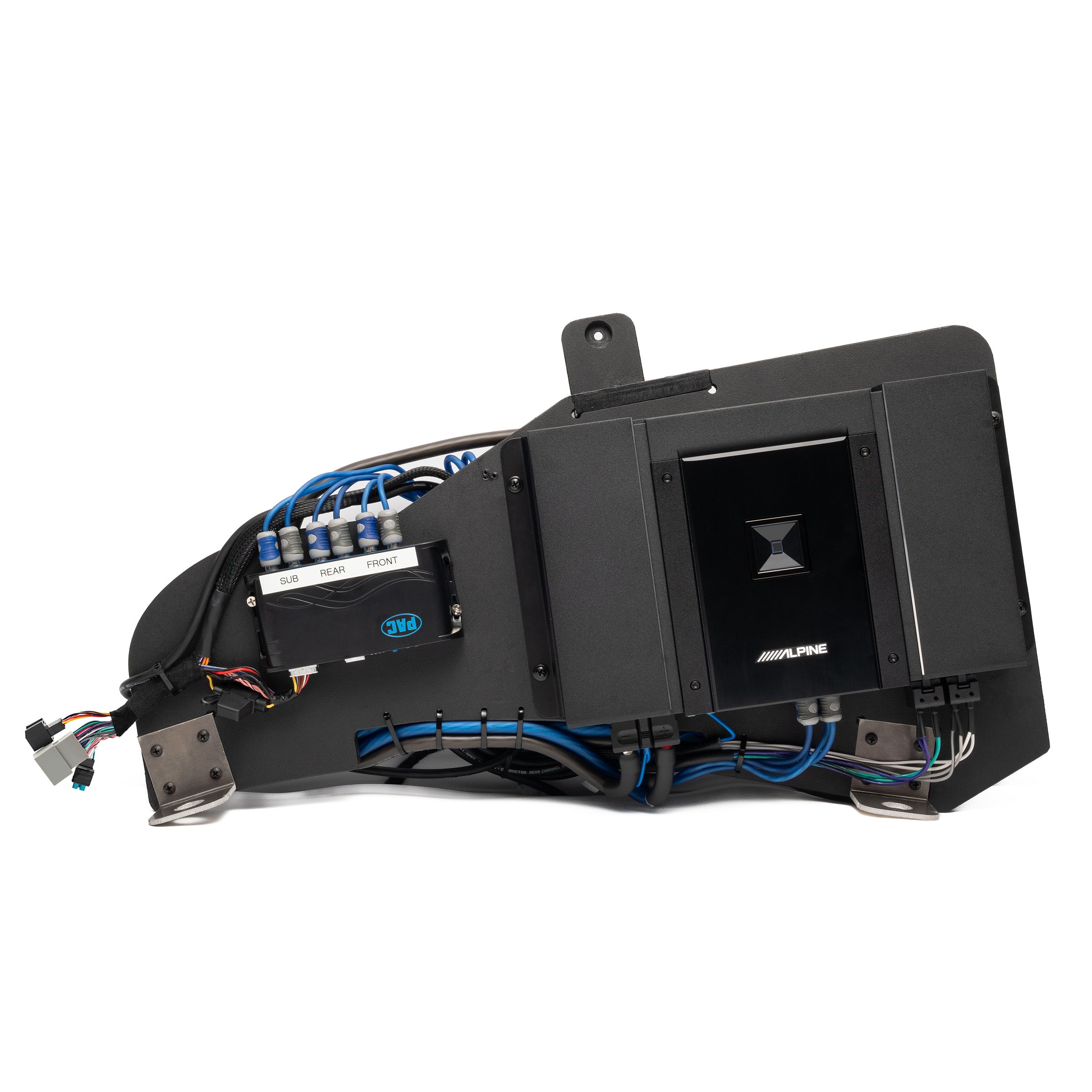

• Amplifier Bracket: Amps will be mounted, double sided
• PAC Module: FD31 fully prepped and mounted
• 6CH RCA's: Routed from PAC to amps
• Amp By Pass: Harness full prepped, mounted to the amp bracket and ready for installation per the video
• Radio T-Harness: Fully prepped and ready for installation
• Fuse Holder: 200 amp fuse (battery location mounted)
• Fuse Holder: (2) 100 amp fuses (mounted on the amp bracket)
• Ground Distro Block: Mounted on amp bracket
• Sub Wire: Fully prepped to amp with subwoofer connection
