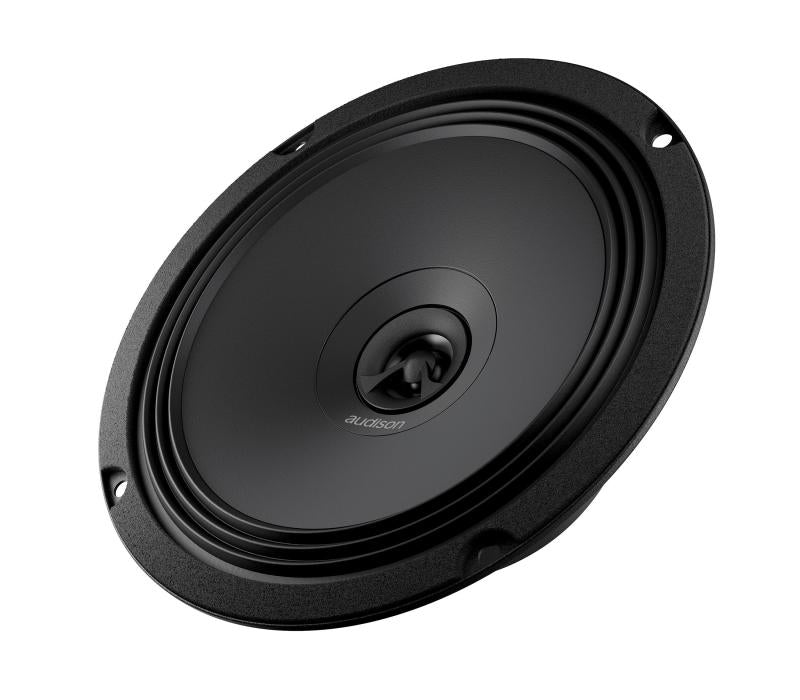

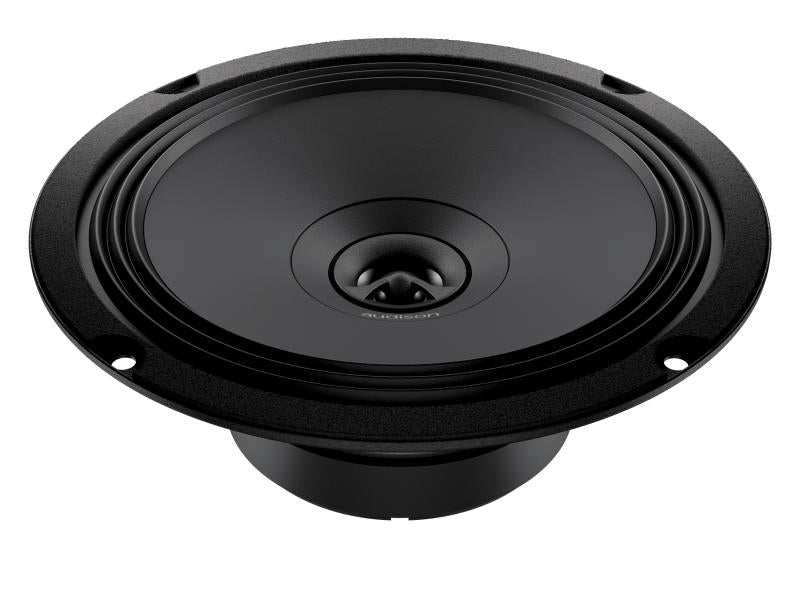

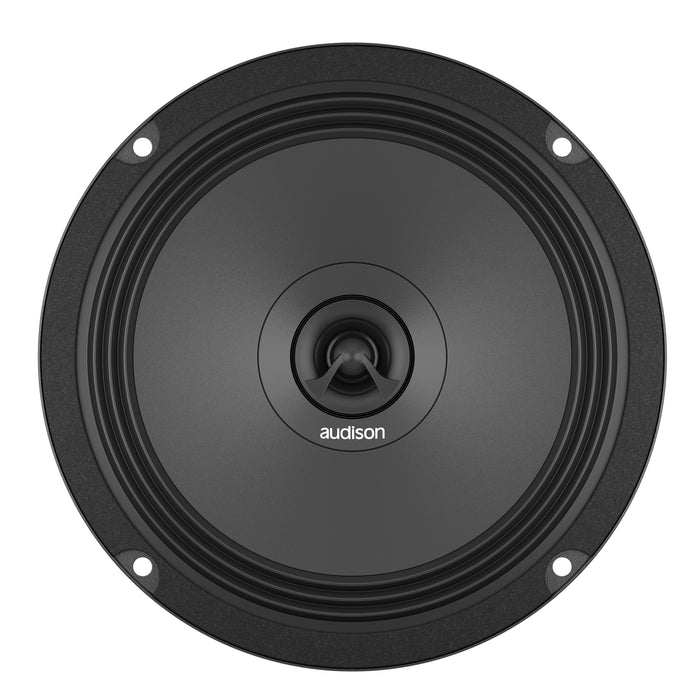

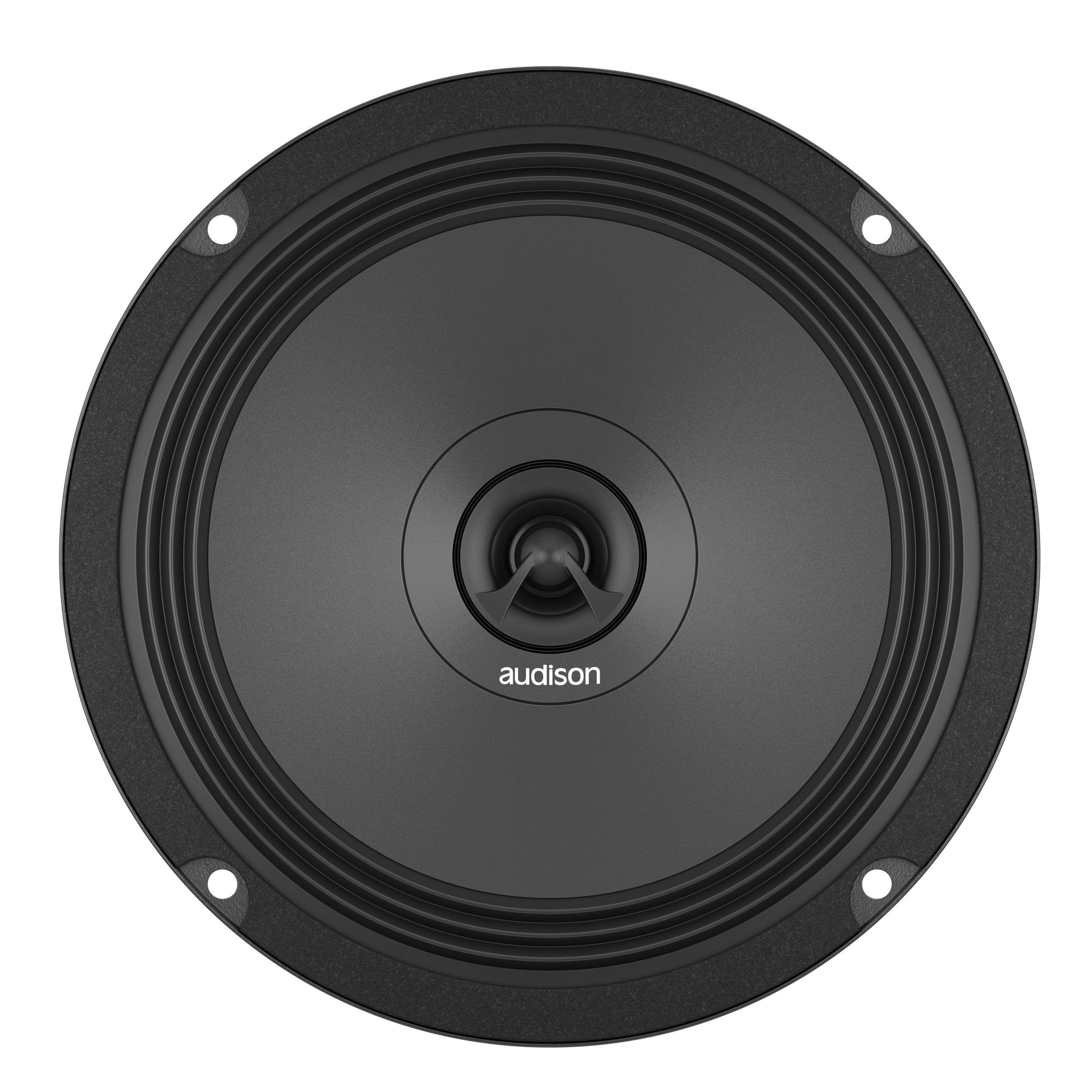

Audison Prima APX 6.5 6.5" Coaxial Speaker

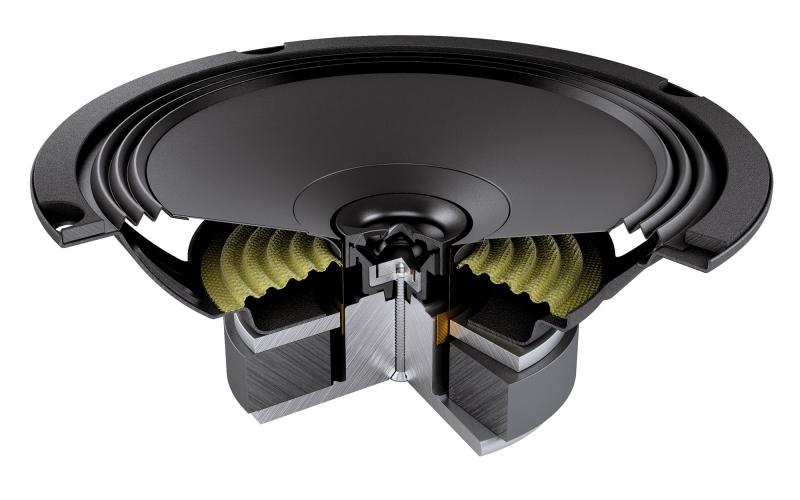

Coaxial | 210 W Peak Power | 165 mm | 4 ohm: APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

• Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
• Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off axis placement, typical of in-door installations.
• 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
• TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.

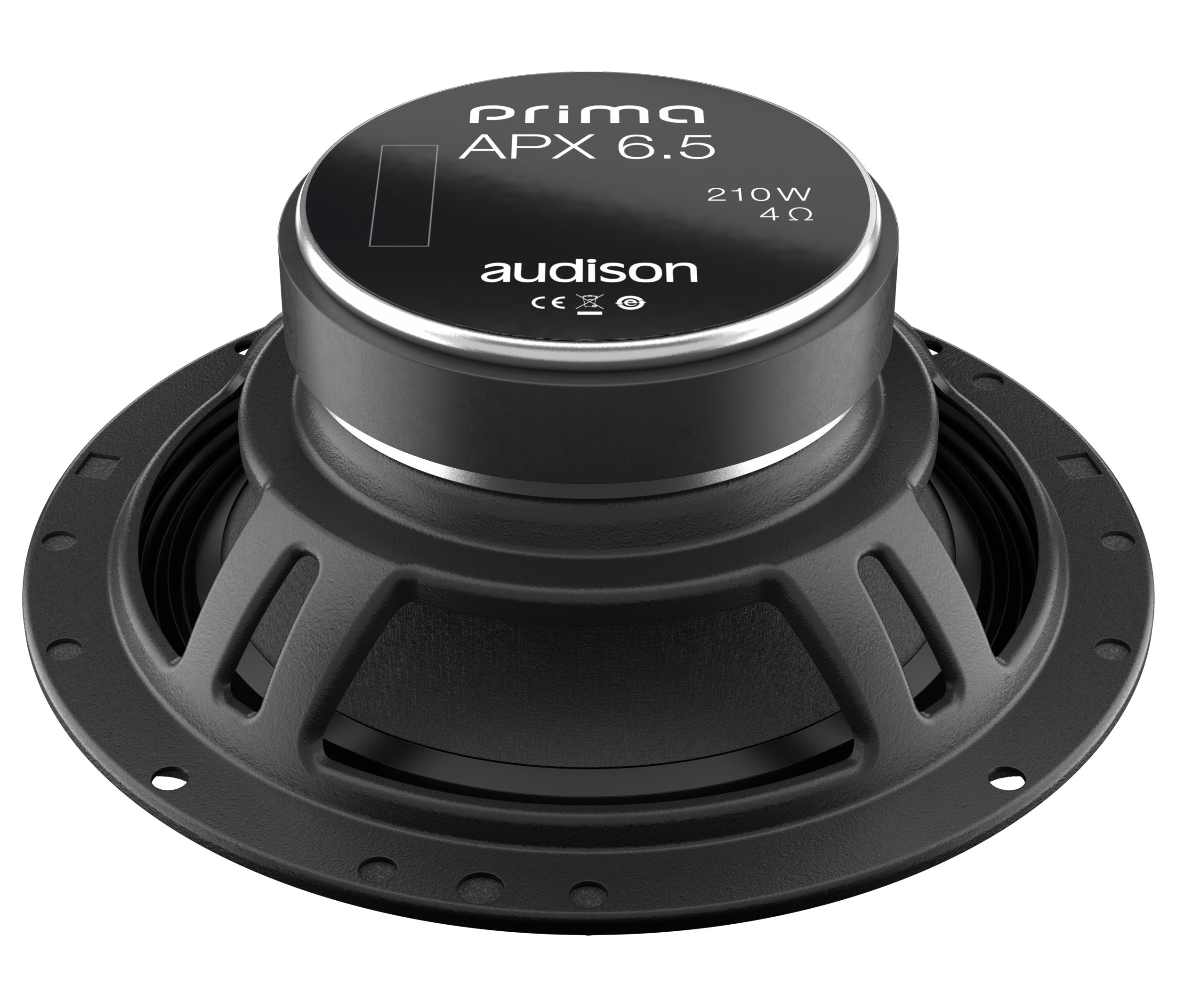

• Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite. –

Technical Specs LF

• Woofer Size: 165 mm (6.5 in)
• Impedance: 4 Ohm
• Power Handling - Peak: 120 W
• Power Handling - Continuous: 70 W
• Frequency Response: 60 ÷ 23k
• Voice Coil Diameter: 32 mm (0.59 in)
• Magnet Size: 85 x 40 x 15
• Xmax: 2 mm (1.26 in)


Technical Specs HF

• Tweeter Size: 24 mm (0.94 in)
• Sensitivity: 94 dB
• Voice Coil Diameter: 15 mm (0.59 in)

Electric-acoustic Specs

• Re: 3.1 Ohm
• Fs: 80 Hz
• Mms: 11.5 g (0.41 oz)
• Cms: 0.33
• Bl: 4.6
• Qms: 5.4
• Qes: 0.84
• Qts: 0.73
• Vas: 8.1 l (0.29 ft)
• Le: 0.1 mH


General

• Weight: 0.87 kg
