Audison Prima Plug & Play Speaker Bundle Upgrade | '21- Current Ford Bronco

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times from order to ship: 5-7 business days

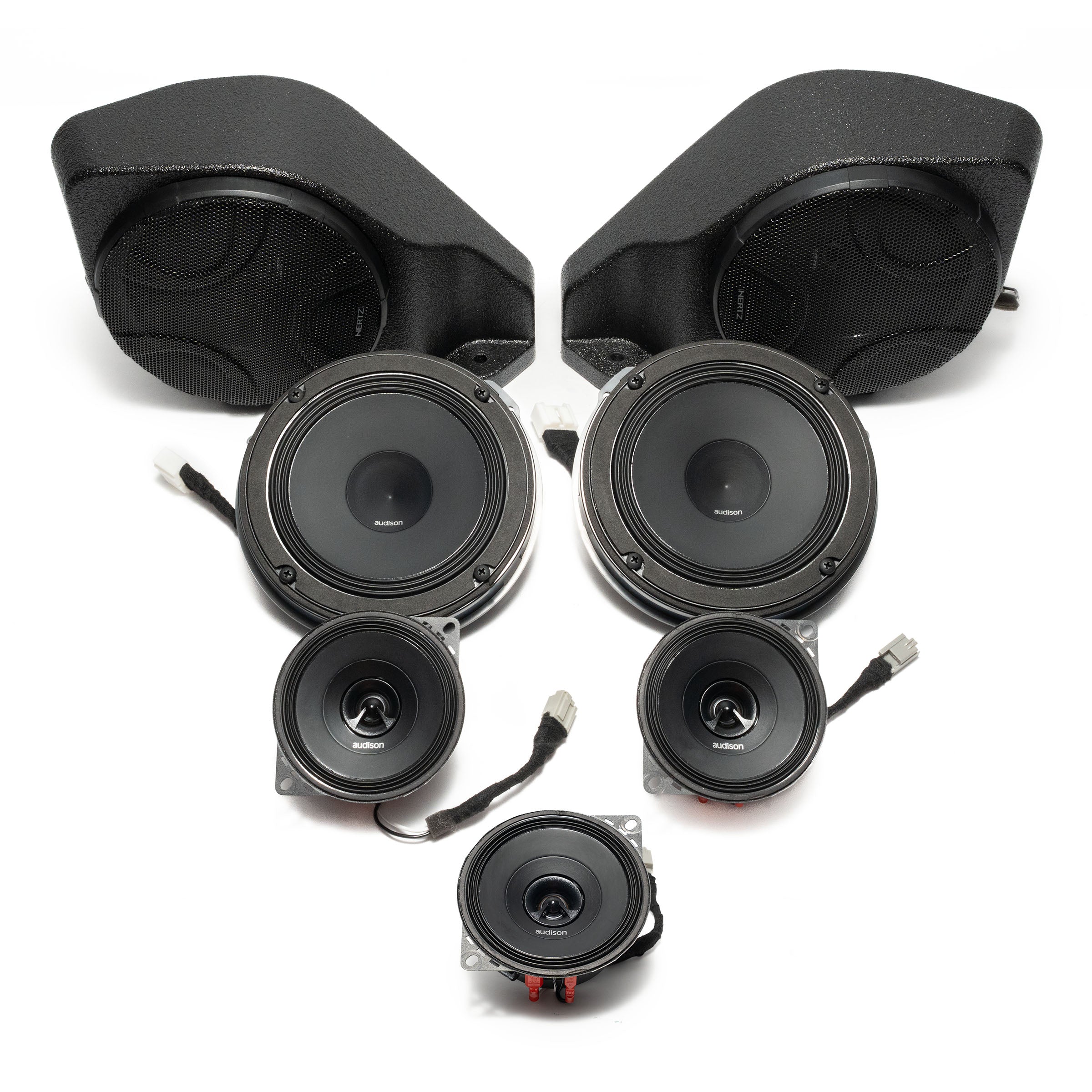

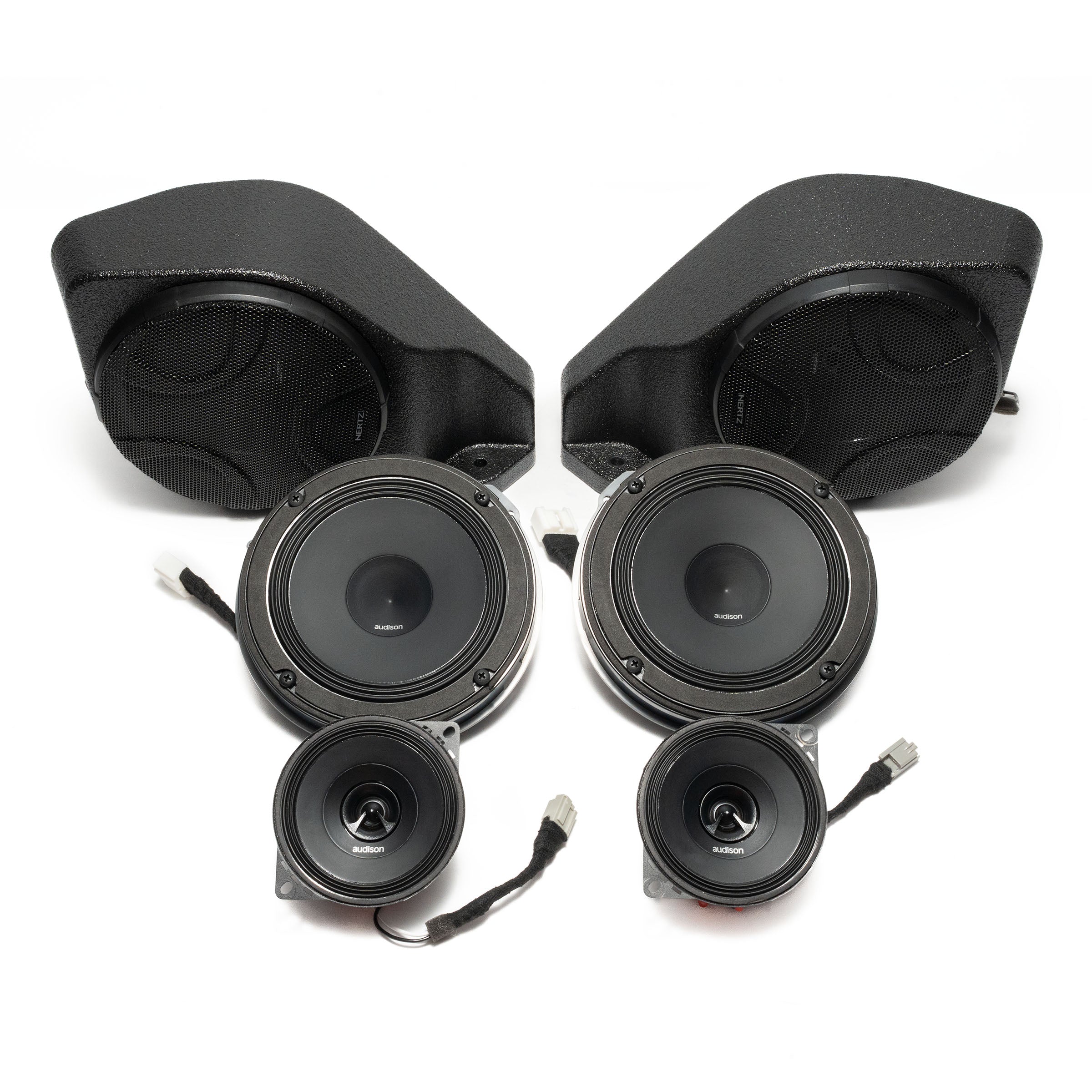

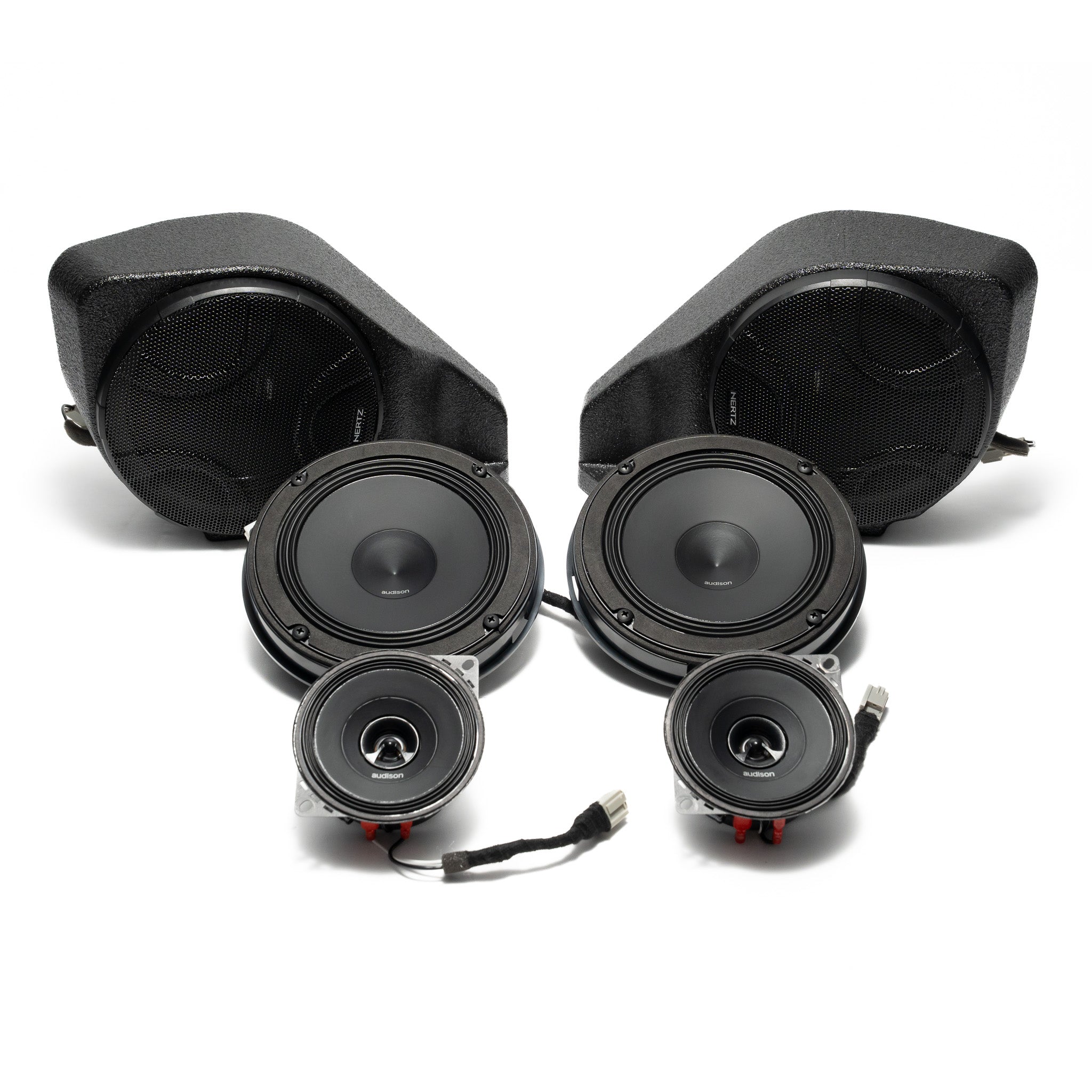

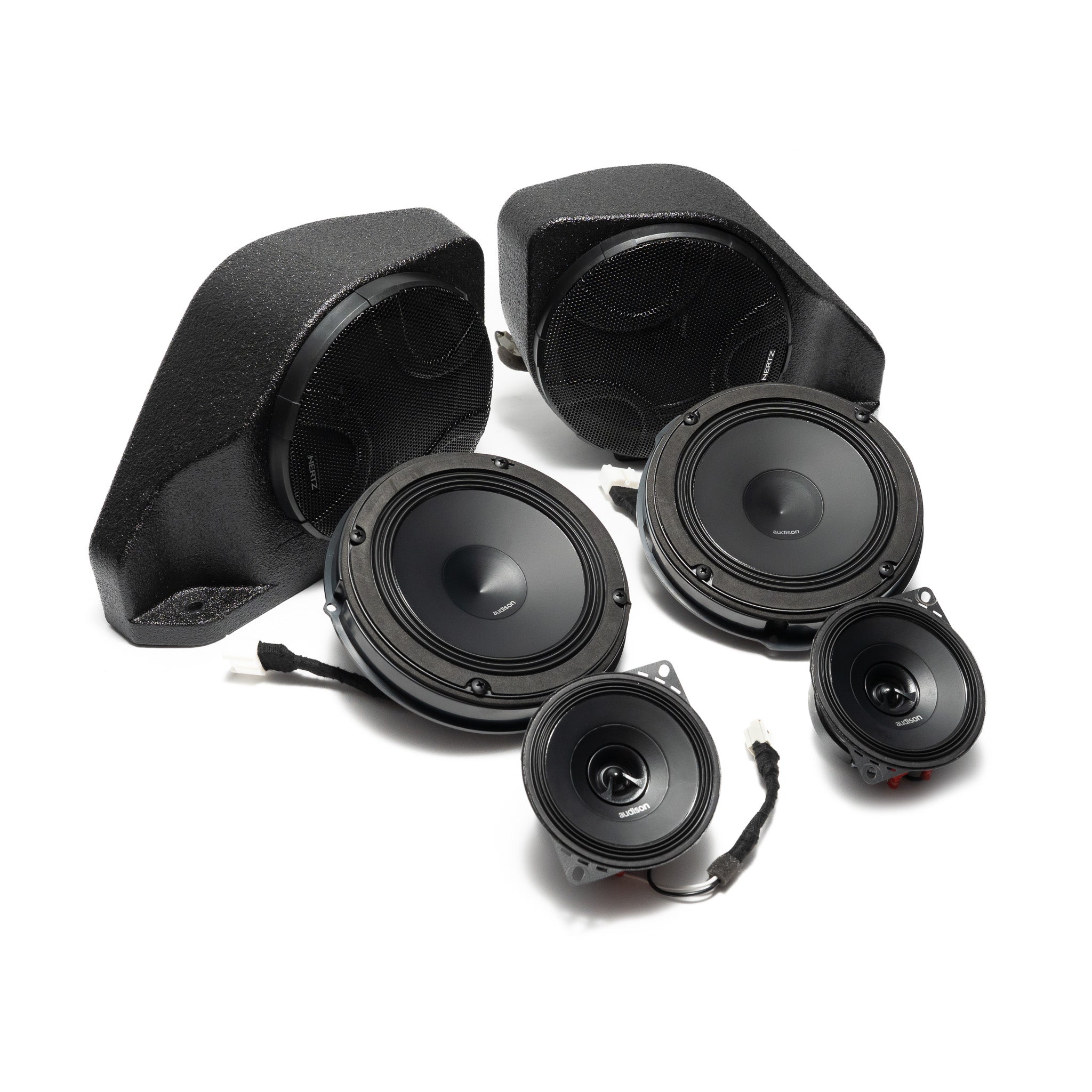

Featuring Our Audison Prima Plug-and-Play Speaker Bundle

Experience premium sound with our complete Audison Prima plug-and-play speakers!

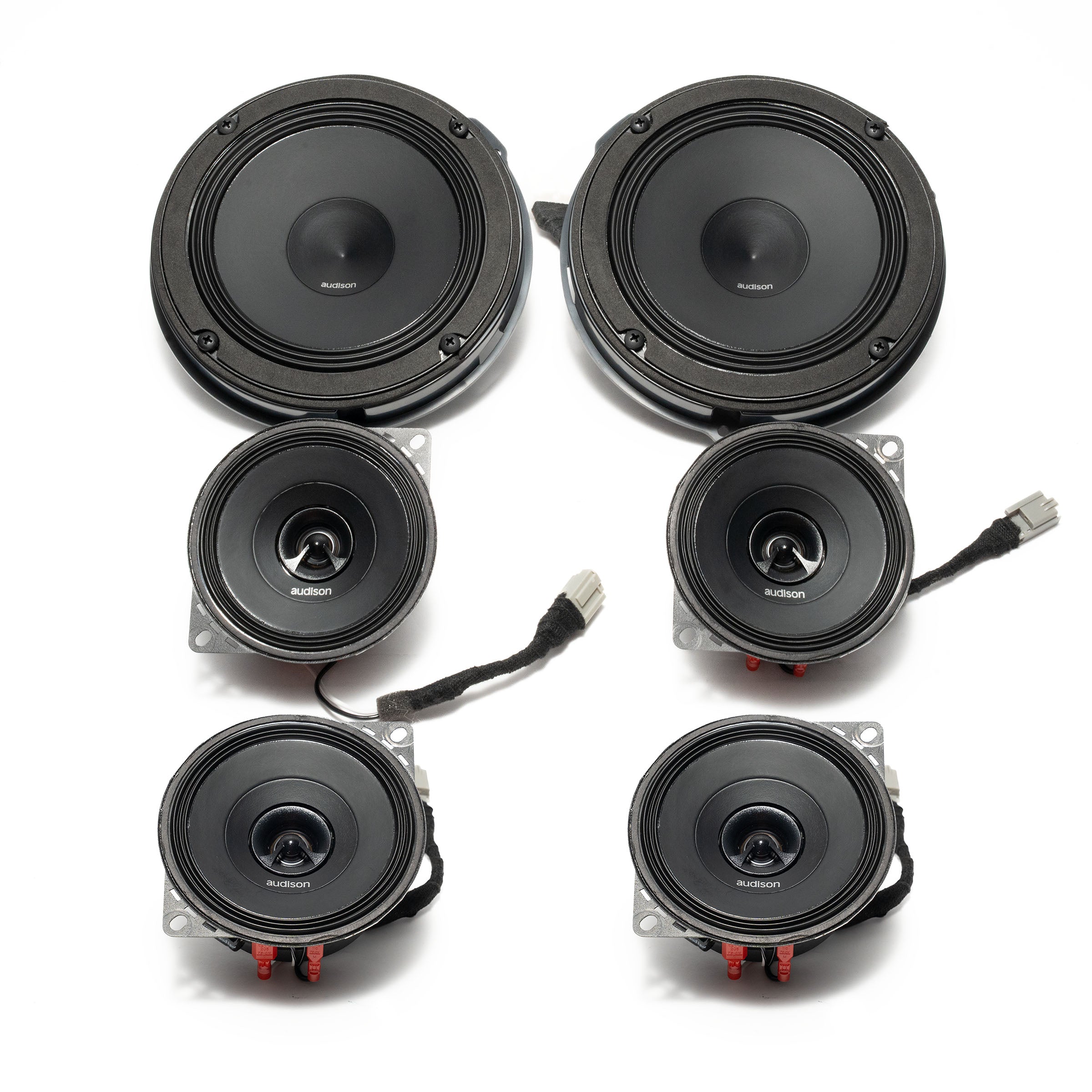

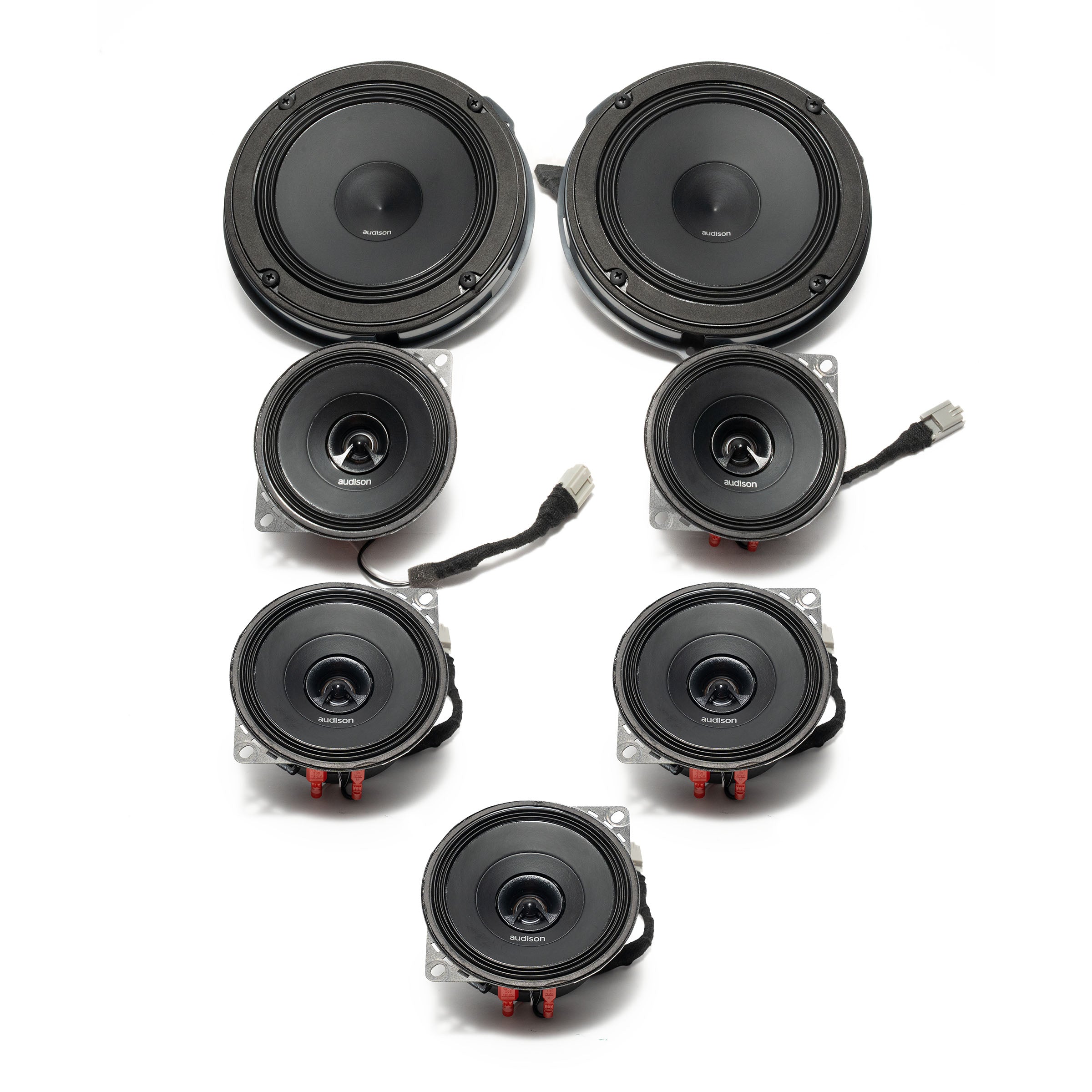

This full system is built around the Audison Prima line speakers, offering crystal-clear audio from every direction:

• 4" APX 4 Coax Speakers in the dash
• 6.5" AP 6.5P Woofers in the footwell area
• 6.5" APX 6.5 Coax Speakers mounted in our included rear speaker pods


Engineered for performance, this system delivers exceptional clarity, punchy lows, and the flexibility to tailor your setup to your Bronco!

We've eliminated the guesswork, making it easy to upgrade your Bronco's audio system. Our bundles are 100% plug-and-play, with all components pre-wired and terminated for a smooth, seamless installation. Enjoy premium sound quality without worrying about compatibility or figuring out what fits where. Just install and enjoy the tunes!

Plug & Play: Every bundle is pre-wired and fully assembled at our Frederick, Maryland shop before shipping. When your bundle arrives, it's ready to drop right into your Bronco. Just follow our step-by-step video and installation guides for an effortless plug-and-play installation.

Tested and Approved by Trail Seven: Our Full System Bundle has been thoroughly installed and tested on our Trail Seven Bronco. We're proud to give this package our stamp of approval, ensuring it delivers the performance you expect!

Elevate your Ford Bronco’s audio system with Audison, a brand renowned for its audiophile-grade performance and cutting-edge technology. Designed for those who demand superior sound quality, impressive power, and extreme precision, this system delivers an unmatched listening experience that will bring your music to life like never before.

Superior Sound Quality: With decades of expertise in high-performance car audio, Audison has engineered a system that delivers incredible clarity, rich detail, and immersive sound reproduction. Leveraging trickle-down technology from their flagship systems, each component is crafted from the highest-quality materials to ensure a pure, dynamic, and high-resolution audio experience.

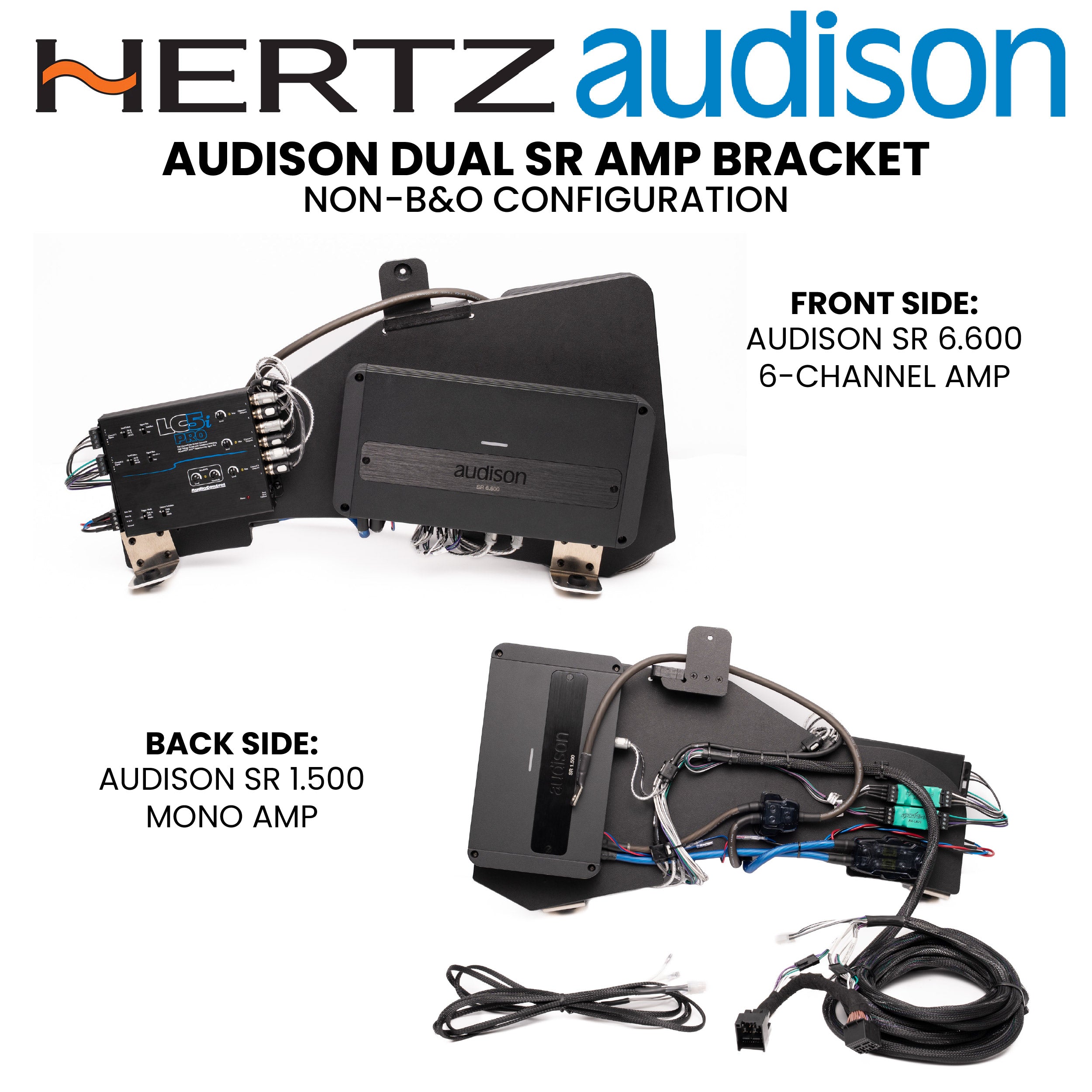

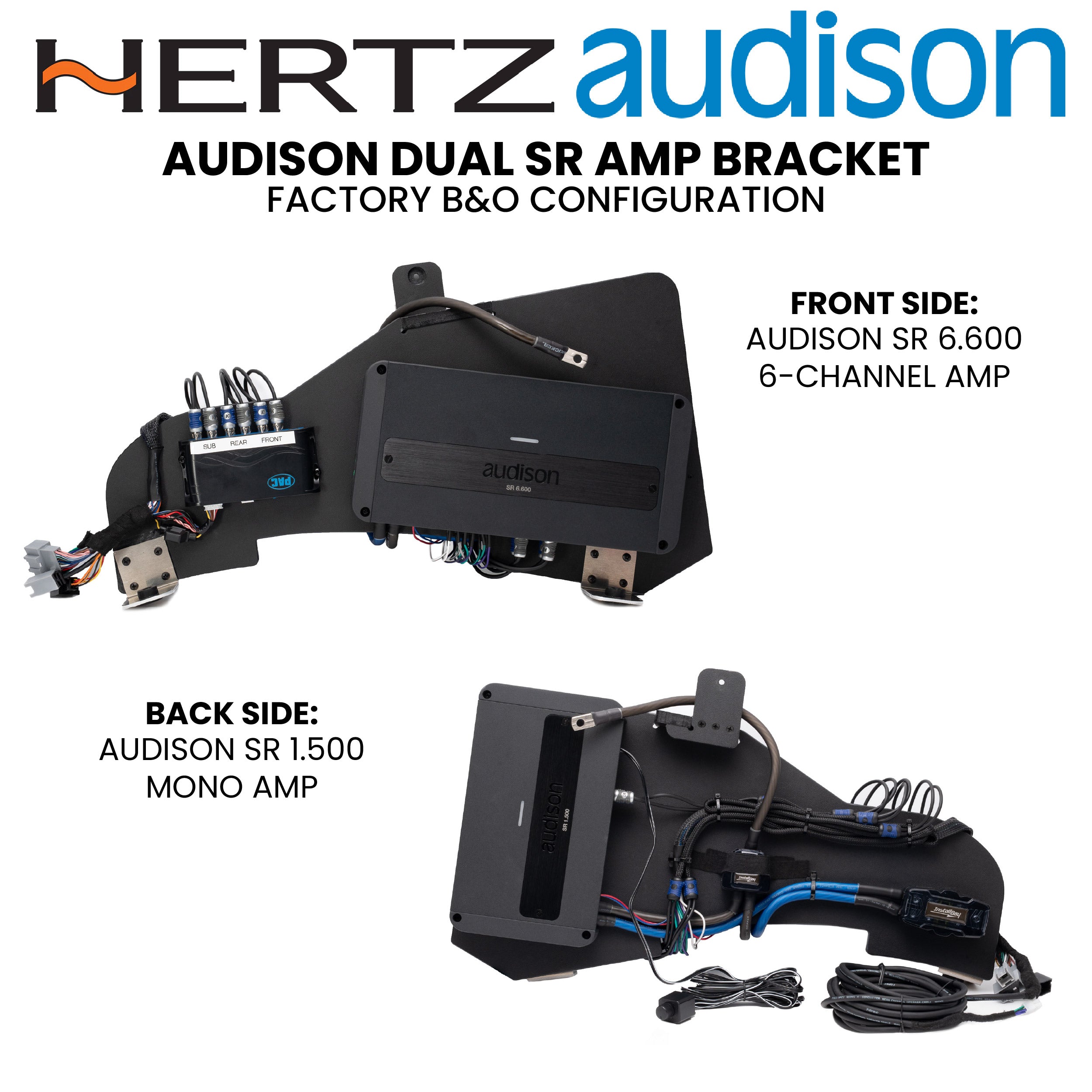

Powerful & Efficient Amplification: To drive this Hi-Res audio system, Audison amplifiers are precision-engineered to deliver clean, efficient power without introducing unwanted noise. With wide dynamic range capabilities, these amplifiers provide impressive output while maintaining the purest sound possible, ensuring that every note is heard with exceptional accuracy and depth.

Extreme Bass Output: Don’t be fooled by size—Hertz-Audison subwoofers are designed for massive output even in compact spaces. Featuring an oversized voice coil and powerful neodymium magnet, these shallow-mount subwoofers deliver deep, hard-hitting bass with 600W RMS power handling—giving you the full-bodied low-end response that brings your music to life.

Seamless Tone Matching with Carbon Fiber Materials: Traditional speakers often suffer from inconsistencies in tone quality across different frequency ranges due to varying materials and structures. Hertz-Audison solves this with a unified carbon fiber design, ensuring flawless tonal consistency across all speaker units. This results in a perfectly balanced and natural sound signature, allowing you to experience your music as the artist intended.

Custom Tweeters for Unparalleled Clarity: Designed with a powerful magnet and a large diaphragm, the Hertz-Audison custom tweeters deliver crystal-clear highs and precise detail reproduction. Whether you're listening to delicate vocals, sharp guitar riffs, or shimmering cymbals, these tweeters ensure that every high-frequency note is delivered with exceptional clarity and definition.

Upgrade your Bronco’s sound system with Hertz-Audison and enjoy studio-quality audio on every drive.

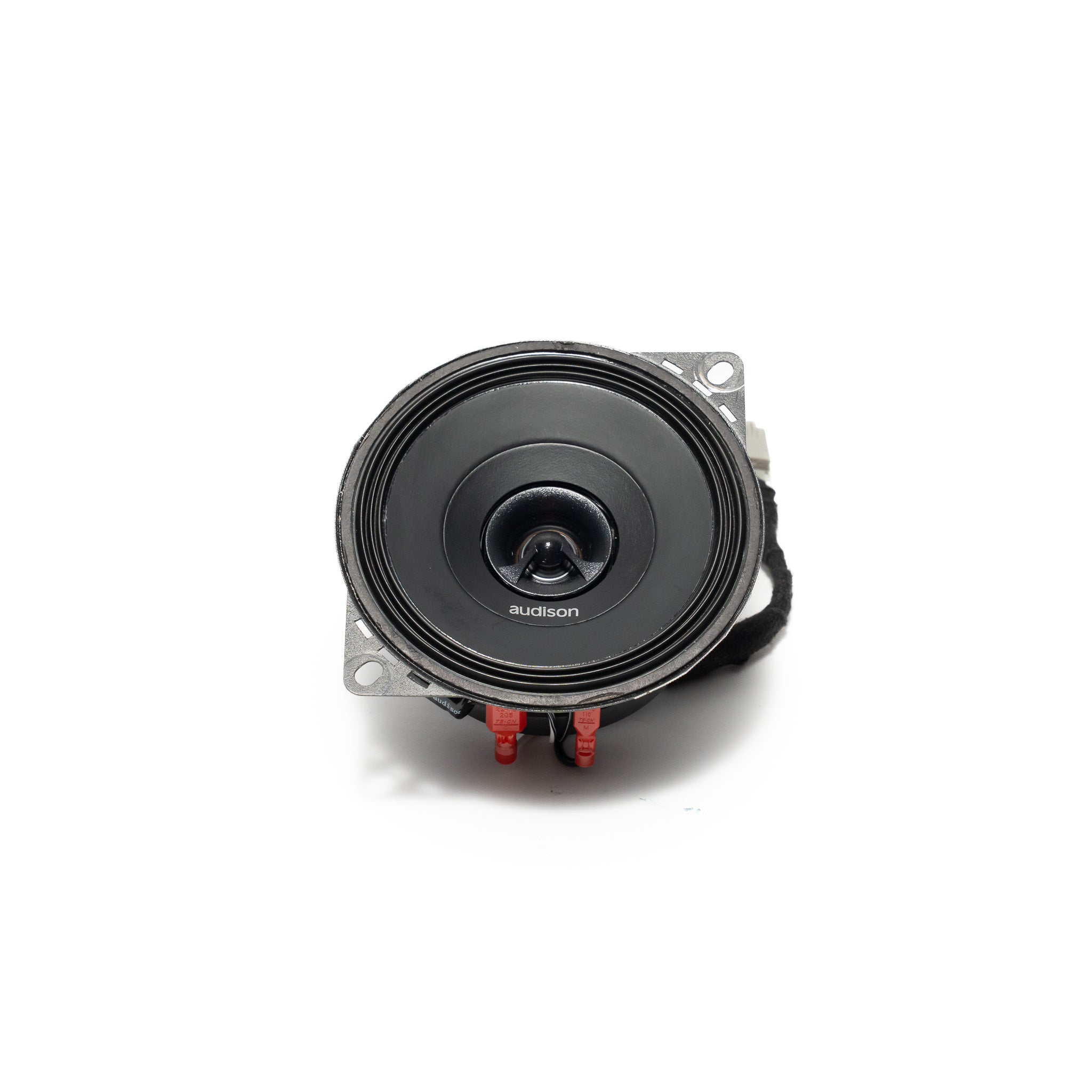

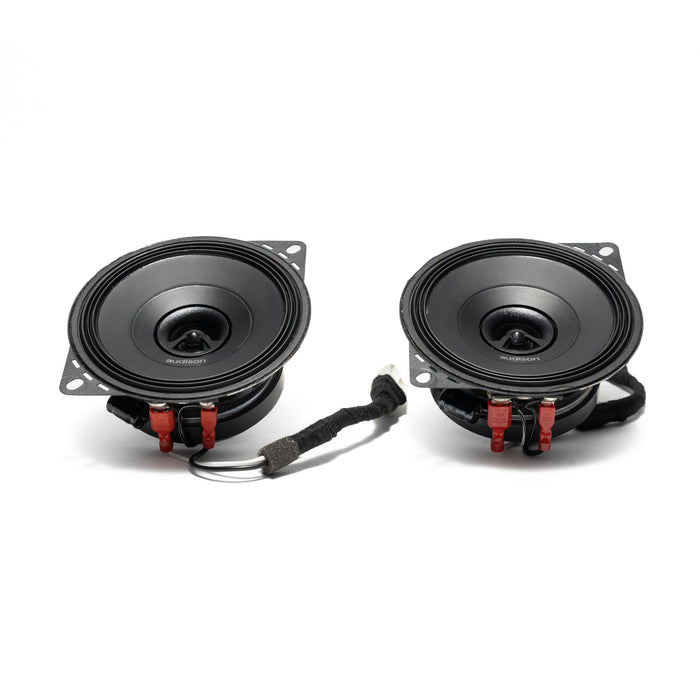

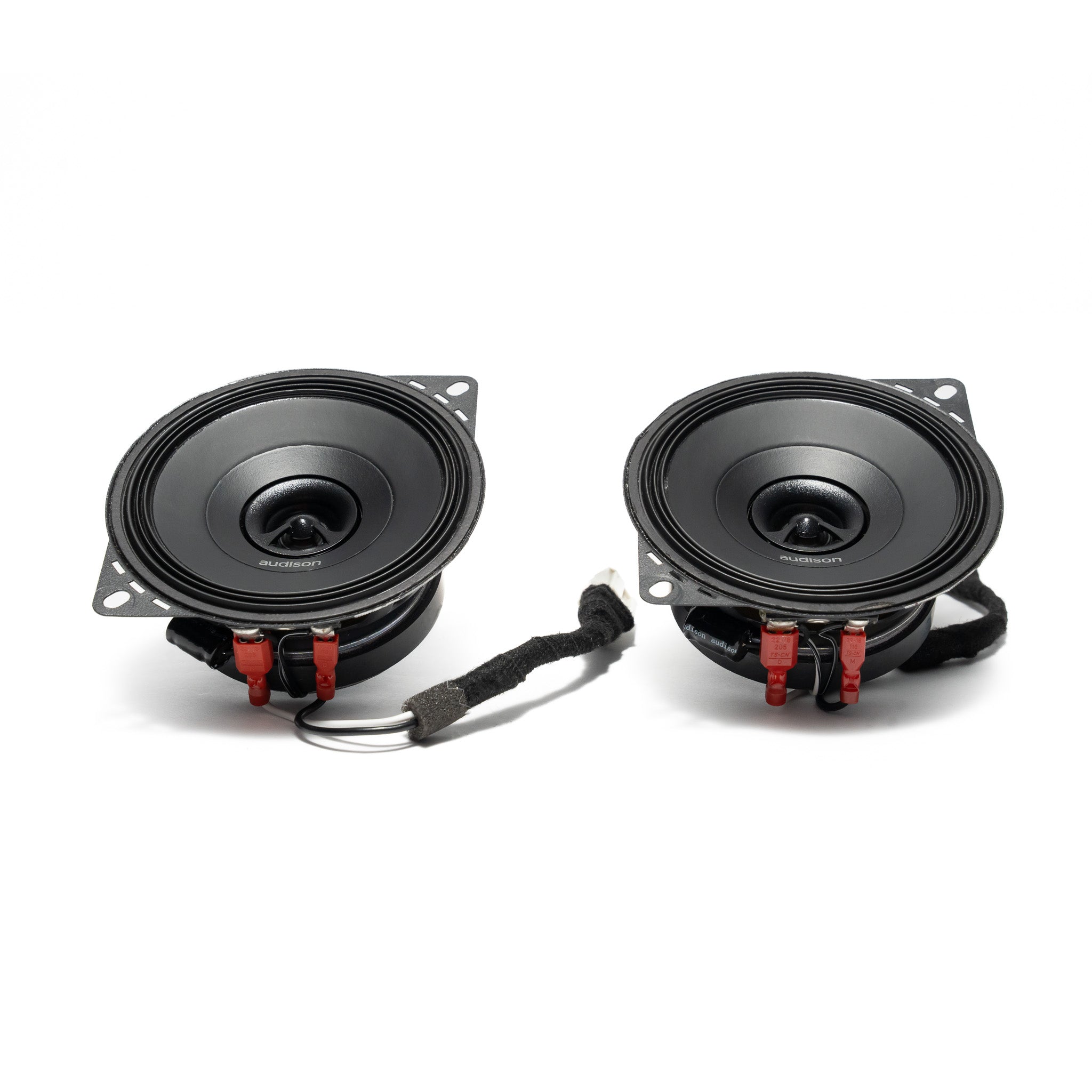

Audison 4" Coax dash speaker APX 4: APX 4 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.

• Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage
  comparable to that of a component system.
• Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
• 32 mm pure copper voice coil, for high power handling and outstanding low frequency contro
• Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
• TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
• Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite. –

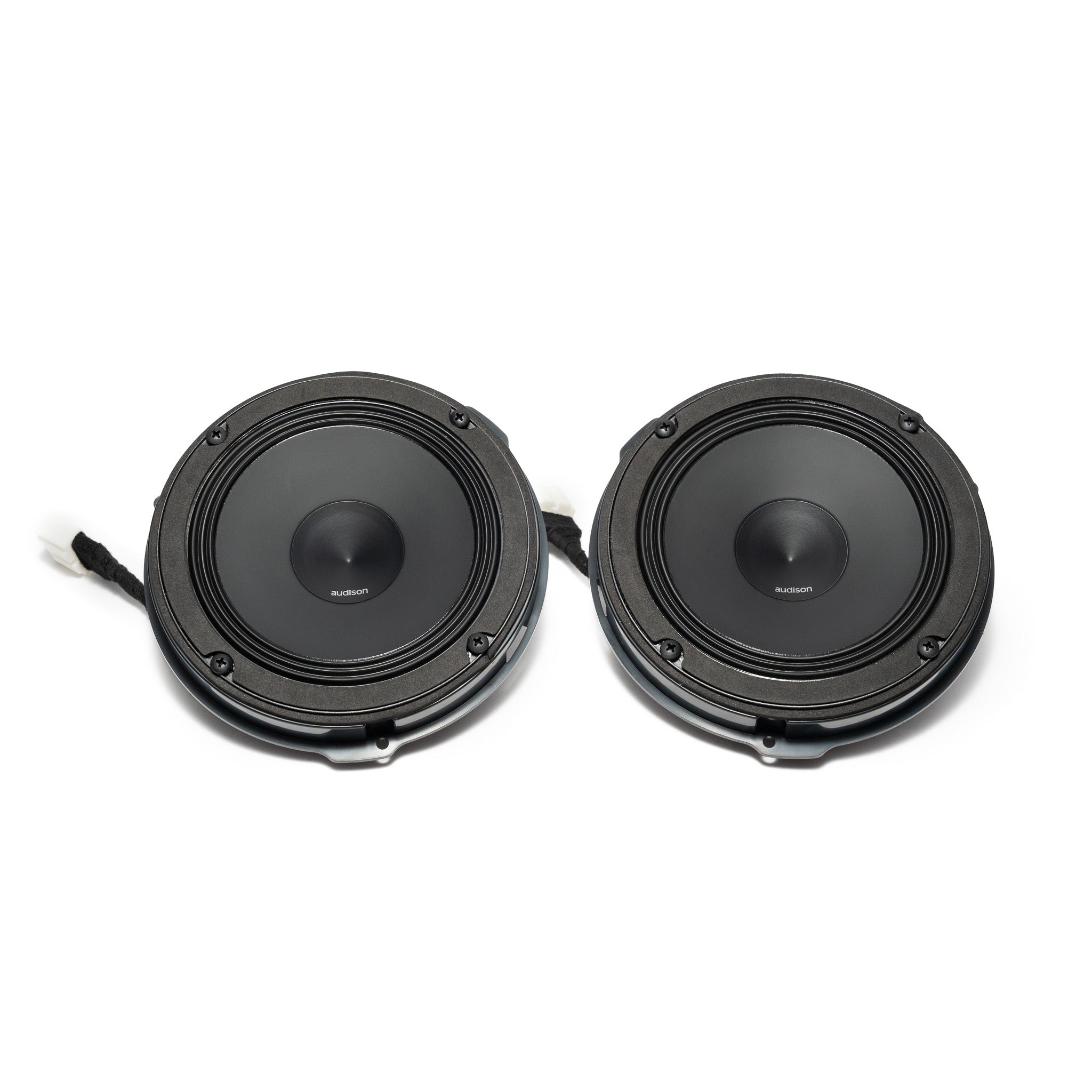

Audison 6.5" Woofer footwell speaker AP 6.5P: AP 6.5P woofer component has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency featuring a very wide excursion to cope with the most important dynamic peaks without any compression.

• Increased excursion of the mobile group for a superior dynamic response
• Optimized electro-acoustic parameters to maximize performance for OEM placements
• Magnetic group sized for perfect control even at maximum cone excursion
• CCAW (Copper-Clad Aluminum Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power
• Compact size basket for easy OEM installations

Audison 6.5" Coax rear speaker APX 6.5: APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

• Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
• Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
• 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
• TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
• Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting
  it against accidental short circuits.
• Developed with the KLIPPEL suite. –

• 2021 - Current Bronco: (Factory B&O) 2 & 4-Door
• 2022 - Current Bronco Raptor: (Factory B&O) 4-Door

Audison 4" Coax dash speaker APX 4:

• Woofer Size: 100 mm
• Impedance: 4 Ohm
• Power Handling - Peak: 120 W
• Power Handling - Continuous: 40 W
• Sensitivity: 91 dB
• Frequency Response: 80 ÷ 23k
• Voice Coil Diameter: 32 mm(0.59 in)
• Magnet Size: 75 x 40 x 10
• Xmax: 1.3 mm(1.26 in)
• Tweeter Size: 24 mm(0.94 in)
• Voice Coil Diameter: 15 mm(0.59 in)

Audison 6.5" Woofer footwell speaker AP 6.5P:

• Nominal diameter: 165 mm(6.5 in)
• Impedance: 4 Ohm
• Power Handling - Peak: 330 W
• Power Handling - Continuous: 110 W
• Sensitivity: 92.5 dB
• Frequency Response: 50 - 5k Hz
• Voice Coil: Ø32 mm
• Magnet size: D x d x h100 x 40 x 18 mm (in.)
• Voice Coil Material: CCAW
• Cone Material: WATER-REPELLENT TREATED PAPER CONE
• Xmax: 5.6 mm(0.22 in)

Audison 6.5" Coax rear speaker APX 6.5:

• Woofer Size: 165 mm(6.5 in)
• Impedance: 4 Ohm
• Power Handling - Peak: 210 W
• Power Handling - Continuous: 70 W
• Frequency Response: 60 ÷ 23k
• Voice Coil Diameter: 32 mm(0.59 in)
• Magnet Size: 85 x 40 x 15
• Xmax: 2 mm(1.26 in)
• Tweeter Size: 24 mm(0.94 in)
• Sensitivity: 94 dB
• Voice Coil Diameter: 15 mm(0.59 in)

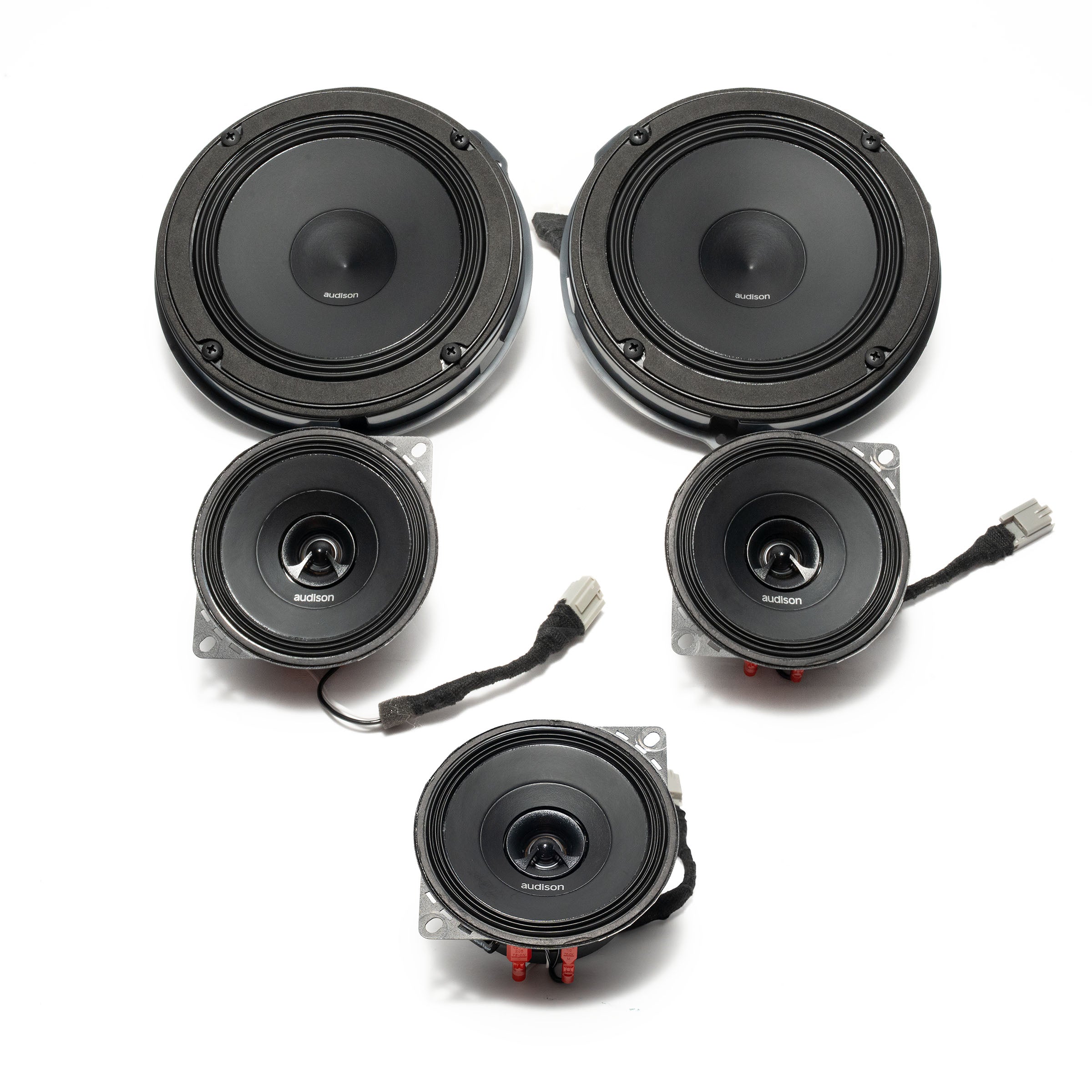

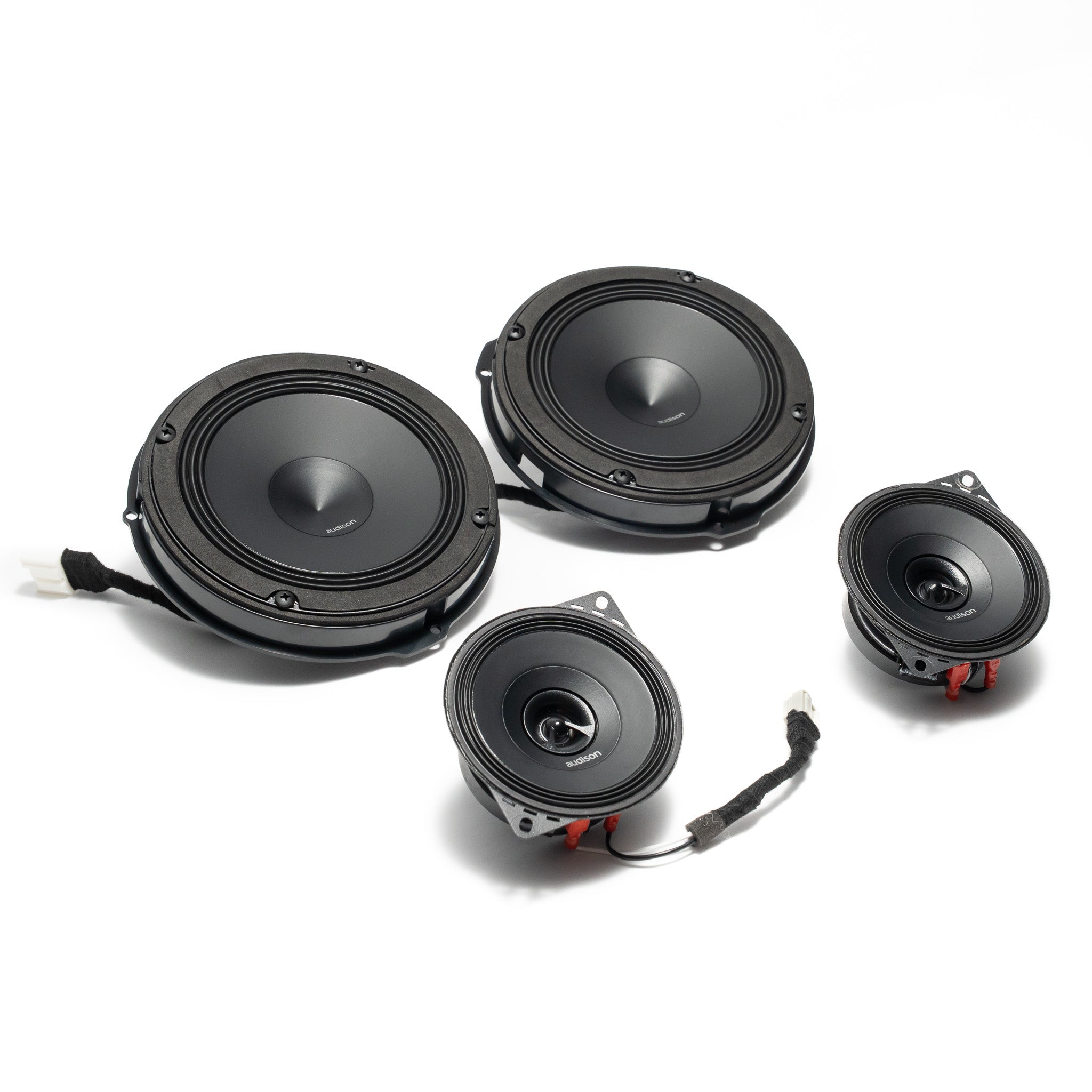

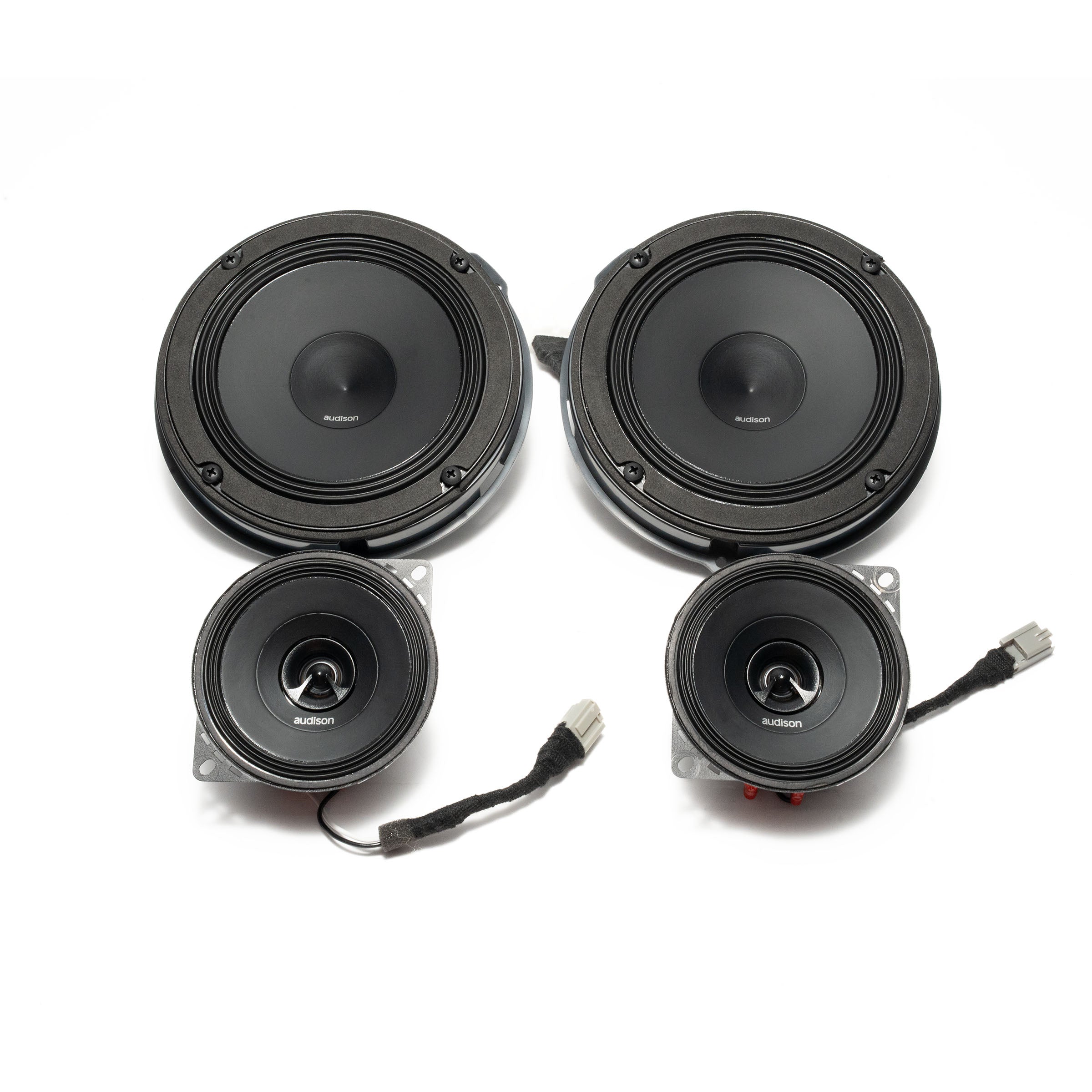

• Front Speakers: Audison AP4 4" dash coax with included speaker baffle and connector. Audison AP 6.5P 6.5" footwell speaker with included rubber baffle, bracket, and connector.
• Rear Speakers: Audison APX 6.5 6.5" coax speaker with included bracket and connector.

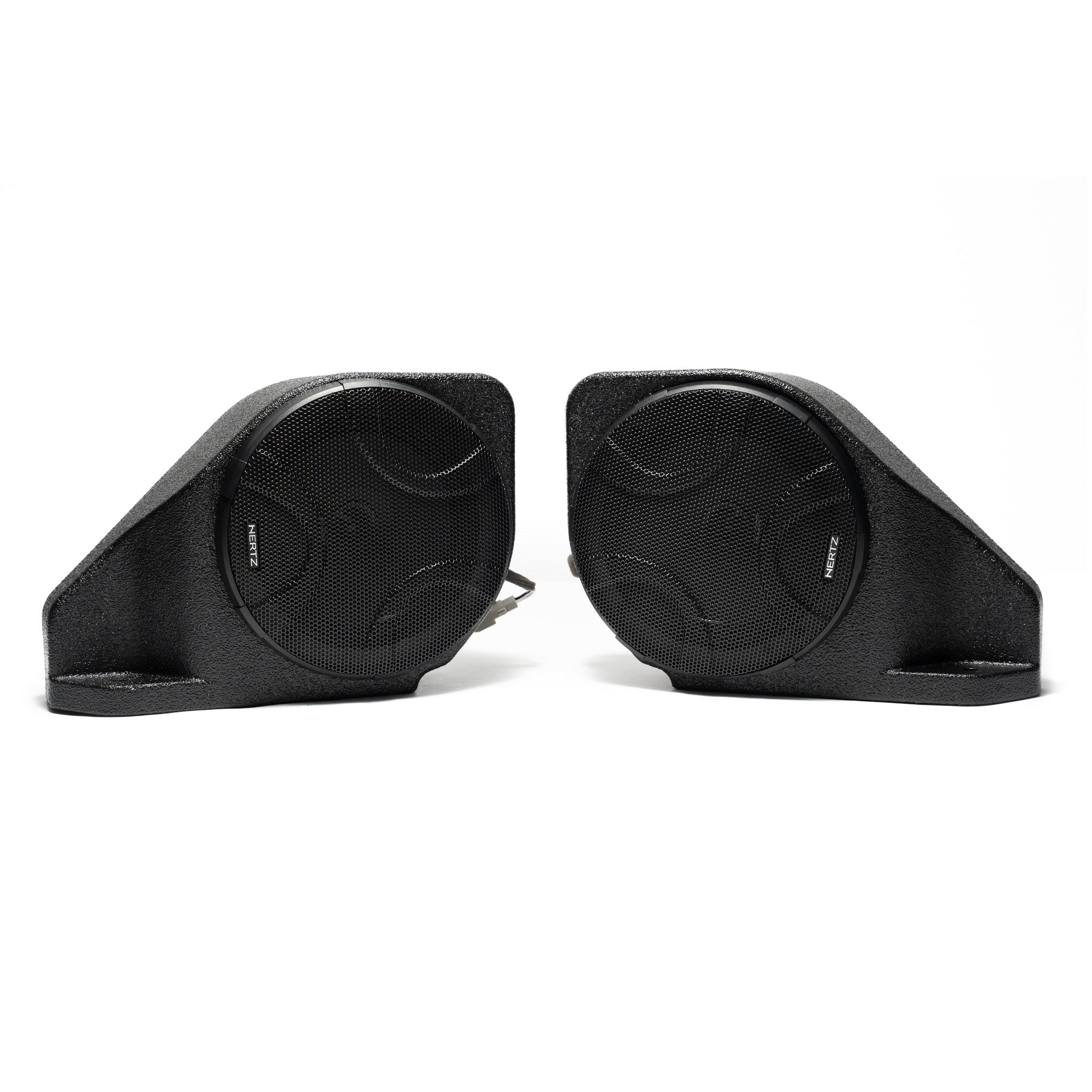

• Rear 6.5" Speaker Pods: Includes poly fill and sound deadening material to apply and install prior to mounting the speaker- See pod install video in Video tab for an install video.
