Audison Prima Plug & Play Speaker Bundle Upgrade | '24 - Current JL Wrangler/ '24 - Current JT Gladiator

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times from order to ship: 5-7 business days

Trail Seven Plug & Play Audio System for 2024+ Jeep

Upgrade your driving experience with Trail Seven’s custom plug-and-play audio system built exclusively for the 2024+ Jeep. Engineered for Jeep enthusiasts who demand premium sound with zero guesswork, this all-in-one bundle delivers crystal-clear highs, punchy mids, and hard-hitting bass—without the need for splicing, soldering, or complicated wiring.

At the heart of the system is the powerful Audison SR 5.600 five-channel amplifier, expertly pre-wired to maximize every speaker in your Jeep. It powers a full-stage front-end featuring the Audison APK 165 6.5" component speakers, while the rear soundbar gets a serious upgrade with Audison's AP 4 4" coaxials and AP 2 MV 2.75" twiddlers for a dynamic, immersive surround experience.

When it comes to bass, choose your punch:

• Hertz Mille Loaded Enclosure(available in MPBX 250 S2 10" or MPBX 300 S2 12")
• Stinger Dual 8" Ported Under-Seat Enclosure

Whichever option you select, expect clean, low-end power that blends seamlessly with the rest of the system—without compromising precious cargo space.

This bundle is compatible with both the factory-amplified Premium system and the non-amplified Standard system, and comes 100% plug-and-play. Designed by Trail Seven for Jeep owners who want a DIY-friendly install without sacrificing quality, every connection is pre-terminated and clearly labeled for a seamless installation experience.

Istinto Innovativo

Audison Prima Speakers:
Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.

Audison Prima AP 2 MV, 2" Middler Speaker

• Ultra-wide frequency response ranging from 150 Hz to 20 kHz allowing
  the entire virtual stage to be concentrated on the top side of the dashboard.
• 25 mm (1 in.) CCAW double layer coil for excellent power handling and low-frequency extension.
• Powerful magnetic assembly made of a symmetrical double Neodymium
  magnet for optimal excursion control.
• Aluminum cone and copper shorting ring for a high-frequency response
  up to 20 kHz.
• Ultra-compact design, thanks to the specifically designed basket and
  neodymium motor, to facilitate dashboard and A-pillar OEM installations.

Audison APX 4, 4" Coax Speaker

• Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage
  comparable to that of a component system.
• Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
• 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
• Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
• TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
• Compact basket, protected by abrasion-resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
• High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite.

Audison APK 165, 6" Component Speaker

• AP 1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• AP 1 tweeter with an acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10kHz – 13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
• APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
• Passive crossovers are supplied with fast-on connectors that conform to OEM integration. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the
  required installation time.
• AP 6.5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low-frequency control.
• AP 6.5 woofer with a water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
• AP 6.5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
• AP 6.5 woofer with TPU (thermoplastic polyurethane) edge, featuring the unique “triple wave” profile for maximum linearity of excursion.
• AP 6.5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
• AP 6.5 woofer with a high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature-resistant plastic cover, protecting it against accidental short circuits.
• Developed with the KLIPPEL suite.


PLUG AND PLAY: All of our bundles are pre-wired and completely assembled prior to shipping from our Frederick, Maryland shop. When you get your bundle, your full system is ready to drop into your Bronco! Simply follow the video which guides you through the plug and play install.

TESTED AND APPROVED BY TRAIL SEVEN: Our Full System Bundle has been installed and tested on our Trail Seven Bronco and we're pleased to put our stamp of approval on this package!

• 2024+ JL Wranglers
• 2024+ JT Gladiators
• Works with non-factory amplified and amplified systems

Audison Prima AP 2 MV 2" Twidder:

• Nominal diameter: 50 mm(2 in)
• Impedance: 4 Ohm
• Power Handling - Peak: 50 W
• Power Handling - Continuous: 25 W
• Sensitivity: 84 dB
• Frequency Response: 150 ÷ 20k Hz
• Voice Coil Ø: 25 mm
• Magnet Material: NEODYMIUM
• Magnet size D x d x h: 24,9 x 5 mm (in.)
• Voice Coil Material: CCAW
• Xmax: 2.5 mm(0.1 in)
• Re: 3.5 Ohm

Audison Prima APX 4 4" coax:

• Woofer Size: 100 mm
• Impedance: 4 Ohm
• Power Handling - Peak: 120 W
• Power Handling - Continuous: 40 W
• Sensitivity: 91 dB
• Frequency Response: 80 ÷ 23k
• Voice Coil Diameter: 32 mm(0.59 in)
• Magnet Size75 x 40 x 10
• Xmax: 1.3 mm(1.26 in)

Audison APK 165 6.5" Component:

• Woofer Size: 165 mm(6.5 in)
• Impedance: 4 Ohm
• Power Handling - Peak: 300 W
• Power Handling - Continuous: 100 W
• Frequency Response: 60 ÷ 20k
• Voice Coil Diameter: 32 mm(1.26 in)
• Magnet Size: 85 x 40 x 15
• Crossover Level Adjustment: +2; 0
• Tweeter Size: 26 mm(1 in)
• Voice Coil Diameter: 20 mm(1.26 in)
• Crossover Hi-Pass: HP @ 3,5 kHz - 6 dB Oct
• Cone Diameter: 129 mm

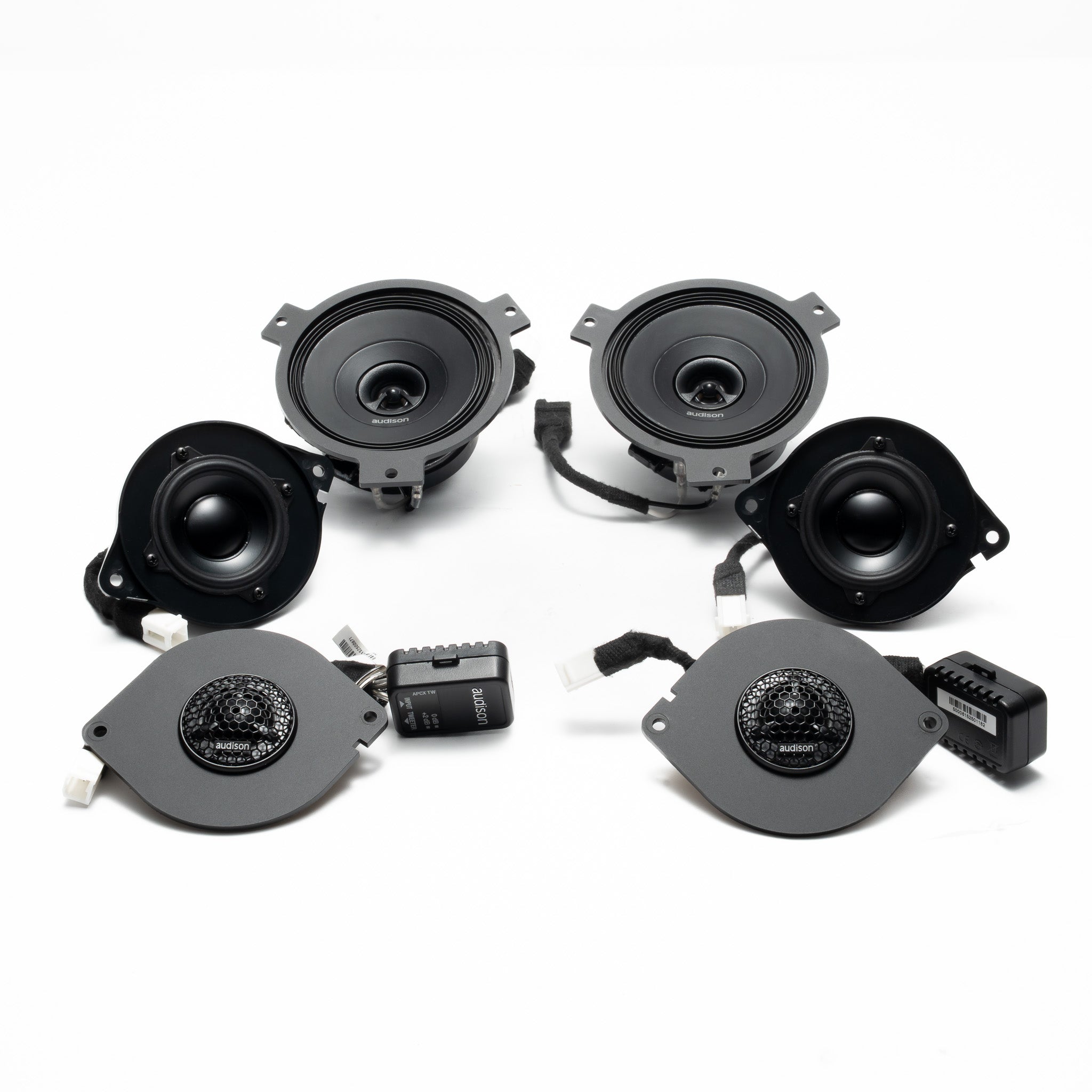

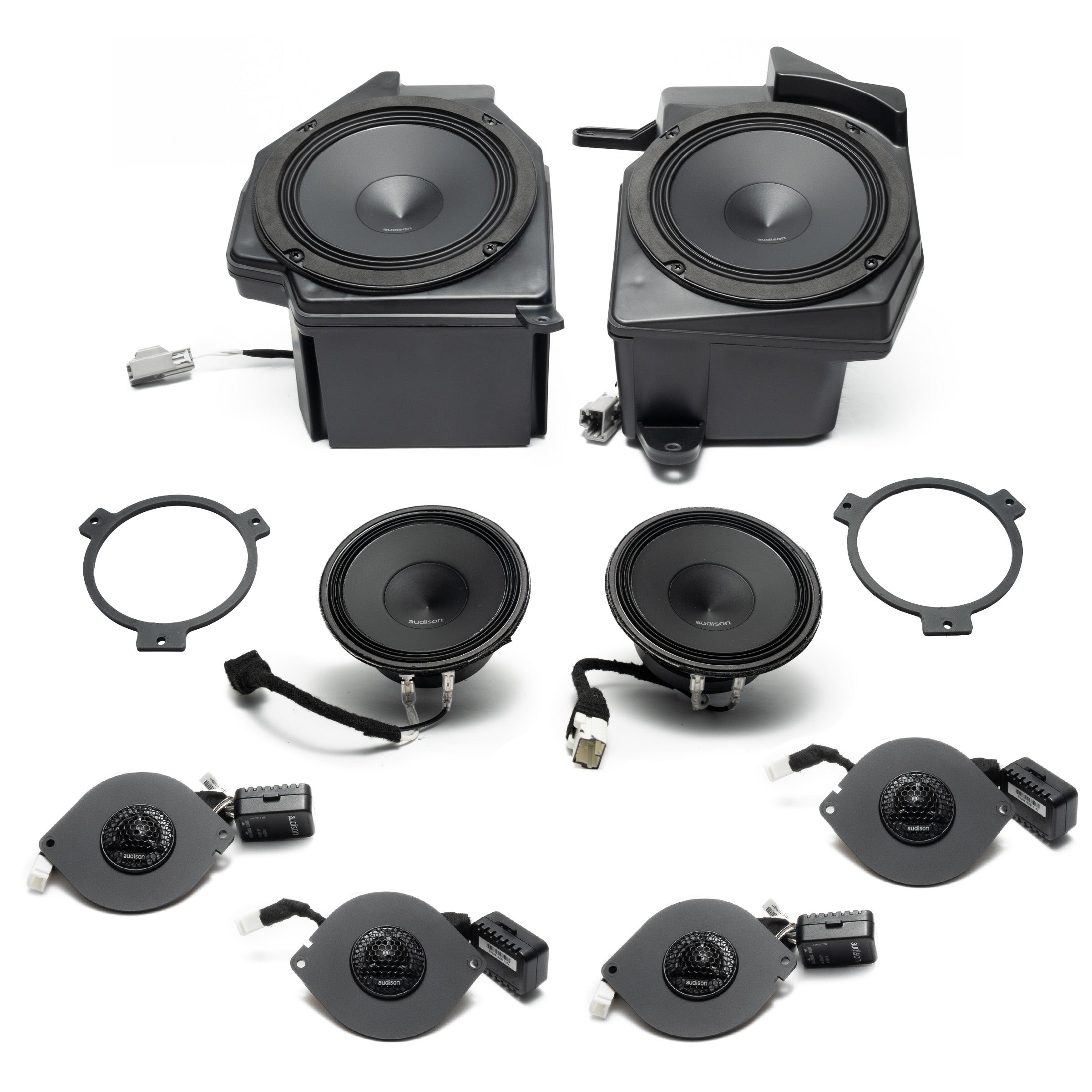

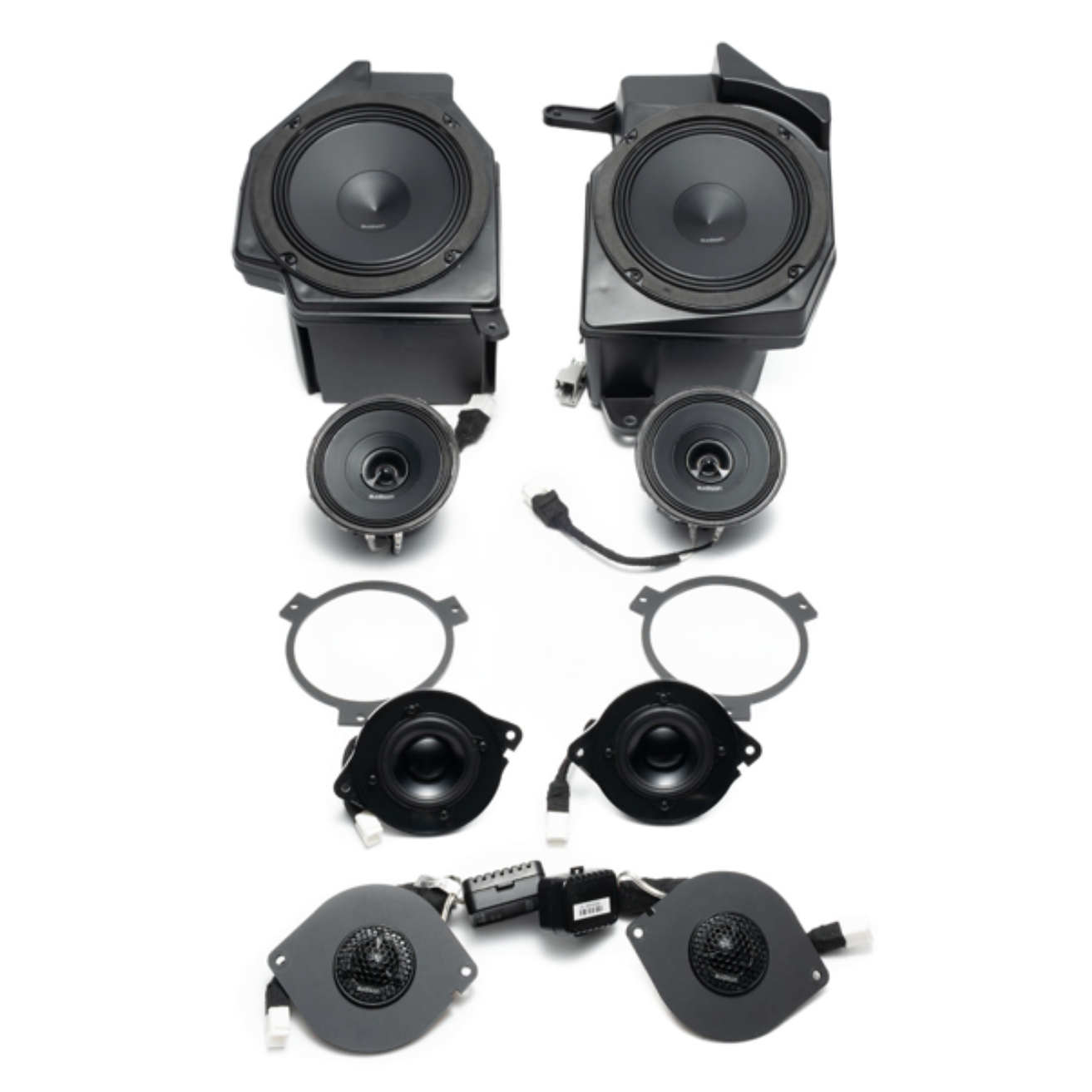

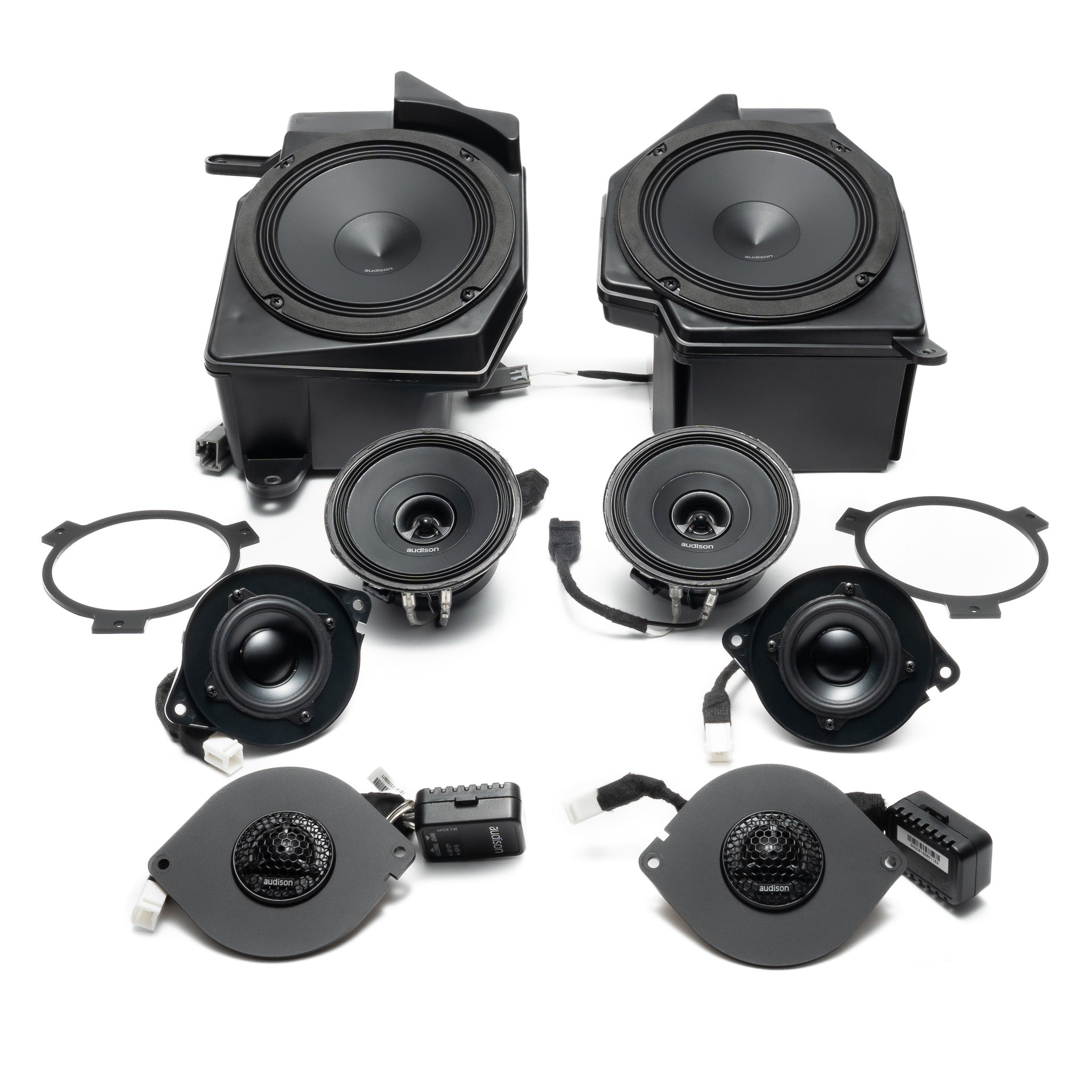

Speakers:

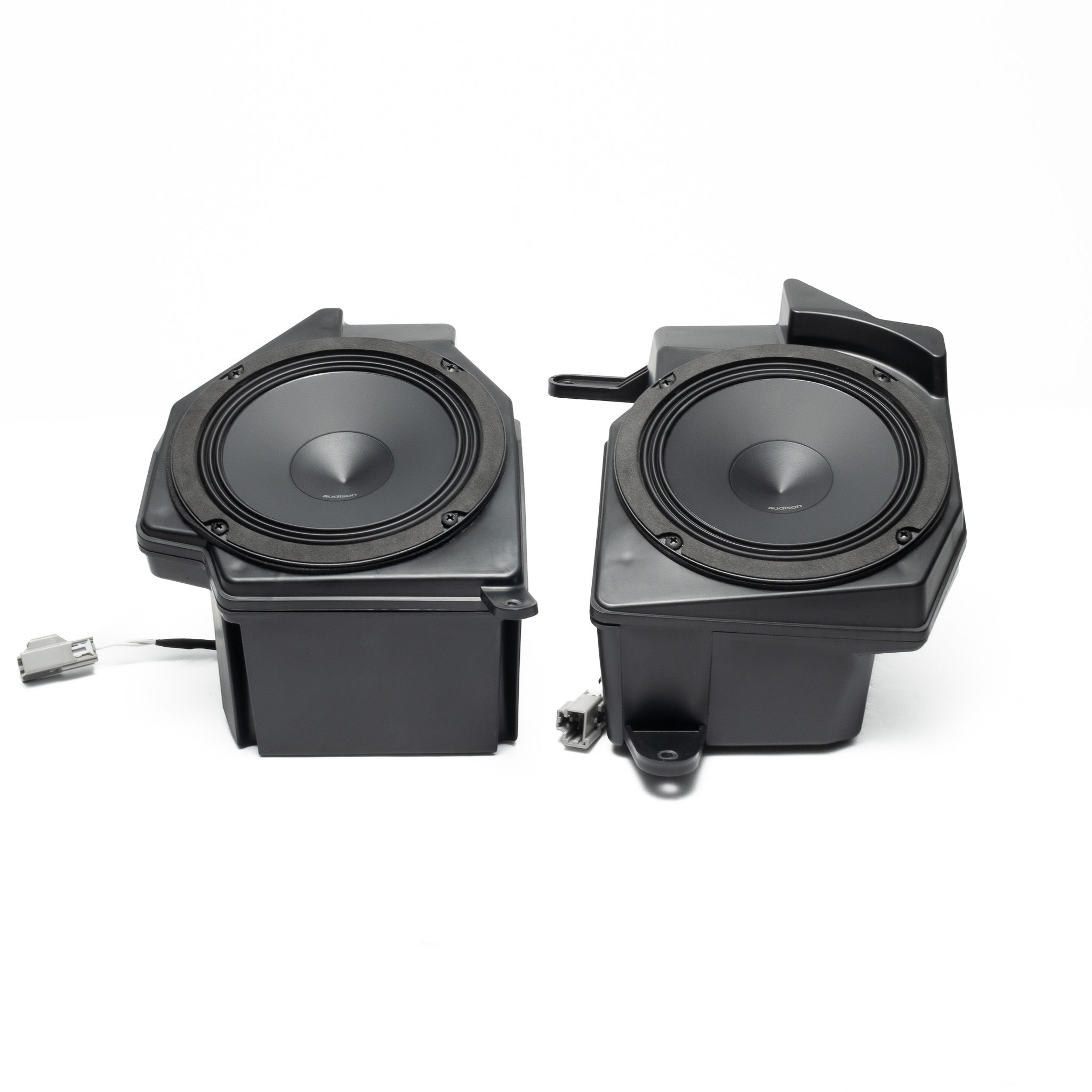

• Audison Prima APK 165 – 6.5" Component Speaker System (mounted in knee speaker pod)
• Audison Prima APX 4 – 4" 2-Way Coaxial Speakers
• Audison Prima AP 2 MV – 2" Middler Speakers
• All connections and brackets needed for installation
