Trail Seven Plug and Play Full System Series 3 (8-Ch (DSP)/ Mono) Bundle (B&O System) | '21- Current Ford Bronco

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times for plug and play bundles from order to ship: 5-7 business days

Experience high performance German engineering in our Exclusive Plug and Play Audio Bundle Powered by Audiotec Fischer! Our plug and play bundle includes a fully active speaker bundle (center dash channel included), driven by a 9 channel DSP with 8 channels of amplification, plus the powerful 1FX mono amplifier to deliver massive power of up to 1000 watts!

This system is driving the Trail Seven speaker line:

• (3) 4" Coax - Top Dash (includes center speaker) - T7-3C100.2-3-V2
• (2) 6.5" Woofers - Kick Panels - T7-3W165-3
• (2) 6.5" Coax - Rear Pods - T7-3C165.2-3-V2

Delivering dynamic power from Trail Seven DSP amplifiers:

• T7-DSP8-V2
• T7-FX1

Topped off with your choice of subwoofer options:

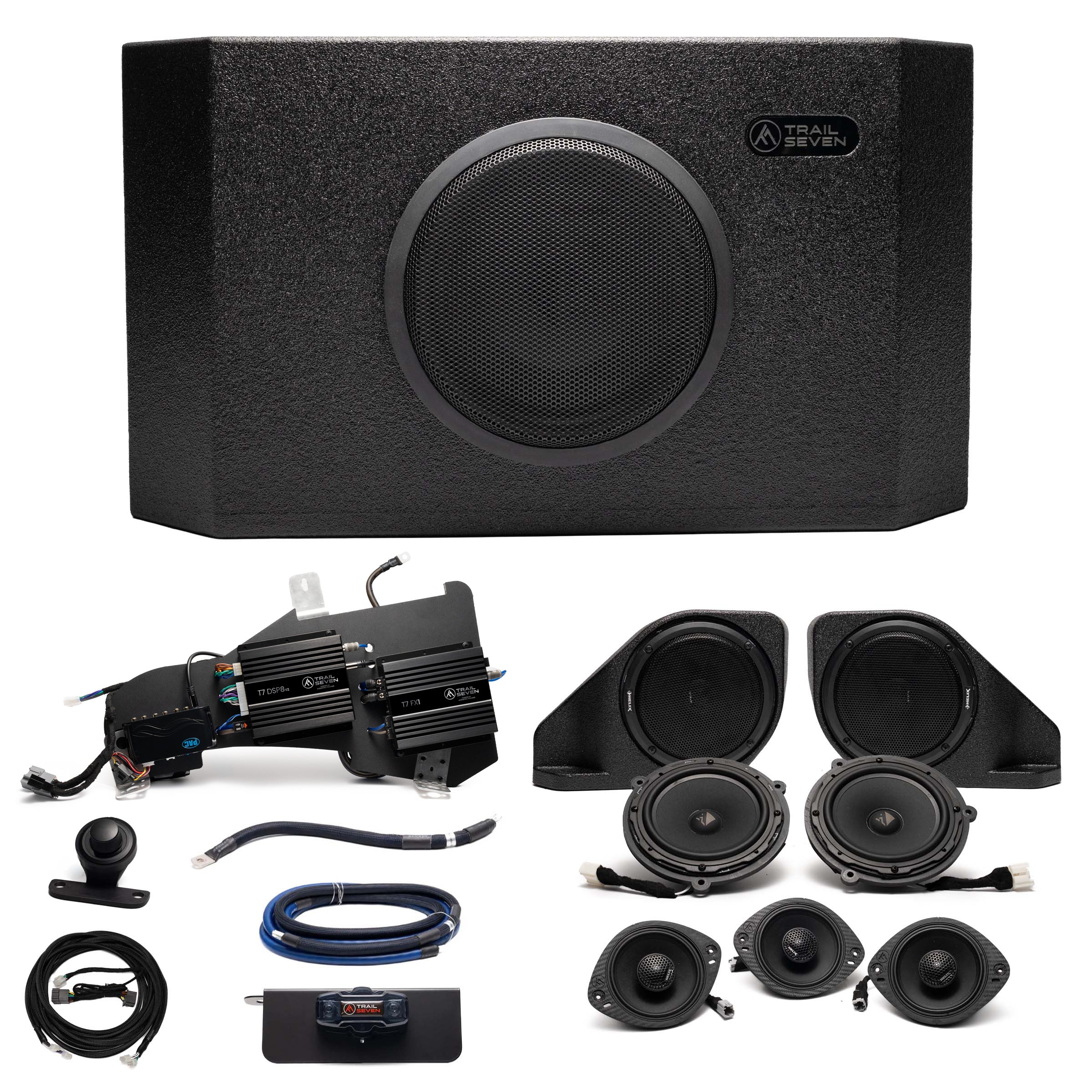

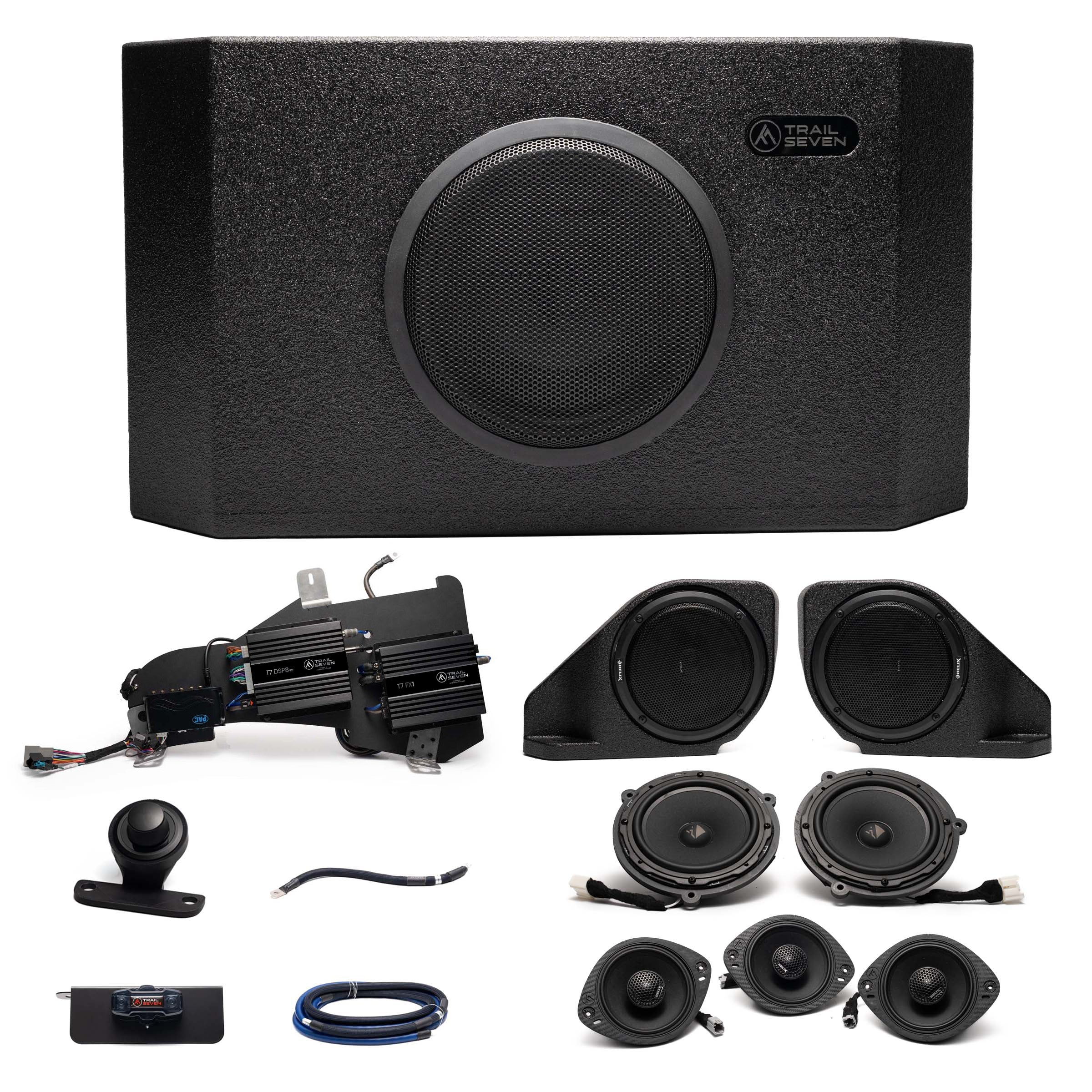

• Tailgate - 10" Trail Seven enclosure (compatible with Bronco's slide out cargo shelf), loaded with the Trail Seven T7-IKW10S-2 subwoofer

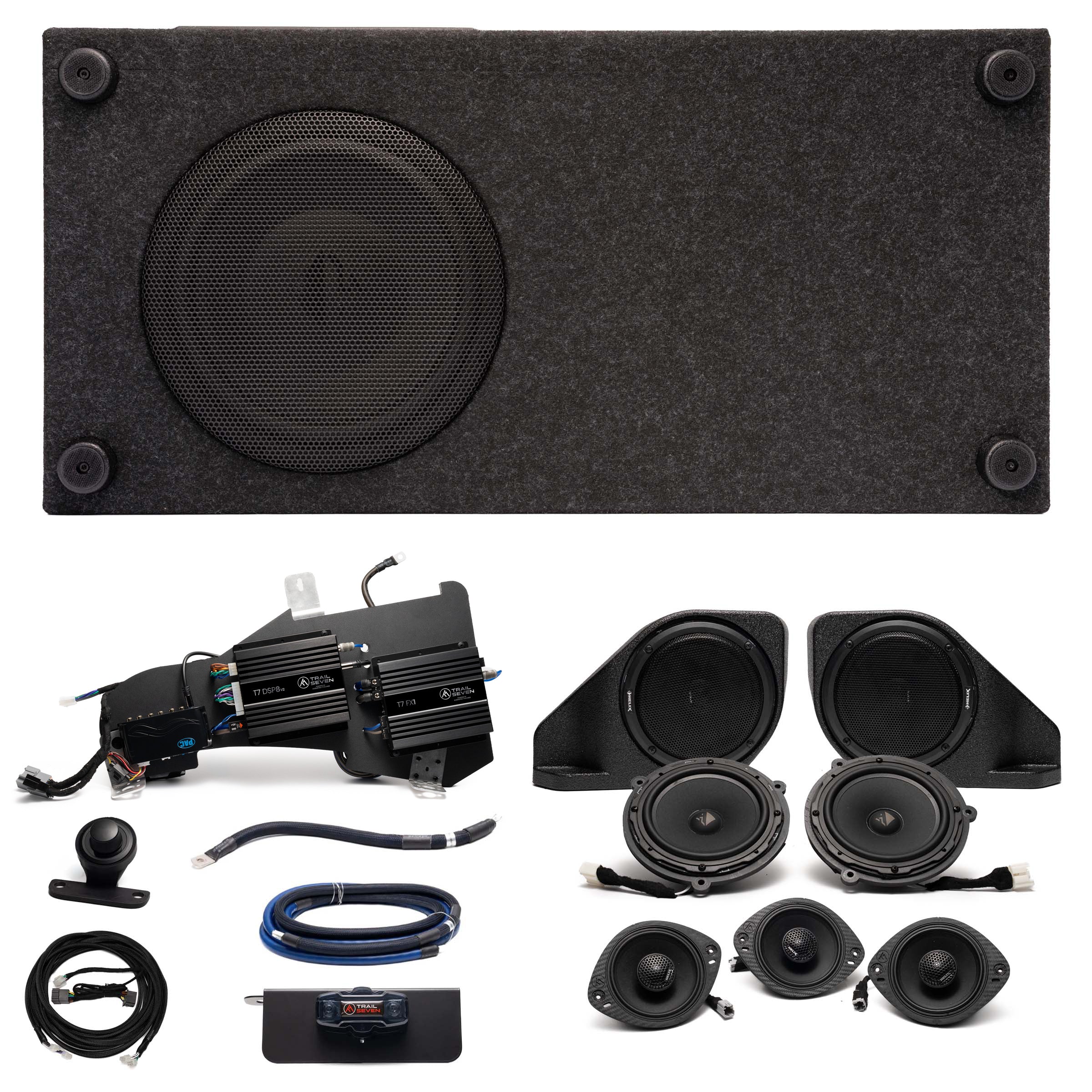

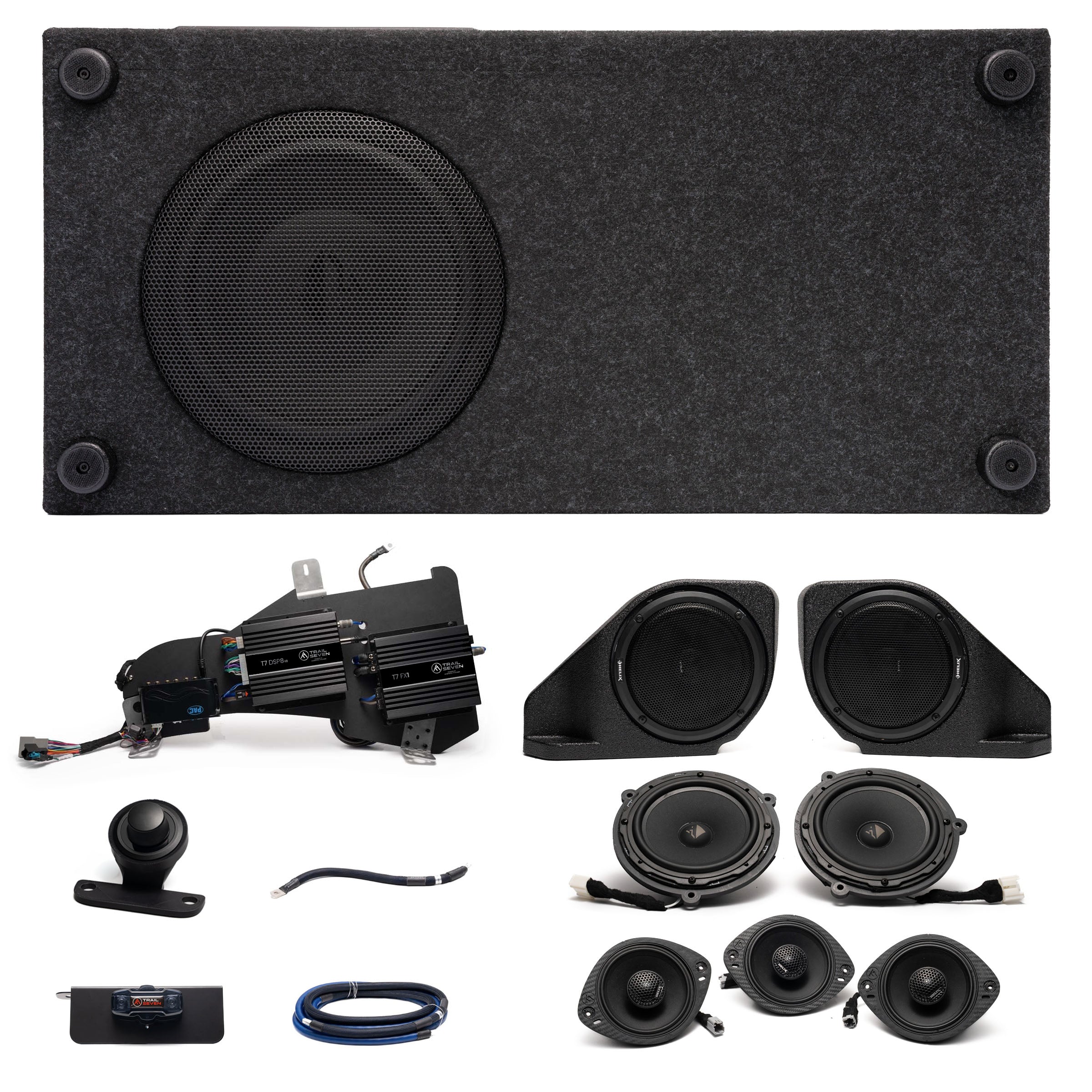

• Down-Firing 10" - Helix IK ES10.1-DVC2 MK2 Enclosure

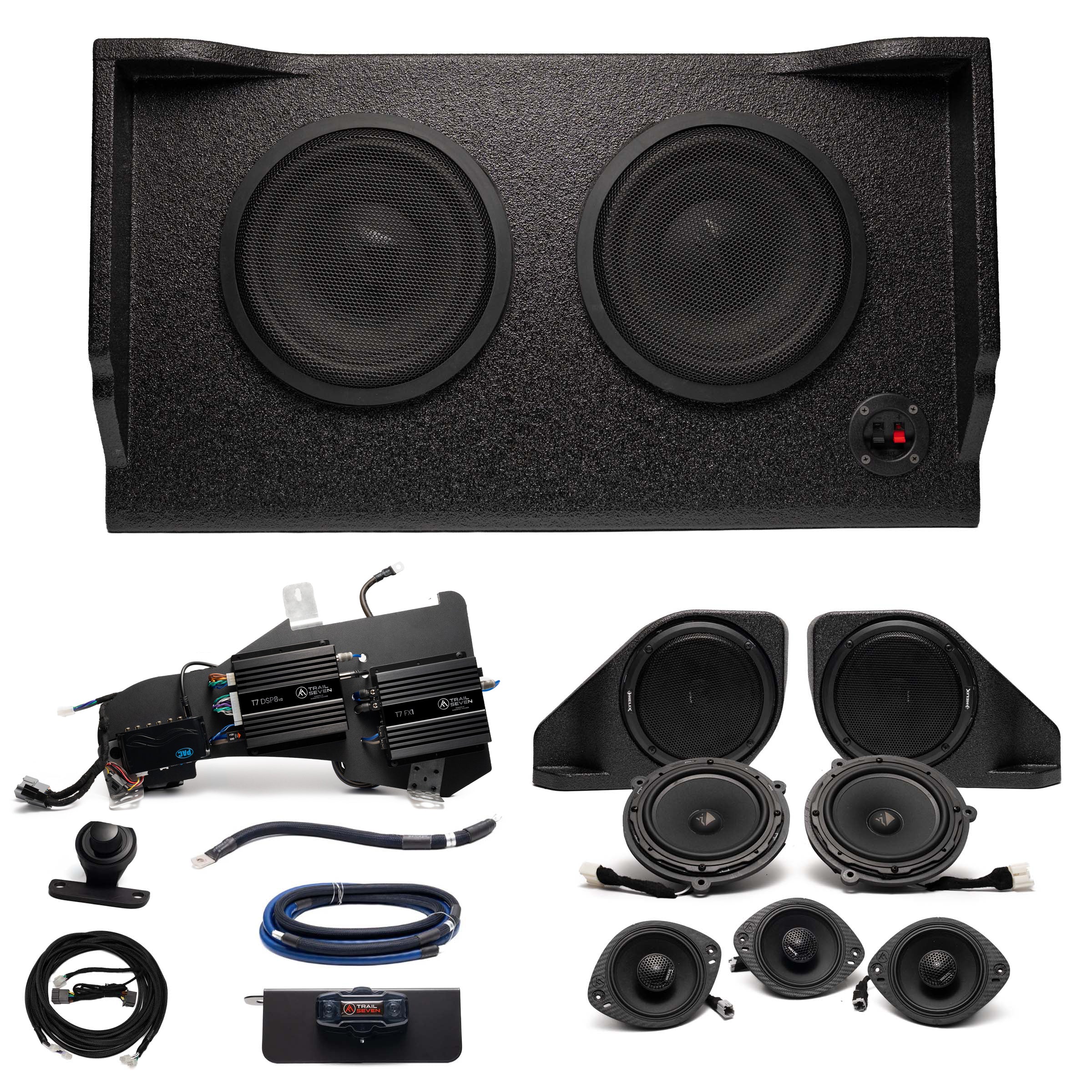

• Down-Firing Dual 10" - Trail Seven enclosure loaded with (2) T7-IKW10S-2 subwoofers

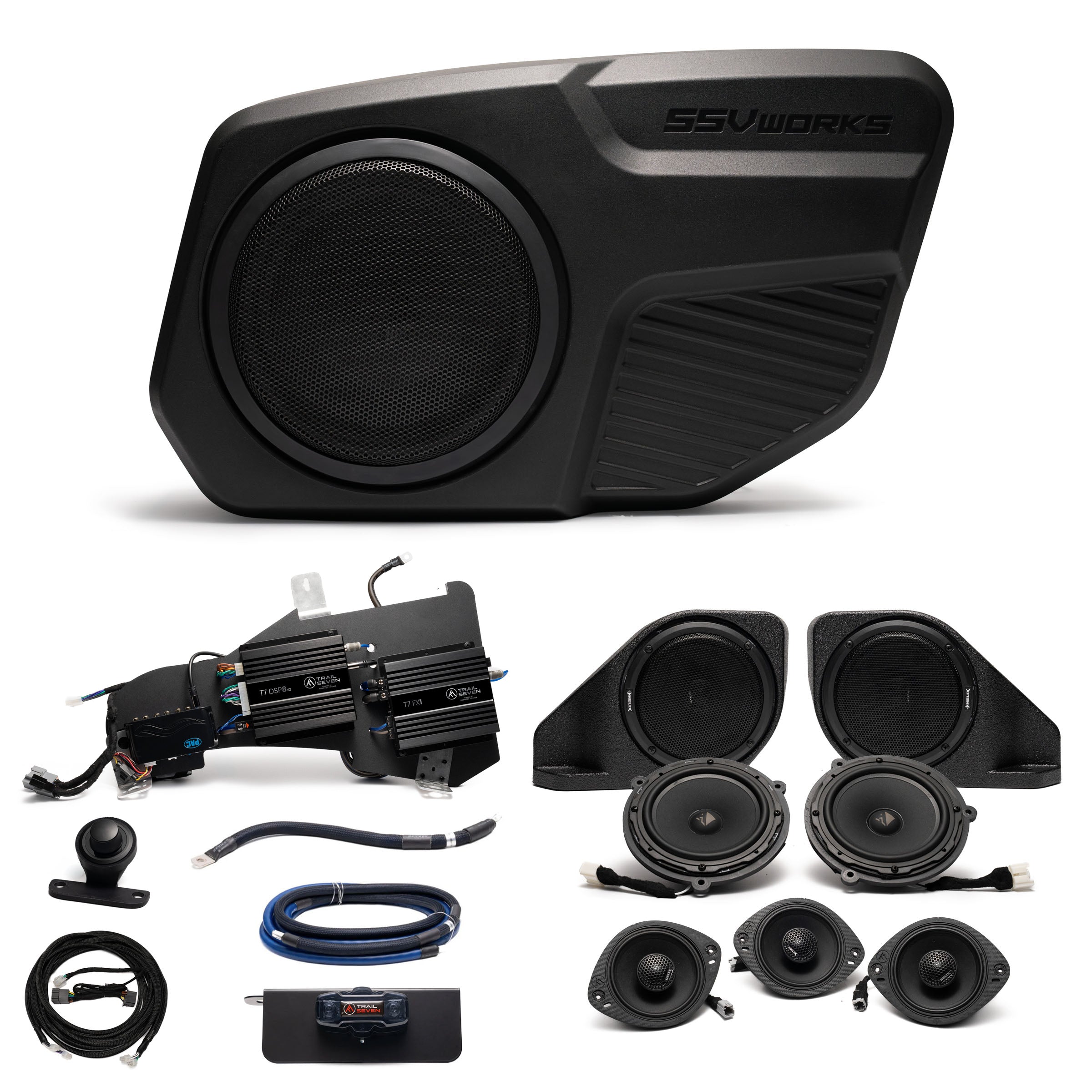

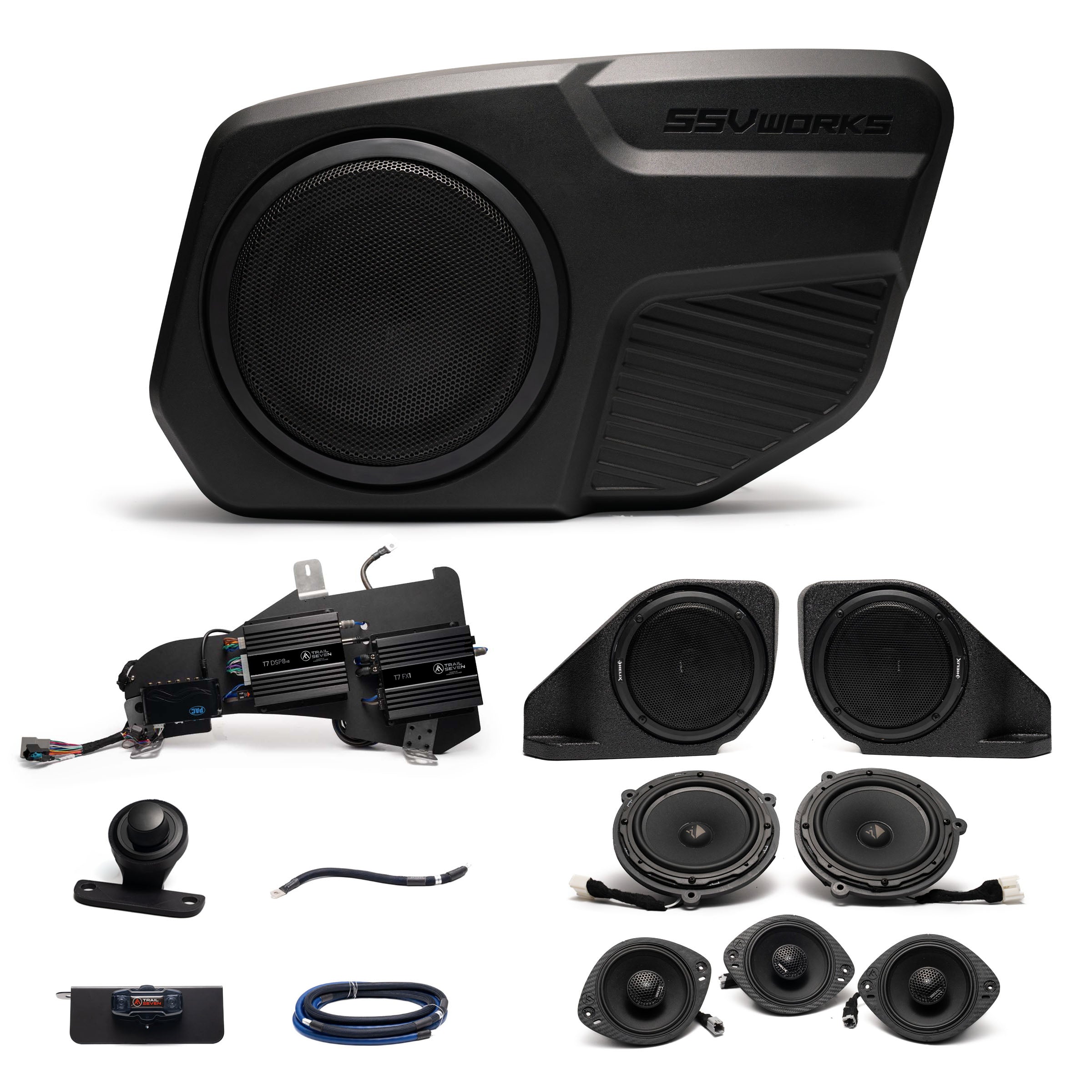

• Side-Mounted 10" - SSV Works enclosure loaded with the Trail Seven T7-IKW10S-2 subwoofer

Plug & Play: Every bundle is pre-wired and fully assembled at our Frederick, Maryland shop before shipping. When your bundle arrives, it's ready to drop right into your Bronco. Just follow our step-by-step video and installation guides for an effortless plug-and-play installation.

Tested and Approved by Trail Seven: Our Full System Bundle has been thoroughly installed and tested on our Trail Seven Bronco. We're proud to give this package our stamp of approval, ensuring it delivers the performance you expect!

Elevate your Ford Bronco's audio system with a complete Trail Seven plug-and-play bundle — curated, built, wired, assembled, and professionally tuned by Trail Seven, and Powered by Audiotec Fischer's world-class, German-engineered amplification, DSP, and speakers. Designed for those who demand exceptional sound quality, powerful amplification, and unmatched tuning precision, this fully active system delivers an immersive listening experience with remarkable clarity, dynamics, and realism—bringing your music to life like never before.

THE SPEAKERS — POWERED BY AUDIOTEC FISCHER:
German-engineered by Audiotec Fischer and finished under the Trail Seven label, these speakers deliver exceptional clarity, detail, and musical accuracy. Featuring lightweight polypropylene cone technology and vehicle-specific integration, they create a natural, dynamic listening experience with impressive output and tonal balance.

THE AMPLIFICATION — POWERED BY AUDIOTEC FISCHER:
At the heart of the system is Audiotec Fischer's industry-leading DSP amplification. The Trail Seven T7-DSP8-V2 and T7-FX1 combine powerful amplification with advanced digital signal processing for precise tuning control, exceptional efficiency, and a level of soundstage, imaging, and detail that transforms your Bronco's factory audio system.

THE SUBWOOFER — POWERED BY AUDIOTEC FISCHER:
German-engineered and built by Audiotec Fischer and finished under the Trail Seven label, the shallow-mount subwoofer delivers deep, accurate bass in space-constrained applications without sacrificing valuable cargo space. Its rigid construction and optimized motor design produce tight, impactful bass that perfectly complements the rest of the system.

COMPLETE TRAIL SEVEN PERFORMANCE:

Built around Audiotec Fischer's renowned German-engineered audio technology, this Trail Seven Bronco bundle delivers exceptional clarity, dynamic range, and musical accuracy. Trail Seven curates the DSP amplification, speakers, and subwoofer into a single plug-and-play system, so every component works together to create an immersive listening experience that far exceeds factory audio.

DESIGNED FOR THE ULTIMATE BRONCO LISTENING EXPERIENCE:

Built specifically for the Ford Bronco, this fully integrated system provides seamless OEM-style installation without compromising performance. Whether you're cruising the highway or exploring off-road trails, you'll enjoy precise imaging, impressive output, and balanced sound throughout the cabin.

TRAIL SEVEN SPEAKERS:

The Trail Seven speaker system — German-engineered by Audiotec Fischer — delivers natural, detailed sound with outstanding efficiency and tonal accuracy. Featuring premium materials and vehicle-specific integration, the speakers produce exceptional vocal clarity, accurate midrange reproduction, and a wide, immersive soundstage.

TRAIL SEVEN DSP AMPLIFICATION:

At the heart of the system, Audiotec Fischer's DSP amplification — the Trail Seven T7-DSP8-V2 paired with the T7-FX1 extension amplifier — combines powerful amplification with industry-leading digital signal processing. This allows every speaker to be individually optimized for maximum performance, delivering remarkable detail, imaging, and control throughout the entire frequency range.

TRAIL SEVEN SUBWOOFER — POWERED BY AUDIOTEC FISCHER:

German-engineered and built by Audiotec Fischer, the shallow-mount subwoofer delivers deep, impactful bass while fitting into space-conscious vehicle applications. Its advanced motor design and rigid cone construction produce tight, accurate low-frequency response that adds authority and realism to every genre of music.

Trail Seven 4" Coax Dash Speaker T7-3C100.2-3-V2:

• 2-way performance coaxial speaker system combining outstanding sound quality with versatile installation options
• High-efficiency 3 Ohm technology maximizes amplifier power output for improved system performance
• Automotive-grade FlexConnect terminals provide fast, secure connections and support direct integration with factory wiring using optional vehicle-specific adapters
• Tweeter
• 0.75" (20 mm) performance tweeter with black aluminum dome for accurate, pure, and detailed treble response
• High-quality aluminum dome with the ideal balance of low weight and high rigidity for natural brilliance and fine detail reproduction
• Highly efficient neodymium magnet design provides excellent magnetic flux linearity and optimized performance
• Midrange
• 4" (100 mm) midrange with unique Cenosphere-coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for exceptional rigidity and minimized resonance
• Shallow neodymium magnet system enables low installation depth while maintaining high efficiency
• Crossover
• Integrated crossover with 6 dB slope for seamless driver integration

Trail Seven 6.5" Woofer Kick Panel Speaker T7-3W165-3:

• Performance
• 6.5" / 165 mm performance midbass driver combining outstanding sound quality with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized amplifier power output
• Unique Cenosphere coated paper cone for precise and detailed sound reproduction
• Specially shaped rubber surround for high linear cone excursion
• Polyurethane dustcap for optimized frequency response in the upper midrange area
• 1" / 25 mm voice coil ensures high power handling
• Powerful magnet system for high efficiency and optimum impulse response
• Construction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Automotive-grade ProConnect connection terminals allow the use of conventional speaker cables or a fast, secure, and fail-safe connection via optionally available WireKits
• Installation
• Designed for the optionally available vehicle-specific FlexMount165 adapters for acoustically optimized integration in the factory speaker location
• Designed for optionally available vehicle-specific WireKits for non-destructive installation

Trail Seven 6.5" Coax Rear Pod Speaker T7-3C165.2-3-V2:

• 2-way performance coaxial speaker system which combines outstanding sound quality with versatile physical integration options
• High efficiency and 3 Ohms technology for maximized power output of the amplifier
• Automotive grade ProConnect connection terminal allows the use of conventional speaker cables or a fast, secure and fail-safe connection via optionally available WireKits
• Tweeter
• 0.75" / 20 mm performance tweeter with black aluminum dome for accurate, pure and detailed treble response
• High-quality aluminum dome with perfect balance of low weight and high rigidity for natural brilliance and fine detail reproduction
• Refined highly efficient neodymium magnet for high magnetic flux linearity and optimized performance
• Midbass
• 6.5" / 165 mm midbass with unique Cenosphere coated paper cone for precise and detailed sound reproduction
• High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
• Powerful magnet system for high efficiency and optimum impulse response
• Crossover
• Integrated with 6 dB slope
• Designed for the optionally available car-specific FlexMount165 adaptors which allow an acoustically optimized and professional integration in the original mounting location of the vehicle
• Designed for optionally available, car-specific WireKits which allow a non-destructive integration

Trail Seven 8-Channel DSP Amplifier T7-DSP8-V2:

• 8-channel amplifier with ultra efficient Class GD concept, which combines outstanding sound quality with maximum efficiency
• 9 DSP channels for maximum flexibility when upgrading multi-channel factory sound systems
• Optional cable harnesses for easy integration into existing factory sound systems
• EV-Ready – extended input voltage range up to 18 V for stable operation even in electric vehicles with increased on-board voltages
• Smart 6-channel highlevel input with ADEP.3 circuit for seamless OEM integration
• Extremely powerful “fixed point” Audio DSP with 64 Bit resolution
• VCP (Virtual Channel Processing) offers outstanding flexibility in configuring complex sound systems
• Cross-channel group equalizers that affect several output channels simultaneously
• Multi-way speaker configuration of DSP sound effects (SFX)
• Additional features such as Rear Attenuation
• 1:1 IOR (Input-to-Output Routing) in combination with the optional ANALOG IN Extension Card 2.0 for direct input-to-output routing
• ACO – Advanced 32 Bit CoProcessor platform for advanced system and DSP functionality
• AISA (Advanced Input Signal Analyzer) and InputEQ for easy analysis and correction of input signals
• DLC (Dynamic Loudness Control) and RTC (Remote Tone Control) for volume-dependent dynamic adjustment of highs and lows
• Proprietary TuneEQ function for automated adjustment of the input, virtual and output equalizers
• SFX Sound Effects including Augmented Bass Processing, RealCenter and more
• Stabilized Output Power technology (SOP Max) for consistently stable output power regardless of input voltage
• Extension Card 2.0 slot for Bluetooth® HD audio streaming, additional analog inputs and future signal sources
• Optical input in SPDIF format with sampling rates between 12 and 96 kHz
• Mono RCA output for connecting external amplifiers such as subwoofer amplifiers
• Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
• Intelligent power management ensures perfect voltage stability across all modern vehicle platforms
• Start-Stop capable power supply down to 6 Volts supply voltage
• Auto Remote switch for amplifier activation without the need for an external remote signal
• Compact design with low heat dissipation thanks to extraordinary efficiency
• Maximum control with DSP PC-Tool 6 software for precise amplifier configuration and accurate sound tuning

Trail Seven Monoblock DSP Amplifier T7-FX1:

• High-fidelity amplifier with exceptional sound quality and massive output power of up to 1000 Watts
• Advanced Class D concept for excellent power-to-size ratio
• Ideal for upgrading factory subwoofer amplifiers thanks to integrated, active crossover and high power stereo highlevel input with signal summing, up to 32 V RMS input sensitivity and ADEP.3 circuit
• Start-Stop capable power supply with extended input voltage range up to 18 V – ideal for modern EV vehicles
• DirectDSP function – input signal bypasses the integrated, active crossover and is routed unfiltered to the output stage of the amplifier
• Clipping LED for easy and fast gain adjustment
• Compact design for space-saving installation
• Remote control for volume control of the subwoofer optionally available
• The perfect companion for TRAIL SEVEN UPGRADE amplifiers thanks to mono RCA input

Trail Seven T7-IKW10S-2 10" Subwoofer:

• 1 x 2 Ohms single voice coil
• Extremely stiff, hand-scooped paper cone for outstanding impulse response
• Double ventilated voice coil for minimum compression effects and high power handling
• Long-excursion rubber surround for highest mechanical rating
• Solid push terminals
• Powerful magnet system for compact enclosures
• Rugged magnet cover with TRAIL SEVEN lettering for perfect magnet protection
• Grille and gasket included in delivery

(Options):

• Trail Seven Single 10" Tailgate Enclosure - compatible with Fords cargo slide out shelf
• Trail Seven Dual 10" Down- Firing Sealed Enclosure -
• SSV Works Driver Side Mounted Enclosure (not for 2-dr)

Helix IK ES10.1-DVC2 MK2:

• Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker
• Extremely shallow ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
• Equipped with one powerful 250 mm / 10“ subwoofer with sandwich paper cone for rich, deep bass
• Voice coil impedance configurable via connection terminal allows flexible system configuration – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
• Active subwoofer option – can be converted into an active subwoofer by replacing the terminal with an IMPACT Subwoofer Module (ISM)
• Connection terminal with pluggable screw and additional Molex connector for use with conventional speaker cables or custom wiring harnesses – allows quick and secure installation and removal
• Magnet system screwed to back panel of the enclosure as additional stiffening for stabilization and reduction of enclosure vibrations
• Feet with Velcro tape for a secure stand in the vehicle
• Sturdy carpet surface with embroidered HELIX logo

• 2021 - Current Bronco: (Factory B&O) 2 & 4-Door
• 2022 - Current Bronco Raptor: (Factory B&O) 4-Door

Trail Seven 4" Coax Dash Speaker T7-3C100.2-3-V2:

• Power Handling (RMS / Max.): 80 / 120 Watts
• Frequency Response: 100 Hz - 25,000 Hz
• Impedance: 3 Ω
• Sensitivity: 91 dB @ 2.83V / 1m; 87 dB @ 1W / 1m
• Outer Diameter: 98.0 mm / 3.86"
• Installation Diameter: 89.0 mm / 3.50"
• Installation Depth: 30.0 mm / 1.18"
• Midrange
• Impedance: 3 Ω
• DC Resistance (Re): 3.0 Ω
• Resonance Frequency (Fs): 137 Hz
• Mechanical Q Factor (Qms): 4.37
• Electrical Q Factor (Qes): 0.78
• Total Q Factor (Qts): 0.66
• Compliance (Cms): 456 μm/N
• Equivalent Air Volume (Vas): 2.1 L
• Force Factor (B*l): 3.2 Tm
• Cone Area (Sd): 57 cm²
• Moving Mass (Mms): 3.0 g
• Mechanical Resistance (Rms): 0.58 kg/s
• Voice Coil Diameter: 25 mm
• Voice Coil Winding Height: 4.8 mm
• Max. Linear Excursion (Xmax): ±2.0 mm
• Tweeter
• Voice Coil Diameter: 20 mm
• Features
• Tweeter: Aluminum dome and neodymium magnet
• Midbass: Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100
• Crossover: Integrated, 6 dB highpass

Trail Seven 6.5" Woofer Kick Panel Speaker T7-3W165-3:

• Power Handling (RMS / Max.): 100 / 150 Watts
• Impedance: 2 Ω
• DC Resistance (Re): 1.8 Ω
• Frequency Response: 60 Hz - 3,500 Hz
• Resonance Frequency (Fs): 74 Hz
• Mechanical Q Factor (Qms): 3.92
• Electrical Q Factor (Qes): 0.92
• Total Q Factor (Qts): 0.74
• Compliance (Cms): 370 µm/N
• Equivalent Air Volume (Vas): 8.8 L
• Force Factor (B*l): 3.5 Tm
• Sensitivity: 94 dB @ 2.83 V / 1m; 88 dB @ 1W / 1m
• Cone Area (Sd): 133 cm²
• Moving Mass (Mms): 12.5 g
• Cone Material: Paper with Cenosphere coating
• Mechanical Resistance (Rms): 1.48 kg/s
• Voice Coil Diameter: 25 mm
• Voice Coil Winding Height: 11.3 mm
• Max. Linear Excursion (Xmax): ±3.7 mm
• Outer Diameter: 165 mm / 6.5"
• Installation Diameter: 142 mm / 5.59"
• Installation Depth: 60.7 mm / 2.39"
• Features: ProConnect terminal, FlexMount165

Trail Seven 6.5" Coax Rear Pod Speaker T7-3C165.2-3-V2:

• Power Handling (RMS / Max.): 100 / 150 Watts
• Frequency Response: 60 Hz - 25,000 Hz
• Impedance: 3 Ω
• Sensitivity: 92 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
• Outer Diameter: 165.0 mm / 6.50"
• Installation Diameter: 142.0 mm / 5.59"
• Installation Depth: 60.7 mm / 2.39"
• Midbass
• Impedance: 3 Ω
• DC Resistance (Re): 3.1 Ω
• Resonance Frequency (Fs): 72 Hz
• Mechanical Q Factor (Qms): 4.02
• Electrical Q Factor (Qes): 1.04
• Total Q Factor (Qts): 0.82
• Compliance (Cms): 466 μm/N
• Equivalent Air Volume (Vas): 11.5 L
• Force Factor (B*l): 3.8 Tm
• Cone Area (Sd): 133 cm²
• Moving Mass (Mms): 10.4 g
• Mechanical Resistance (Rms): 1.17 kg/s
• Voice Coil Diameter: 25 mm
• Voice Coil Winding Height: 10.5 mm
• Max. Linear Excursion (Xmax): ±3.2 mm
• Tweeter
• Voice Coil Diameter: 20 mm
• Features
• Tweeter: Aluminum dome and neodymium magnet
• Midbass: Paper with Cenosphere coating, ProConnect terminal and FlexMount165
• Crossover: Integrated, 6 dB highpass

Trail Seven 8-Channel DSP Amplifier T7-DSP8-V2:

• Power RMS ≤ 1% THD+N @ 4 Ohms: Channels A - F: 65 Watts (min. 3 Ohms*); Channels G - H: 75 Watts (min. 3 Ohms*)
• Power RMS ≤ 1% THD+N @ 2 Ohms: Channels G - H: 125 Watts
• Power RMS ≤ 1% THD+N @ 1 Ohm: -
• Power RMS ≤ 1% THD+N Bridged @ 4 Ohms: -
• Power RMS ≤ 1% THD+N Bridged @ 2 Ohms: -
• Max. Output Power per Channel: Channels A - F: up to 80 Watts RMS @ 4 Ohms; Channels G - H: up to 90 Watts RMS @ 4 Ohms; Channels G - H: up to 160 Watts RMS @ 2 Ohms
• Amplifier Technology: Class GD
• Inputs: 6 x Highlevel speaker input; 1 x Optical SPDIF (12 - 96 kHz); 1 x Extension Card 2.0
• Input Sensitivity: 2.8 - 11 Volts
• Input Impedance RCA / Cinch: -
• Input Impedance Highlevel: 9 - 33 Ohms with ADEP.3
• Outputs: 8 x Speaker output; 1 x RCA / Cinch; 1 x Remote Out
• Output Voltage RCA / Cinch: 3 Volts RMS
• Frequency Response: 15 Hz - 22,000 Hz
• DSP Resolution: 64 Bit
• DSP Power: 295 MHz (1.2 billion MAC operations/second)
• Sampling Rate: 48 kHz
• DSP Type: Audio signal processor
• Signal Converters: A/D: BurrBrown; D/A: BurrBrown
• Signal-to-Noise Ratio Digital Input: 104 dB (A-weighted)
• Signal-to-Noise Ratio Analog Input: 100 dB (A-weighted)
• Distortion (THD @ 1 kHz, 1 W into 4 Ohms): < 0.015 %
• Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms): < 0.02 %
• Distortion (THD @ 100 Hz, 1 W into 4 Ohms): -
• Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms): -
• Operating Voltage: 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
• Power Rating: DC 12 V ⎓ 40 A max.
• Idle Current: 380 mA
• Max. Remote Output Current: 500 mA
• Operating Temperature Range: -40° C to +70° C
• Fuse: 2 x 25 A LP-Mini-fuse (APS)
• Additional Features: Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB-C, Auto Remote switch
• Dimensions (H x W x D): 46 x 130 x 153 mm / 1.81 x 5.12 x 6.02"

Trail Seven Monoblock DSP Amplifier T7-FX1:

• Power RMS @ 4 Ohms: 1 x 350 Watts
• Power RMS @ 2 Ohms: 1 x 600 Watts
• Power RMS @ 1 Ohm: 1 x 900 Watts*
• Power RMS Bridged @ 4 Ohms: -
• Power RMS Bridged @ 2 Ohms: -
• Max. Output Power: Up to 1000 Watts RMS @ 1 Ohm
• Amplifier Technology: Class D
• Inputs: 1 x RCA / Cinch; 2 x Highlevel speaker input; 1 x Remote In; 1 x Remote control input
• Input Sensitivity: RCA / Cinch 0.5 - 3 Volts or 1 - 6 Volts; Highlevel 2.5 - 16 Volts or 5 - 32 Volts
• Input Impedance RCA / Cinch: 8.6 kOhms
• Input Impedance Highlevel: 9 - 33 Ohms
• Outputs: 1 x Speaker output
• Output Voltage RCA / Cinch: -
• Signal Converter for Digital Input: -
• Frequency Response: 10 Hz - 25,000 Hz
• Bass Boost: -
• Highpass: -
• Lowpass: 50 Hz - 250 Hz adjustable (can be turned off)
• Bandpass: -
• Subsonic: 15 Hz (can be turned off)
• Phase: -
• Slope High- / Lowpass: 12 dB
• Slope Subsonic / Lowpass: 12 dB
• Signal-to-Noise Ratio Digital Input: -
• Signal-to-Noise Ratio Analog Input: 108 dB (A-weighted)
• Distortion (THD): 0.002 %
• Damping Factor: 160
• Operating Voltage: 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
• Idle Current: 1050 mA
• Fuse: 2 x 30 A LP-Mini-fuse (APS)
• Power Rating: DC 12 V ⎓ 80 A max.
• Ambient Operating Temperature Range: -40 °C to +70 °C
• Additional Features: Active, adjustable crossover, Start-Stop capability, highlevel input with automatic turn on function, ADEP.3, DirectDSP function
• Dimensions (H x W x D): 46 x 130 x 153 mm / 1.81 x 5.12 x 6.02"

Trail Seven T7-IKW10S-2 10" Subwoofer:

• Model: T7-IKW10S-2 – 1 x 2 Ohms
• Power Handling (RMS / Max.): 300 / 600 Watts
• Impedance: 1 x 2 Ω
• DC Resistance (Re): 1 x 2.0 Ω
• Resonance Frequency (Fs): 32 Hz
• Mechanical Q Factor (Qms): 5.09
• Electrical Q Factor (Qes): 0.45
• Total Q Factor (Qts): 0.41
• Compliance (Cms): 159 μm/N
• Equivalent Air Volume (Vas): 25 L
• Force Factor (B*l): 12.1 Tm
• Sensitivity: 93.0 dB @ 2.83V / 1m; 87.0 dB @ 1W / 1m
• Cone Area (Sd): 333 cm²
• Moving Mass (Mms): 126 g
• Cone Material: Hand-scooped paper cone
• Mechanical Resistance (Rms): 6.25 kg/s
• Voice Coil Diameter: 50.8 mm
• Voice Coil Winding Height: 24 mm
• Max. Linear Excursion (Xmax): ±8.0 mm
• Outer Diameter: 262 mm / 10.31"
• Installation Diameter: 232 mm / 9.13"
• Installation Depth: 126 mm / 4.96"
• Recommended Enclosure Volumes
• Sealed Box
• Net Volume: 15 L
• Lower Limiting Frequency (-3 dB): 50 Hz
• Recommended DSP Settings: "Self-Define" Highpass: 38 Hz / Q = 1.4; EQ Filter: 95 Hz / Q = 1.0 / -3 dB
• Vented Box
• Net Volume: 21 L
• Port Diameter: 70 mm / 2.76"
• Port Area: 38 cm²
• Port Length: 32 cm / 12.6"
• Port Tuning Frequency (Fb): 36 Hz
• Lower Limiting Frequency (-3 dB): 36 Hz
• Recommended DSP Settings: "Self-Define" Highpass: 35 Hz / Q = 1.0; EQ Filter: 100 Hz / Q = 0.7 / -2 dB

Enclosure Options:

• Trail Seven Single 10" Tailgate Enclosure: 6.25"(D) x 27"(W) x 15"(H) - compatible with Fords cargo slide out shelf
• Trail Seven Dual 10" Down-Firing Sealed Enclosure: 17"(D) x 31"(W) x 9.25"(H)
• SSV Works Driver Side Mounted Enclosure (not for 2-dr):

Helix IK ES10.1-DVC2 MK2:

Model: IK ES10.1-DVC2 MK2 – 2 x 2 Ohms

• Power Handling (RMS): 300 Watts
• Recommended Amplifier Power (RMS): 150 - 300 Watts
• Impedance: 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
• Max. Linear Excursion (Xlin): ±6 mm
• Max. Mechanical Excursion (Xmax): ±15 mm
• Port Tuning Frequency (Fb): 37 Hz
• Sensitivity: 91 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
• Dimensions (H x W x D): 135 x 725 x 350 mm / 5.3 x 28.5 x 13.8"
• Integrated Subwoofer Chassis: HELIX IK S10-DVC2
• Recommended DSP Settings: "Self-define" highpass 37 Hz / Q = 1.2; EQ filter: 95 Hz / Q = 0.7 / -3 dB

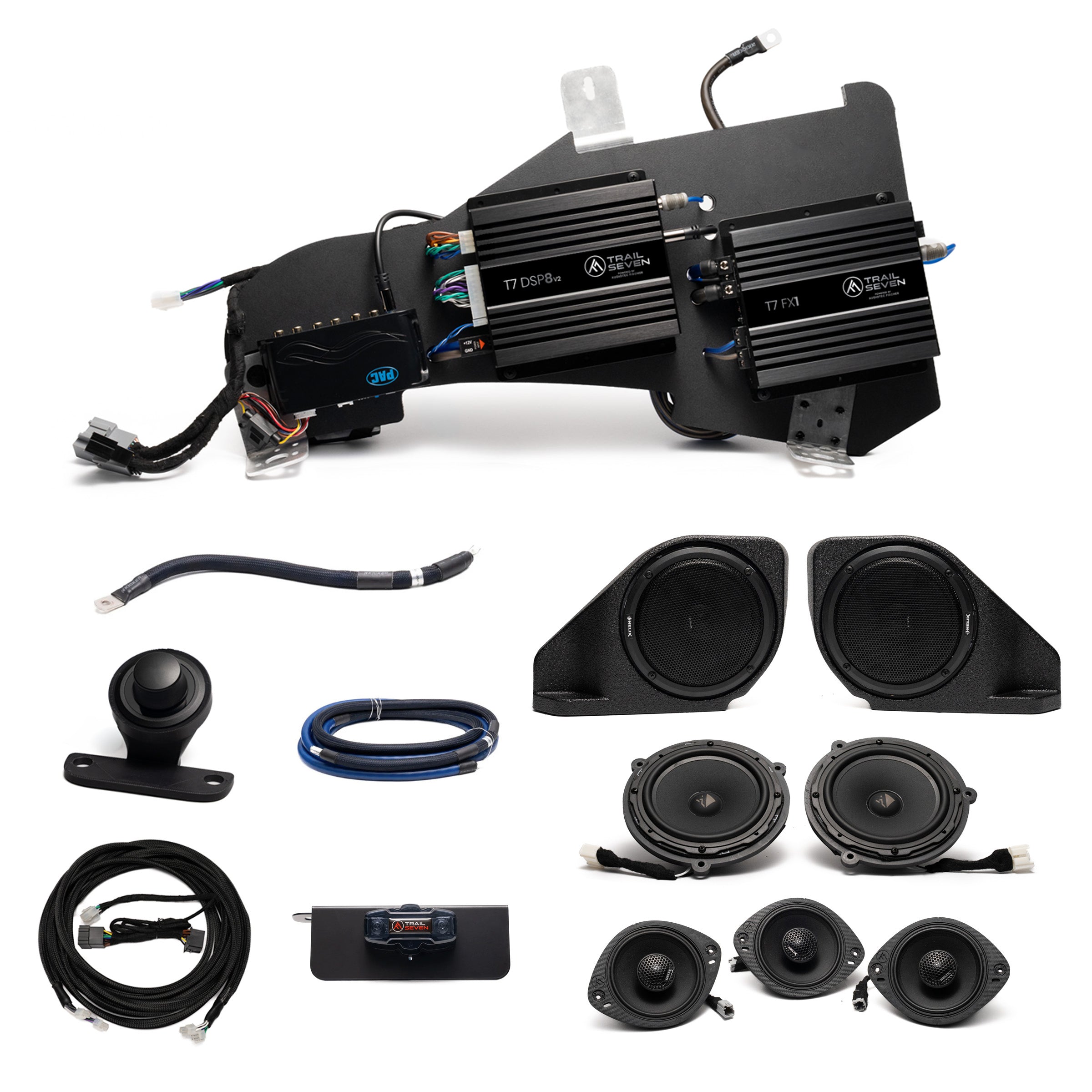

Speakers:

• Trail Seven 4" Coax Dash Speaker T7-3C100.2-3-V2: 3x fully prepped mounted into dash bracket with connectors attached
• Trail Seven 6.5" Woofer Kick Panel Speaker T7-3W165-3: 2x fully prepped mounted into kick panel bracket with connectors attached
• Trail Seven 6.5" Coax Rear Pod Speaker T7-3C165.2-3-V2: fully prepped, mounted in Trail Seven 6.5" pods (fits 2-dr, 4-dr, and Raptors)

Amplifiers/ DSP:

• Trail Seven 8-Channel DSP Amplifier T7-DSP8-V2: Trail Seven DSP (8 channels of amplified power, 9 channels of DSP)
• Trail Seven Monoblock DSP Amplifier T7-FX1: Trail Seven Mono
• Trail Seven Amplifier Bracket: Amps will be mounted prior to shipping
• Helix Conductor Pro: Programmable control dial (bass knob) with Smart Control Port for on-the-fly level and tuning adjustment

Power Distribution:

• Power Line: 1/0 AWG 17ft Wire
• Ground Line: 1/0 AWG 18 In Wire
• In-Line Fuse: 200 amp fuse (battery location mounted)
• Trail Seven Bronco Fuse Bracket: Built for easy installation of the pre-mounted fuse for power routing.

Installation Accessories:

• PAC Module: AP4-FD31 ('21-'24)/FD32 ('25+) fully prepped, wired, and mounted
• Fiber Jumper: Toslink Optical Signal Cable for lossless audio signal.
• Radio T-Harness: Fully prepped and ready for installation (only needed for '21-'24)
• Trail Seven Bronco Amp Harness: Fully prepped, mounted to the amp bracket and ready for installation per video.
• Trail Seven Rear Pods: Fully sound treated, prepped, and equipped for the easiest installation of rear pods for all Broncos and built for optimal performance of the speaker within the Bronco.

Subwoofer Options (will include one of the following):

• Trail Seven Single 10" Tailgate Enclosure: Compatible with Fords cargo slide out shelf, includes single Trail Seven T7-IKW10S-2 10" Subwoofer
• Trail Seven Dual 10" Down-Firing Sealed Enclosure: Includes 2x mounted Trail Seven T7-IKW10S-2 10" Subwoofer
• SSV Works Driver Side Mounted Enclosure (not for 2-dr): Includes single mounted Trail Seven T7-IKW10S-2 10" Subwoofer
• Helix IK ES10.1-DVC2 MK2: Down-firing ported slim enclosure
