Welcome to your Kicker Dual Amp Kit Bundle Upgrade for your Bronco!

The following guide will walk you through the entire installation which includes a step by step catalog.  Our installation video is in the works but this guide will get you over the finish line in the meantime.

If you have any questions, or need anything during the installation, we're only a phone call away.  We're available Monday-Friday, 9am-5pm est. for any support needed, or you can shoot us an email at support@trailseven.com.

These installation notes are intended to be used in conjunction with the installation videos based on the your bundle.

Tech Tips

Tools You Will Need:

• Panel Removal Tool

• 7mm Socket

• 10mm Socket (w/ extension for Driver's side)

• T-30 Torx (Driver's Side)

• Zip Ties l

• 3/8" Drill Bit

• Rivet Tool

• Marker

• 6mm Socket

• Phillips Head Drill Bit


Amp Adjustments:

Please Note: The LC5iPro is for non-B&O Broncos. For B&O Broncos, the PAC AAMPRO module is used instead, and it requires no settings adjustments, except for the alert chime. Instructions for the alert chime can be found in the PAC AAMPRO installation and owner’s manual.

There are two available amp systems for the Dual Kicker Amps: the 4 channel is the 360.4 Amplifier and the mono amplifiers have choice between the 800.1 Mono or 1200.1 Mono Amplifier. While they are different systems, the installation process for both is the same.

Amplifier Setting Suggestions

Kicker 360.4 4-Channel Amplifier Settings:

• Gain Levels:
  Set gain to 0 and radio levels to 0. Gradually increase volume to 75% max. For Channel 1, increase gain slowly until slight distortion is noticed, then lower gain slightly. Follow the same method for the remaining channels. Use radio settings for “salt and pepper” adjustments.
• Preset switches:
  • FADER - ON
  • AMP 1 X-OVER - HI
  • INPUT LEVEL - LO
  • AMP 2 X-OVER - Hi
• AMP 1 SETTINGS:
  • GAIN - 10 O'CLOCK
  • FREQ - ZEROED OUT / 7 O'CLOCK
  • BASS BOOST - ZEROED OUT / 7 O'CLOCK
• AMP 2 SETTINGS:
  • GAIN - 10 O CLOCK
  • FREQ - 9 O'CLOCK
  • BASS BOOST - ZEROED OUT / 7 O'CLOCK

Kicker 1200.1 Mono Amplifier Settings:

•  PRESET SWITCHES:
  • INPUT LEVEL - LO
• AMP SETTINGS:
  • GAIN - 3 O'CLOCK
  • X-OVER FREQ - 11 O'CLOCK
  • BASS BOOST - 12 O'CLOCK

Here are pictures of the amp settings we set our systems

to give a good foundation to work from.

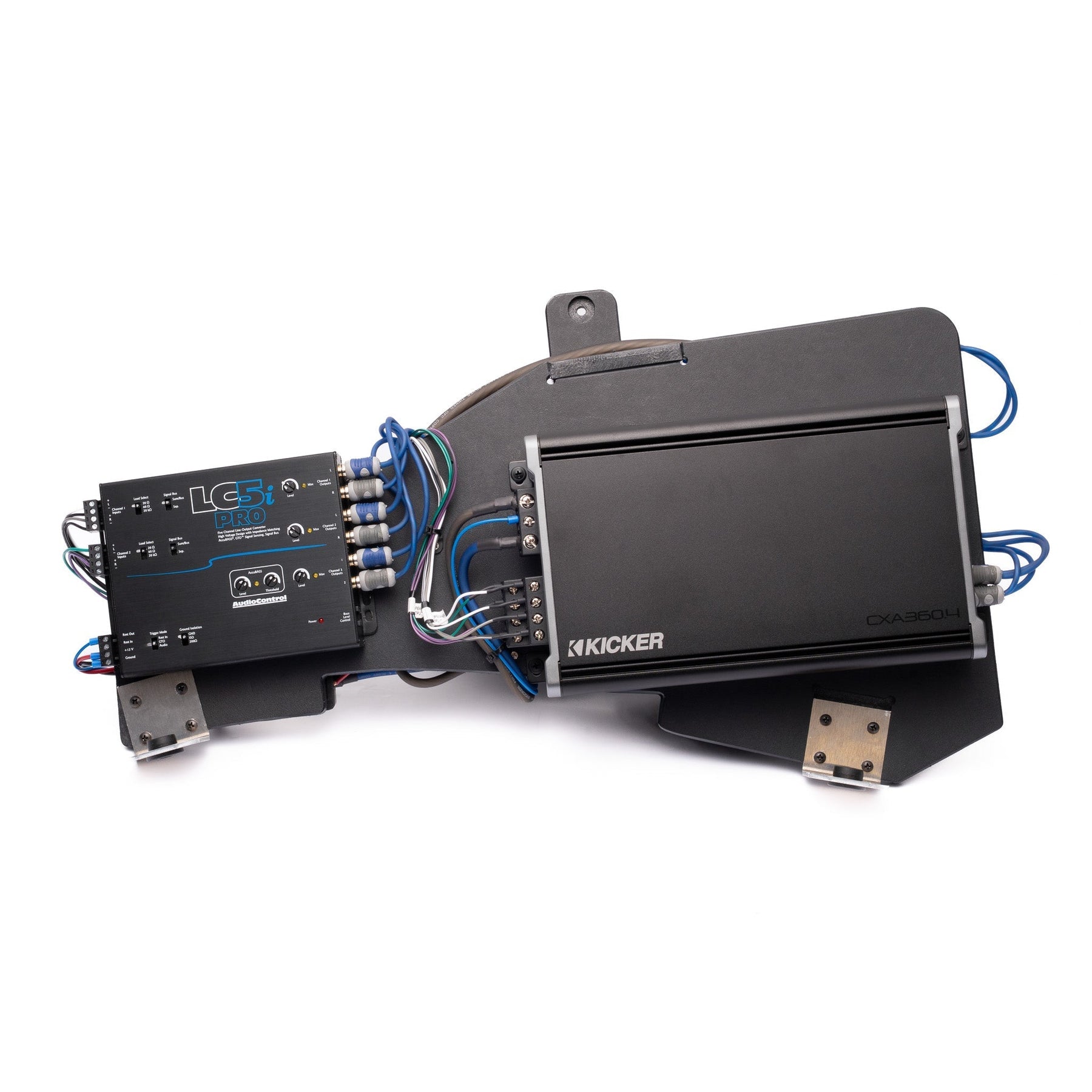

Kicker 4 Channel Amplifier

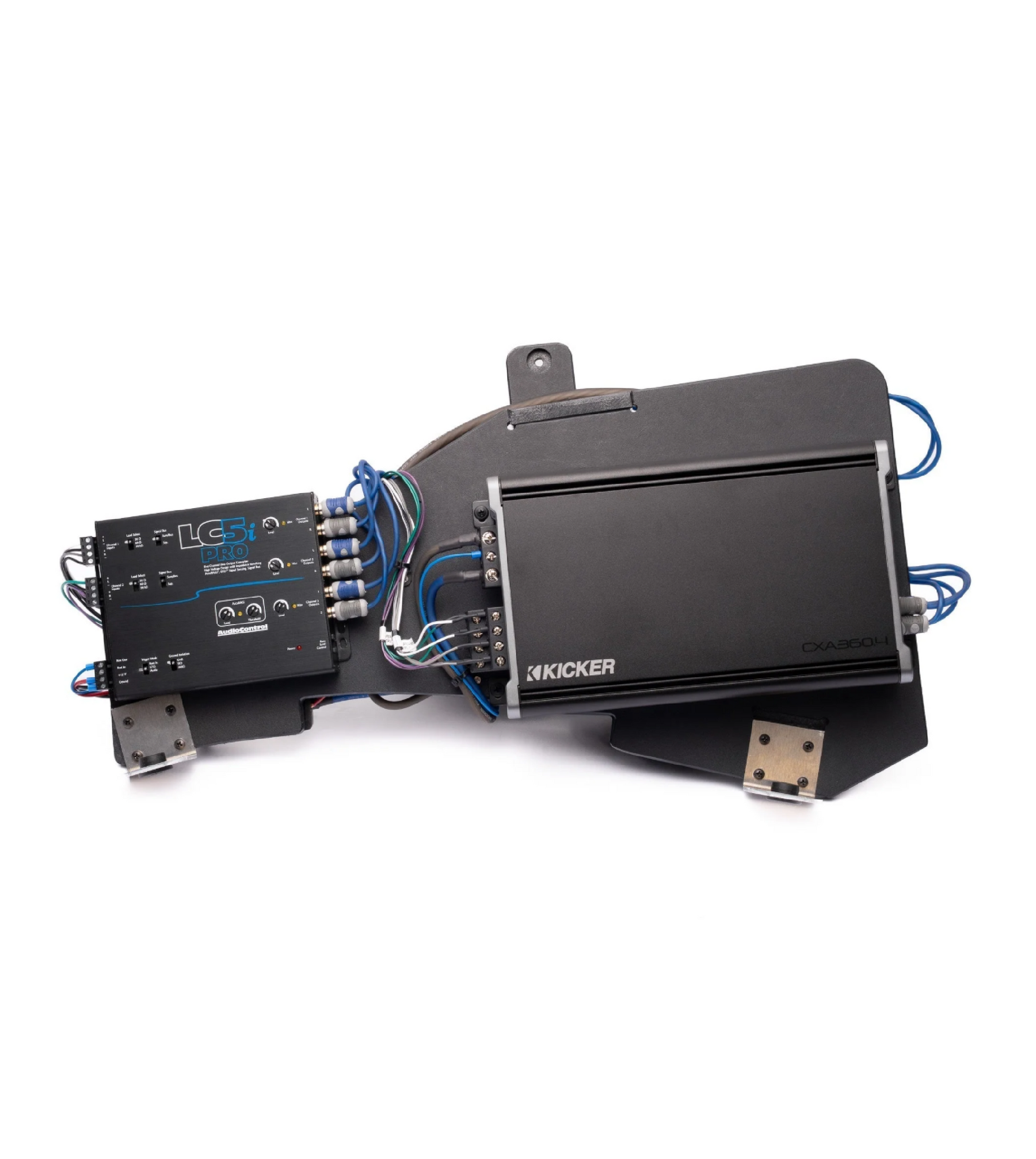

Kicker 1200.1 Mono Amplifier

Installation Video for Dual Amplifiers
