Hertz Dieci Plug & Play Full System (5-Channel) Bundle Upgrade (B&O System) | '21- Current Ford Bronco

Your plug and play bundle is hand assembled in our Frederick, MD facility. Current processing lead times for plug and play bundles from order to ship: 5-7 business days

Featuring Our Hertz Dieci Plug-and-Play Amplified Full System

Experience the Hertz experience with our complete Hertz Dieci plug-and-play system, featuring the powerful Cento 1,000 watt 5 channel amplifier, Dieci speakers, and Mille subwoofer.

This full system is built around the Hertz Dieci line speakers, offering high quality audio:

• 4" DCX Coax Speakers for dash
• 6.5" DCX Coax Speakers for kick panel
• 6.5" DCX 6.5 Coax Speakers mounted in our included rear speaker pods



All speakers are powered by the Hertz Cento 5.1000 5-Channel amplifier, allowing for full control and adjustability of each speaker for a truly customized sound experience.

To bring the bass, the subwoofer channel out of the 5 channel amplifier gives you plenty of enough power, powering your choice of subwoofer options:

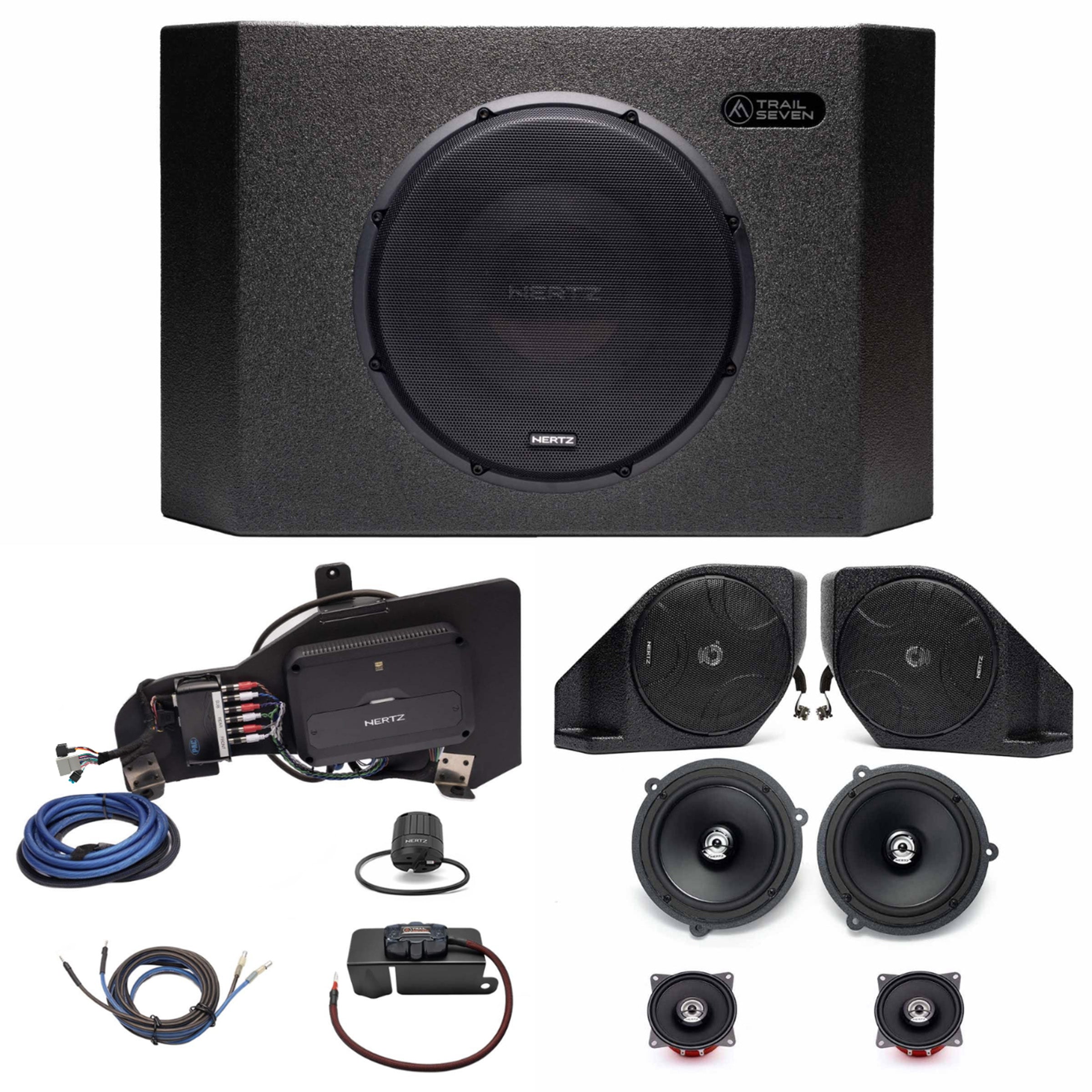

• Hertz Mille MPS 300 S2 12" Subwoofer in our custom tailgate enclosure

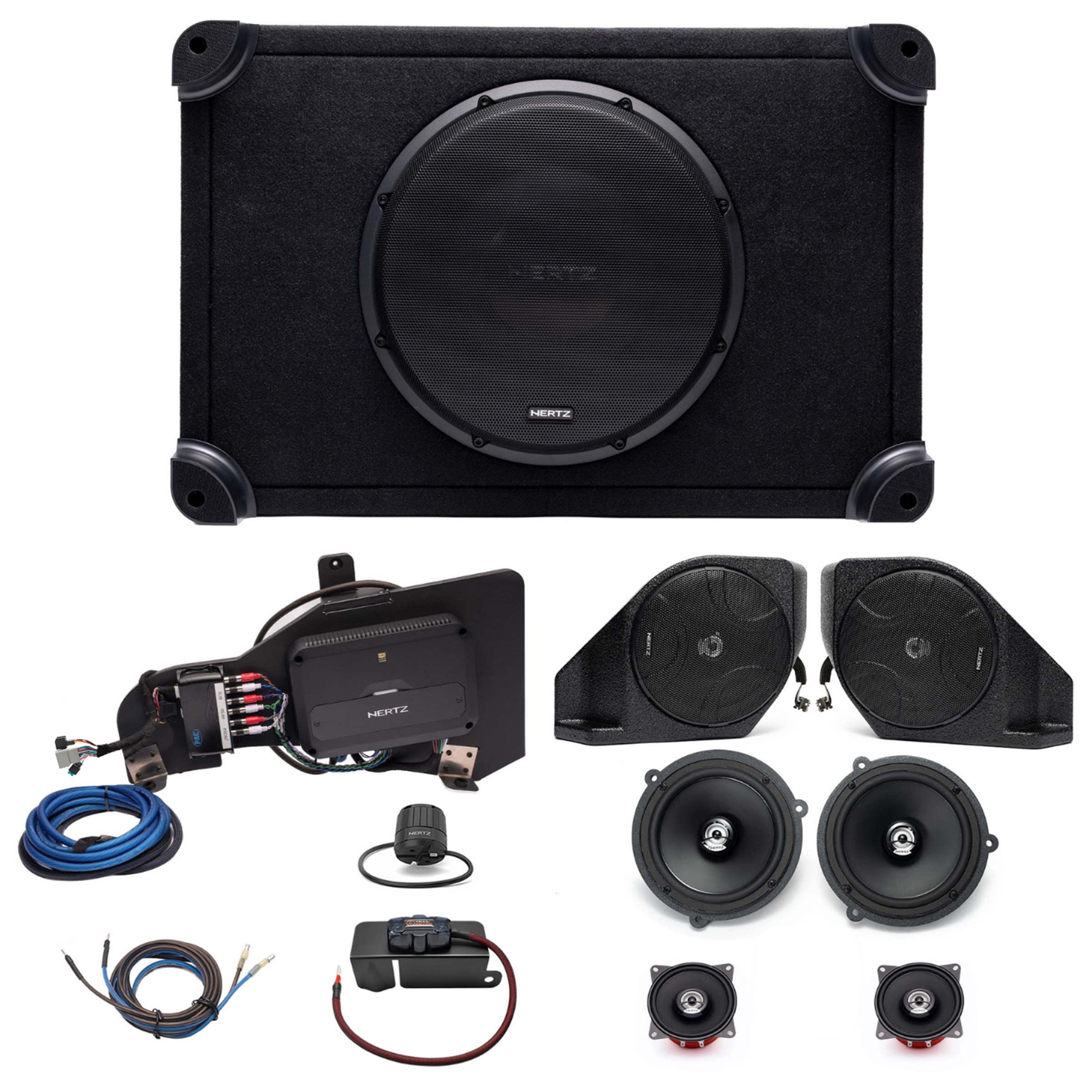

• Hertz Mille MPBX 300S2 12" shallow sealed enclosure

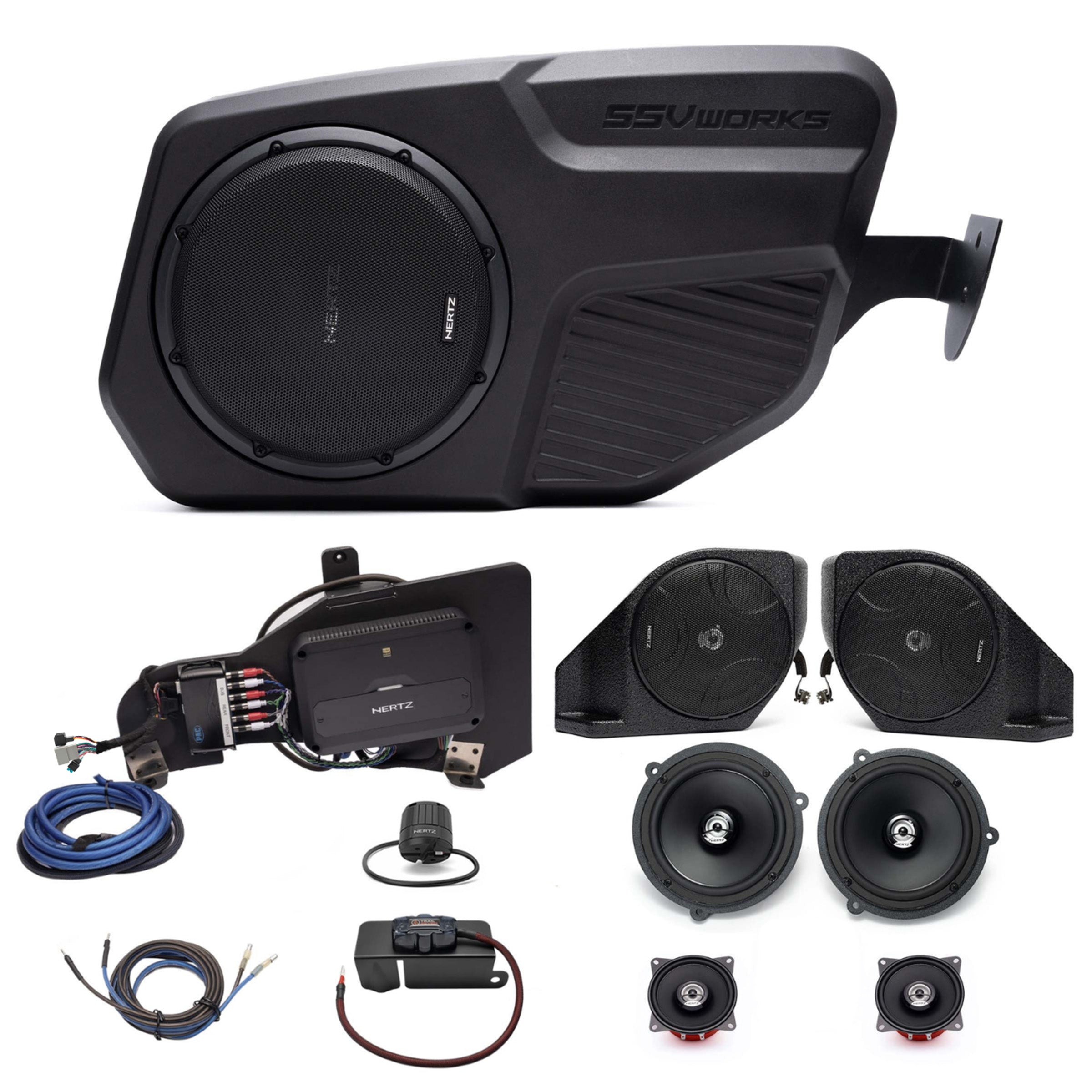

• Hertz Mille MPS 250 S2 10" Subwoofer mounted in an SSV Works side-mounted cargo area enclosure



Engineered for performance, this system delivers exceptional clarity, punchy lows, and the flexibility to tailor your setup to your Bronco!

We've eliminated the guesswork, making it easy to upgrade your Bronco's audio system. Our bundles are 100% plug-and-play, with all components pre-wired and terminated for a smooth, seamless installation. Enjoy premium sound quality without worrying about compatibility or figuring out what fits where. Just install and enjoy the tunes!

Plug & Play: Every bundle is pre-wired and fully assembled at our Frederick, Maryland shop before shipping. When your bundle arrives, it's ready to drop right into your Bronco. Just follow our step-by-step video and installation guides for an effortless plug-and-play installation.

NOTE: The new Trail Seven Rear Pods are fully equipped and sound treated for easiest install and best performance from the speaker!

Tested and Approved by Trail Seven: Our Full System Bundle has been thoroughly installed and tested on our Trail Seven Bronco. We're proud to give this package our stamp of approval, ensuring it delivers the performance you expect!

Elevate your Ford Bronco’s audio system with the Hertz Dieci system, a brand renowned for its audiophile-grade performance and cutting-edge technology. Designed for those who demand superior sound quality, impressive power, and extreme precision, this system delivers an unmatched listening experience that will bring your music to life like never before.

Superior Sound Quality: With decades of expertise in high-performance car audio, marine audio, and powersport audio, Hertz has taken the cake for engineering a system that delivers incredible clarity, rich detail, and immersive "old school analog" feel to your listening experience. Leveraging trickle-down technology from their flagship systems, each component is crafted from the highest-quality materials to ensure a pure, dynamic, and high-resolution audio experience.

Powerful & Efficient Amplification: To drive this Hi-Res audio system, Hertz amplifiers are precision-engineered to deliver clean, efficient power without introducing unwanted noise. With wide dynamic range capabilities, these amplifiers provide impressive output while maintaining the purest sound possible, ensuring that every note is heard with exceptional accuracy and depth.

Extreme Bass Output: Don’t be fooled by size—Hertz Mille subwoofers are designed for massive output even in compact spaces. Featuring an oversized voice coil and powerful neodymium magnet, these shallow-mount subwoofers deliver deep, hard-hitting bass with 600W RMS power handling—giving you the full-bodied low-end response that brings your music to life.

The PEI Dome Tweeter and Neodymium magnet: Providing exceptional performance, reliable outcome, and small package for the best OEM fit while still maximizing performance of the speaker on a budget.

Upgrade your Bronco’s sound system with Hertz Dieci system and enjoy studio-quality audio on every drive.

Hertz Dieci 4" Coax dash speaker CX 100: The DCX 100 4" 2-way coaxial speakers are designed for tight installs where space is limited but sound quality still matters. Featuring a PEI dome tweeter on a neodymium magnet and a water-resistant paper cone woofer, they deliver crisp highs, solid mids, and are perfect for upgrading factory speakers without breaking the bank.

• compact speaker with real clarity and detail
• The PEI dome tweeter’s mild top-end makes these a great upgrade without introducing harshness (no ice-pick highs here)

Hertz Dieci 6.5" Coaxial speaker DPX 165: provides the thrill of listening to the Hertz sound even when the vehicle does not allow the installation of a two-way kit.

• Increased excursion of the mobile group for a superior dynamic response
• Optimized electro-acoustic parameters to maximize performance for OEM placements
• Magnetic group sized for perfect control even at maximum cone excursion
• Compact size basket for easy OEM installations

Hertz Cento 5-Channel Amplifier CP 5.1000: Discover the essence of car audio excellence with the Hertz CENTO POWER CP 5.1K. This five-channel amplifier is certified for Hi-Res Audio, ensuring a frequency response from 10 Hz to 41 kHz, for the most authentic listening experience. Boasting an efficiency greater than 85% within its compact, aluminum diecast casing, the CP 5.1K is fully bridgeable and offers full Ready to Plug connectivity for effortless installation. With its adjustable input levels and comprehensive control set, this model is perfect for those who demand superior sound quality and aesthetic refinement in their vehicle’s audio system.

• High-current capability delivers high power into the most difficult loads (1Ω Stereo, 2Ω Bridged, for 5-3)
• Flexible crossover filter networks deliver Active 3-way, Front/Rear/Sub, or six channels of high-passed power
• Hertz D-Class Technology 2Ω stable output providing Hi-Res certified audio performance with superior efficiency in a compact size.
• Extruded aluminum compact design with a fanless convection cooling system
• Built-in USS (Universal Speakers Simulator)
• Balanced high-noise rejection inputs for Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units).
• ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled, with Speaker-In inputs)
• Bass Boost(50 Hz) adjustable up to 12 dB, to increase the subwoofer punch
• Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 5000 Hz) filters, providing the ability to build a 3-way system, a front 2-way + rear system, or a front 2-way + one powerful subwoofer (2Ω)
• Optional VCR-S2/ARC 01 Remote Volume Control provides the ability to adjust the OUT 5/6
• volume level from the dashboard High-current capability delivers high power into the most difficult loads (1Ω Stereo, 2Ω Bridged, for 5/6)

Hertz 12" Subwoofer MPS 300 S2: MPS 300 S2 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.

• Ultra-shallow overall depth
• 500W continuous power handling
• Optimized for extremely-compact sealed enclosure 20-24L (0.7-0.8CF)
• Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations
• Unrivalled mechanical excursion, +20% over traditional designs
• Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity
• Non-vented rear design allows reduced enclosure depth
• Robust screw-less mesh grille included with black screws provided
• Die-cast aluminum frame
• Solid horizontal 8AWG spring-loaded terminals
• EID: Scan, Discover, Identify

Hertz 10" Subwoofer MPS 250 S2: MPS 250 S2 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.

• Ultra-shallow overall depth
• 500W continuous power handling
• Optimized for extremely-compact sealed enclosure 12-14L (0.4-0.5CF)
• Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations
• Unrivalled mechanical excursion, +20% over traditional designs
• Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity
• Non-vented rear design allows reduced enclosure depth
• Robust screw-less mesh grille included with black screws provided
• Die-cast aluminum frame
• Solid horizontal 8AWG spring-loaded terminals
• EID: Scan, Discover, Identify

Hertz 12" Shallow Sealed Enclosure MPBX 300 S2: MPBX 300 S2 ultra-shallow sealed enclosure is specifically optimized to deliver all the MPS 300 S2 subwoofer performances. The enclosure structure features incomparable robustness thanks to 15 mm (0.59 in.) wood thickness. Internal sound-absorbing material virtually increases the box's volume and reduces acoustic resonances.

• Ultra-shallow sealed enclosure specifically optimized to deliver all the MPS 300 S2 subwoofer performance.
• 15 mm (0.59 in.) wood thickness for incomparable robustness.
• Panel-to-panel internal bracing with solid corners to minimize resonances
• Round corners to ease the placement
• Internal sound-absorbing material virtually increases the box’s volume and reduces acoustic resonances.
• 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting, through supplied feet with Hook-and-loop inserts, to increase the low-frequency extension, and Up-Firing install to obtain more punch and definition.
• SSP (Sub Smart Plug) features both Plug-&-Play terminal block and traditional push terminals providing bulletproof connection and quick release.
• Robust screw-less mesh grille included featuring adjustable logo position suitable for reverse install.
• EID: Scan, Discover, Identify.

• 2021 - Current Bronco: (Factory B&O) 2 & 4-Door

Hertz Dieci 4" Coax DCX 100.3 (dash):

• Woofer Size: 100 mm (4 in)
• Impedance: 4 Ohm
• Power Handling Peak: 60 W
• Power Handling Continuous: 30 W
• Frequency Response: 70 – 21k Hz
• Voice Coil Diameter: 20 mm (0.8 in)
• Magnet Size: 50 x 20 x 5 mm
• Xmech: 2.5 mm (0.10 in)
• Tweeter Size: 15 mm (0.6 in) PEI Dome

Hertz Dieci 6.5" Coax DCX 165.3 (footwell and rear):

• Woofer Size: 165 mm (6.5 in)
• Impedance: 4 Ohm
• Power Handling Peak: 120 W
• Power Handling Continuous: 60 W
• Frequency Response: 60 – 21k Hz
• Voice Coil Diameter: 25 mm (1 in)
• Magnet Size: 80 x 32 x 15 mm
• Xmech: 4.5 mm (0.18 in)
• Tweeter Size: 15 mm (0.6 in) PEI Dome

Hertz Cento 5-Channel Amplifier CP 5.1000:

• Channels: 5
• Class: D-Class
• Efficiency: 83%
• Hi Level Input: Yes
• Low Level Input: Yes
• Digital Input: No
• Power supply voltage / fuse: 11 ÷ 15 VDC
• Operating power supply voltage: 9 ÷ 18 VDC
• Idling current: 1.9 A
• Idling current when off: 4 uA
• Consumption MIN load impedance (Max Musical Power: 48 A
• Remote IN: 4 ÷ 17 VDC (1 mA)
• ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 1.5 VDC
• Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: 0.06 %
• Bandwidth A: 10Hz ÷ 47 kHz
• S/N ratio A: 101 dBA
• Adjustable Crossover: Yes

Hertz 12" Subwoofer MPS 300 S2:

• Size mm (in.): 300 (12)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 2
• Depth mm (in.): 88 (3.46)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response Hz: 25 - 400
• Magnet size D x d x h mm (in.): 156 x 60 x 36 (6.14 x 2.36 x 1.42)
• Weight of one component kg (lb.): 6,64 (14.64)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)

Hertz 10" Subwoofer MPS 250 S2:

• Size mm (in.): 250 (10)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 2
• Depth mm (in.): 82,6 (3.25)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response: Hz25 - 400
• Magnet size D x d x h mm (in.): 134 x 55 x 36 (5.28 x 2.17 x 1.42)
• Weight of one component kg (lb.): 5,11 (11.27)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)

Hertz 12" Shallow Sealed Enclosure MPBX 300 S2:

• Size mm (in.): 300 (12)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 2
• Voice Coil Ø: 38 (1.5)
• Frequency Response: Hz25 - 400
• Magnet size D x d x h mm (in.): 134 x 55 x 36 (6.28 x 2.17 x 1.42)
• Weight of one component kg (lb.): 10,8 (23.8)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20
• Depth mm (in.): 118 (4.65)
• Voice Coil Type: Single
• Dim: L 23.9" x D 15.79" x H 6.89"

• Amplifier: Hertz Cento 5-channel Amplifier CP 5.1000
• Power Kit: 4 awg power kit w/ ground and power wire terminated to the amplifier
• Amplifier Bracket: OEM integration
• PAC Module: FD31 fully prepped and mounted
• 6CH RCA's: Routed from LOC to amps
• Amp Harness: Harness full prepped, mounted to the amp bracket and ready for installation per the video
• Radio T-Harness: Fully prepped and ready for installation
• Fuse Holder: (1) 100 amp fuse
• Sub Wire: Fully prepped to amp with subwoofer connection

Front Speakers:

• Hertz Cento 4" Coax dash speaker CX 100
• Hertz Cento 6.5" Coaxial footwell speaker CPX 165

Rear Speakers:

• Rear Trail Seven 6.5" Speaker Pods fully equipped and sound treated with Hertz Cento 6.5" Coaxial footwell speaker CPX 165

Subwoofer:

• Tailgate Sub: Hertz MPS 300 S2 12" sub
• Side Enclosure: Hertz MPS 250 S2 10" sub
• Shallow Enclosure: Hertz MPBX 300 S2 12" shallow enclosure

Bass Knob:

• Hertz HRC 02 Remote
